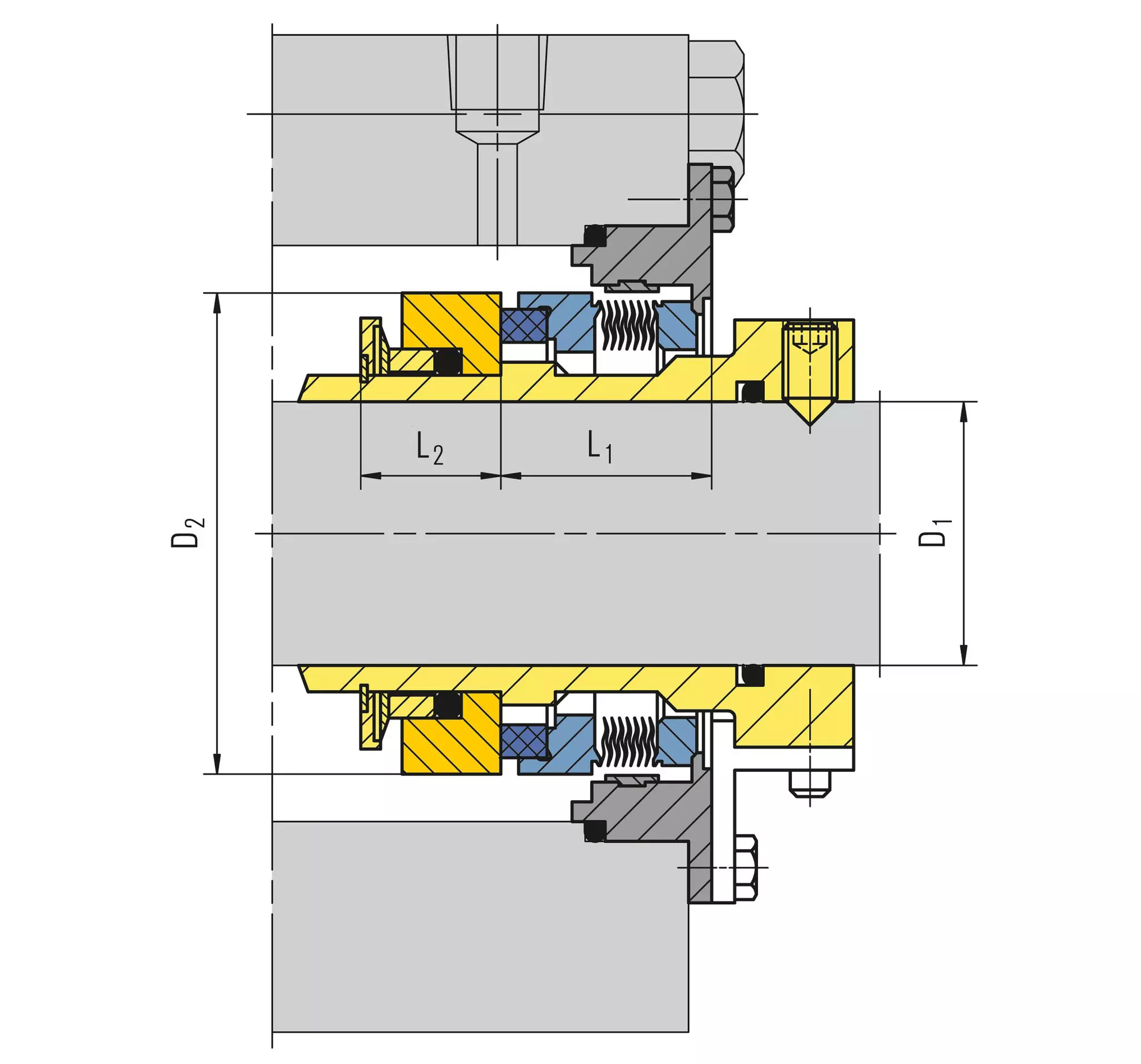

Dry running emission containment seal Y11
Shop links for mobile
Click image to enlarge
Dry running emission
containment seal Y11
Features
- Stationary bellows seal
- Uniform seal face loading
- Independent of direction of rotation
- Special carbon grade for dry running capability
- Seal with low face pressure hence less seal face heat generation
- Compact design
- Mating ring with wave spring design
- Vibration dampener for bellows
- Outboard emission containment seal used along with inboard pusher or bellows seal
Advantages
- Narrow cross-section allows the seal fitment in narrow stuffing boxes
- Excellent dry running performance
- Longer seal life as less seal face wear
- Easy to install
- Safety seal to contain fugitive emissions
Operating range
Shaft diameter:
d = 32 … 115 mm (1.25" … 4.52")
Pressure:
p = ... 20 bar (... 290 PSI)
wet dynamic containment
p = ... 31 bar (... 500 PSI)
wet and dry dynamic containment
p = ... 1 bar (... 14.5 PSI) dry dynamic
Temperature: t = ... +204 °C (... +400 °F)
Sliding velocity: vg = 25 m/s (82 ft/s)
(Consult EB for applications outside above limits).
Materials
Seal ring: Special grade carbon material
Mating ring: Silicon carbide
Secondary seals: FKM, FFKM
Bellows: AM 350
Metal parts: SS 316, other materials on request.
Recommended applications
- Process industry
- Oil and gas industry
- Refining technology
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Water and waste water technology
- Building services industry
- Food and beverage industry
- Sugar industry
- Horizontal and vertical pumps, agitators, mixers
Recommended piping plans
API Plans 75, 76
