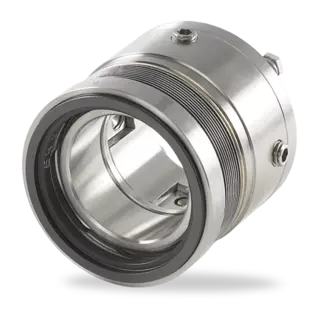

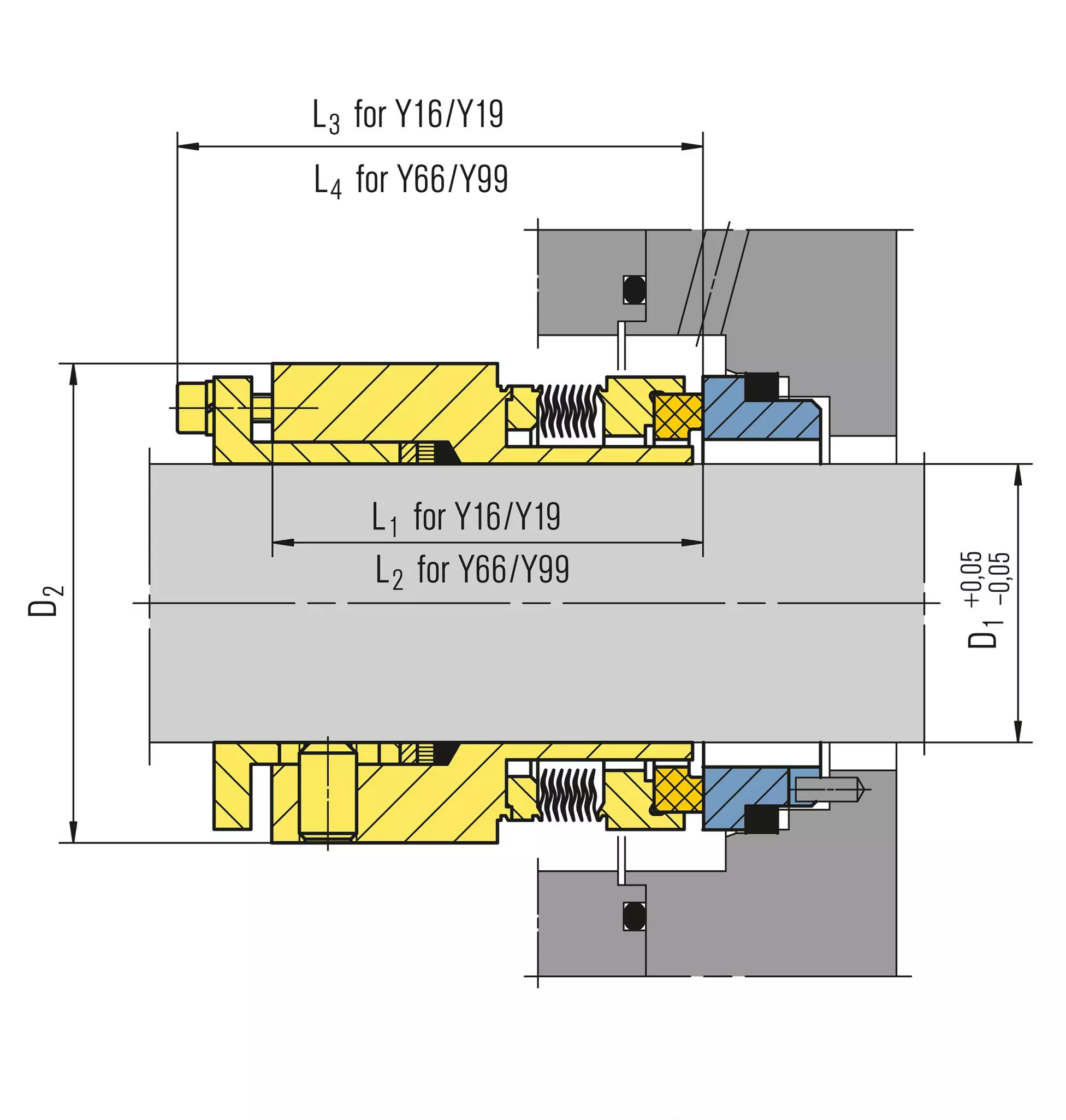

High temperature seals
Y16, Y19, Y66, Y99
Features
- Rotating bellows seal
- Balanced
- No dynamic O-Ring, no hang-up, no shaft sleeve damage
- Uniform seal face loading
- Independent of direction of rotation
- Ideally suited for highly corrosive and abrasive media
- Compact design
Advantages
- Over 35 years of running reference in the field
- Resistant to abrasive particles
- Self cleaning, non-clogging design
- Long seal life due to vibration dampeners at bellows
- Ideal seal for very low as well high temperatures
Operating range
Shaft diameter: d = 25 … 100 mm (1" ... 3.94")
Pressure:
p = vacuum to 25 bar (362 PSI) (single ply)
p = vacuum to 50 bar (1,000 PSI) (double ply)
Temperature: t = -75 °C ... +425 °C (-103 °F ... +797 °F)
Sliding velocity: vg = 25 m/s (82 ft/s)
Axial movement: ±0.8 mm
(Consult EB for applications outside above limits).
Materials
Seal ring: Carbon graphite, Silicon carbide, Tungsten carbide
Mating ring: Silicon carbide, Tungsten carbide
Bellows: AM 350
Metal parts: SS 316, other materials on request.
Recommended applications
- Process industry
- Oil and gas industry
- Refining technology
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Water and waste water technology
- Building services industry
- Food and beverage industry
- Sugar industry
- Horizontal and vertical pumps, agitators, mixers
Recommended piping plans
API Plans 01, 02, 03, 11, 12, 13, 14, 21, 22, 23, 31, 32, 41, 52, 53A, 53B, 53C, 54, 55, 61, 62, 65A, 65B, 66
