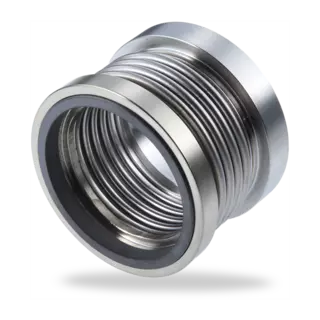

MF95N
Shop links for mobile
Click image to enlarge

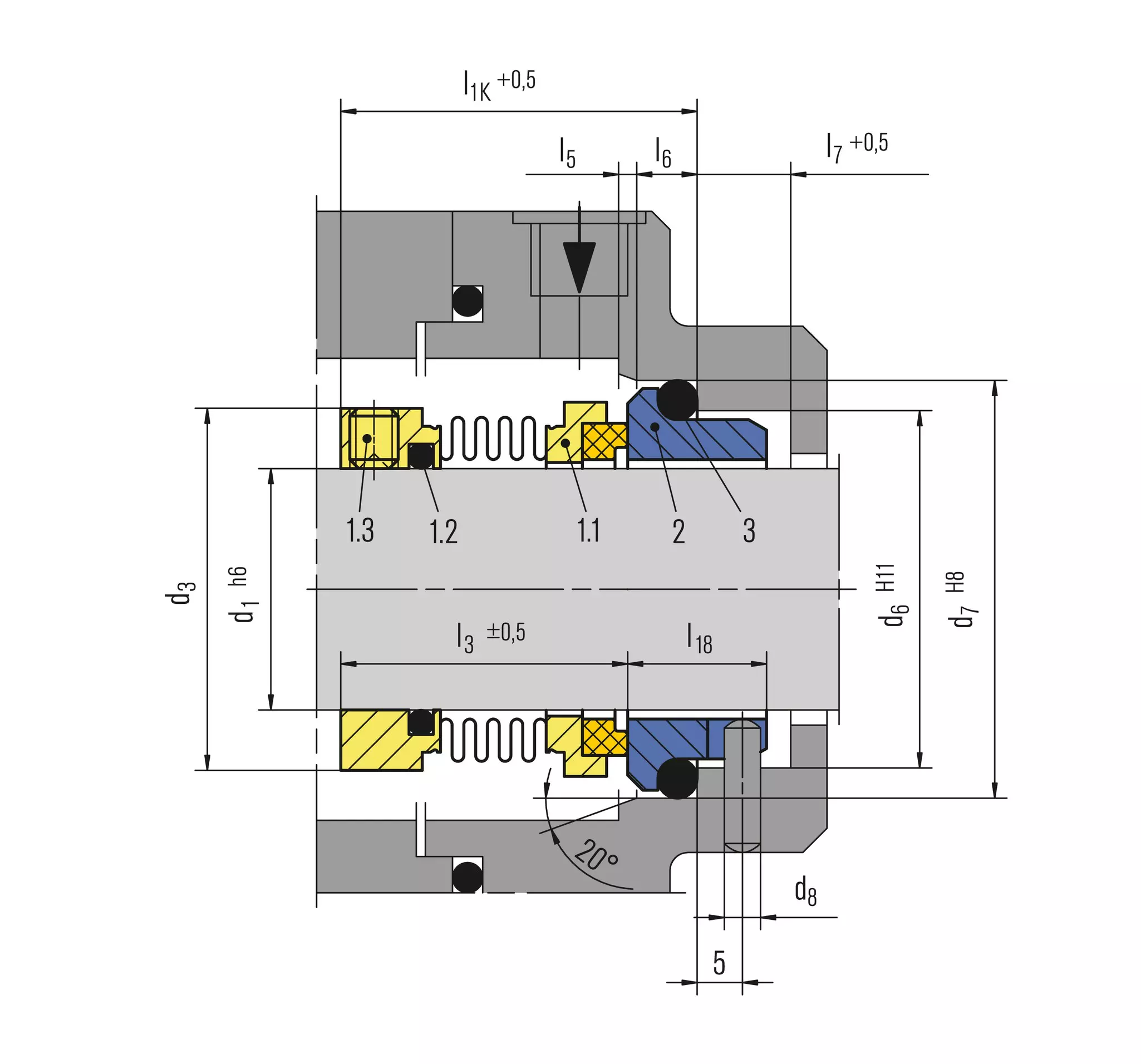

| Item | Part no.DIN 24250 | Description |
|---|---|---|
| 1.1 | 472/481 | Seal facewith bellows unit |
| 1.2 | 412.1 | O-Ring |
| 1.3 | 904 | Set screw |
| 2 | 475 | Seat (G16) |
| 3 | 412.2 | O-Ring |
MF95N
Features
- For unstepped shafts
- Rotating bellows
- Single Seal
- Balanced
- Independent of direction of rotation
- Roller bellows
Advantages
- For extreme temperature ranges
- No dynamically loaded O-Ring
- Very good self cleaning effect
- Suitable for low-end sterile applications
Operating range
Shaft diameter:
d1 = 14 ... 100 mm (0.55“ ... 3.94“)
Temperature:
t = -40 °C ...+220 °C (-40 °F ... +428 °F)
Pressure: p = 16 bar (232 PSI)
Sliding velocity: vg = 20 m/s (66 ft/s)
Axial movement: ± 0.5 mm
Materials
Seal face: Silicon carbide (Q12), Carbon graphite resin impregnated (B), Carbon graphite antimony impregnated (A)
Seat: Silicon carbide (Q1)
Bellows: Hastelloy® C-276 (M5)
Metal parts: CrNiMo steel (G1)
Standards and approvals
- EN 12756
Recommended applications
- Hot media
- Cold media
- Highly viscous media
- Process industry
- Oil and gas industry
- Refining technology
- Chemical industry
- Pharmaceutical industry
- Pulp and paper industry
- Food and beverage industry
- Pumps
- Special rotating equipment
Product variants
MF90N
Shaft diameter:
d1 = 14 ... 100 mm (0.55" ... 3.94")
Temperature:
t = -40 °C ...+220 °C (-40 °F ... +428 °F)
Internally pressurized: p = 10 bar (145 PSI),
stationary seat lock necessary.
Sliding velocity: vg = 20 m/s (66 ft/s)
Axial movement: ±0.5 mm
