MA250 / MA251

Click image to enlarge

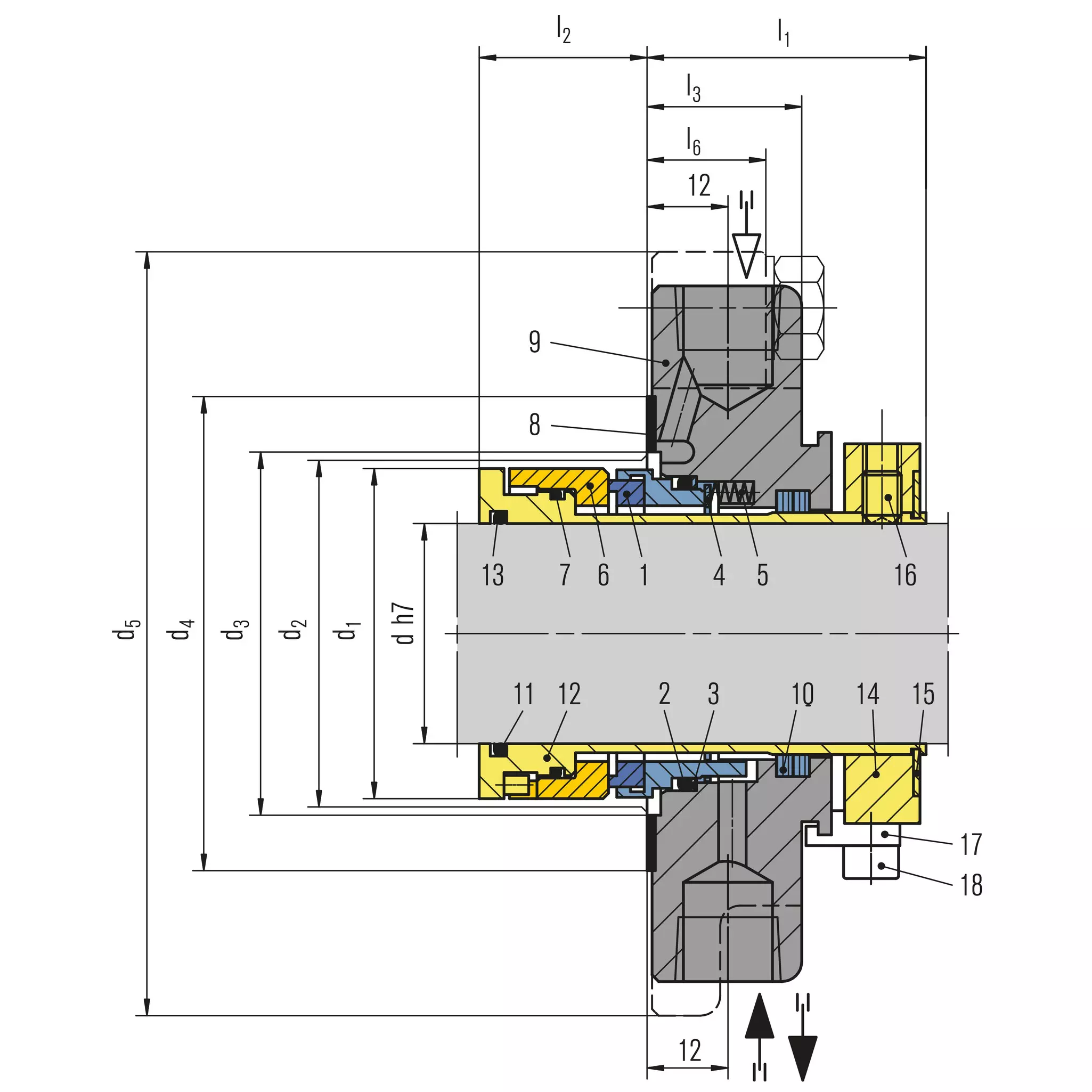

Item	Description
1	Seal face
2, 7, 11	O-Ring
3	Spacer
4	Thrust ring
5	Spring
6	Seat
8	Gasket
9	Seal cover
10	Bushing
12	Shaft sleeve
13	Pin
14	Drive collar
15	Retaining ring
16	Set screw
17	Assembly fixture
18	HSH cap screw

MA250 / MA251

PDF data sheet

Features

Cartridge design
Balanced
Independent of direction of rotation
Stationary, inside mounted type
Springs do not contact the liquid

Advantages

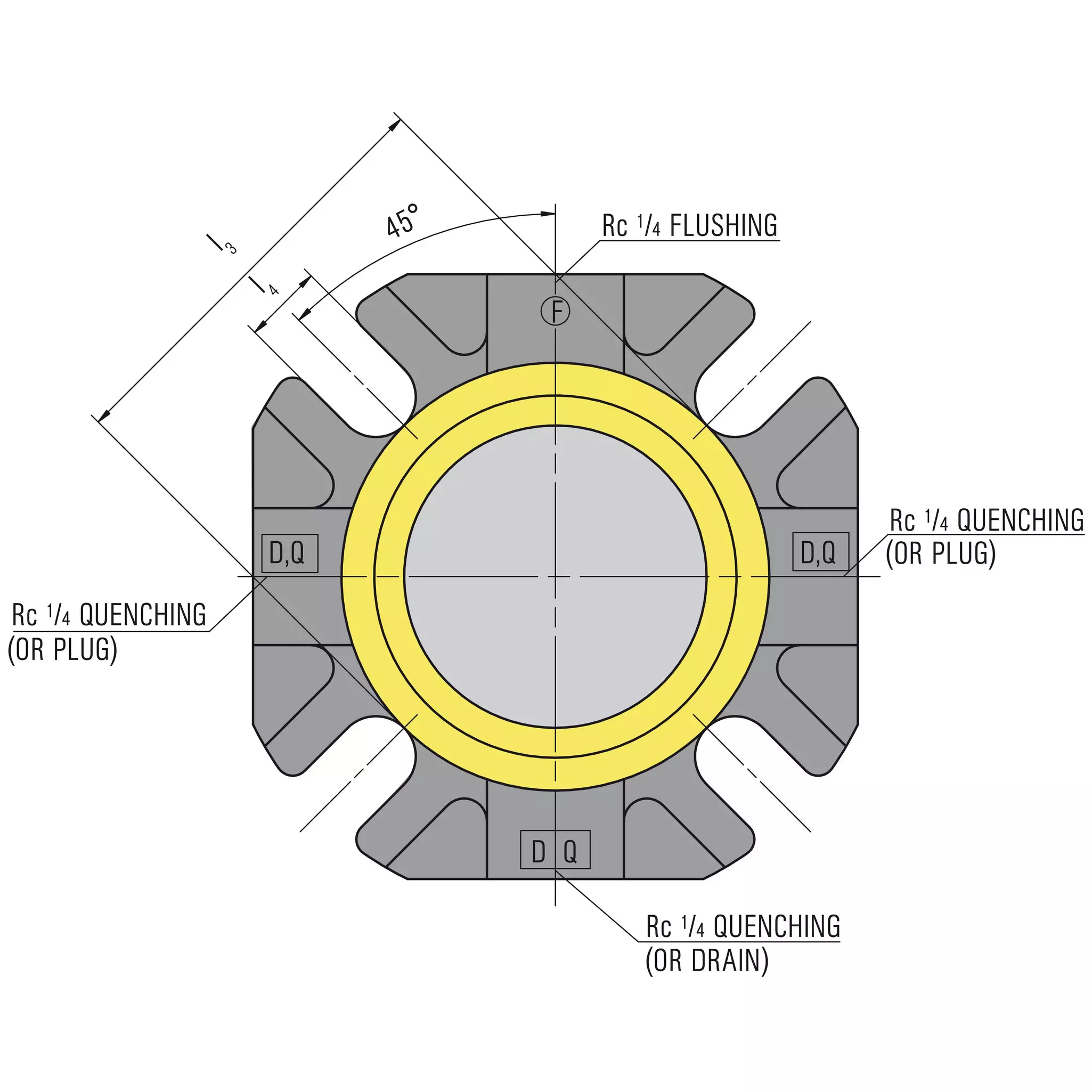

Equipped with flushing, quenching, and drainports as standard
PTFE backup ring as standard

Operating range

MA250:
Pressure: p = 0 … 16 bar (232 PSI)
Temperature:
t = -20 °C … 160 °C (-4 °F … 320 °F) (oil),
0 °C … 60 °C (32 °F … 140 °F) (water)
Sliding velocity: vg = 20 m/s (66 ft/s)
Viscosity: … 0.5 Pa·s
Solids content: … 0.3 %

MA251:
Pressure: p = 0 … 16 bar (232 PSI)
Temperature:
t = -20 °C … 160 °C (-4 °F … 320 °F) (oil),
0 °C … 60 °C (32 °F … 140 °F) (water)
Sliding velocity: vg = 20 m/s (66 ft/s)
Viscosity: … 1 Pa·s
Solids content: … 7 %

Materials

Seal face (MA250): High density carbon graphite
Seal face (MA251): Silicon carbide (Q1)
Seat (MA250/MA251): Silicon carbide (Q1)
Metal parts: CrNiMo steel (G)
Secondary seals: FKM (V)

Recommended applications

Acids
Alkaline solutions
Salt solutions
Low viscosity oils
Monomers
Hydrocarbons
Water
Seawater
Process industry
Refining technology
Petrochemical industry
Chemical industry
Pharmaceutical industry
Power plant technology
Pulp and paper industry
Water and waste water technology
Food and beverage industry
Metal production and processing

Similar products

Cartex
Dual seals

Dual seal
Cartridge
Balanced
Independent of direction of rotation
Double pressure balanced
Integrated pumping device
Variants available: for eccentric screw pumps (-Vario) and gas-lubricated version (-GSDN)

Cartex
Single seals

Single seal
Cartridge
Balanced
Independent of direction of rotation
Single seals without connections (-SNO), with flush (-SN) and with quench combined with lip seal (-QN) or throttle ring (-TN)
Additional variants available for ANSI pumps (e.g. -ABPN) and eccentric screw pumps (-Vario)

Cartex ANSI
Dual seals

Dual seal
Available for standard (Cartex-ASDN) and big bore (Cartex-ABDN) seal chambers
Cartridge
Balanced
Independent of direction of rotation
Double pressure balanced
Integrated pumping device

Back to overview

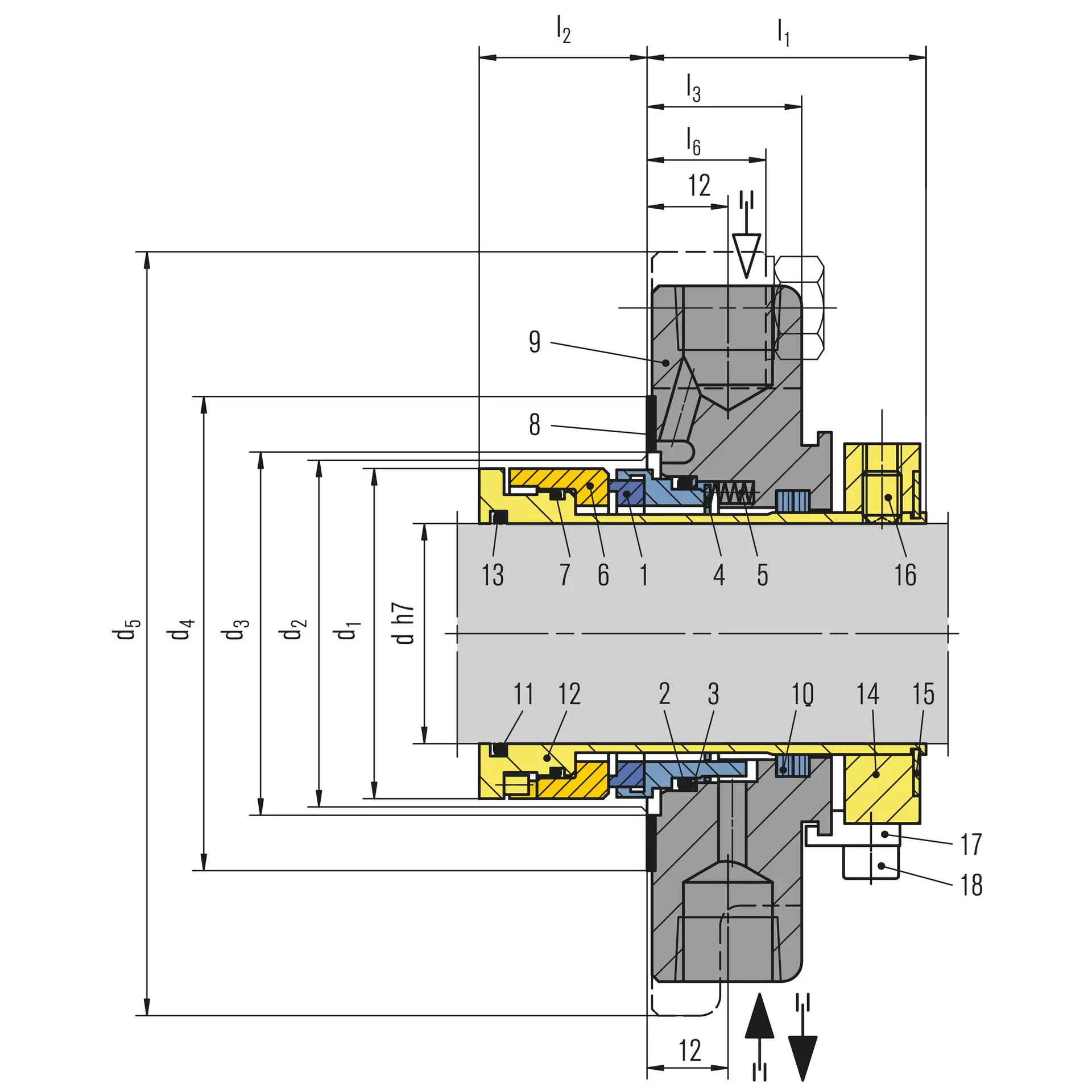

d	d1	d~2 min.~	d~2 max.~	d₃	d₄	d₅	l₁	l₂	l₃	l₄	l₅	l₆
20	34	36	51	38	58	104	40	25	23	60	12	18
25	39	41	51	43	58	104	40	25	23	60	12	18
30	44	46	56	48	63	108	40	27	23	65	12	18
35	49	51	66	53	73	118	40	27	23	75	14	16
40	56	58	66	60	73	118	40	27	23	75	14	16
45	61	63	71	65	78	128	40	27	23	80	14	16
50	68	70	81	72	88	138	40	27	23	90	14	16
55	73	75	81	77	88	138	40	27	23	90	14	16
60	78	80	96	82	103	164	43	31	23	105	18	14
65	84	86	96	88	103	164	43	31	23	105	18	14
70	90	92	102	94	109	178	43	31	23	111	18	14
75	99	102	114	104	121	193	45	31	23	123	18	14
80	104	107	114	109	121	193	45	31	23	123	18	14
85	109	112	124	114	131	208	45	31	23	133	20	13
90	114	117	124	119	131	208	45	31	23	133	20	13
95	119	122	134	124	141	218	45	31	23	143	20	13
100	124	127	134	129	141	218	45	31	23	143	20	13

Dimensions in Millimeter
