WEL1000
Features
Heat exchangers of the WEL1000 range are used to cool process/barrier fluids in seal supply circuits. The heat exchangers are made of straight, laser-welded finned tubes. The cooling medium is ambient air. It is important, therefore, for WEL heat exchangers to be installed in well ventilated places indoors or, ideally, outdoors. There is a choice of two different basic versions of the WEL1000 range (1 or 2 tubes), supplied fully assembled along with valves, base frame and other system components.
Circulation in accordance with API 682 / ISO 21049: Plan 21, Plan 22, Plan 23, Plan 41
Advantages
- Welded finned tubes without gaps for guaranteed optimum energy transmission
- Universal usage: high-quality 1.4571 stainless steel finned tube design
- No cooling water connection or heating required for the cooling water pipe in winter
- There is a choice of two different basic versions
Standards and approvals
- PED 2014/68/EU (Design and production in accordance with EU Pressure EquipmentDirective)
- ASME VIII, Div. 1 (Calculation)
Recommended applications
- Chemical industry
- Petrochemical industry
- Oil and gas industry
- Refining technology
- Power plant technology
Notes
WEL heat exchangers should be installed in well ventilated places indoors or, ideally, outdoors. Vertical installation is essential.

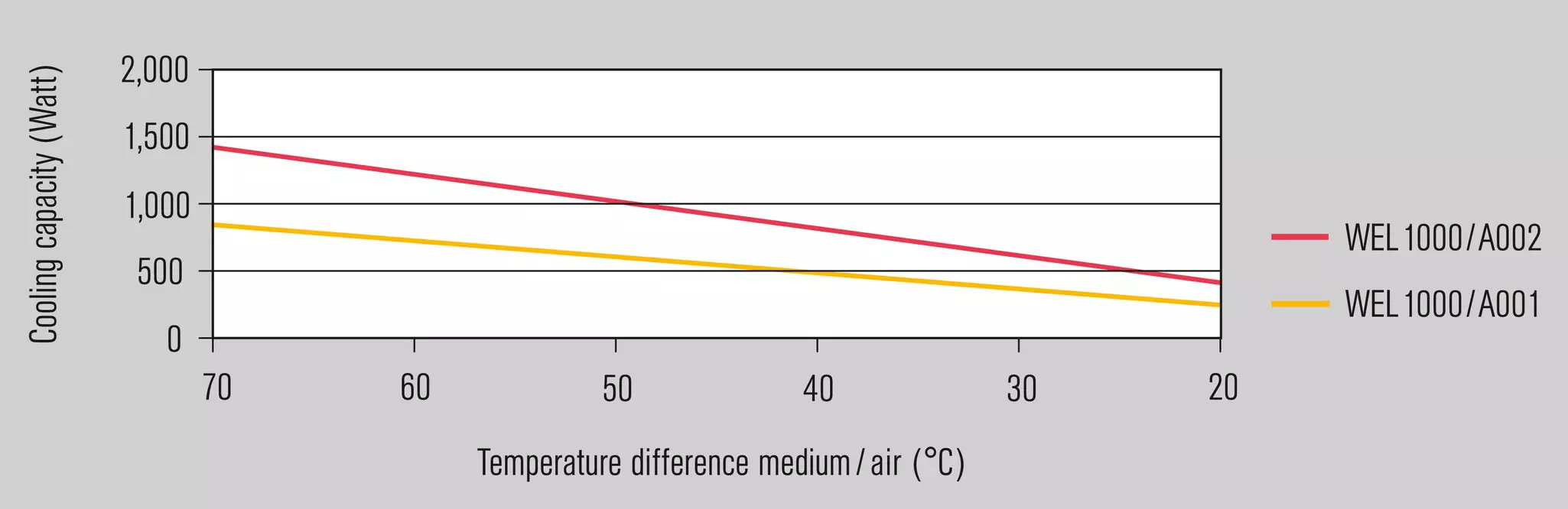

Product variants
| Designation | WEL1000/A001 | WEL1000/A002 |
|---|---|---|
| Design code | PED 2014/68/EU | PED 2014/68/EU |
| Number of finned tubes | 1 | 2 |
| Process connections | G1/2" | G1/2" |
| Allowable pressure1) | 110 bar (1.595 PSI) | 110 bar (1.595 PSI) |
| Allowable temperature1) | 200 °C (392 °F) | 200 °C (392 °F) |
| Volume (liters) | 0.7 | 1.4 |
| Parts in contact with the medium | 1.4571 | 1.4571 |
Other versions on request.
1) These values are based on the calculation of strength.
