WEL1
Features

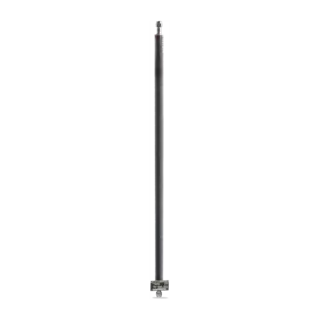

Heat exchangers of the WEL1000 range are used to cool process/barrier fluids in seal supply circuits. The heat exchangers are made of straight, laser-welded finned tubes. The cooling medium is ambient air. It is important, therefore, for WEL heat exchangers to be installed in well ventilated places indoors or, ideally, outdoors. There is a choice of two different basic versions of the WEL1000 range (1 or 2 tubes), supplied fully assembled along with valves, base frame and other system components.
Circulation in accordance with API 682 / ISO 21049: Plan 21, Plan 22, Plan 23, Plan 41
Advantages
- Welded finned tubes without gaps for guaranteed optimum energy transmission
- Universal usage: high-quality 1.4571 stainless steel finned tube design
- No cooling water connection or heating required for the cooling water pipe in winter
- There is a choice of two different basic versions
Standards and approvals
- PED 2014/68/EU (Design and production in accordance with EU Pressure EquipmentDirective)
- ASME VIII, Div. 1 (Calculation)
Recommended applications
- Chemical industry
- Petrochemical industry
- Oil and gas industry
- Refining technology
- Power plant technology
Notes
WEL heat exchangers should be installed in well ventilated places indoors or, ideally, outdoors. Vertical installation is essential.
Product variants
| **** | WEL1 | WEL1 |
|---|---|---|
| Cooler design | 1 finned tube, straight | 2 finned tubes, straight |
| Conformity | ||
| Design code | PED2014/68/EU | PED2014/68/EU |
| Weight (empty) | 5 kg | 14 kg |
| Process fluid | ||
| Process connections1) | G 1/2" (female) | G 1/2" (female) |
| Drain / vent connection1) | ||
| Design pressure1) | 110 bar (g) | 110 bar (g) |
| Design temperature1) | 200 °C | 200 °C |
| Material (metal parts)1) | 14.571 | 14.571 |

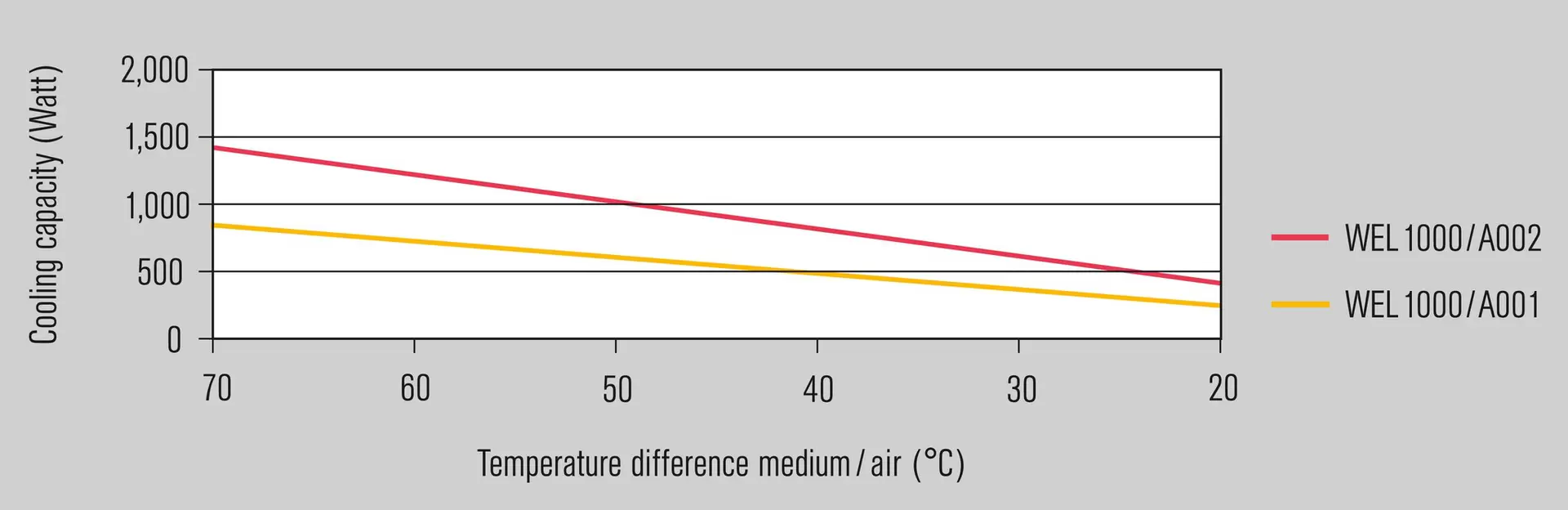

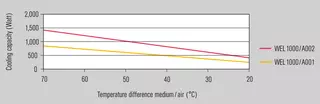

| Cooling capacity depending on process fluid | (low flow2) / high flow3)) | (low flow2) / high flow3)) |
| Water | 0,2 kW / 0,5 kW | 0,6 kW / 0,8 kW |
| Oil ISO VG10 | 0,17 kW / 0,3 kW | 0,5 kW / 0,6 kW |
¹⁾ further versions available upon request (e.g. operating conditions, flange connection 1500 lbs, duplex material, etc.)
²) Low Flow: 8 l/min (process fluid), 0.7 m/s (Wind speed), ΔT = 40 K ( Tfluid - Tambient)
3) High Flow: 15 l/min (process fluid), 1.0 m/s (Wind speed), ΔT = 40 K ( Tfluid - Tambient)
