Packings for pumps

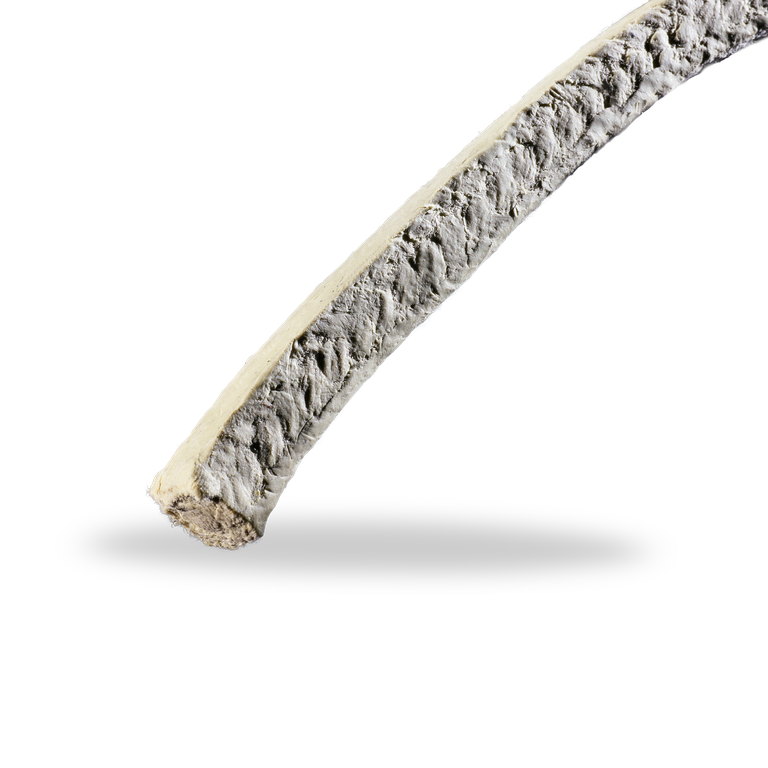

Araflon 6426 is a packing made from high quality, smooth, synthetic and partly pre-impregnated continuous aramid fibers (Kevlar) with multiple applications of PTFE impregnating agent and lubricant additive. The aramid fibers are diagonally braided. This is a high quality and high strength packing. It is used, in particular, in the chemical, petrochemical, waste water and paper industries.

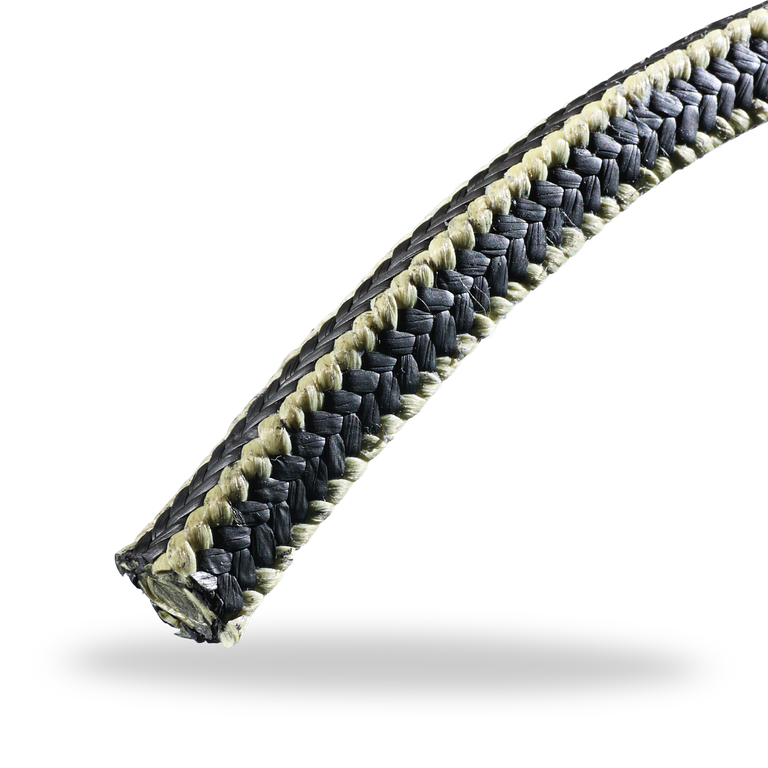

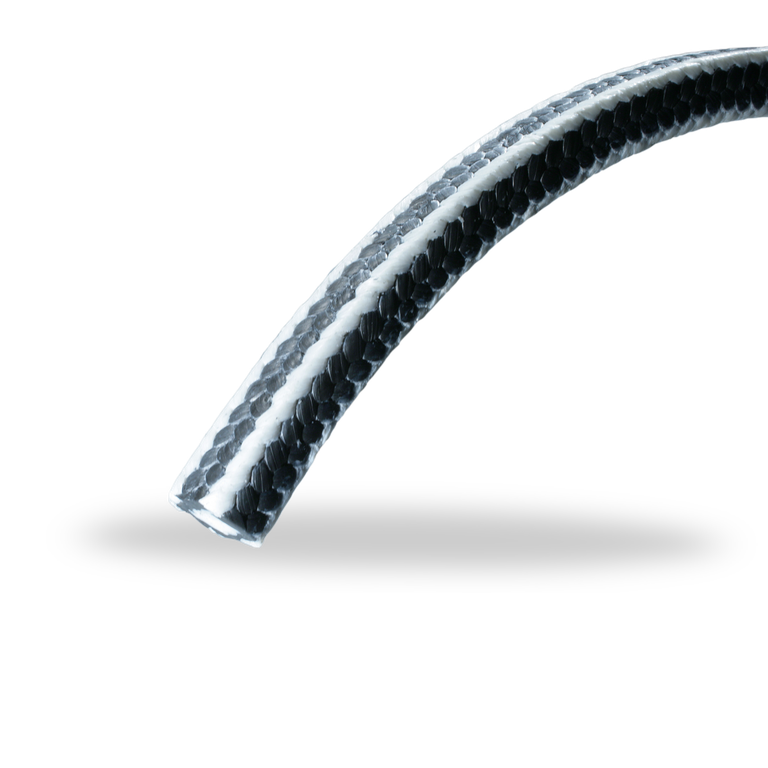

Buraflex HT 2000/HT is a packing made from expanded graphite combined with Nomex yarn corners. The Buraflex HT is a special packing for applications with high temperatures and peripheral speeds.

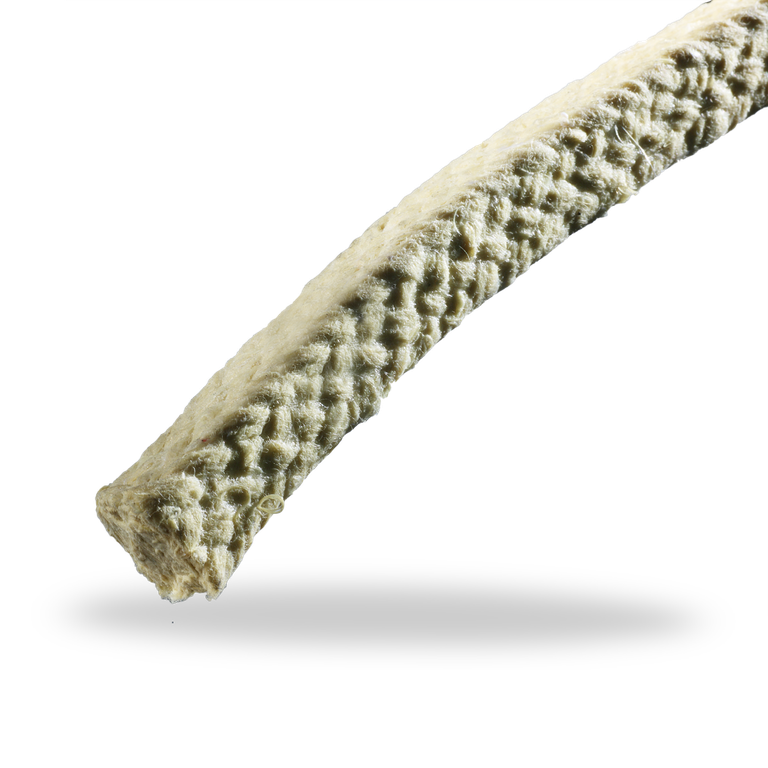

Buraflon 5846 is a diagonally braided, silicone oil-free ramie fiber packing with a light-colored special PTFE impregnating agent based on paraffin wax and oil. This special combination will prevent product contamination. The packing is preferred for use in marine applications, the brewing and drinks industry and the pharmaceutical industry. It is a flexible, maintenance-friendly and easy to adjust packing that is gentle on shaft surfaces.

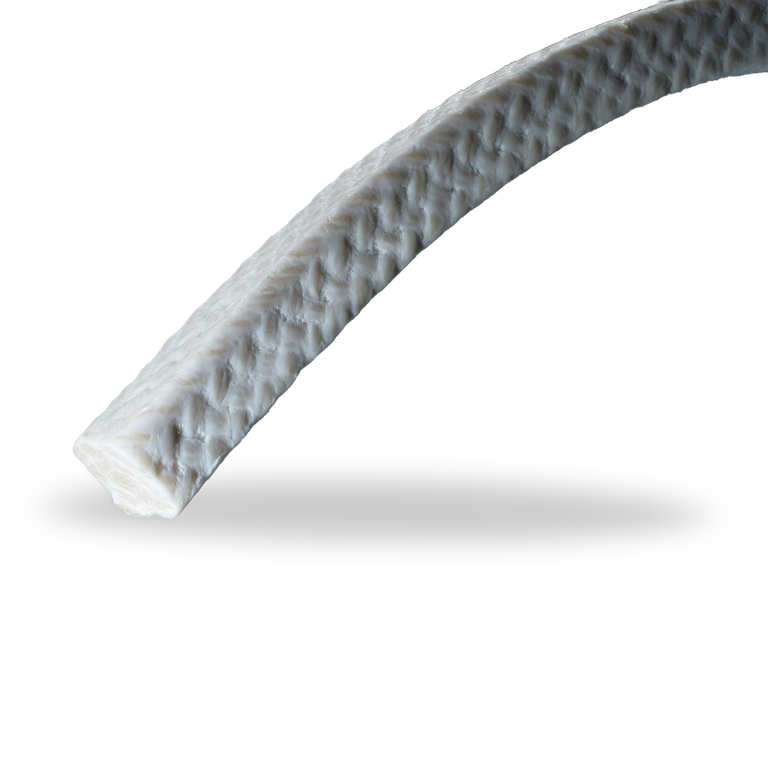

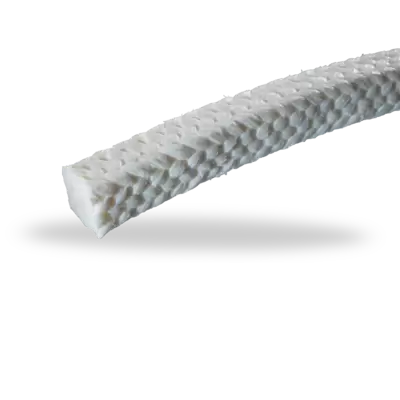

Buramex SF 6335 is a Nomex packing (100% white, elastic synthetic fibers) based on aramid with silicone oil-free lubricant. When it is manufactured, the synthetic fibers are compactly and diagonally braided. The packing is preferred for use in the cellulose, paper, food and sugar industries, in breweries, in waste water technology or when treating water in power stations, for cooling water, abrasive river water and in turbine oil circuits.

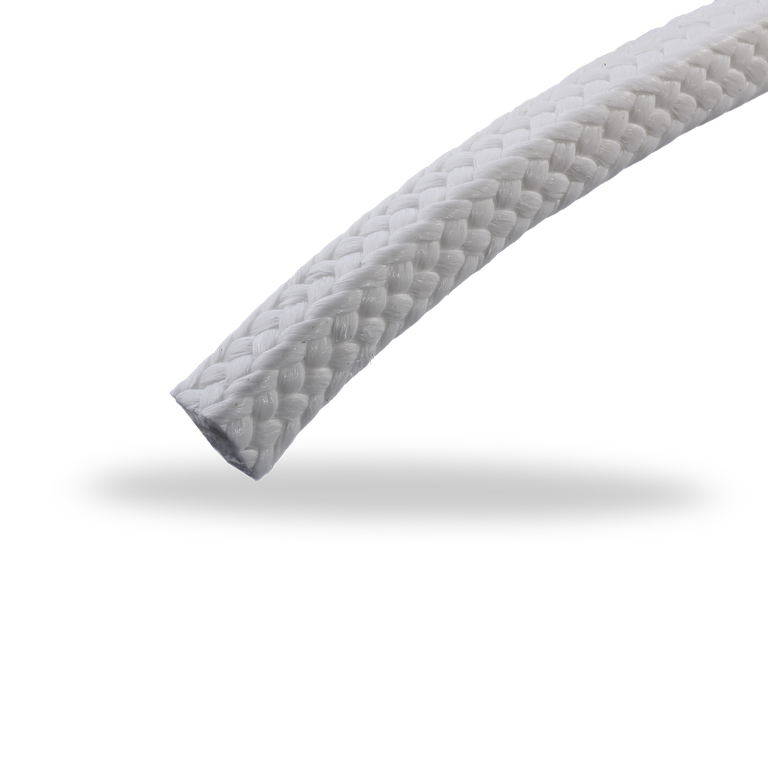

Burasoft 6225/L is a diagonally braided silicone oil-free PTFE packing with lubricant. The packing can be used universally in the chemical, pharmaceutical and food industries.

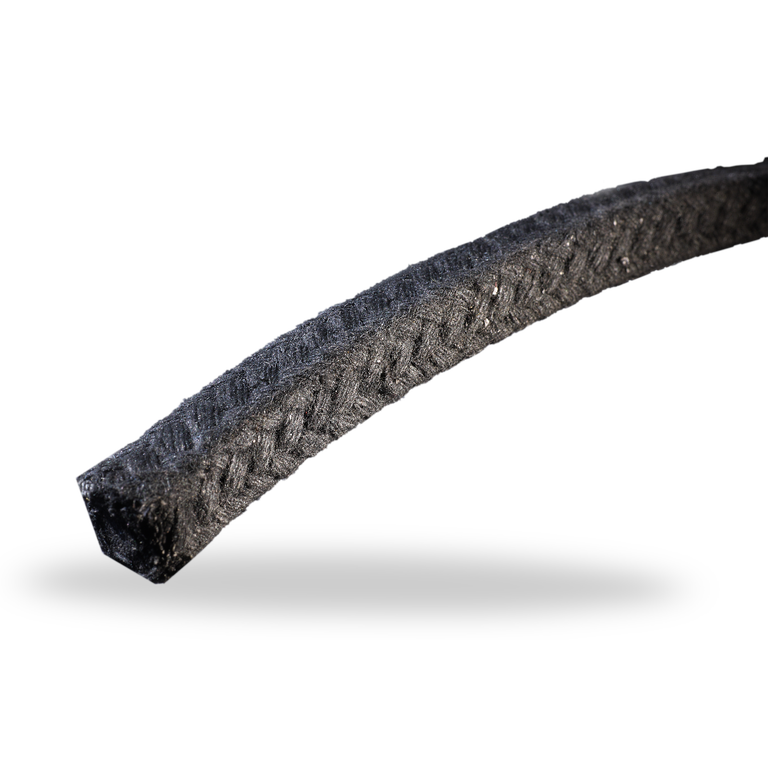

Buratex B 4001 is a flexible cotton packing impregnated with black grease and graphite to improve the thermal conductivity. When it is manufactured, particularly tear-resistant cotton threads are pre-impregnated and twisted. At the next diagonal braiding step, the packing undergoes an additional intensive impregnating and graphiting stage.

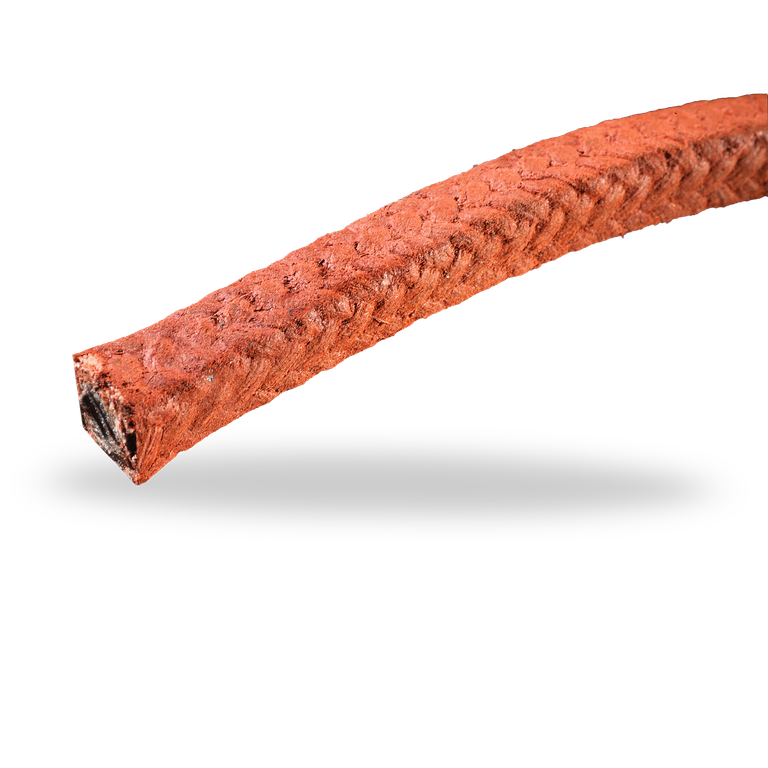

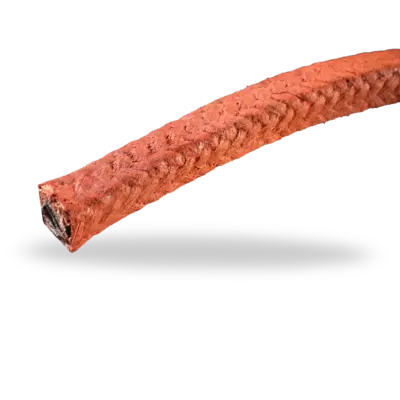

Buratex B 4002 is a flexible cotton packing impregnated with a special sea water-resistant impregnating agent, which makes it THE packing for marine applications. When it is manufactured, particularly tear-resistant cotton threads are pre-impregnated and twisted. At the next diagonal braiding step, the packing is further treated with a sea water-resistant and reddyed impregnating agent.

Buratex B 4003 is a flexible cotton packing impregnated with a special light-colored grease impregnating agent. It is preferred for pure, liquid media and clean applications. When it is manufactured, particularly tear-resistant cotton threads are pre-impregnated and twisted. At the next diagonal braiding step, the packing undergoes an additional intensive impregnating stage.

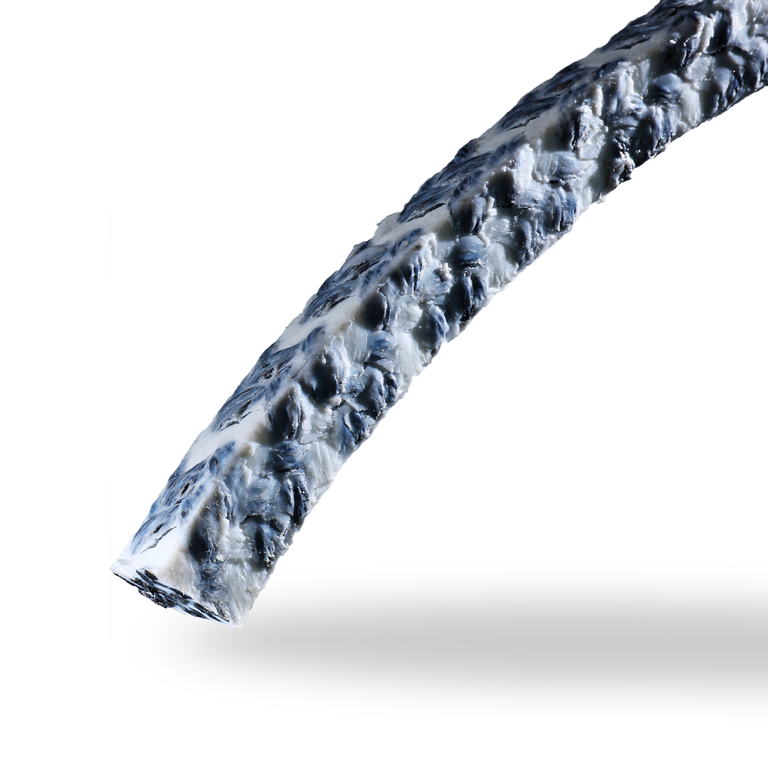

Kombipack 6065 is a packing made from an especially elastic combination of high quality carbon and PTFE yarns, diagonally brad with a special PTFE compound and impregnated with running-in lubricant. The packing is especially able to absorb shaft misalignment and radial stresses, for example in the chemical, paper and food industries.

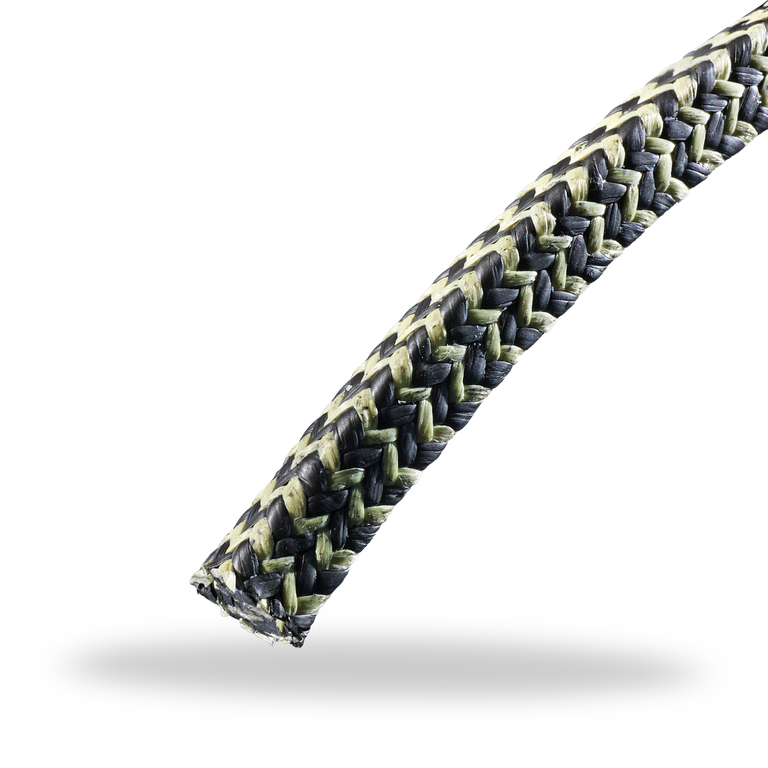

Spezial-Kombi K1 6430/K1 is a diagonally braided packing made from graphite-incorporated PTFE combined with reinforcing corners of aramid yarn to prevent gap extrusion in high pressure and temperature ranges. The Spezial-Kombi K1 is a special packing for applications at high pressures with oscillating movements at the same time.

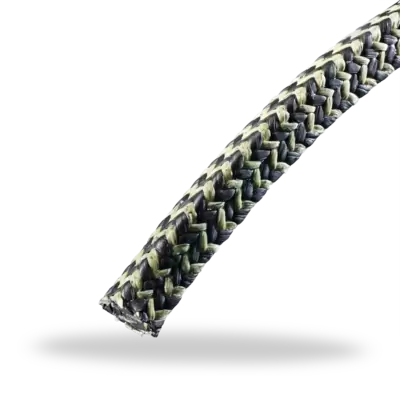

Spezial-Kombi K2 6430/K2 is a diagonally braided packing made from graphite-incorporated PTFE combined with a running surface reinforcement of endless aramid fibers (Kevlar).
The Spezial-Kombi K2 is a special packing for applications with high pressures and sliding velocities.

Supraflon 6435 is a packing made from aramid staple fibers with silicone oil-free universal lubricant and PTFE impregnating agent. The aramid fibers are diagonally braided. It is used, in particular, in the paper and chemical industries, and in power stations.

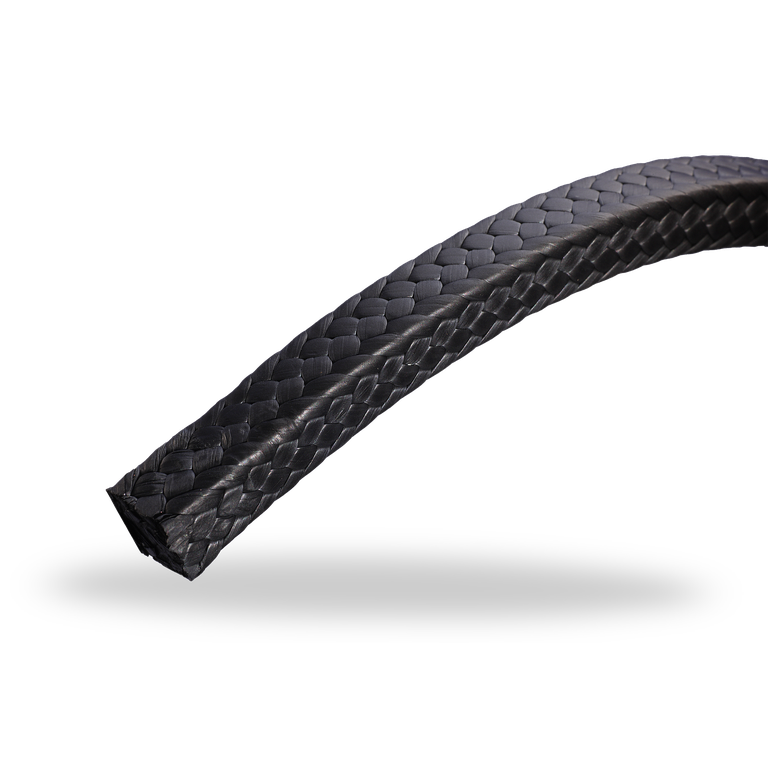

Thermoflon 6230 is a diagonally braided packing made from 100% genuine GFO (graphiteincorporated PTFE yarn). With its universal structure, the packing is used in almost every branch of industry.

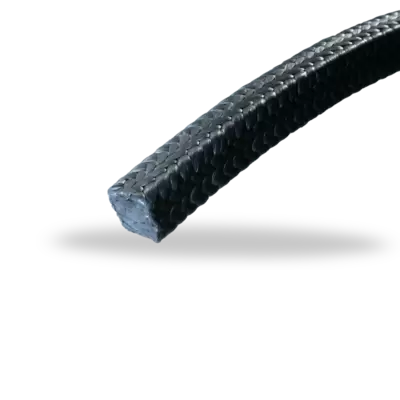

Thermoflon SL 6230/SL is a diagonally braided packing made from graphite-incorporated PTFE yarn with additional lubricant. With its universal structure, the packing is used in almost every branch of industry.
