Split seals
Splitex

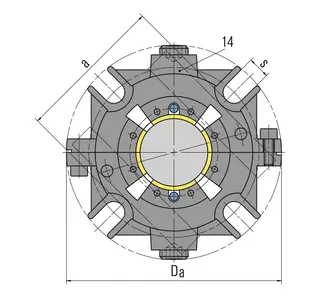

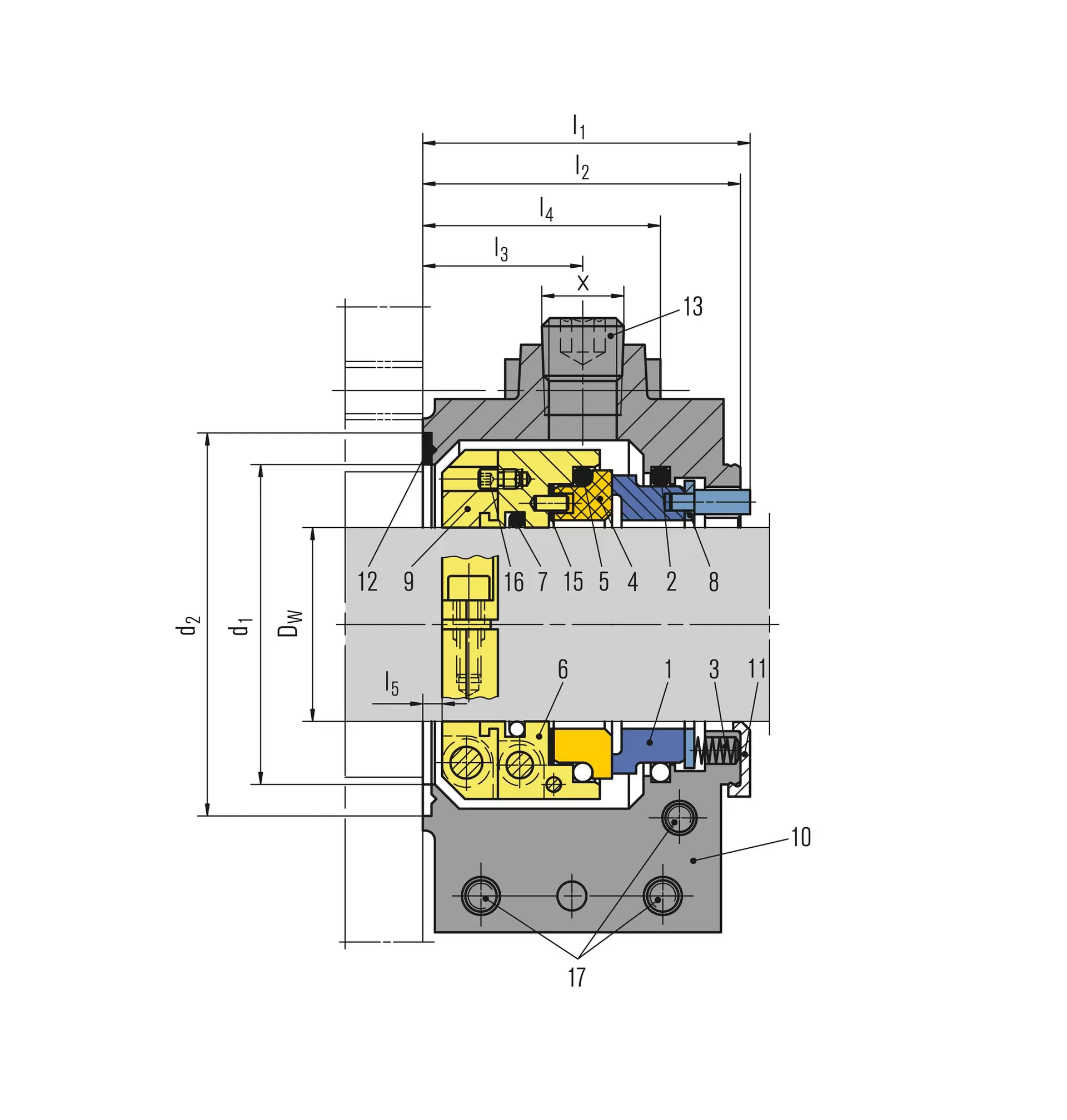

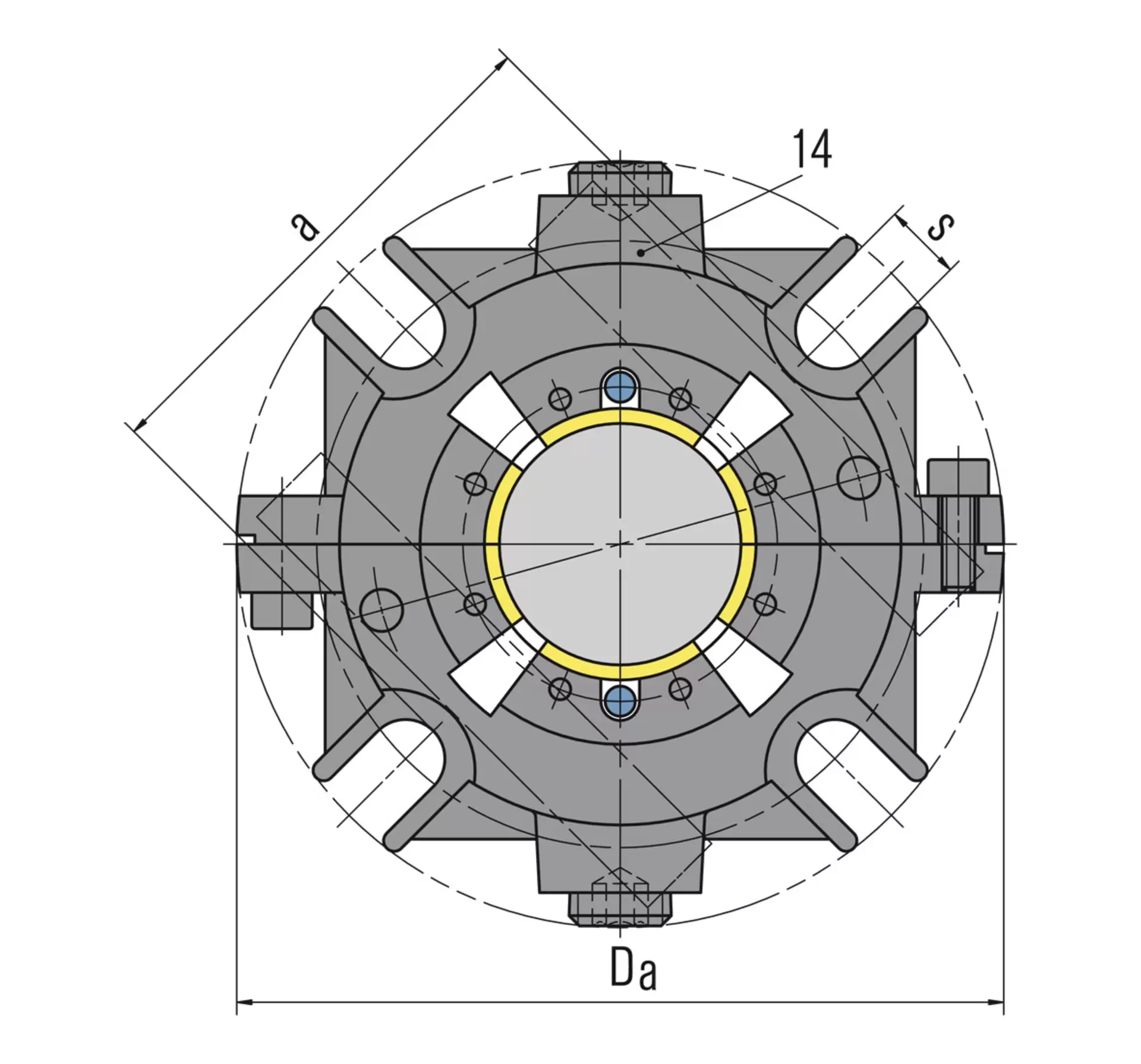

| Item | Description |
| 1 | Seal face |
| 2, 5, 7 | O-Ring |
| 3 | Spring |
| 4 | Seat |
| 6 | Driver |
| 8 | Thrust ring |
| 9 | Clamp collar |
| 10 | Housing |
| 11 | Assembly fixture |
| 12, 15 | Gasket |
| 13 | Head screw plug |
| 14 | Mounting plate |
| 16 | Set screw |
| 17 | Socket head screw |

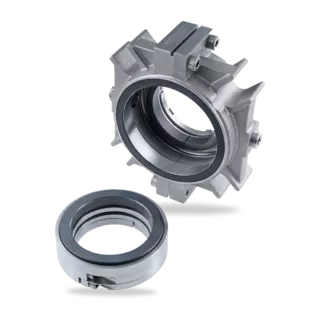

Splitex
Features
- Fully split single seal, 2 x 2 segments, pre-assembled
- Semi-cartridge
- Balanced
- Stationary springs
- Bi-directional
- External pressurization
- Built-in flushing connections
- Installation and wear control
Advantages
- Reduced repair and downtime: 2 x 2 pre-assembled design speeds up and simplifies installation installation because pump does not have to be disassembled.
- Long service life: precise pre-alignment because of pre-assembled segments. Stationary springs which are protected from the product prevent clogging.
- Greater flexibility during installation: no modification necessary because the seal is located outside of the stuffing box.
- Shaft protection: uniform torque transmission via clamping ring prevents damage caused by set screws.
- Dependable operation: mechanical decoupling of clamping ring (torque transmission) avoids distortion of the seat.
- Simple monitoring of the seal during operation because of mechanical wear indicator on the seal face.
- Low leakage: elimination of secondary seals eliminates leakage paths between split components.
- High tolerance to shaft deflections ensured by stationary design and elastic seat mounting (gasket).
Operating range
Shaft diameter:
d1 = 50 … 150 mm (1.940" … 6.000")
Pressure: p1 = 10 bar (145 PSI)
Temperature:
t = -40 ... +150 °C (- 40 … + 300 °F),
above 80 °C (175 °F) flush is recommended
Sliding velocity: vg = 10 m/s (33 ft/s)
Axial movement: ±1.5 mm (1/16")
Radial movement: ±0.8 mm (1/32")
d1 = 50 … 150 mm (1.940" … 6.000")
Pressure: p1 = 10 bar (145 PSI)
Temperature:
t = -40 ... +150 °C (- 40 … + 300 °F),
above 80 °C (175 °F) flush is recommended
Sliding velocity: vg = 10 m/s (33 ft/s)
Axial movement: ±1.5 mm (1/16")
Radial movement: ±0.8 mm (1/32")
Materials
Seal face: Carbon graphite antimoniny impregnated (A), Silicon carbide (Q6)
Seat: Silicon carbide (Q6)
Secondary seals: FKM (V), EPDM (E), NBR (P)
Springs: CrNiMo steel (G)
Metal parts: CrNiMo steel (G)
Seat: Silicon carbide (Q6)
Secondary seals: FKM (V), EPDM (E), NBR (P)
Springs: CrNiMo steel (G)
Metal parts: CrNiMo steel (G)
Recommended applications
- Process industry
- Petrochemical industry
- Chemical industry
- Power plant technology
- Pulp and paper industry
- Centrifugal pumps
- Agitators
- Displacement pumps
- Conveying pulp with stock pumps
- Conveying timber to refiners with pumping screws
- Circulation of pulp-and-water mixtures in storage vessels
- Pump stations for waste water treatment
- Cooling water pumps for energy generation
Similar products
HGH201
- For plain shafts (HGH201)
- Semi split single seal
- Multiple springs rotating
- Balanced
- Independent of direction of rotation
- Unsplit as original equipment (HGH200)
- Cartridge available (based on HGH210)
- Variant for stepped shafts available (HGH211)
- Splitted seal parts:
sliding faces and O-rings
