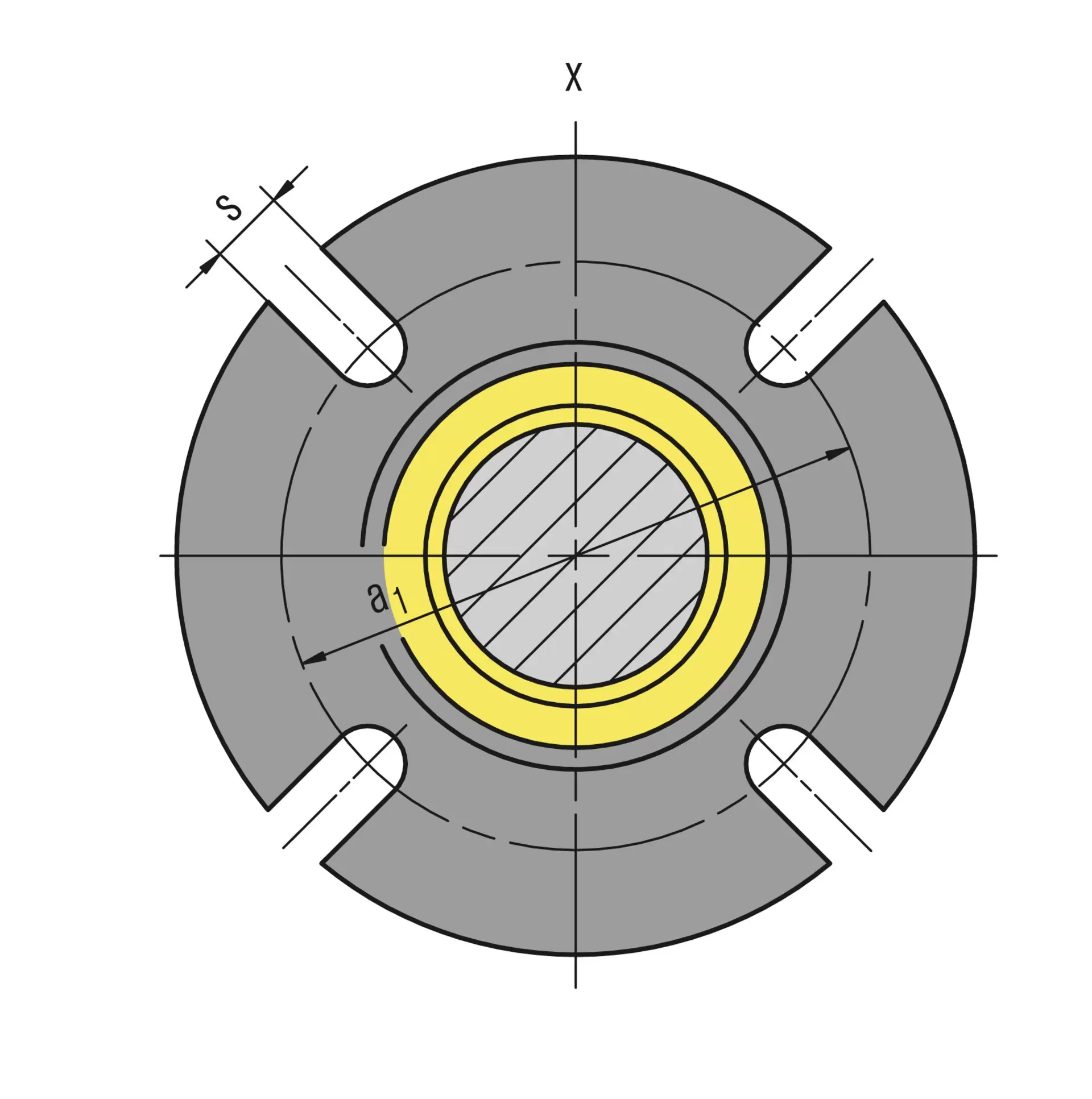

Click image to enlarge

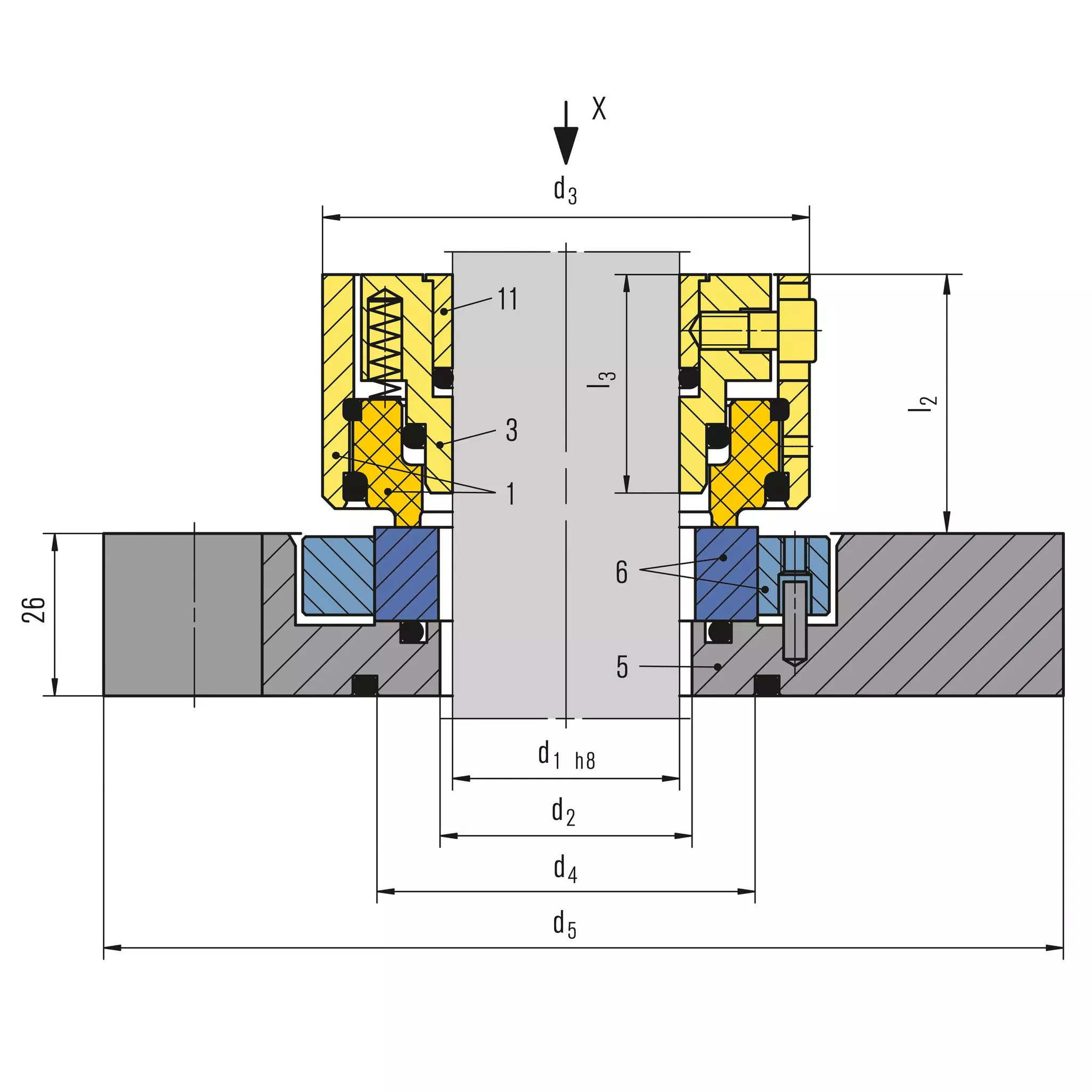

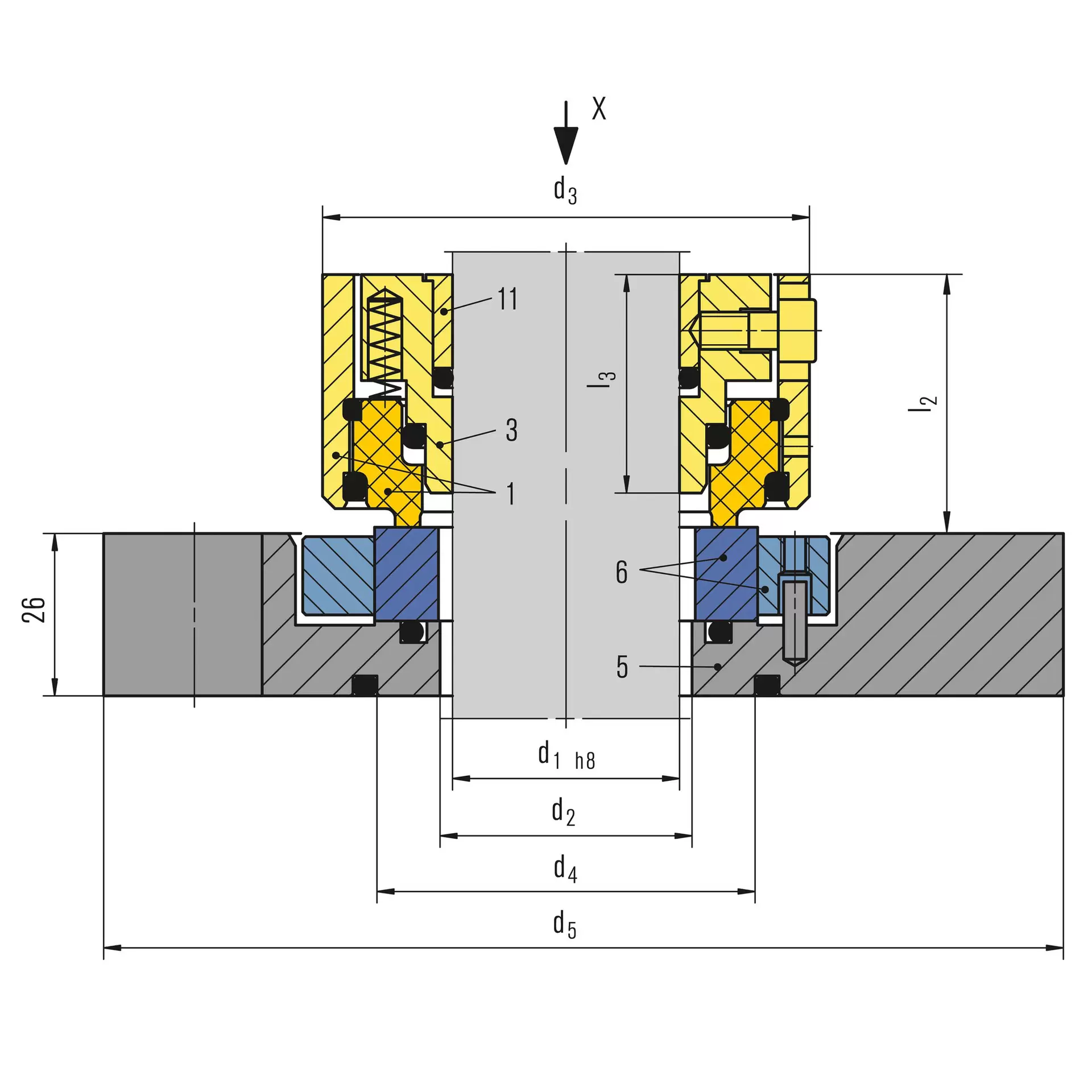

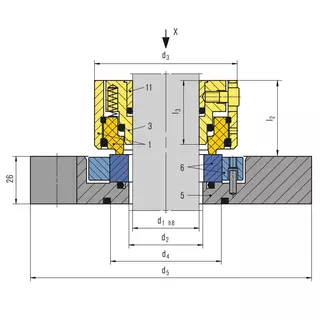

| Item | Description |
|---|---|
| 1 | Seal face with seal face housing |
| 3 | Drive collar |
| 5 | Flange |
| 6 | Seat with seat housing |
| 11 | Clamping ring |

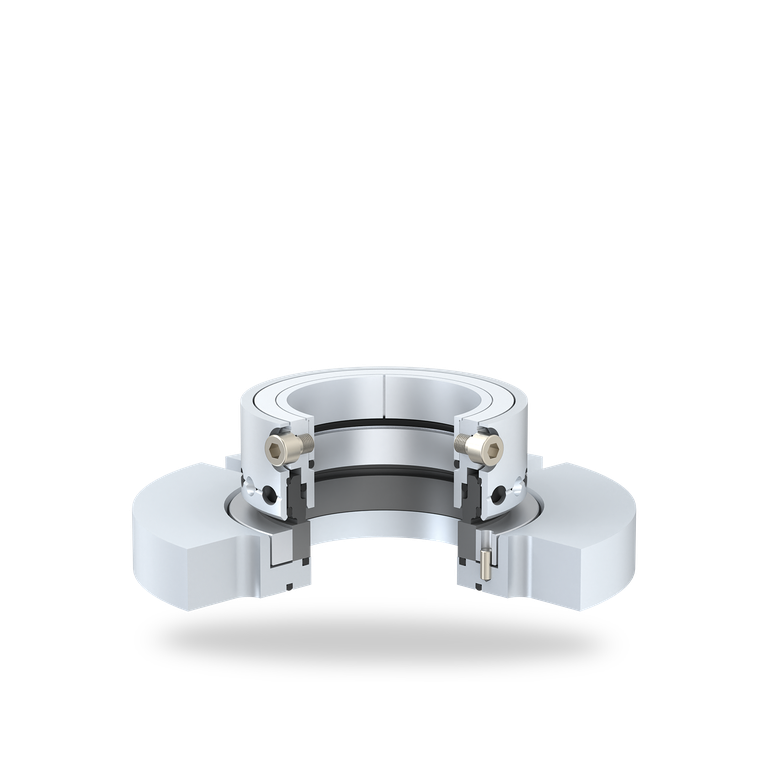

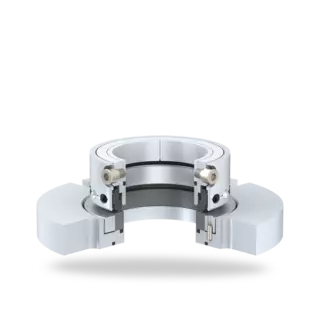

SeccoMix 1
Features
- For top entry drives,
on request side drive possible - Dry-running
- Single seal
- Balanced
- Outboard mounted
- Multiple springs rotating
- Independent of direction of rotation
Advantages
- Available as semi-cartridge
with or without basic flange - Suitable for vacuum operation
- Friction-locked connection to the shaft
- ATEX certification available on request
- Inherently safe, even without temperature monitoring
Operating range
Shaft diameter:
d1 = 25 ... 220 mm (0,98" ... 8,66")
Pressure: p1 = vacuum ... 6 bar (87 PSI)
Temperature:
t1 = -20 °C ... +200 (250*) °C
(-4 °F ... 392 (482*) °F)
Sliding velocity: vg = 0 ... 2 m/s (0 ... 6 ft/s)
Axial movement: ±1.5 mm
Radial movement: ±1.5 mm
For applications beyond this range, please inquire.
* with cooling flange
! It should be noted that the extremal values of each operating parameter cannot be applied at the same time because of their interaction.
Materials
Seal face: Carbon graphite, FDA conform
Seat: Silicon carbide
Secondary seals and metal parts according to application and customer's specifications.
Standards and approvals
- FDA
- ATEX
Recommended applications
- Non-toxic media
- Chemical industry
- Petrochemical industry
- Pharmaceutical industry
- Food and beverage industry
- Agitators
- Mixers
- Reactors
Notes
Options:
- Without flange
- Cooling resp. heating flange
- Wear trap with flush
- Wear trap with flush and cooling / heating flange
Product variants

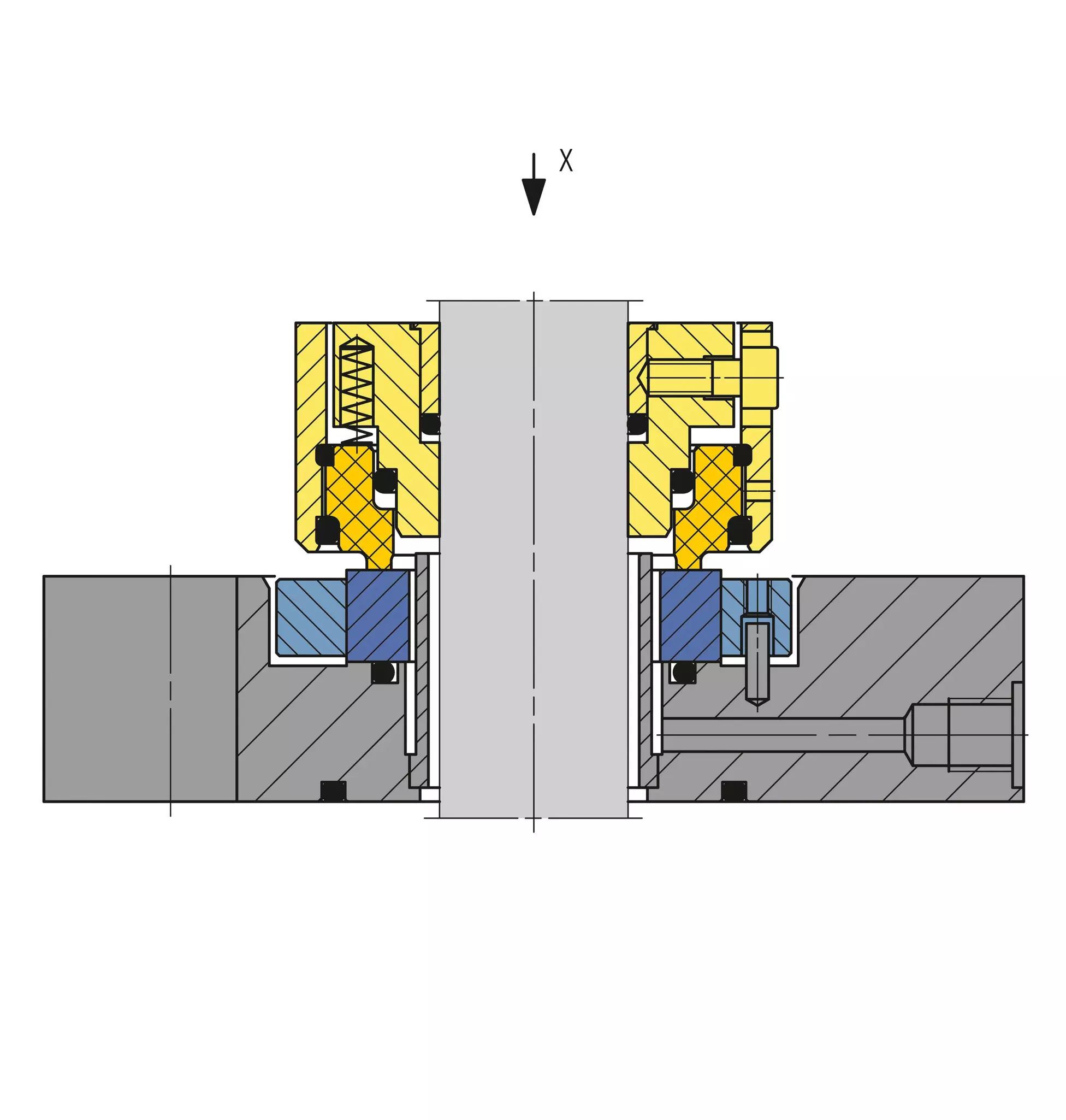

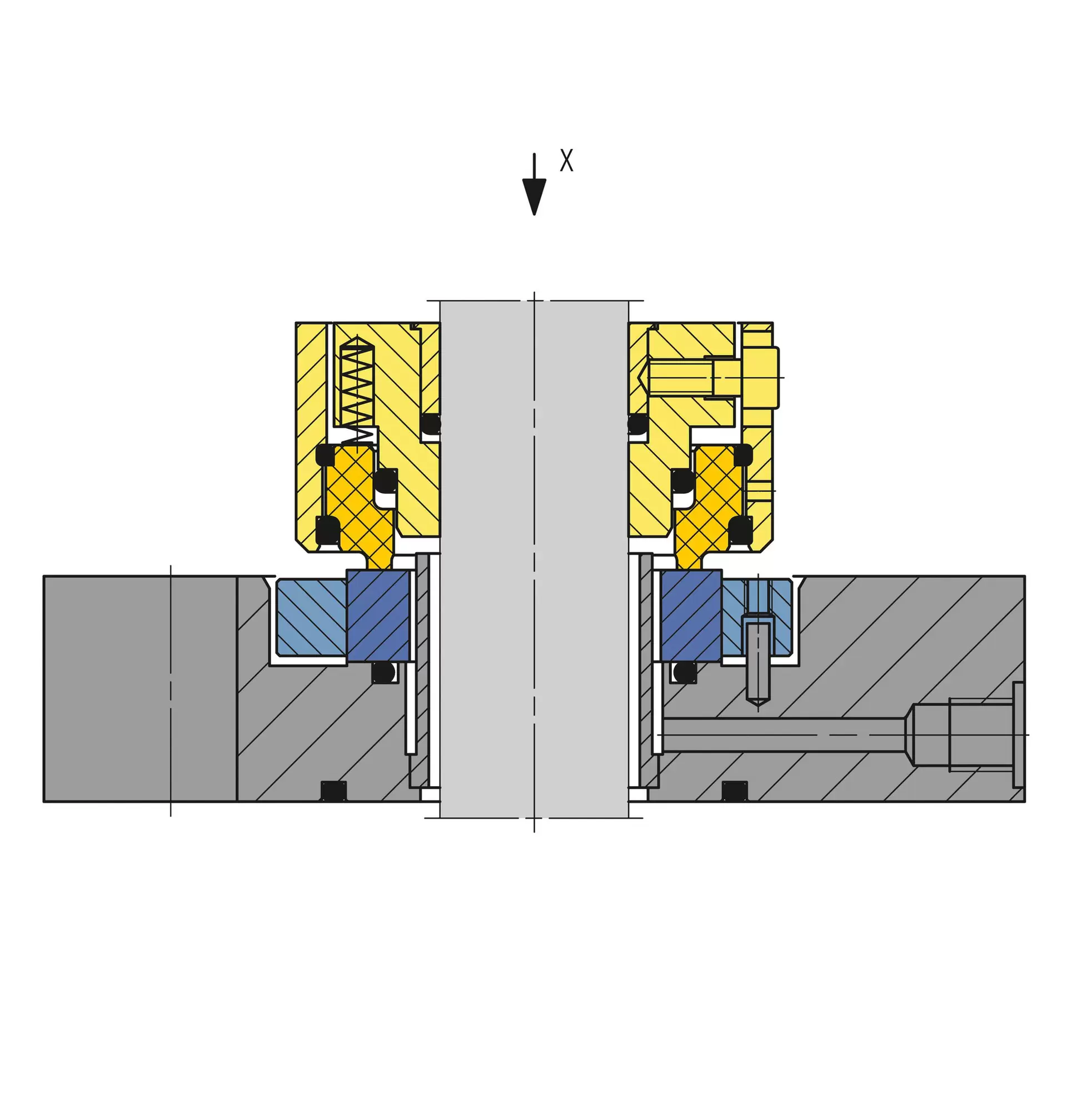

SeccoMix 1-11
The SeccoMix 1-11 is equipped in addition with a sleeve for trapping any abraded particles from the seal face. Contamination of the medium in the container is thus ruled out. The sleeve can be cleaned through a flushing bore.
Please note: diameters (d2 to d5) increase to the next possible design size.
