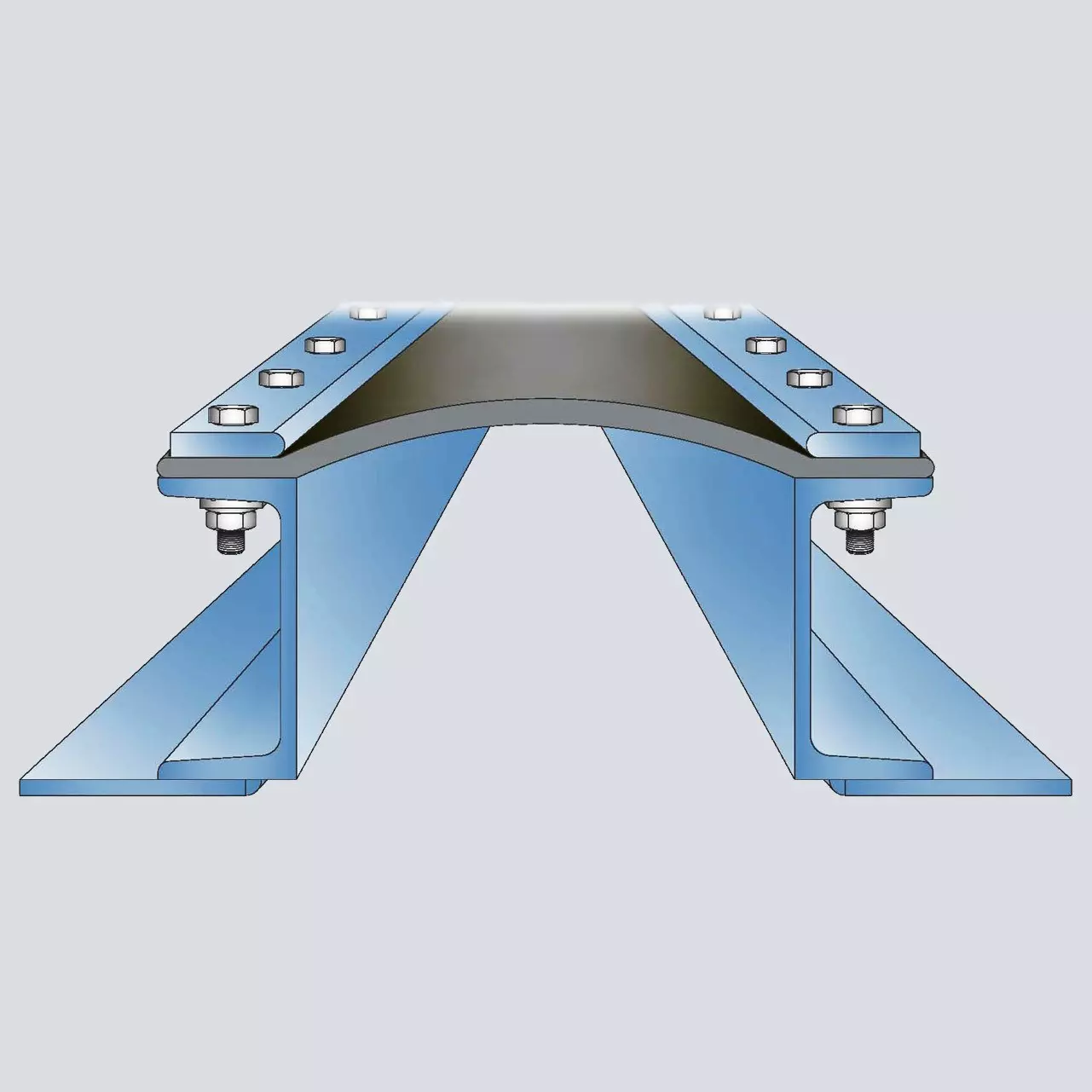

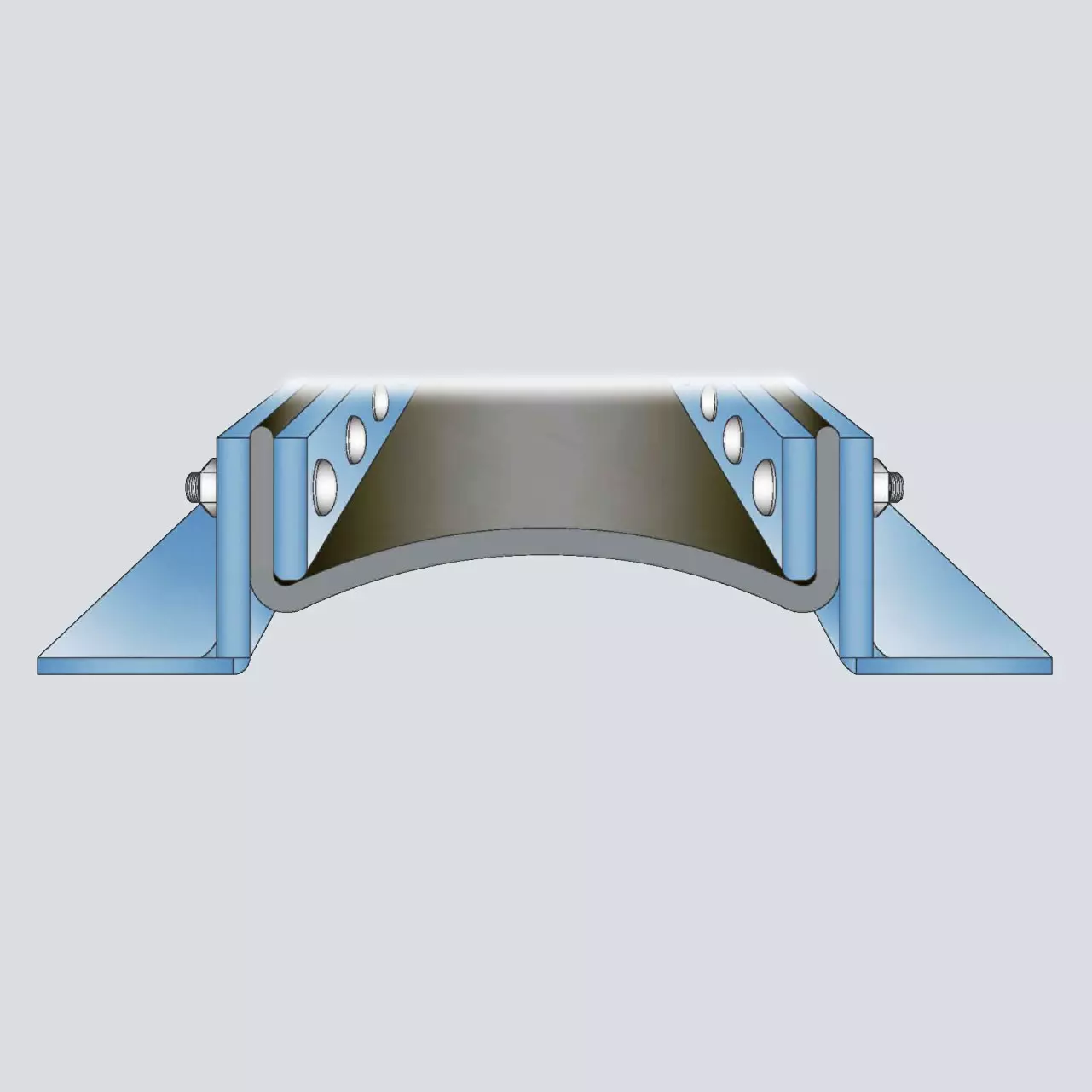

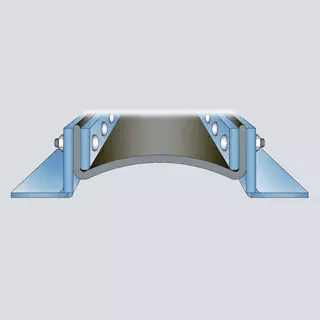

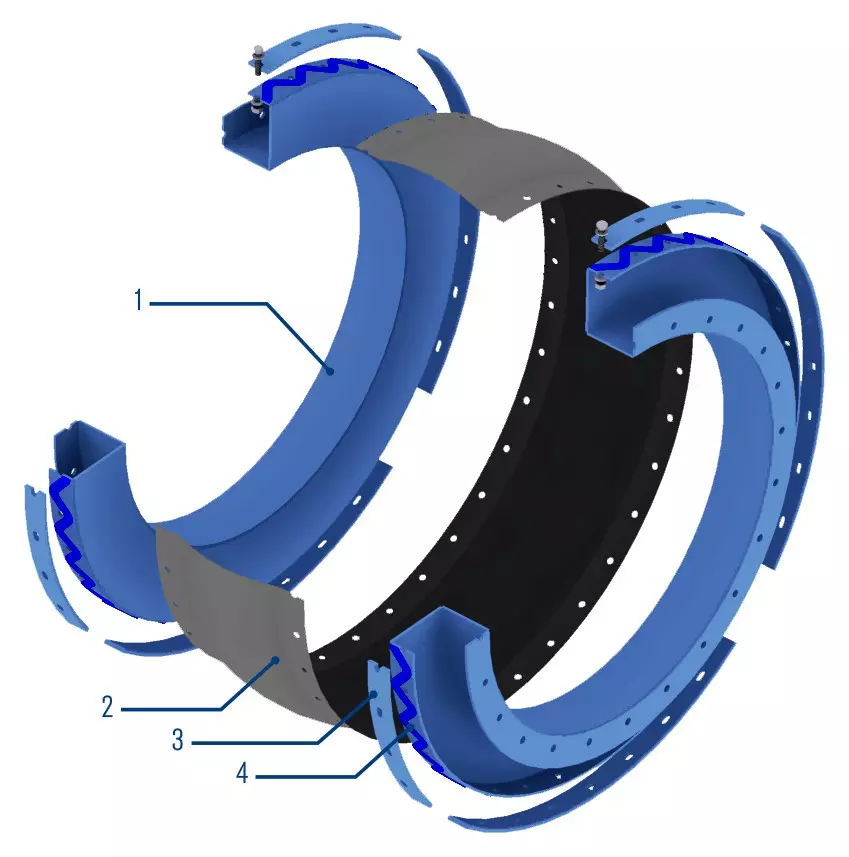

Click image to enlarge

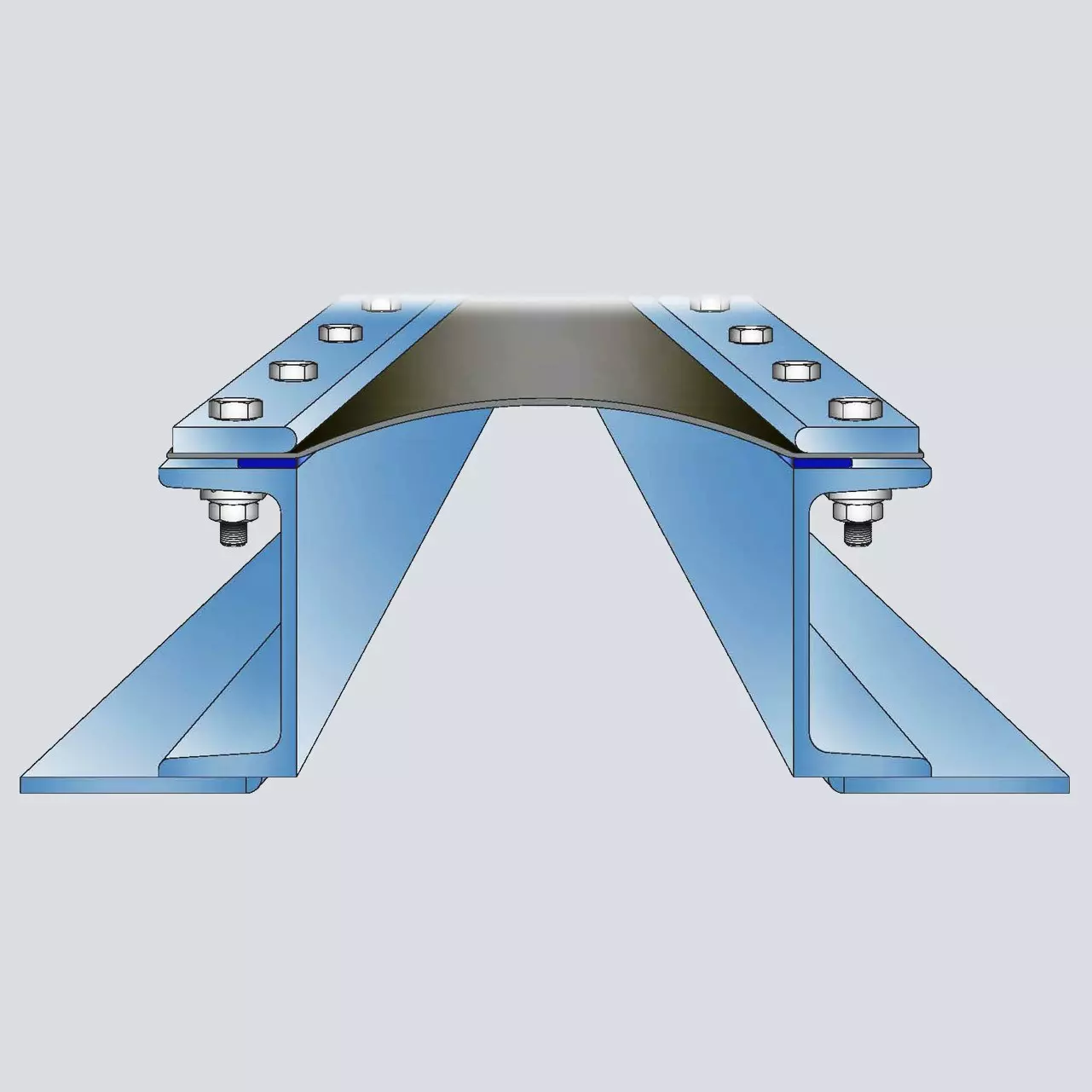

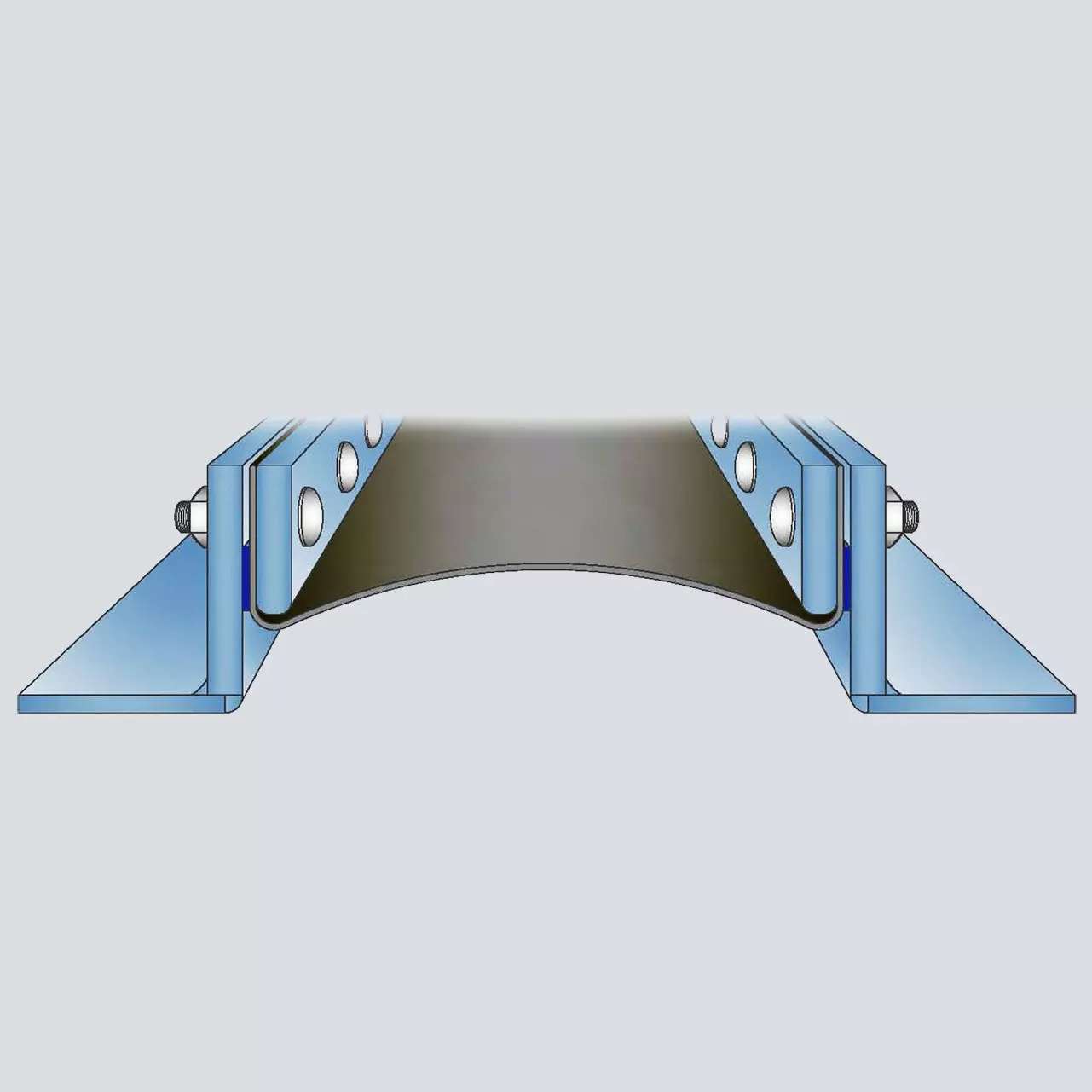

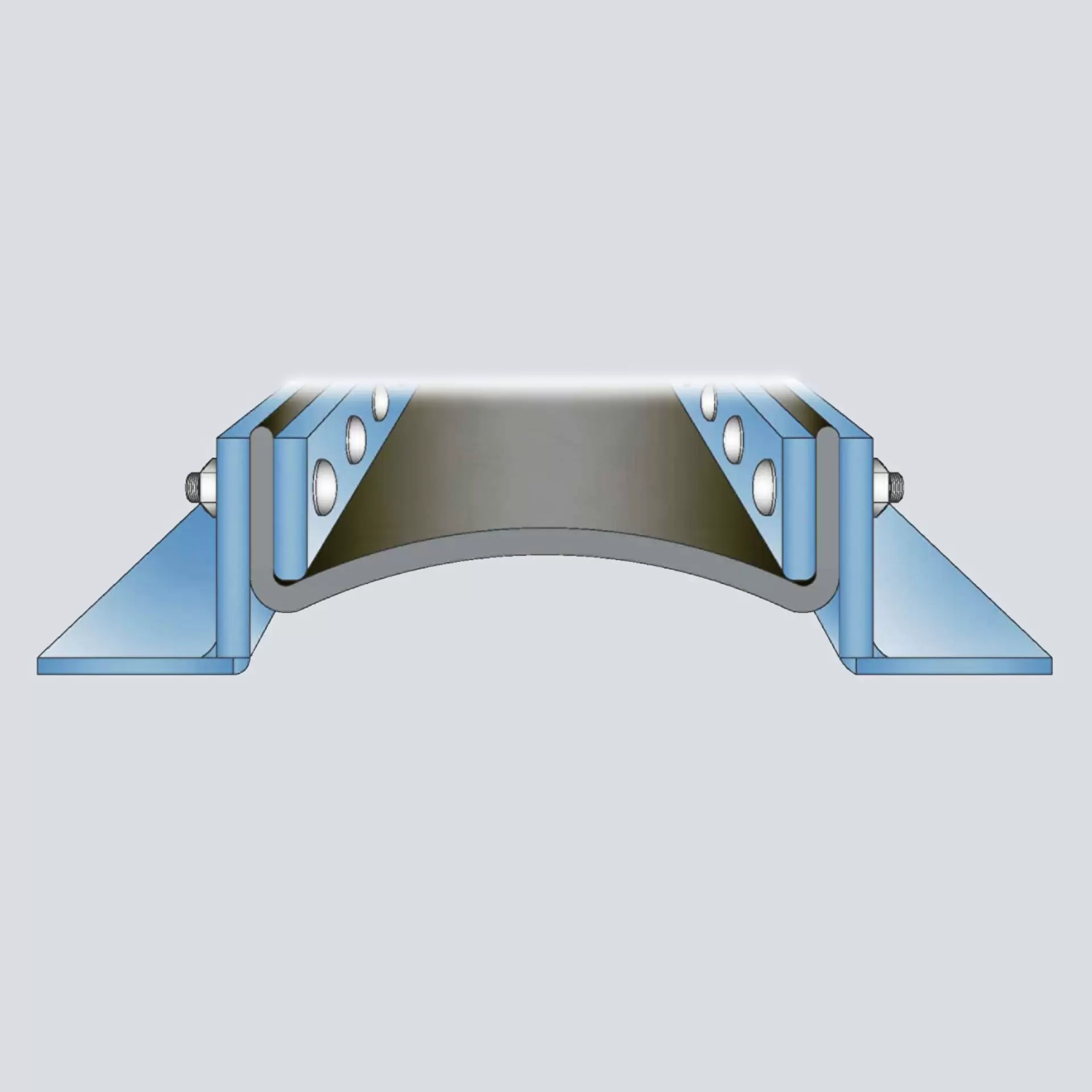

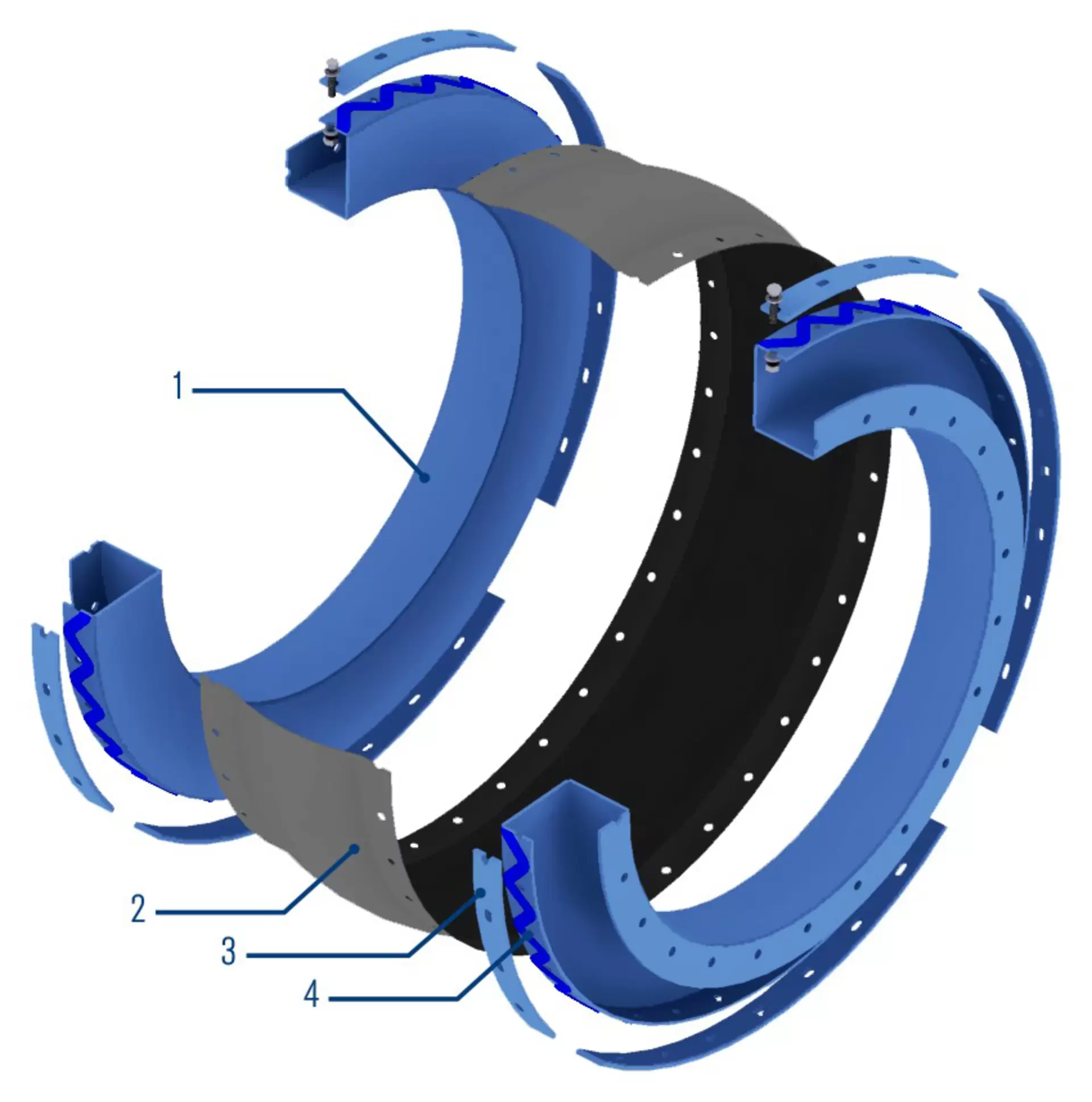

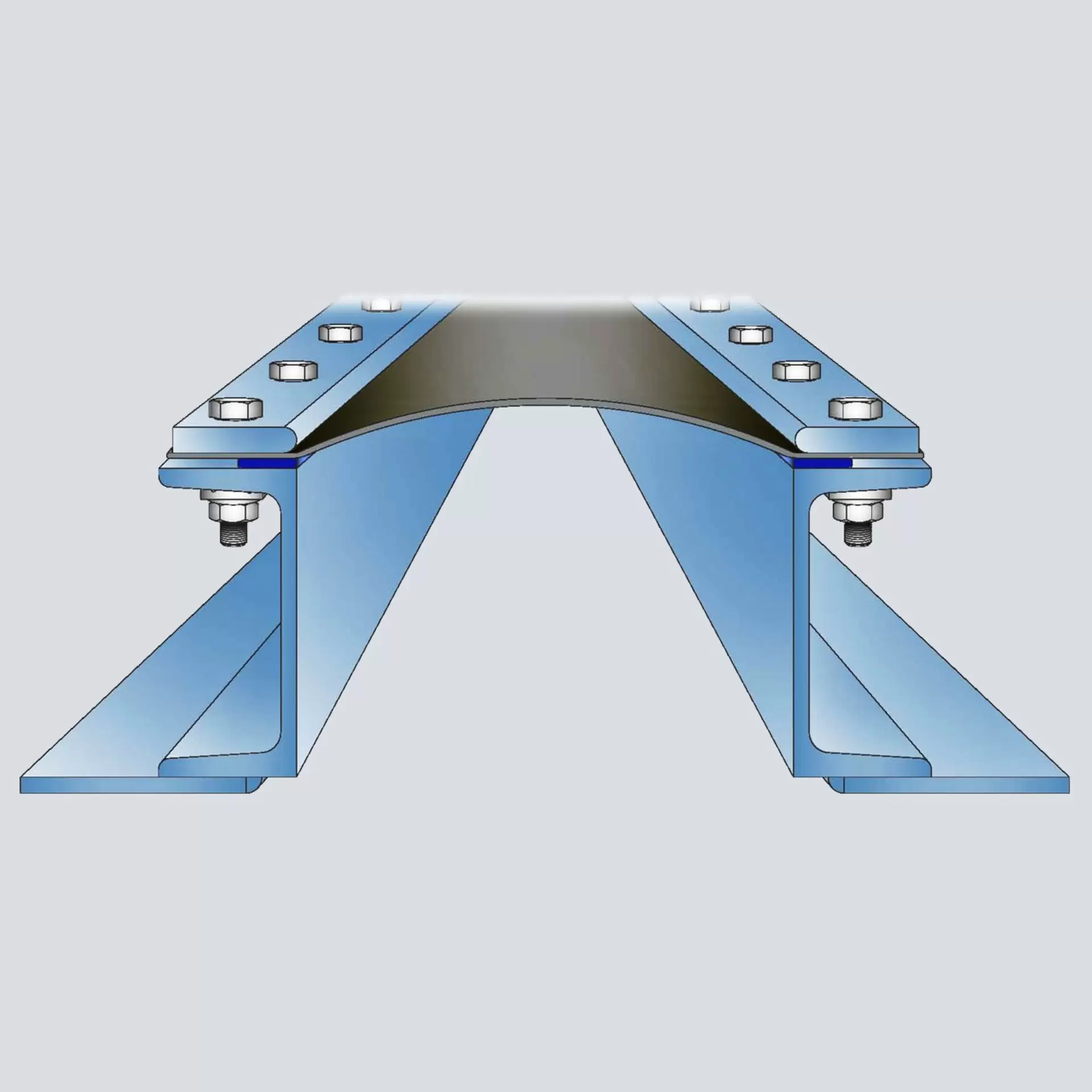

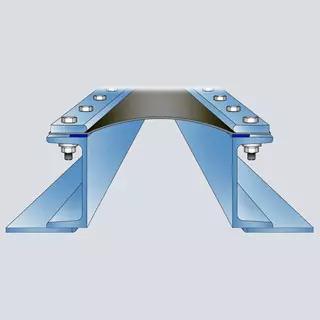

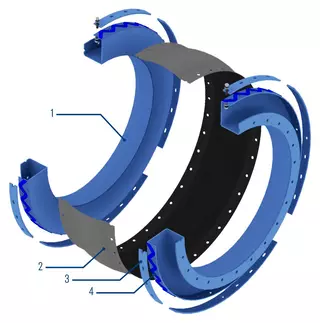

| Item | Description |
|---|---|
| 1 | Frames |
| 2 | Expansion joint |
| 3 | Clamp bar |
| 4 | Gasket |

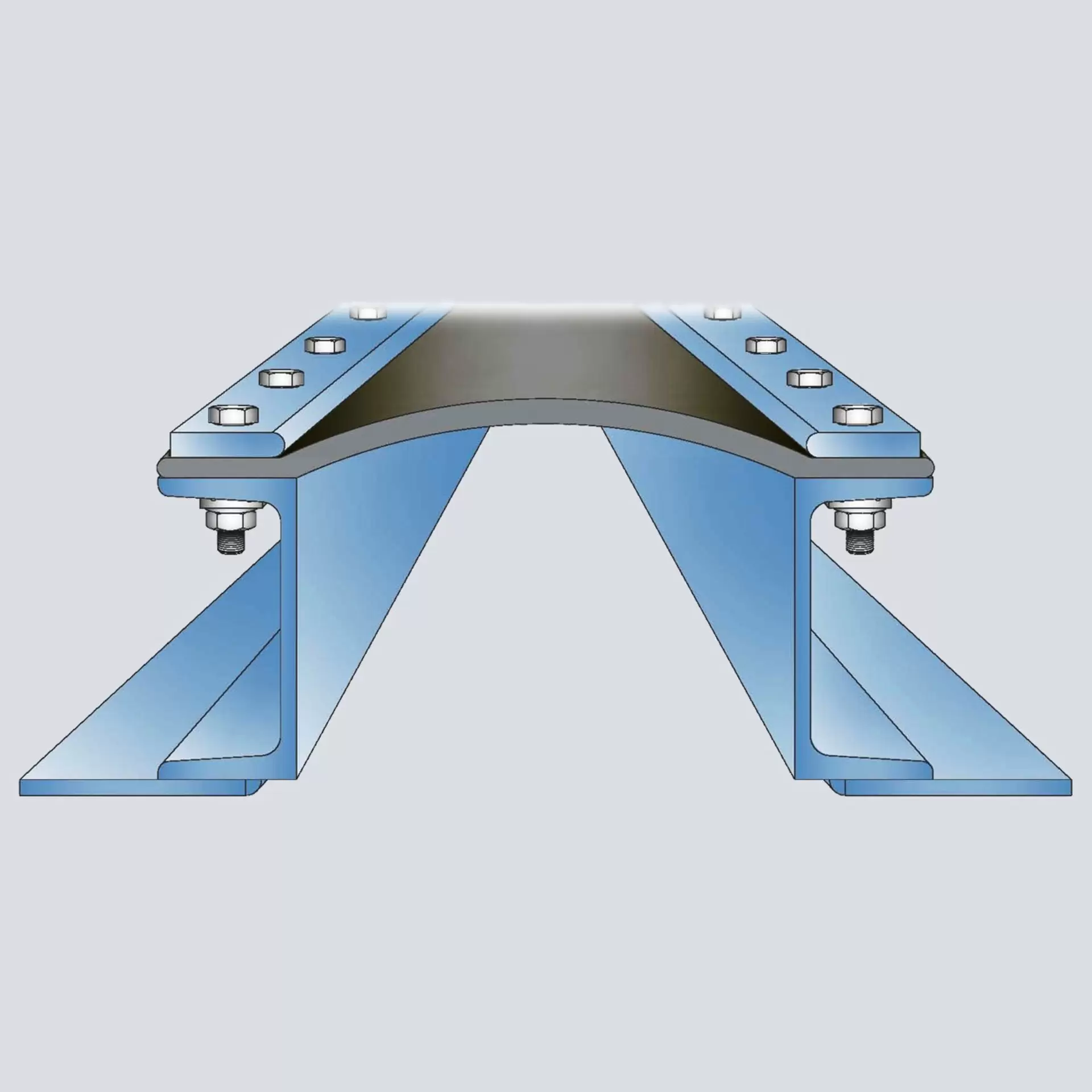

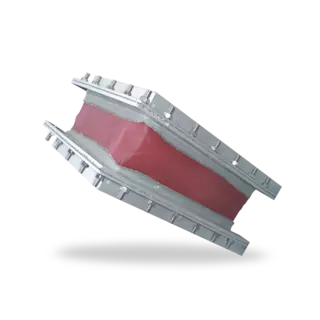

Fluachem
expansion joints
Features
- Single layer design
- Compensates for movements in several directions simultaneously
- Can be delivered as fabric only or as preassembled drop in unit
- For dry and wet condition
- Custom made to fit actual working conditions
Advantages
- Highly flexible
- Excellent chemical resistance
- Minimal reaction forces
- Excellent abrasion resistance
(Depending on material selection) - 100% gas tightness
Operating range
Temperature: -35 °C … +425 °C (-31 °F ... +797 °F)
Pressure: -0.35 bar … 0.35 bar (-5 PSI ... 5 PSI)
Maximal axial movements: … 200 mm (8”)
Maximal lateral movements: … 40 mm (1 1/2”)
Standards and approvals
Documentation:
- EN 10204-2.2 certificate
- Safety Data Sheets (SDS) for individual materials
Recommended applications
- Process industry
- Oil and gas industry
- Refining technology
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Sugar industry
-
Metal production and processing
-
FGD
- Flue gas duct systems
- Conventional boilers
- Condensers
- Filtration / precipitators
- Scrubbers / absorbers
- Chemical process lines
- Stack connections
Functional description
Fluachem expansion joints safely absorb thermal expansion, vibrations and misalignments in pipe and duct systems in chemical aggressive areas. Fluachem products compensate for movements in multiple directions simultaneously.

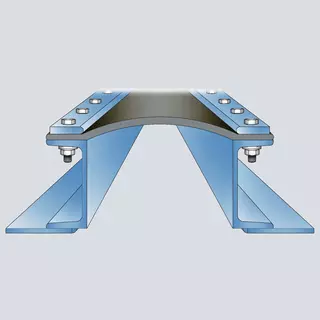

Product variants
| Type | Agressivemedia | Non-aggressivemedia | Max. temperatureP-Flange | Max. temperatureV-Flange | Max. temperaturePFH-100 | Min. temperature | Max. pressure | Min. pressure | Axialflexibility | Lateralflexibility |
|---|---|---|---|---|---|---|---|---|---|---|
| Butyl 600GS | Wet | Wet | 80 °C(176 °F) | 80 °C(176 °F) | 180 °C(356 °F) | -35 °C(-31 °F) | 0.35 bar(5 PSI) | -0.35 bar(-5 PSI) | 25 % | 13 % |
| EPDM 400G | Wet | Wet | 120 °C(248 °F) | 120 °C(248 °F) | 220 °C(428 °F) | -35 °C(-31 °F) | 0.35 bar(5 PSI) | -0.35 bar(-5 PSI) | 35 % | 18 % |
| EPDM 600GG | Wet | Wet | 120 °C(248 °F) | 120 °C(248 °F) | 220 °C(428 °F) | -35 °C(-31 °F) | 0.35 bar(5 PSI) | -0.35 bar(-5 PSI) | 25 % | 13 % |
| EPDM 600S | Wet | Wet | 120 °C(248 °F) | 120 °C(248 °F) | 220 °C(428 °F) | -35 °C(-31 °F) | 0.35 bar(5 PSI) | -0.35 bar(-5 PSI) | 25 % | 13 % |
| FKM 320G | Wet | Wet | 200 °C(392 °F) | 200 °C(392 °F) | 300 °C(572 °F) | -25 °C(-13 °F) | 0.2 bar(2.9 PSI) | -0.2 bar(-2.9 PSI) | 35 % | 18 % |
| FKM 350S | Wet | Wet | 200 °C(392 °F) | 200 °C(392 °F) | 300 °C(572 °F) | -25 °C(-13 °F) | 0.35 bar(5 PSI) | -0.35 bar(-5 PSI) | 25 % | 18 % |
| FKM 450GS | Wet | Wet | 200 °C(392 °F) | 200 °C(392 °F) | 300 °C(572 °F) | -25 °C(-13 °F) | 0.35 bar(5 PSI) | -0.35 bar(-5 PSI) | 30 % | 15 % |
| FKM 600GG | Wet | Wet | 200 °C(392 °F) | 200 °C(392 °F) | 300 °C(572 °F) | -25 °C(-13 °F) | 0.35 bar(5 PSI) | -0.35 bar(-5 PSI) | 25 % | 13 % |
| FKM 600GS | Wet | Wet | 200 °C(392 °F) | 200 °C(392 °F) | 300 °C(572 °F) | -25 °C(-13 °F) | 0.35 bar(5 PSI) | -0.35 bar(-5 PSI) | 25 % | 13 % |
| C | Wet | Wet | 270 °C(518 °F) | 270 °C(518 °F) | 400 °C(752 °F) | -35 °C(-31 °F) | 0.2 bar(2.9 PSI) | -0.2 bar(-2.9 PSI) | 50 % | 20 % |
| O | Wet | Wet | 270 °C(518 °F) | 270 °C(518 °F) | 400 °C(752 °F) | -35 °C(-31 °F) | 0.2 bar(2.9 PSI) | -0.2 bar(-2.9 PSI) | 50 % | 20 % |
| HD | Wet | Wet | 300 °C(572 °F) | 300 °C(572 °F) | 425 °C(797 °F) | -35 °C(-31 °F) | 0.2 bar(2.9 PSI) | -0.2 bar(-2.9 PSI) | 50 % | 20 % |

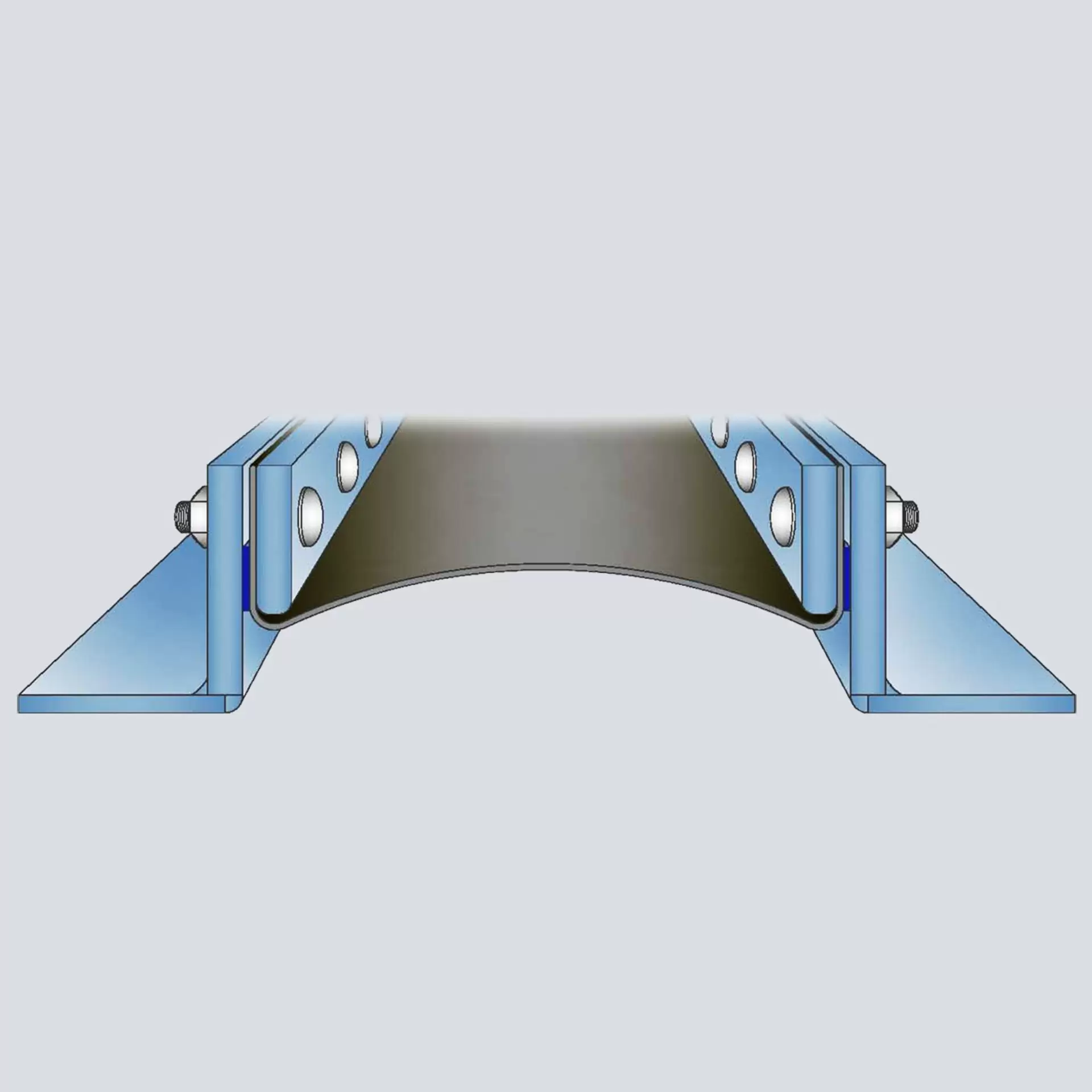

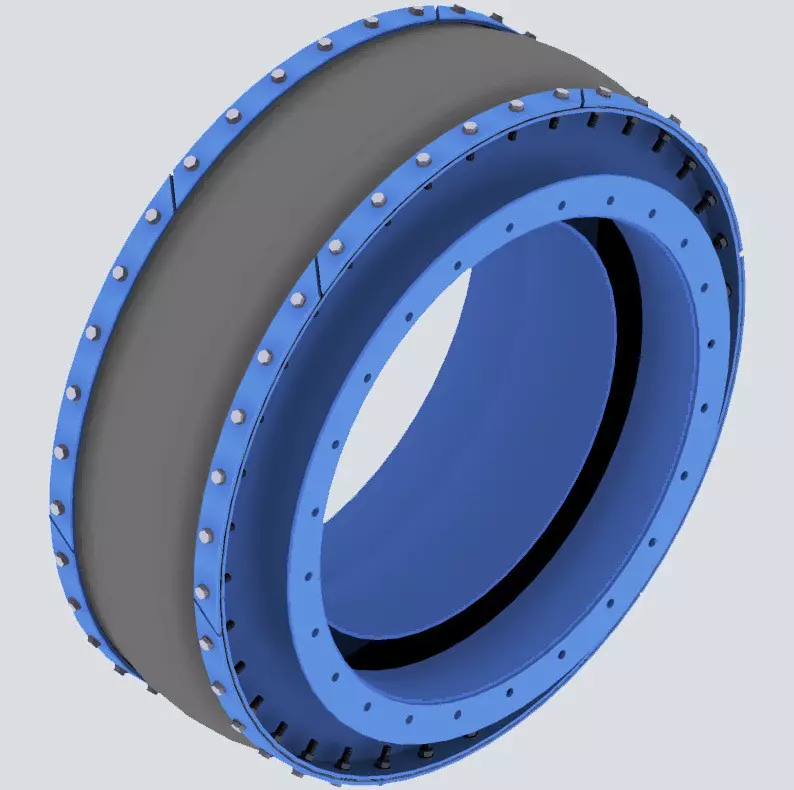

Pre-assembled units
Pre-assembled expansion joint units consist of:
- Fabric expansion joint
- Metal frames/inner sleeves
- Gasket (optional)
- Fasteners
Frame material:
- Carbon steel
- Stainless steel
- Heat resistant steel
Pre-assembled expansion joint units can be supplied with surface treatment that is corrosion resistant (standard) and resistant to high temperatures. EagleBurgmann KE offers any RAL color code for the units. Units can be delivered with seaworthy packing or standard packing for road transportation.
