Leakage control systems
LS050 (Plan 75)
LS050 (Plan 75)
Features

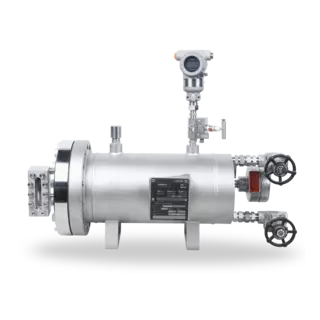

The EagleBurgmann leakage control systems of the LS050 range in accordance with API Plan 75 consist of a leakage collection tank with sight-glass and can be equipped with a wide range of measuring instruments.
Circulation in accordance with API 682 / ISO 21049: Plan 75
Circulation in accordance with API 682 / ISO 21049: Plan 75
Advantages
- Leakage collection tank with sight-glass
- Modular system: combination with a wide range of monitoring instruments possible
Standards and approvals
- PED 2014/68/EU (Design and production in accordance with EU Pressure EquipmentDirective)
- ASME VIII, Div. 1 (Design, calculation and production)
Recommended applications
- Refining technology
- Oil and gas industry
- Petrochemical industry
- Chemical industry
Functional description
The LS050 leakage control system in accordance with API Plan 75 is used to discharge leakage from liquid-lubricated single seals with downstream safety gas seals where the leakage is liquid under atmospheric conditions.
Product variants
| Desigantion | LS050/M002-D0 | LSC6000A4 |
|---|---|---|
| Design code | PED 2014/68/EU | PED 2014/68/EU | ASME VIII, Div. 1 |
| Volume, vessel (liters) | 14 | 14 |
| Allowable pressure1) | 50 bar (725 PSI) |
44 bar (636 PSI) |
| Allowable temperature1) | -20 °C ... +120 °C (-4 °F ... +248 °F) |
-20 °C ... +120 °C (-4 °F ... +248 °F) |
| Connection seal leakage | 3/4" NPT(f) | Flange 3/4", 600 lbs |
| Connection collecting system for condensing leakages | 3/4" NPT(f) | 3/4" NPT(f) |
| Connection fluids collection system | Flange 3/4", 600 lbs | Flange 3/4", 600 lbs |
| Metal parts | 316/316L | 316/316L |
| Seal | T2, Burasil, Viton® | PTFE, Burasil, Viton®, FKM |
Other versions on request.
1) Design data, permissible working values depend on the actual conditions of service.
Similar products
LS050 (Plan 65)

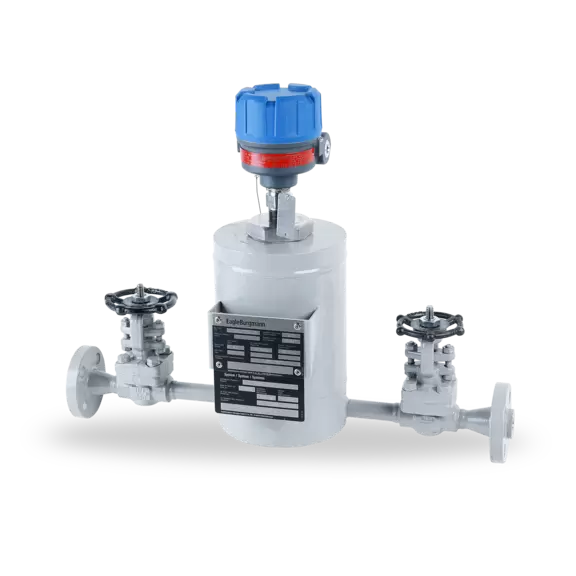

The EagleBurgmann leakage control systems of the LS050 range in accordance with API Plan 65 consist of a leakage collection tank with integrated orifice and overflow pipe along with two shut-off valves. The level can be monitored with the a level switch.
Circulation in accordance with API 682 / ISO 21049: Plan 65
Circulation in accordance with API 682 / ISO 21049: Plan 65
