Features

Burajet SCA 8032/SCA is a fiber injectable compound based on aramid/PTFE with a special lubricant. For some applications, it may be necessary to retain it between braided compression packings (e.g. Buramex SF 6335 or Araflon 6426).

Advantages

  • Specially developed for abrasive media
  • Very good running properties
  • Outstanding adaptability to the installation space
  • Optimal friction force reduction
  • Optimal leakage reduction

Operating range

Pumps
Pressure: p = 15 bar
Sliding velocity:

  • Braided end rings: vg = 10 m/s
  • Lip seals: vg = 4m/s

Valves

  • Pressure: p = 70 bar

  • Sliding velocity: vg = 2 m/s

Mixers, agitators, kneaders, filters

  • Pressure: p = 25 bar

  • Sliding velocity: vg = 2 m/s

  • Temperature

    • Continuous operation:
      t = -10 °C ... +260 °C
    • Chemical resistance: pH = 2 ... 12
    • Resistant to drinking water and food, sticky media such as bitumen and adhesives, abrasive media such as lime, sand, sugar and salt, and dyes, paints and turbine oils.

Recommended applications

Industries

  • Process industry
  • Chemical industry
  • Pulp and paper industry
  • Water and waste water technology
  • Mining industry
  • Sugar industry
  • Building services industry

Mechanical units

  • Pumps
  • Mixers
  • Kneaders
  • Agitators
  • Refiners

Components

  • Valves

Forms of supply

  • 1kg container of loosely packed fiber injectable compound
  • Also available with Buramex SF 6335 or Araflon 6426 braided end rings or FKM or HPU header rings

Similar products

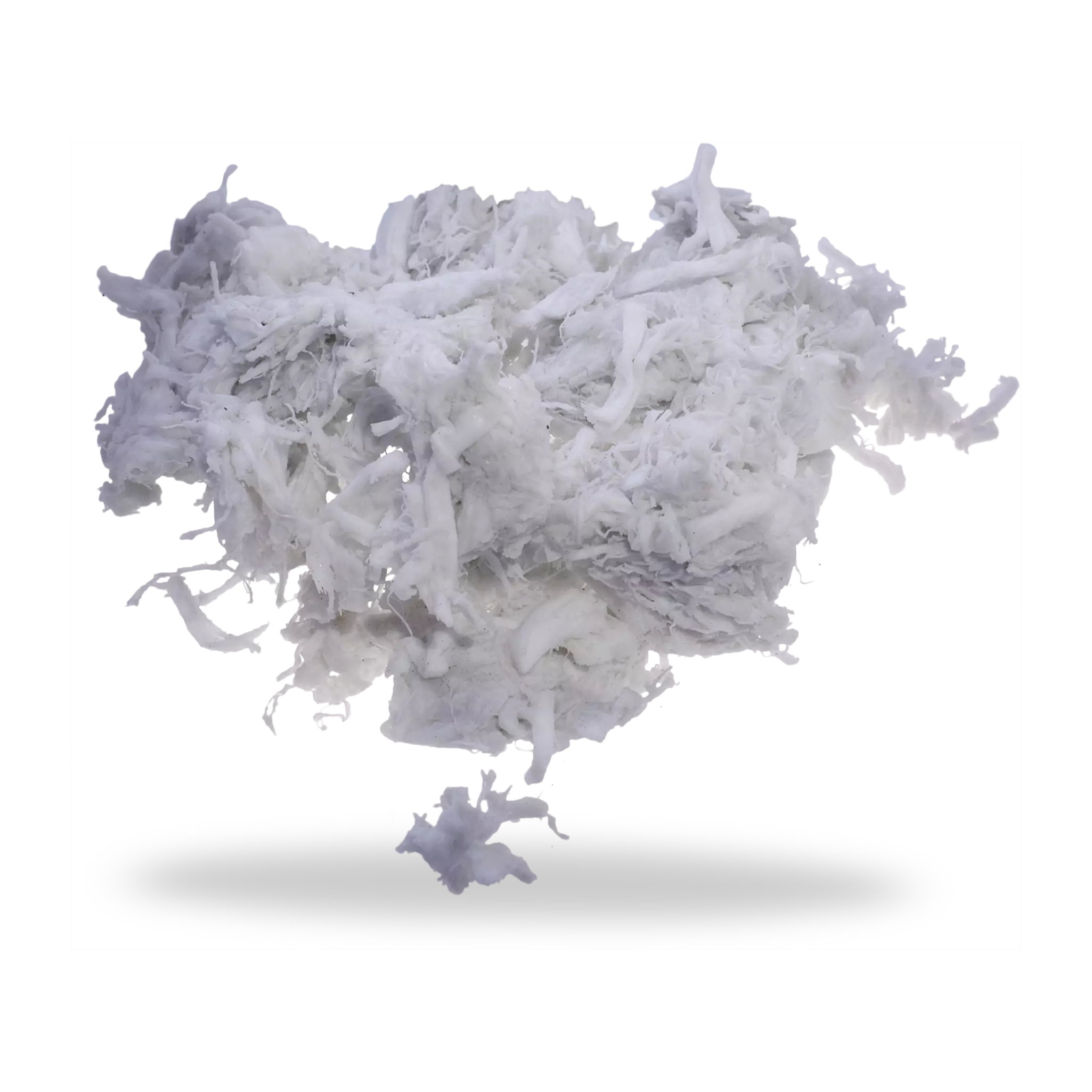

Burajet SCW 8032/SCW

Burajet
SCW 8032/SCW

Burajet SCW 8032/SCW is a fiber injectable packing based on PTFE fiber with a heavy-duty lubricant. For some applications, it may be necessary to retain it between braided compression packings (e.g. Burasoft L 6225/L or Buramex 6335). To reduce product contamination and to compensate better for radial shaft movements, a special retention between HPU (hydrolysis-resistant polyurethane) or FKM (fluorocarbon rubber) lipped rings is used.

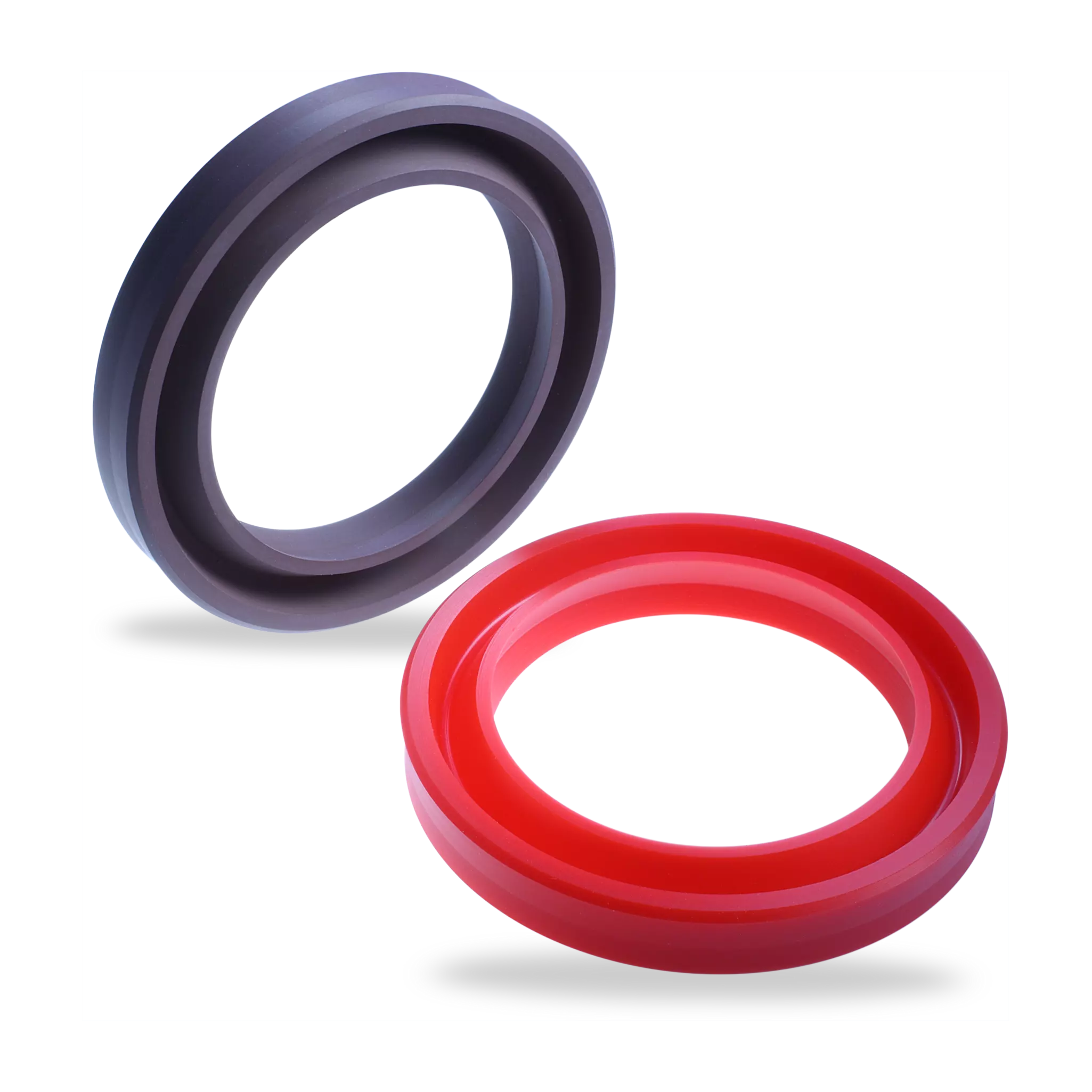

Burajet Chamber rings 8032/AU

Burajet Chamber rings
8032/AU

Burajet retainer rings are molded HPU (hydrolysis-resistant polyurethane) or FKM (fluorocarbon rubber) rings with sealing lip which are produced to match the shaft and gland housing. They efficiently retain the Burajet injectable compound packings, thus reducing product contamination. The compensation for radial shaft movements is also better than with braided packings.

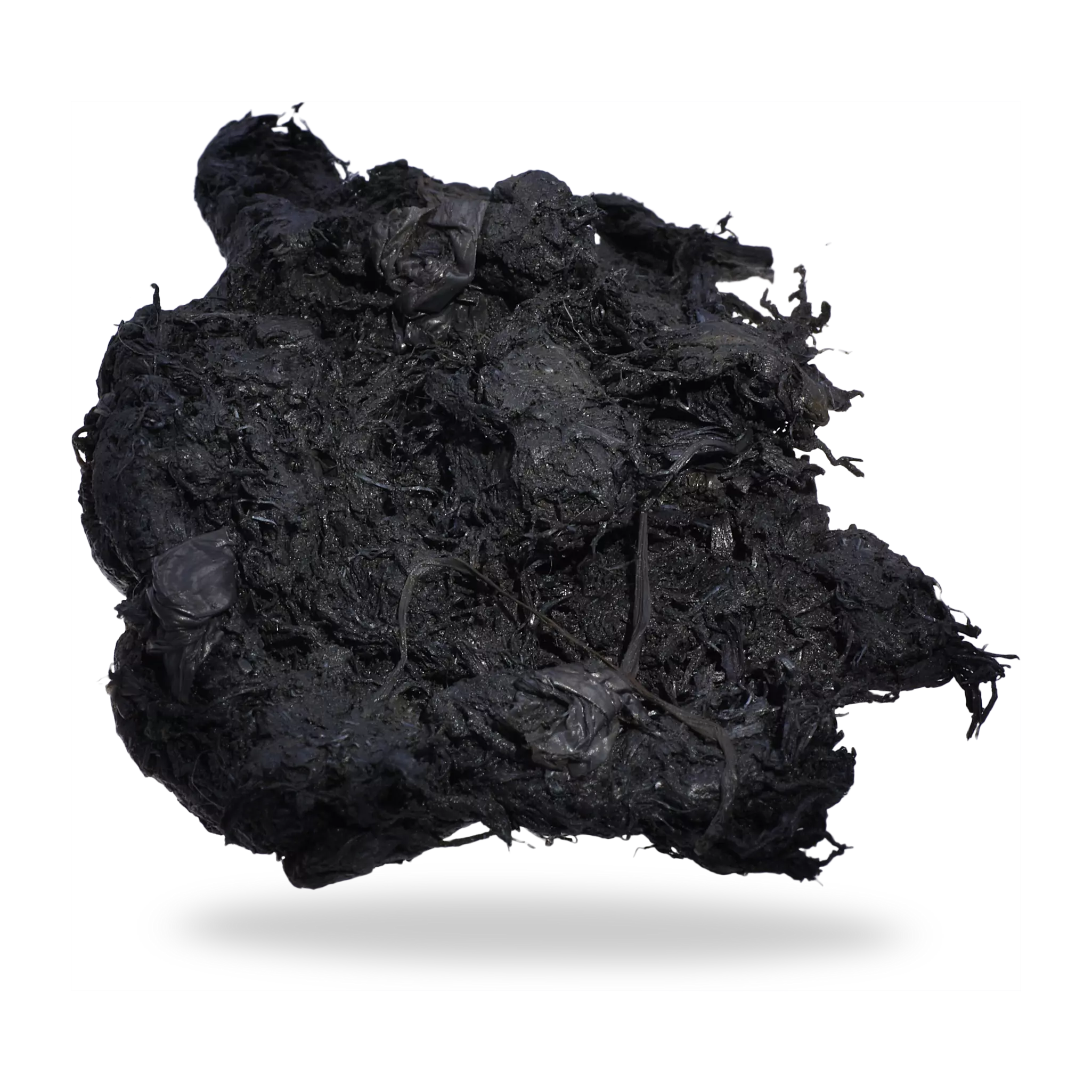

Burajet SCB 8032/SCB
