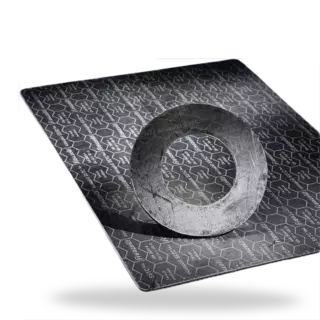

Statotherm SSTC-TAL 9592/P
Features
Statotherm SSTC-TAL 9592 is a high-performance seal material made from flexible, expanded graphite (purity > 99 %). It is reinforced with a threedimensional expanded metal insert made from chromiumnickel steel (1.4404, AISI 316 (L)). The combination of performance-optimised impregnation and expanded metal insert to create a seal allows it to be used universally as defined in the TA Luft. Equates to the Frenzelit novaphit SSTC-TA-L.
Advantages
- Optimum distribution of the surface pressure
- High seal tightness to reduce emissions
Operating range
Pressure: p = 200 bar
Temperature
- Continuous operation:
t = -200 °C ... +500 °C - Steam: tmax+550°C
Recommended surface roughness: RZ = 12.5 ... 50 μm
Chemical resistance: pH = 0 … 14
Resistant to almost all organic and inorganic acids, alkalis, oils and solvents. Not suitable for use in highly oxidizing media or in elementary fluorine, bromine, sulfur trioxide or ozone (O3).
Standards and approvals
- TA Luft
- BAM (upon request)
- DVGW
- Fire safe (API607 /BS6755)
- Blow-out resistance (VDI 2200, class C)
- VP 401
Recommended applications
Industries
- Process industry
- Oil & gas industry
- Petrochemical industry
- Chemical industry
- Power plant technology
Variants
9592/P (sheets)
9592/R (rings and cuts)
9592/RIG (rings with inner eyelet)
9592/RA (frames)
9592/S (segments)
Notes
For safe operation, always use seals that are dry and undamaged.
Forms of supply
- Sheets:
1.000 x 1.000 mm
1,0 / 1,6 / 2,0 / 3,0 mm thickness - Rings and molded parts:
Standard dimensions as per DIN EN 1514-1 or ASME B16.21
