BuraTAL T5 9650/T5

PDF data sheet

Features

The BuraTAL T5 9650/T5 an innovative new, pure white packing set made from high quality, impregnated non-wovens. It consists of aramid non-woven sealing rings impregnated with PTFE to ensure very high cross-sectional stability. The packing set is especially suitable in applications that demand the highest level of cleanliness, particularly those where high gas sealing performance with low friction is required.

Advantages

  • High gas tightness
  • Minimal friction coefficients
  • Meets the most stringent cleanliness standards

Operating range

Valves
Pressure: p = max. 250 bar
Pressure p to TA-Luft

  • with live-loading system: 30 bar

Sliding velocity: vg = 2 m/s

Temperature

  • Continuous operation:
    t = -200 °C … +250 °C

Chemical resistance: pH = 1 … 14
Universal chemical resistance. Not suitable for use in highly oxidizing media such as oleum (fuming nitric acid), gaseous fluorine and molten alkali metals.

Recommended applications

Industries

  • Chemical industry
  • Pharmaceutical industry
  • Petrochemical industry
  • Process industry

Components

  • Valves

Variants

9650/T5B (with Live-Loading System)

Forms of supply

  • Customized packing sets made from endless or split precompressed rings
  • Made to order

Similar products

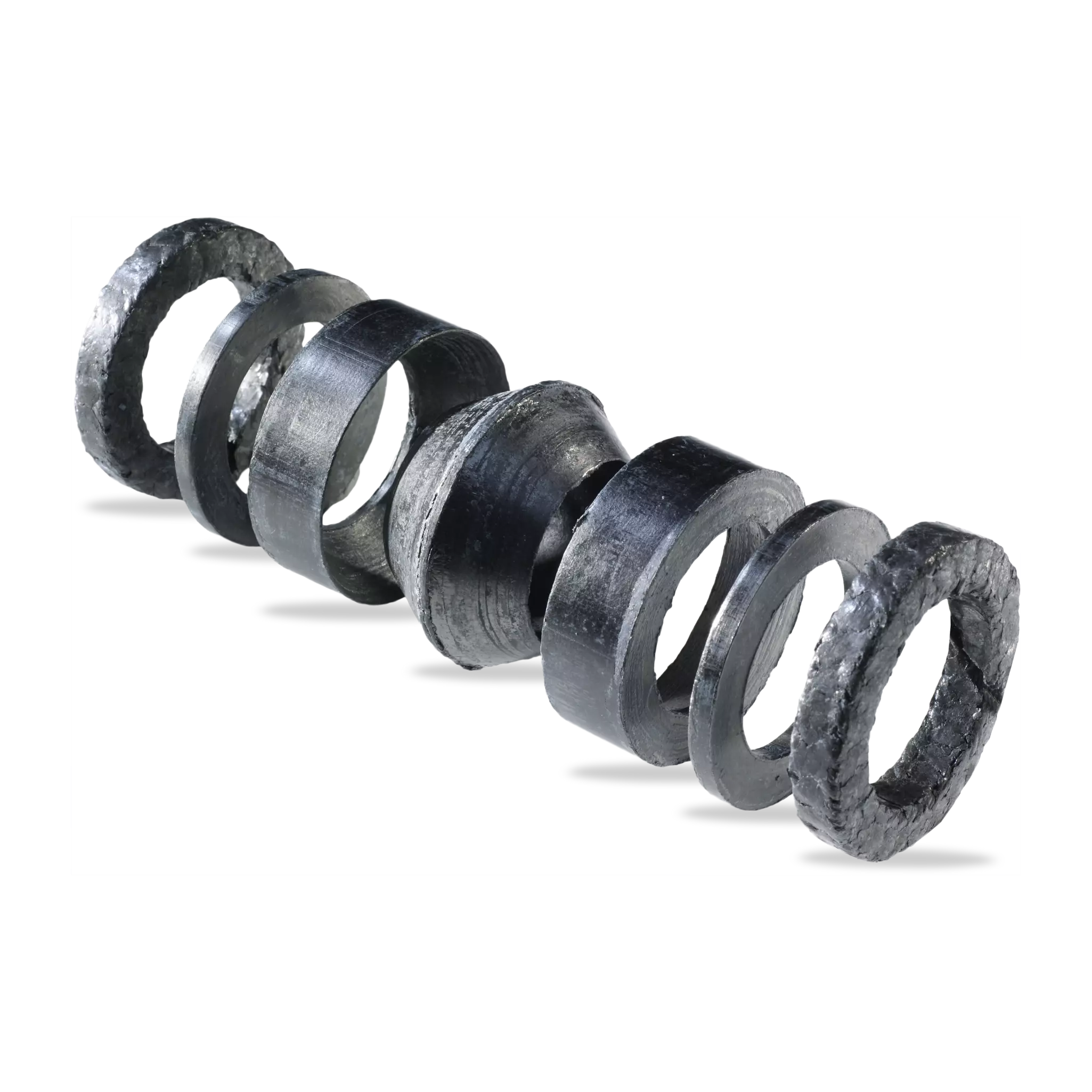

BuraTAL HT 9650/HT

BuraTAL
HT 9650/HT

BuraTAL HT is a completely new design of packing set consisting of the following components:

  • Braided end rings of expanded pure graphite with carbon fiber-reinforced corners
  • High-density expanded pure graphite sealing discs as a diffusion barrier
  • Specially impregnated adapter rings made from high-density, expanded pure graphite
  • Lower-density sealing ring made from expanded pure graphite with a smooth, friction-reducing coating.
BuraTAL T3 9650/T3

BuraTAL T3 9650/T3

The BuraTAL T3 9650/T3 an innovative new packing set made from high quality, impregnated non-wovens. It consists of the following components:

  • Carbon fiber non-woven end rings with a special PTFE/ graphite compound.
  • Aramid non-woven sealing rings in the middle impregnated with PTFE to ensure very high cross-sectional stability. The packing set is especially suitable where high gas sealing performance with low friction is required.
BuraTAL T4 9650/T4

BuraTAL T4 9650/T4

The BuraTAL T4 9650/T4 an innovative new packing set made from high quality, impregnated non-wovens. It consists of the following components:

  • Two carbon fiber non-woven rings impregnated with a special PTFE/graphite compound on the atmospheric side.
  • Three aramid non-woven sealing rings on the product side impregnated with PTFE to ensure very high cross-sectional stability.

The packing set is especially suitable in applications that demand elimination of contamination by the media and where high gas sealing performance with low friction is required.
