eCartex Single seals
Back to overview

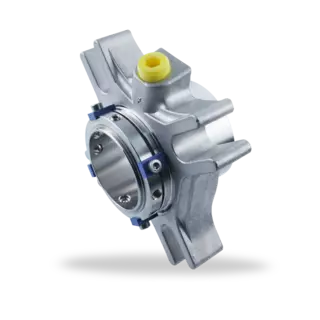

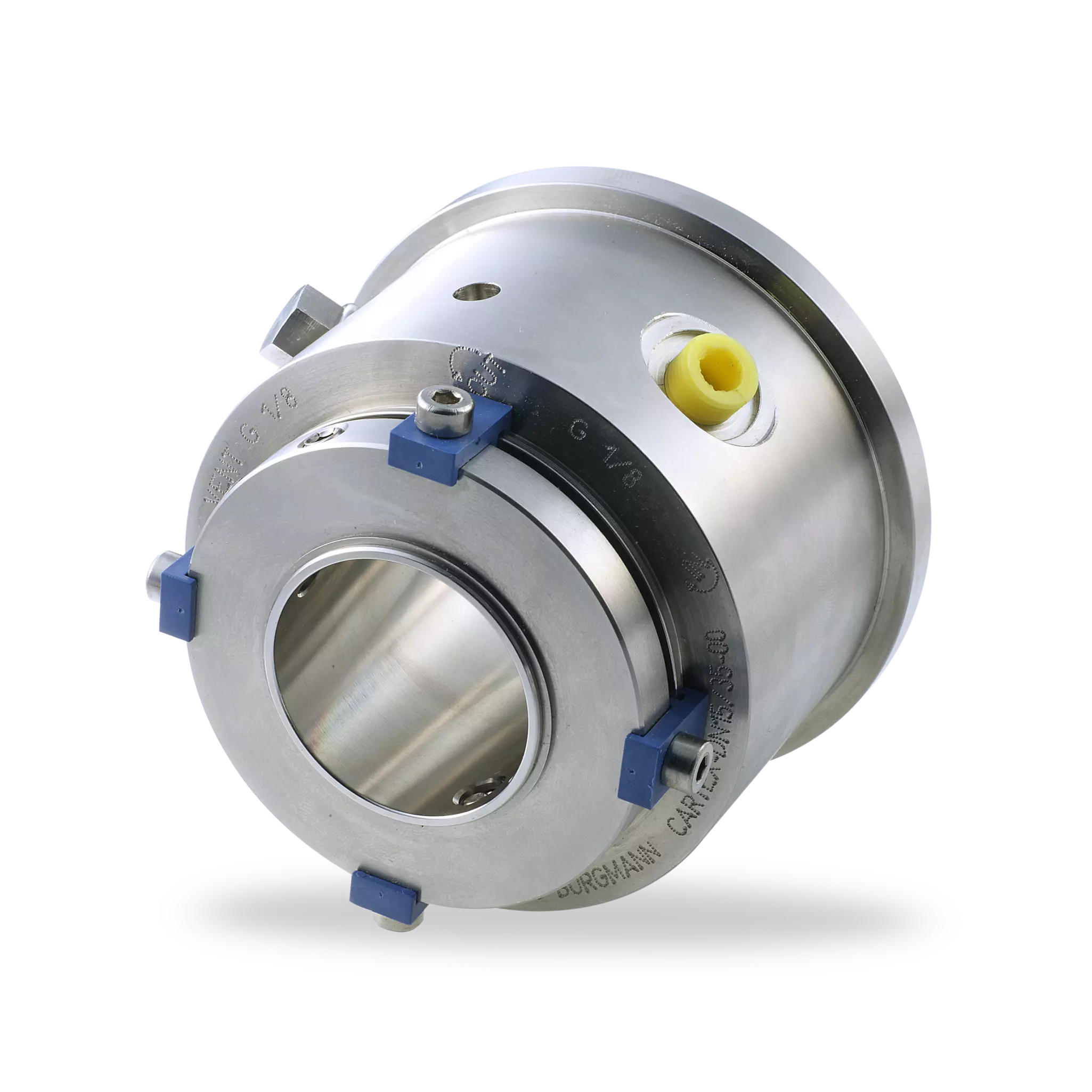

eCartex
Single seals

Request product

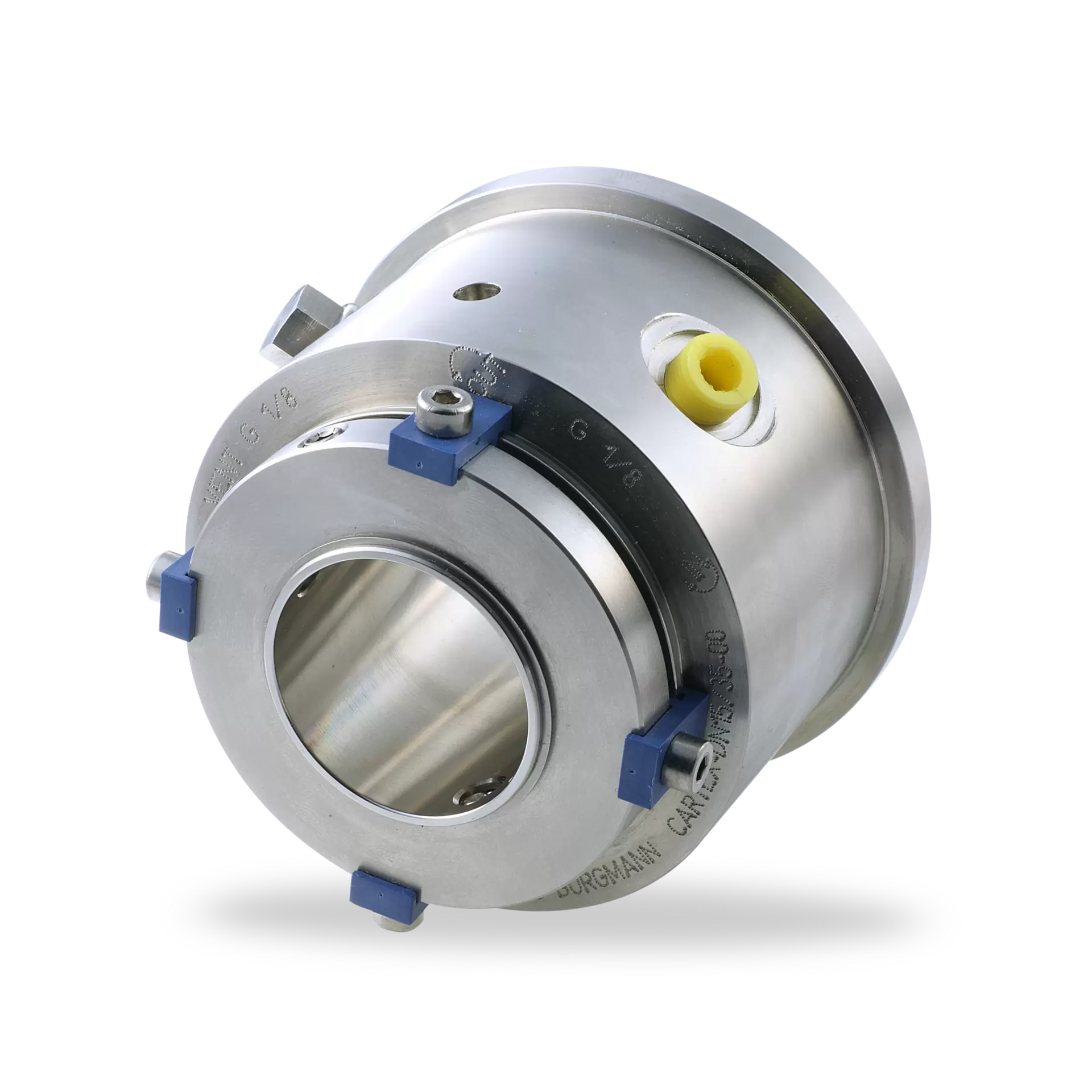

eCartex Single seals
eCartex Single seals
Request product

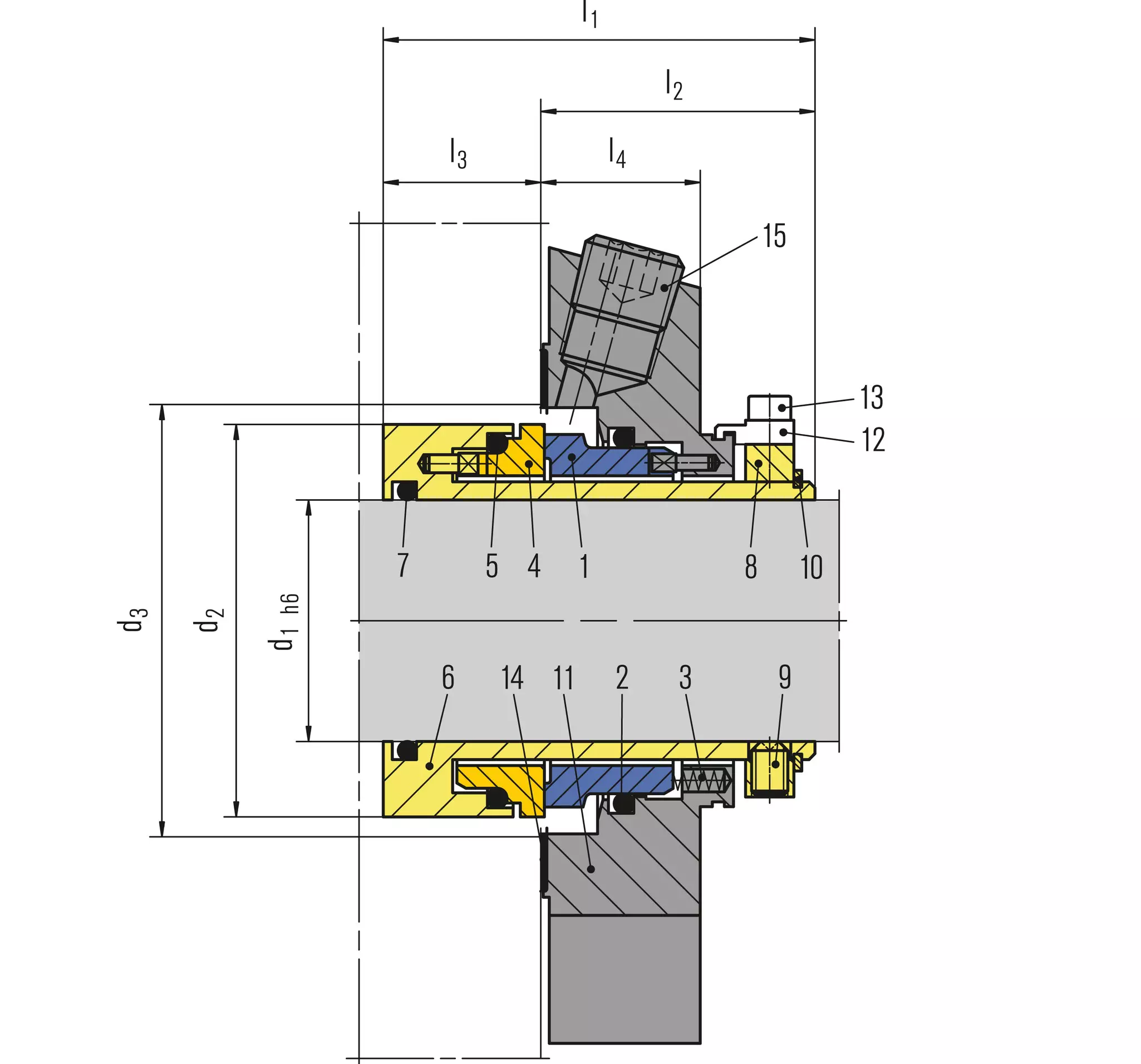

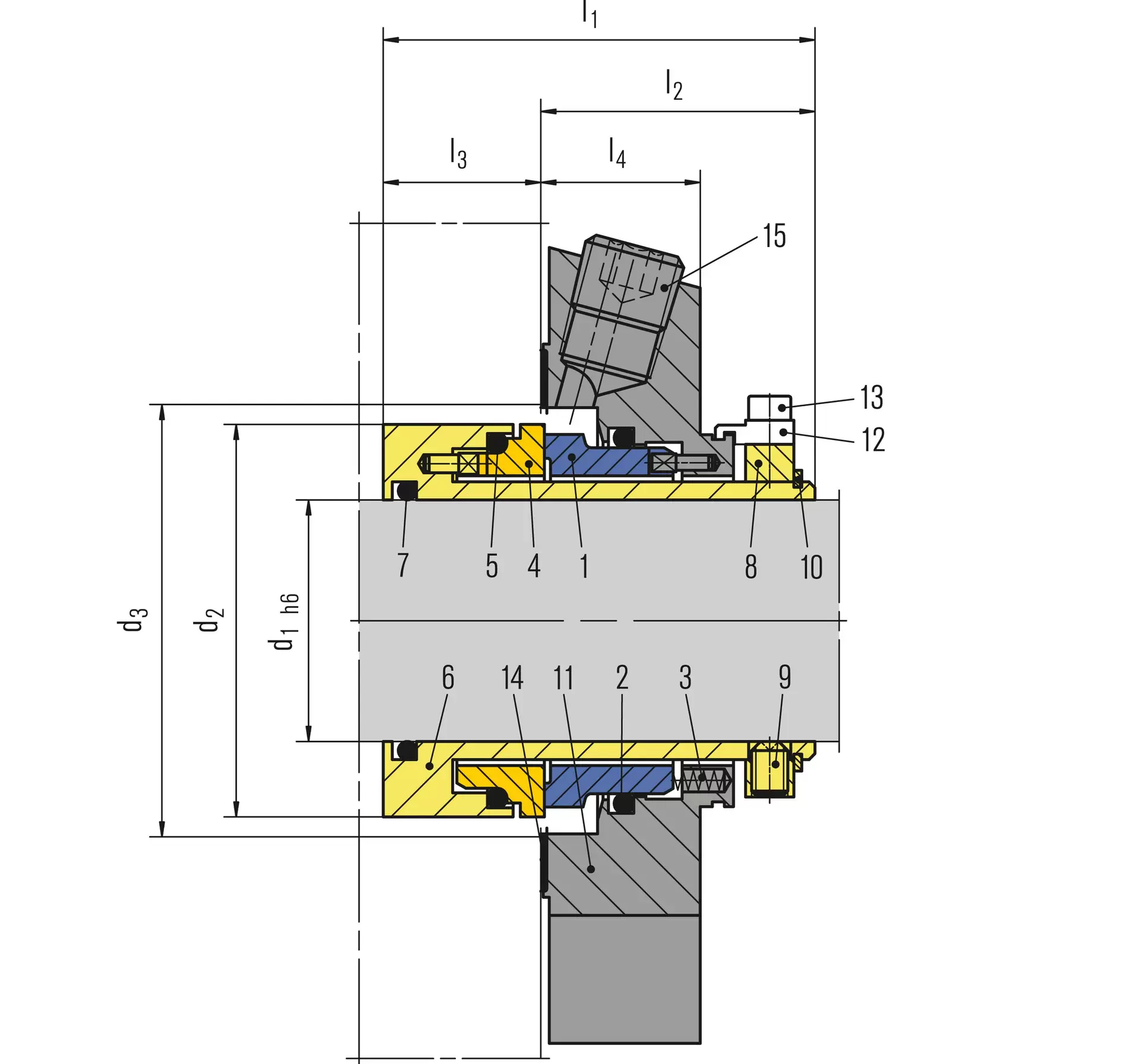

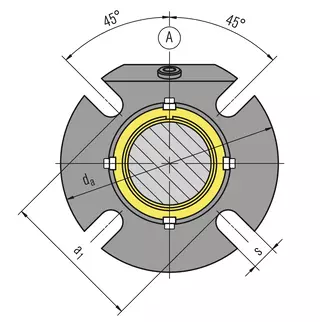

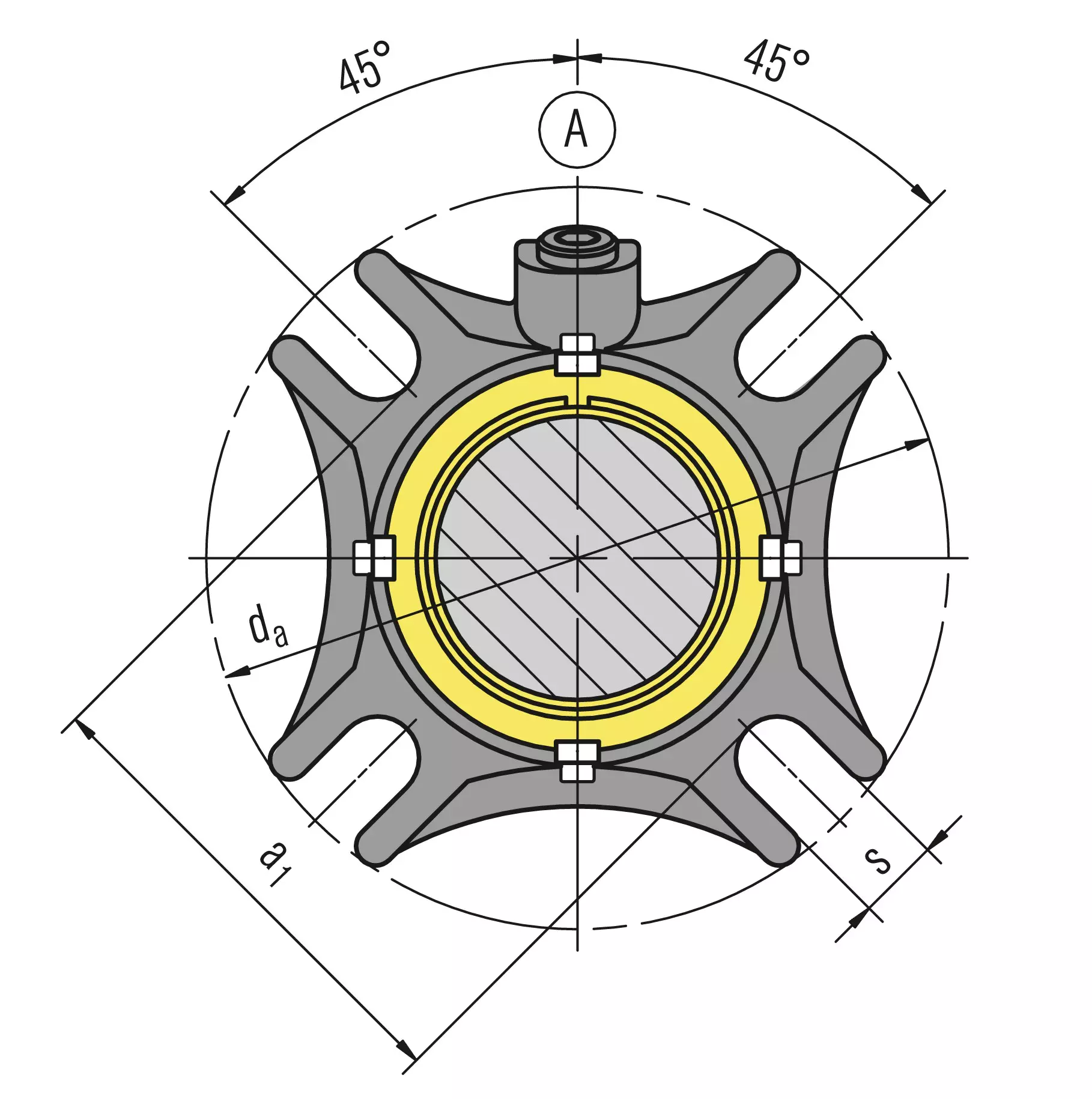

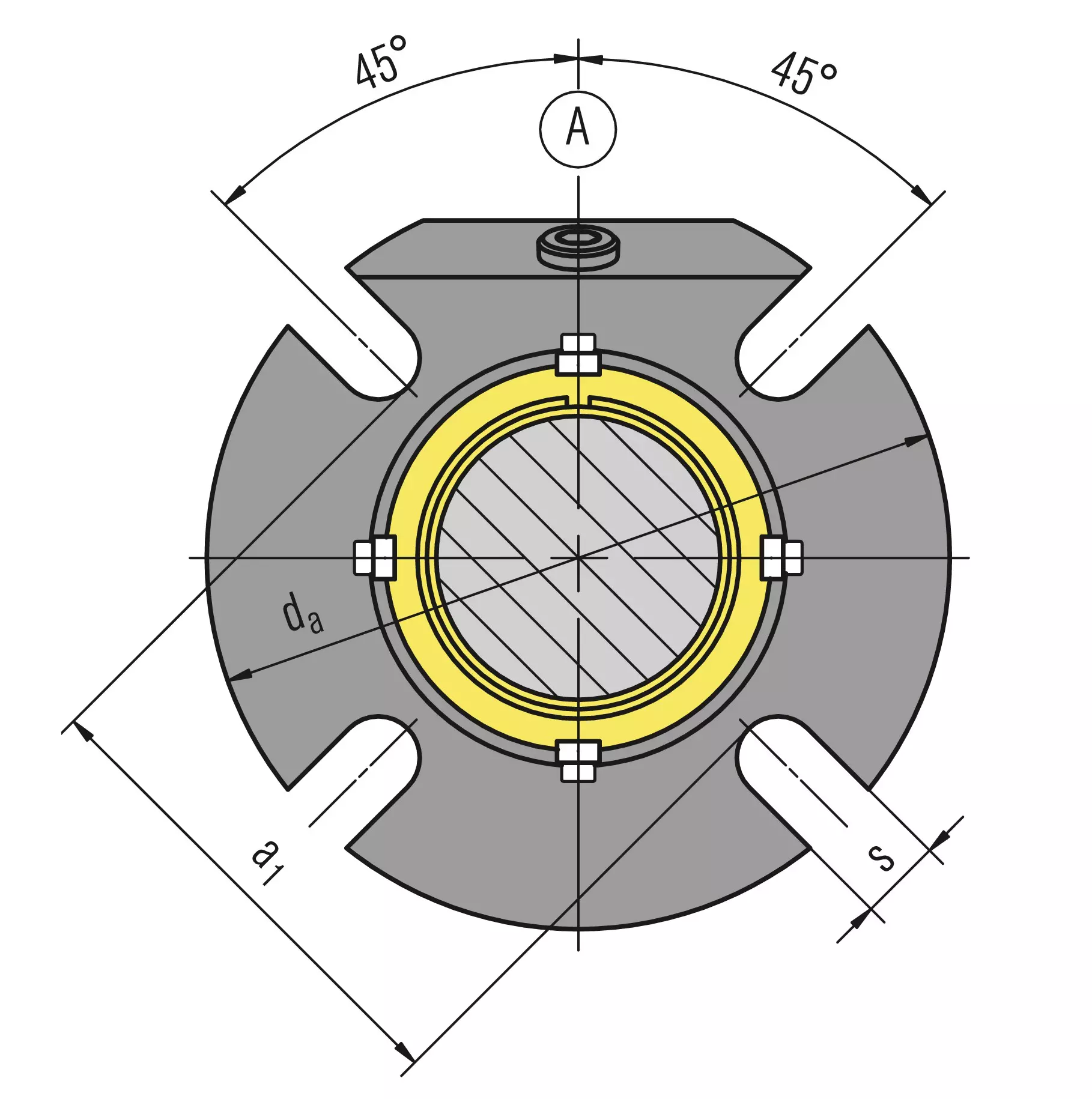

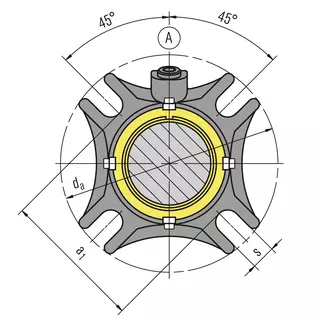

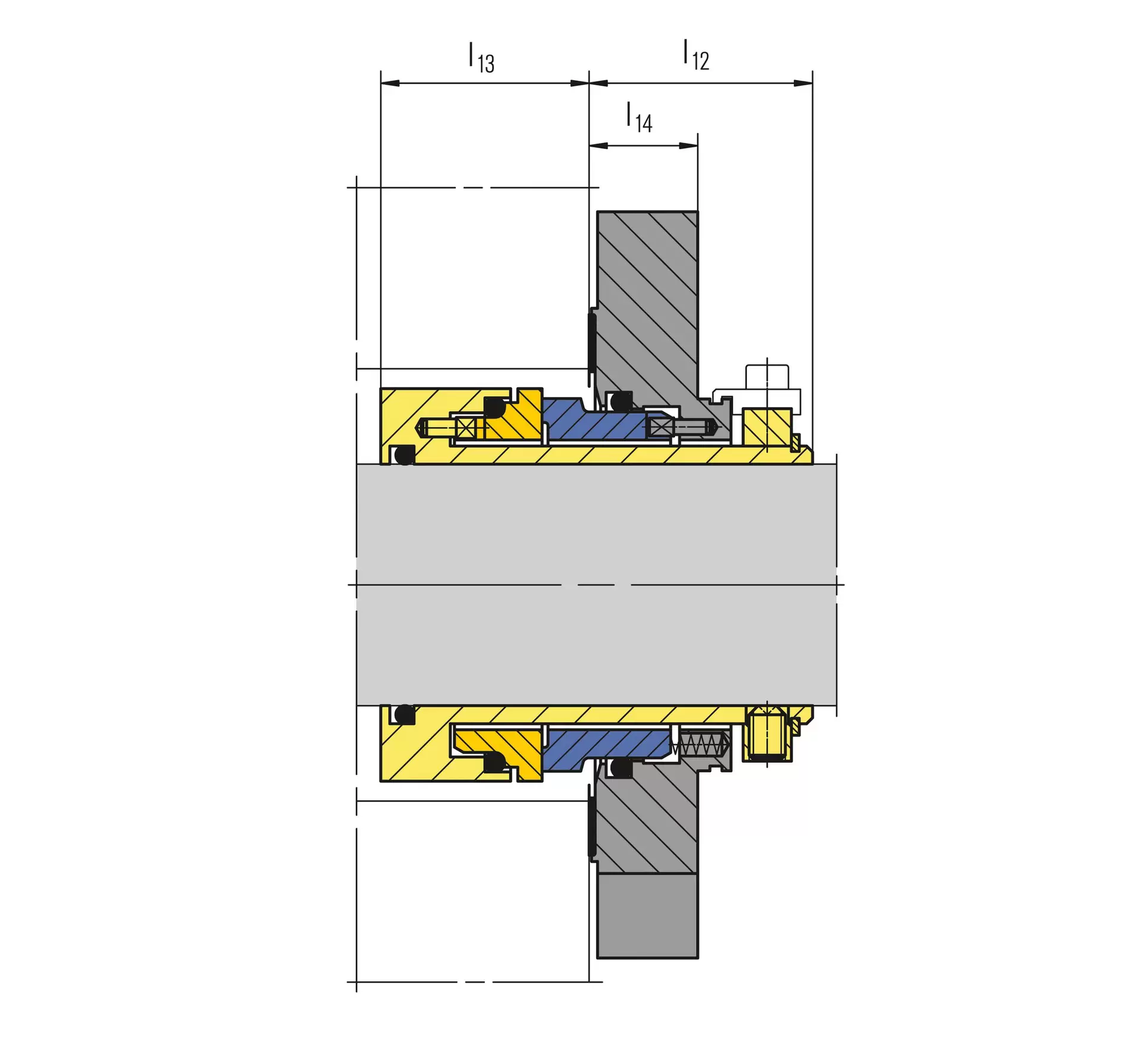

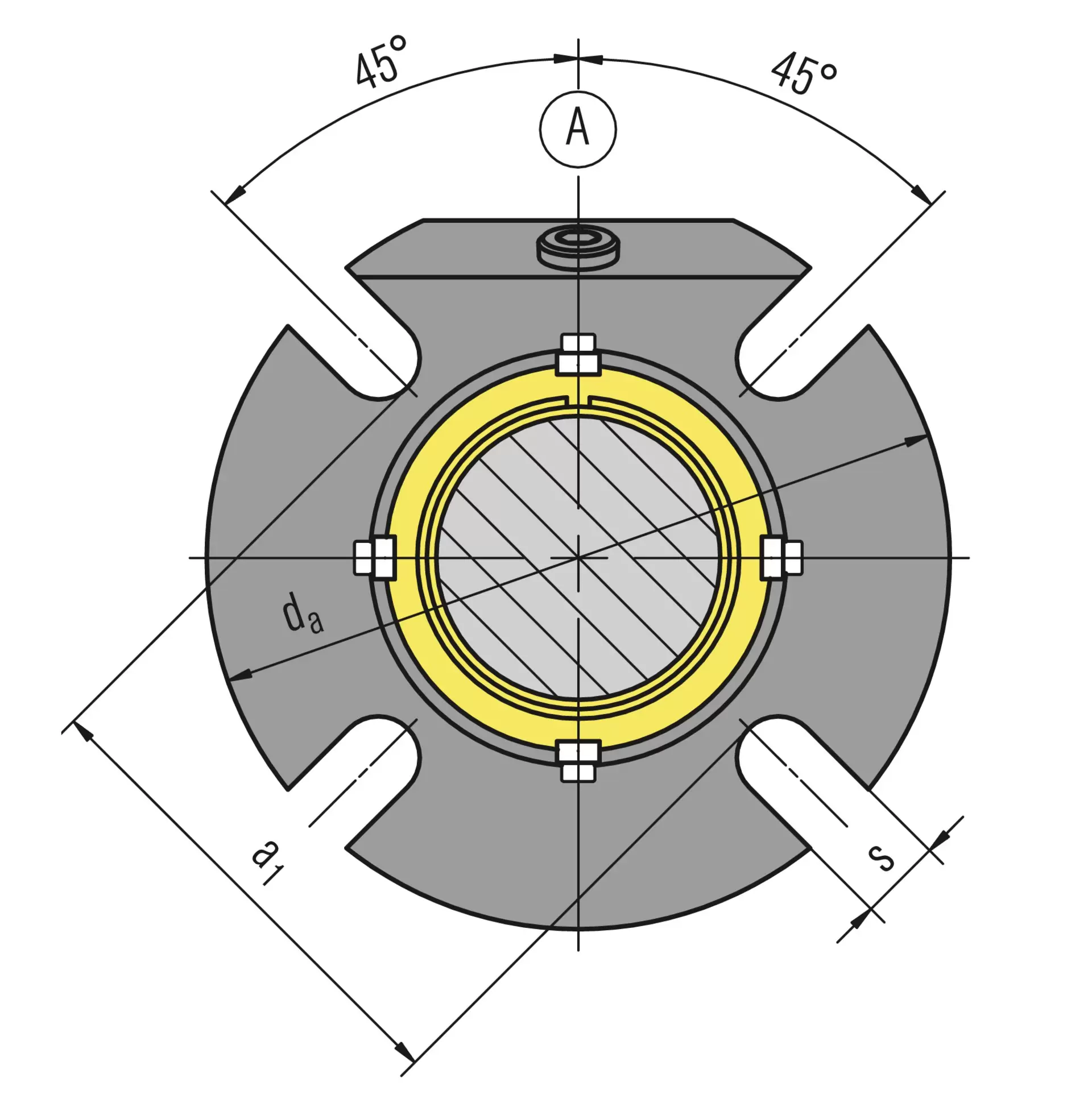

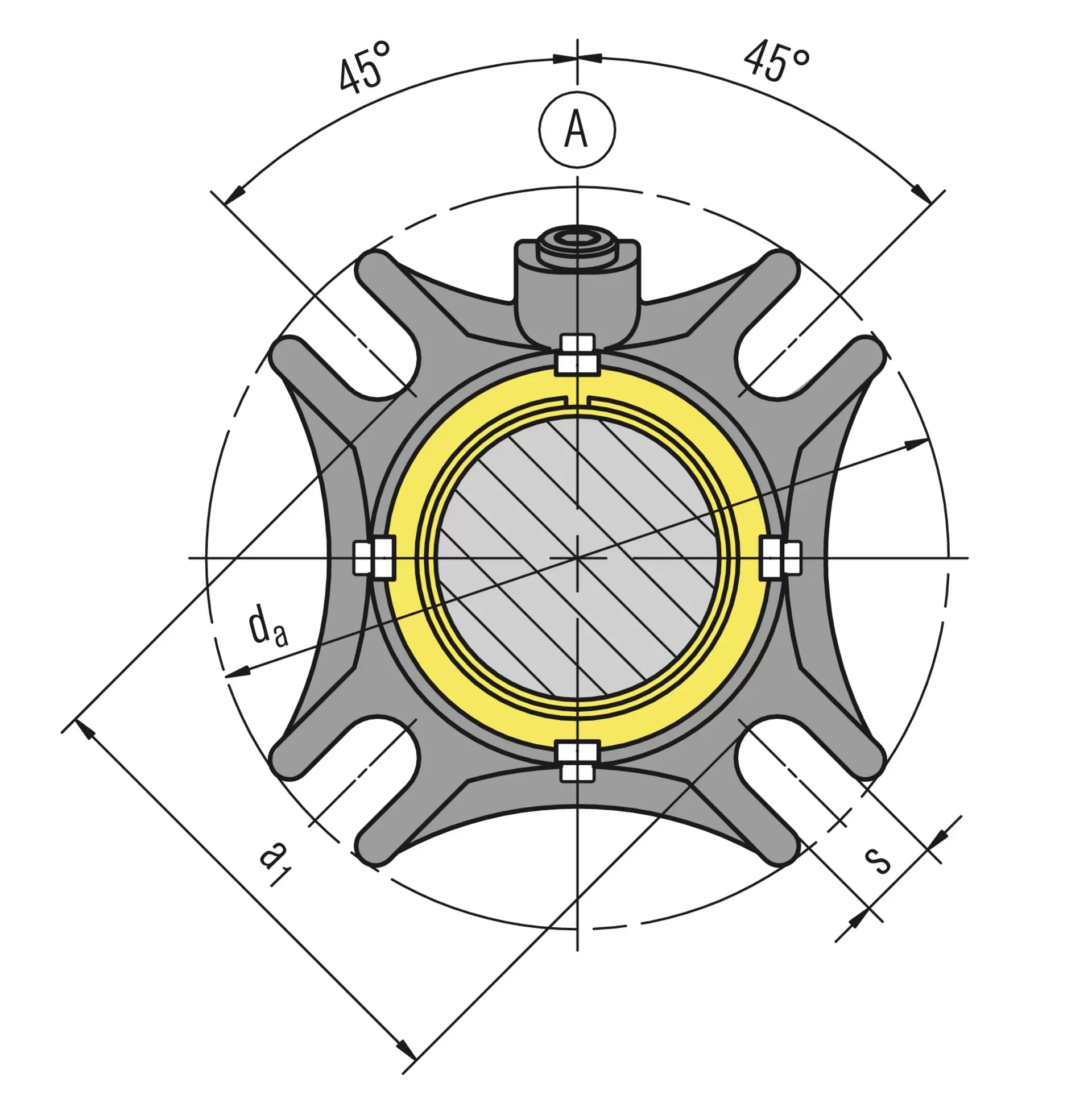

Technical drawing of eCartex Single seals

Click image to enlarge

Item Description
1 Seal face
2, 5, 7 O-Ring
3 Spring
4 Seat
6 Shaft sleeve
8 Drive collar
9 Set screw
10 Snap ring
11 Cover
12 Assembly fixture
13 Screw
14 Gasket
15 Screw plug
16 Lip seal (-QN), throttle ring (-TN)

eCartex
Single seals

PDF data sheet

Features

  • Single seal
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Single seals without connections (-SNO), with flush (-SN) and with quench combined with lip seal (-QN) or throttle ring (-TN)
  • Additional variants available for ANSI pumps (e.g. -ABPN) and eccentric screw pumps (-Vario)

Advantages

  • The series has sliding surfaces that are equipped with EagleBurgmann DiamondFace technology as standard
  • Up to 80 % less energy consumption and minimized heat generation of seal due to friction-reducing DiamondFace layer
  • Up to 100 % extended operating period, prolongation of MTBF and MTBR intervals
  • Significantly improved dry-run capability for inadequately lubricated sealing surfaces, thus vastly improved process safety
  • Universally applicable, even with high solids content in the medium

Operating range

Shaft diameter:
d1 = 25 ... 100 mm (1.000" ... 4.000")
Other sizes on request
Temperature:
t= -40 °C ... 220 °C (-40 °F ... 428 °F)
(Check O-Ring resistance)

Sliding face material combination BQ1
Pressure: p1 = 25 bar (363 PSI)
Sliding velocity: vg = 16 m/s (52 ft/s)

Sliding face material combination
Q1Q1 or U2Q1:
Pressure: p1 = 12 bar (174 PSI)
Sliding velocity: vg = 10 m/s (33 ft/s)

Axial movement: ±1.0 mm, d1 ≥75 mm ±1.5 mm

Materials

Seal face: Silicon carbide DiamondFace (Q15)
Seat: Silicon carbide DiamondFace (Q15)
Secondary seals: FKM (V), EPDM (E), FFKM (K), Perfluorcarbon rubber/PTFE (U1)
Springs: Hastelloy® C-4 (M)
Metal parts: CrNiMo steel (G), CrNiMo cast steel (G)

Recommended applications

  • Universally applicable
  • Process industry
  • Petrochemical industry
  • Chemical industry
  • Pharmaceutical industry
  • Power plant technology
  • Pulp and paper industry
  • Water and waste water technology
  • Mining industry
  • Food and beverage industry
  • Sugar industry
  • CCUS
  • Nuclear power technology
  • Centrifugal pumps
  • Eccentric screw pumps
  • Process pumps

Product variants

https://media-assets.eagleburgmann.com/image/108134910297/image_ahib9i1irl2id1kfbv0dp3ua1j/-FWEBP

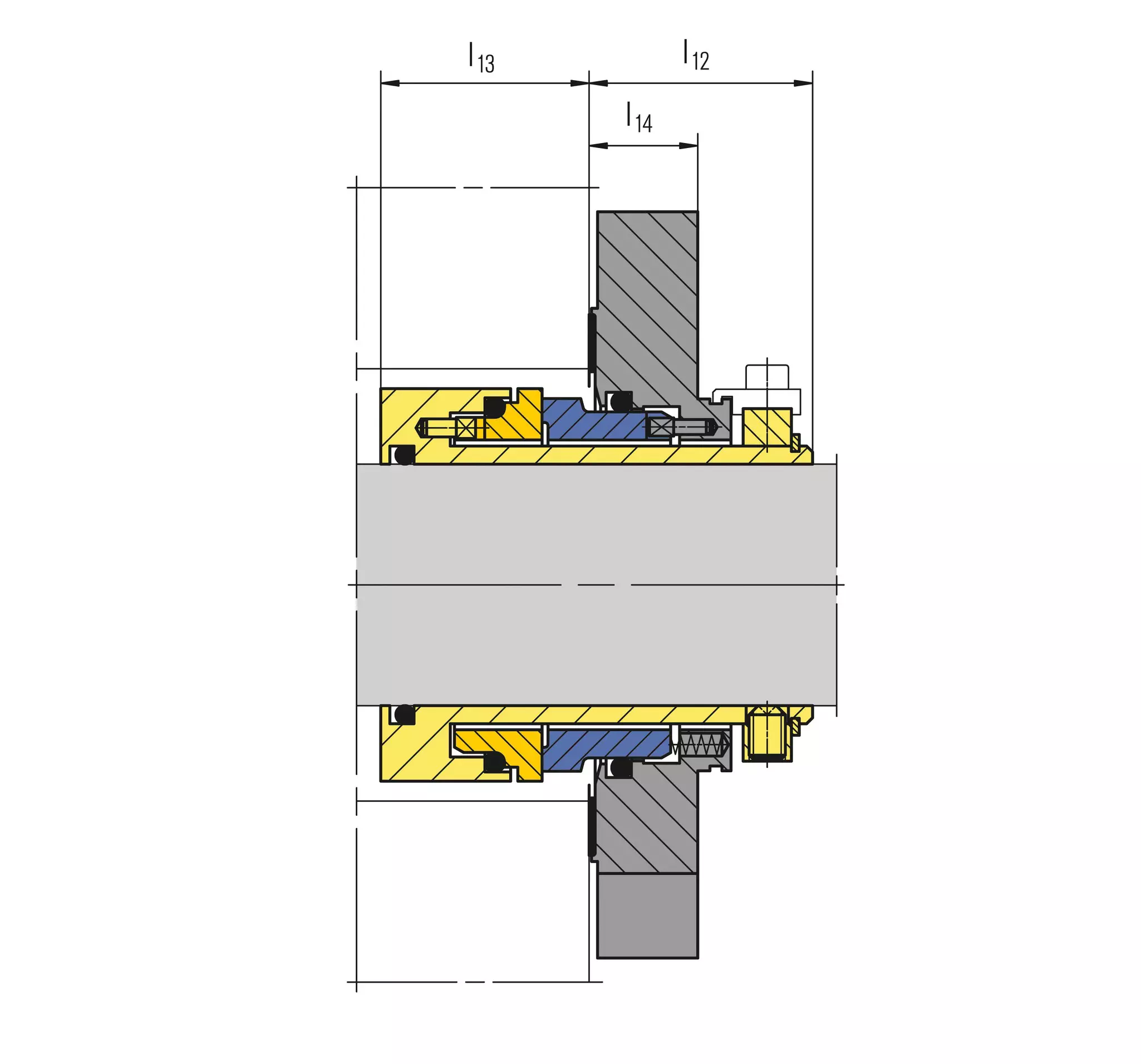

eCartex-SNO
Single seal without connections, for dead-end operation.

https://media-assets.eagleburgmann.com/image/108134910297/image_eh3n362sjl3jla149ki371q619/-FWEBP

eCartex-TN

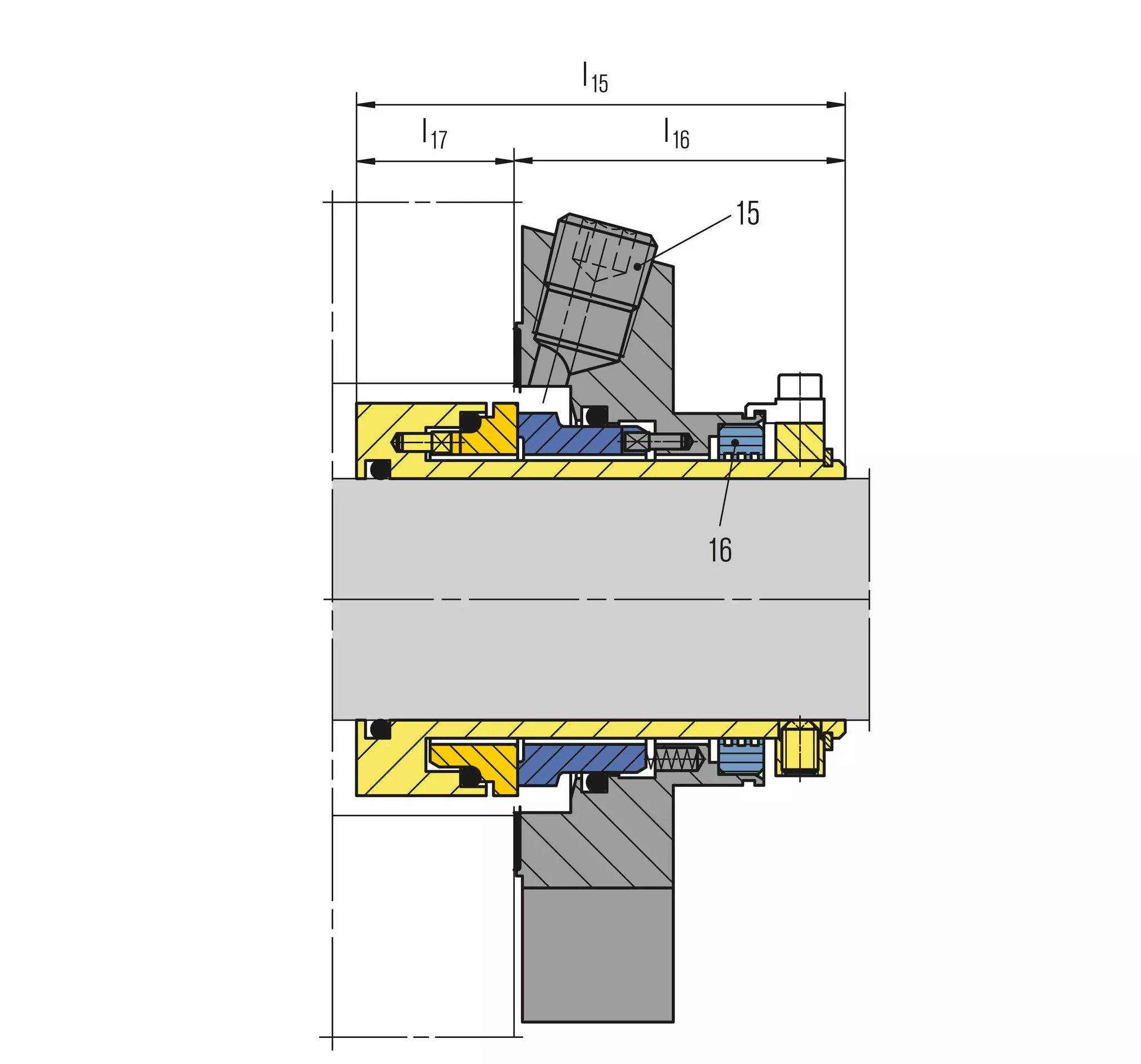

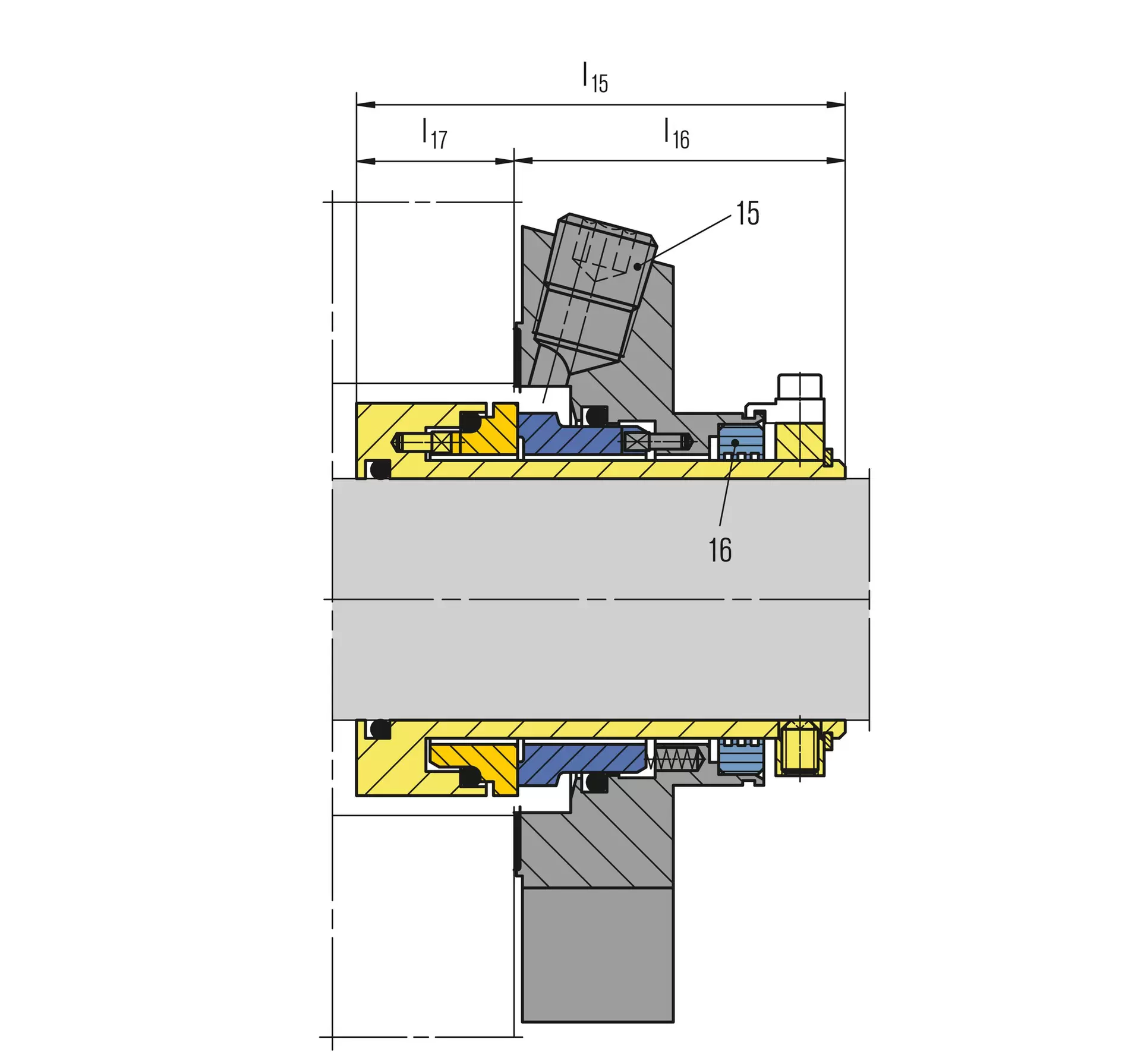

Single seal for operation with unpressurized quench. Same as eCartex-SN but with throttle ring (item 16). The cover has auxiliary connections for flushing and quench.
Throttle ring: PTFE carbon-graphite reinforced (T12).

https://media-assets.eagleburgmann.com/image/108134910297/image_vbdtfb0a7h6i15mkddac9ngn74/-FWEBP

eCartex-QN

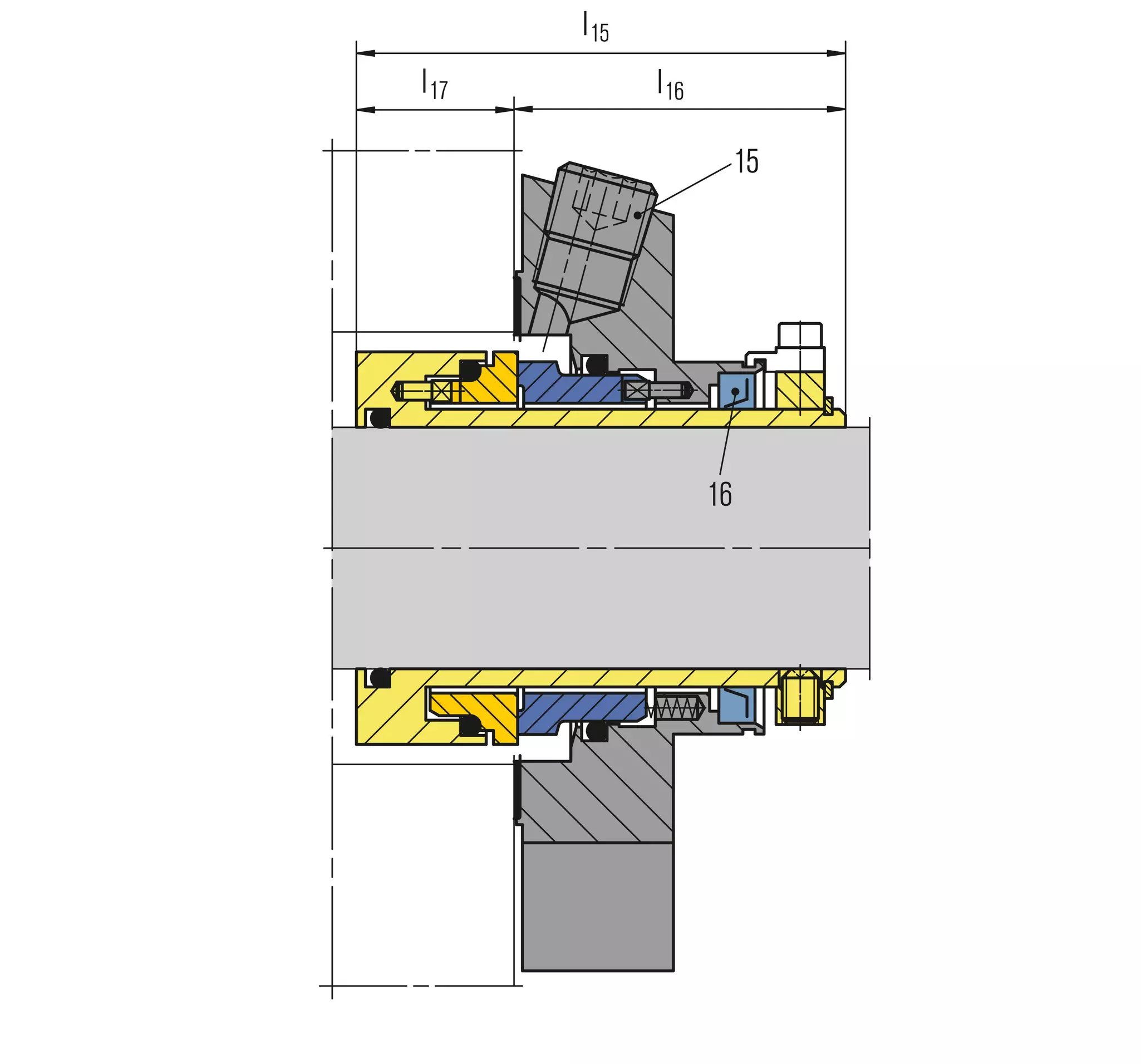

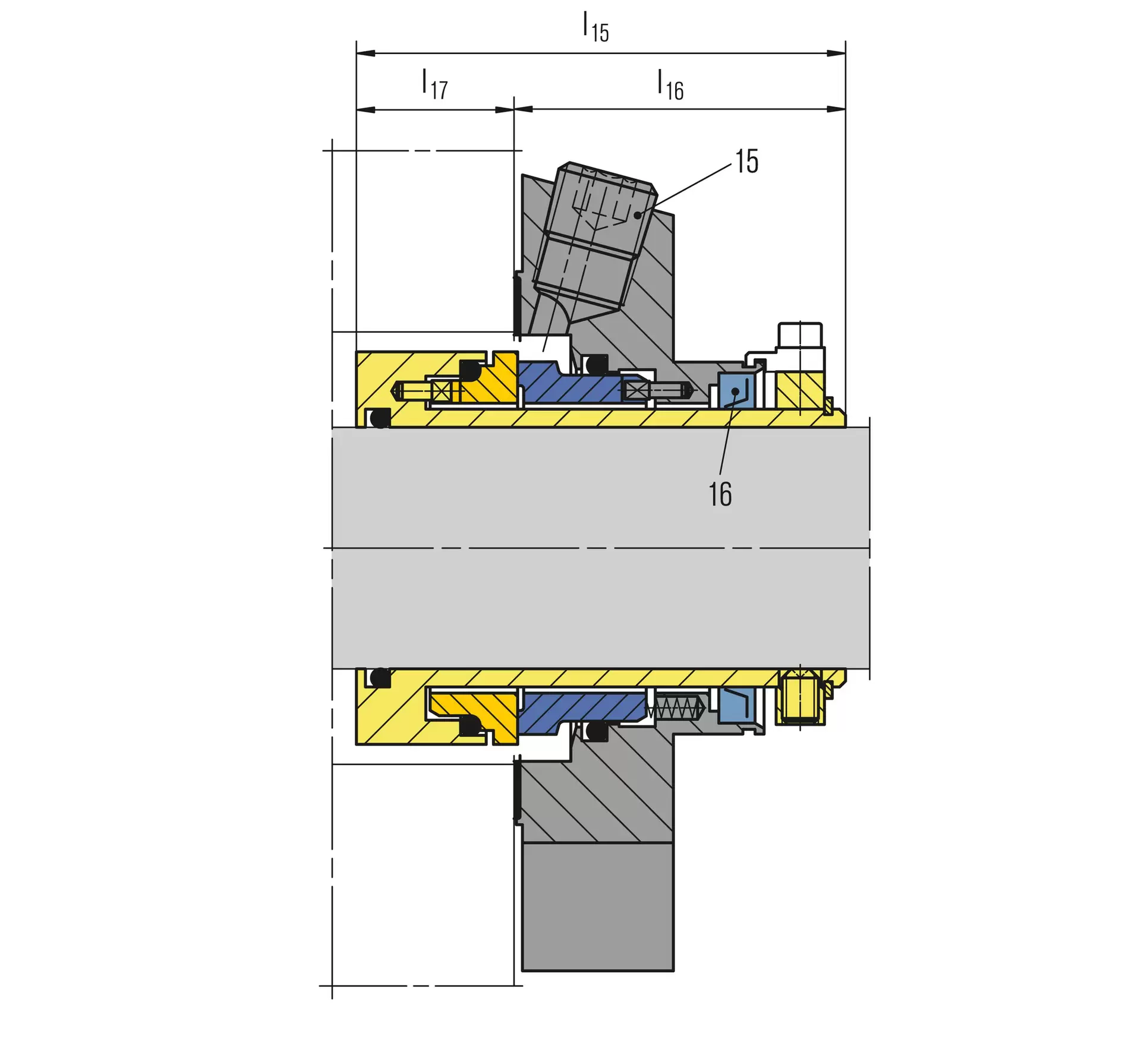

Single seal for operation with unpressurized quench. Same as "-SN' version but with outboard lip seal (item 16). The cover has auxiliary connections for flushing and quench.
Lip seal: NBR (P), PTFE carbon reinforced (T3).

https://media-assets.eagleburgmann.com/image/108134910297/image_rnr1eakdvt1pj2ig27c0hllt2l/-FWEBP

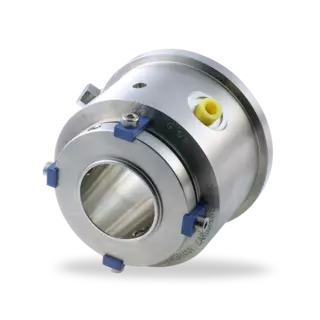

eCartex-Vario
Cartridge seals with modified cover for eccentric screw pumps.
For e.g. Seepex BN,
Netzsch NM...S, NM...B, NE (P),
Allweiler AE, AEB, AED,
Robbins & Myers / Moyno 2000 CC,
and Mono E-Range.
Please inquire.
