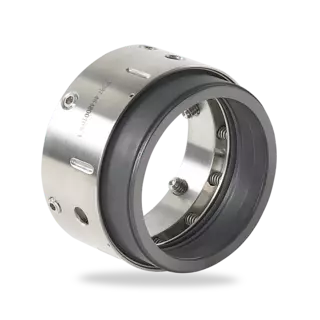

Hot water seal
L9AW
Features
- Rotating multi-spring pusher seals
- Balanced
- Compact in length
- Uniform seal face loading
- Circlip design for ease of assembly
- Independent of direction of rotation
- Specially designed seal faces prevent dry running
Advantages
- Reduced operation cost on utilities like cooling water
- Can handle hot water up to 120 °C without cooler or jacket cooling
- Narrow cross-section allows the seal fitment in narrow stuffing boxes
Operating range
Shaft diameter: d = 25 … 100 mm (1" ... 3.94")
Pressure: p = vacuum to 20 bar (290 PSI)
Temperature: t = +120 °C (+248 °F)
Sliding velocity: vg = 23 m/s (75 ft/s)
Axial movement: ±0.5 mm
(Consult EB for applications outside above limits).
Materials
Seal ring: Carbon graphite antimony impregnated
Mating ring: Silicon carbide
Secondary seals: FKM, FFKM, EPR
Springs: Hastelloy® C-4
Metal parts: SS 316, other materials on request.
Recommended applications
- Process industry
- Oil and gas industry
- Refining technology
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Water and waste water technology
- Building services industry
- Food and beverage industry
- Sugar industry
- Horizontal and vertical pumps, agitators, mixers
Recommended piping plans
API Plans 01, 11, 12, 13, 14, 61, 62

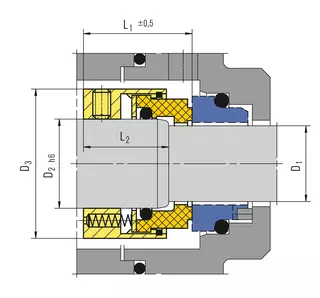

Hot water seal
L9AW
L9AW

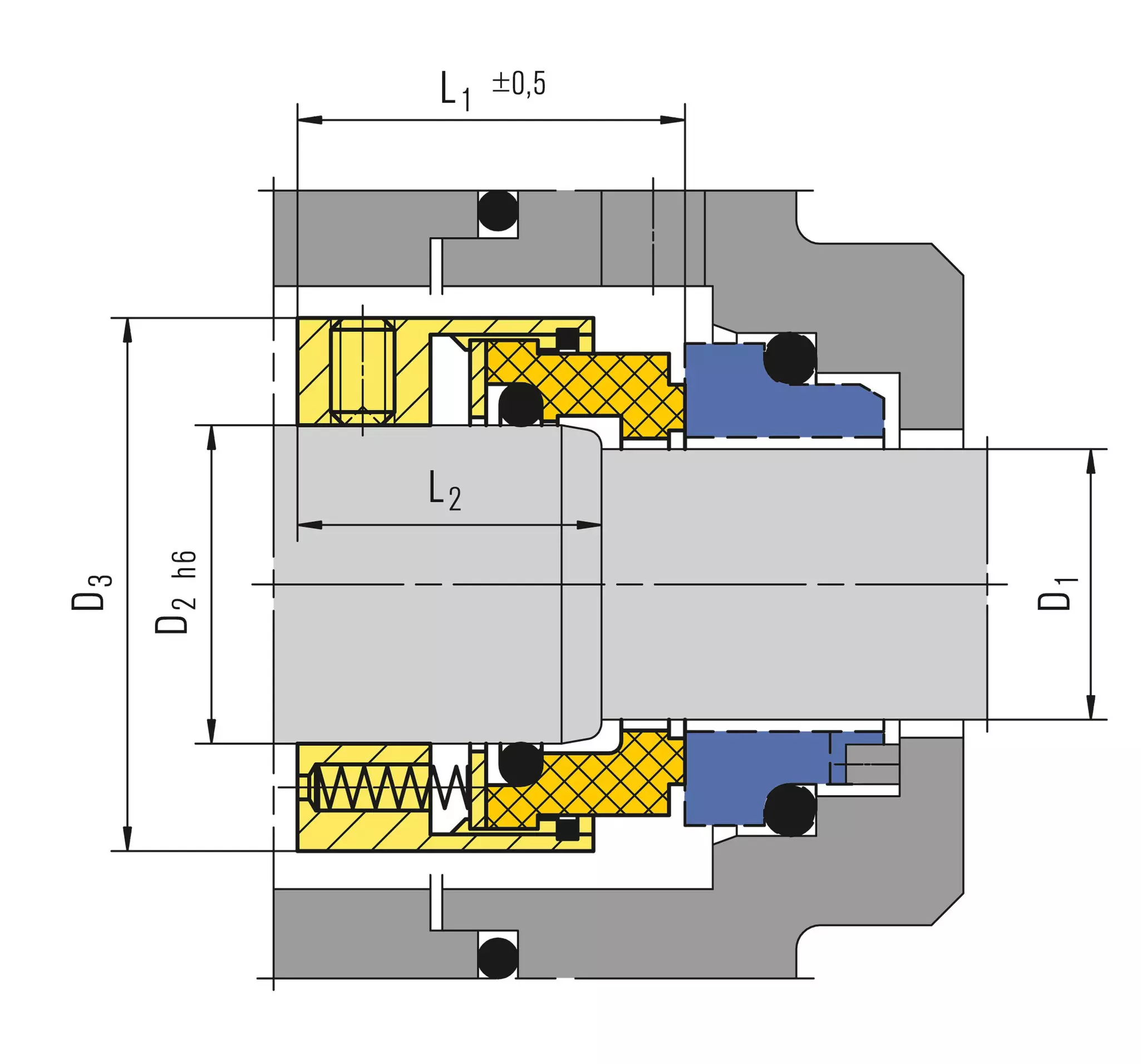

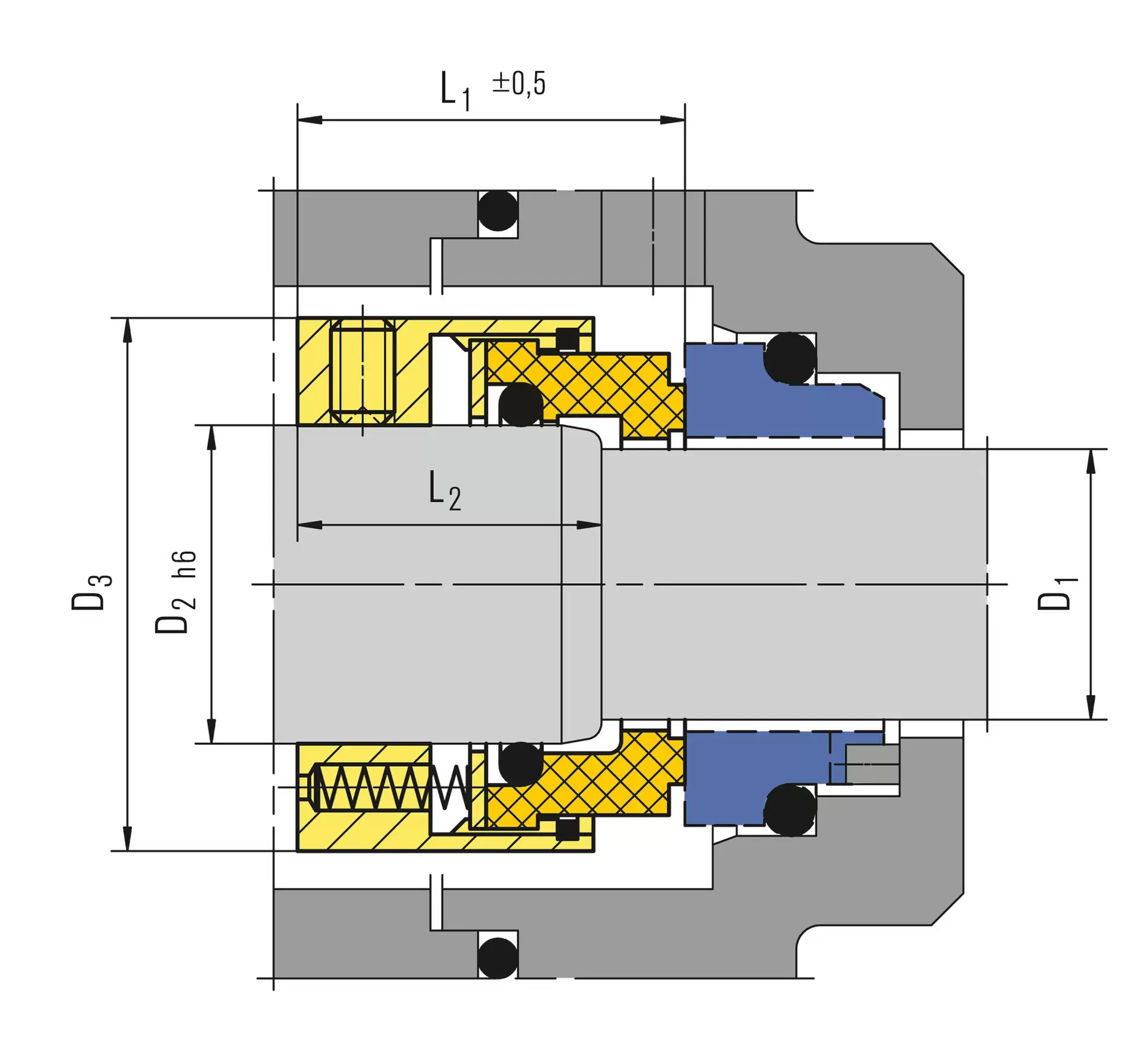

Dimensions
Click image to enlarge
Dash size |
D1 |
D2 |
D3 |
L1 |
L2 |
|---|---|---|---|---|---|
| D016 | 22.23 | 25.40 | 36.5 | 33.5 | 26.0 |
| D018 | 25.40 | 28.58 | 39.7 | 35.0 | 26.0 |
| D020 | 28.58 | 31.75 | 42.9 | 35.0 | 26.0 |
| D022 | 28.58 | 34.93 | 49.2 | 36.5 | 27.0 |
| D024 | 31.75 | 38.10 | 52.4 | 36.5 | 27.0 |
| D026 | 34.93 | 41.28 | 55.6 | 37.3 | 27.0 |
| D028 | 38.10 | 44.45 | 58.7 | 38.1 | 27.0 |
| D030 | 41.28 | 47.63 | 63.5 | 38.1 | 27.0 |
| D032 | 44.45 | 50.80 | 66.7 | 38.1 | 27.0 |
| D034 | 47.62 | 53.98 | 71.4 | 38.1 | 27.0 |
| D036 | 50.80 | 57.15 | 72.2 | 44.5 | 34.0 |
| D038 | 53.98 | 60.32 | 76.2 | 44.5 | 34.0 |
| D040 | 57.15 | 63.50 | 79.4 | 44.5 | 34.0 |
| D042 | 60.32 | 66.67 | 82.6 | 46.8 | 34.0 |
| D044 | 63.50 | 69.85 | 85.7 | 46.8 | 34.0 |
| D046 | 66.67 | 73.02 | 94.7 | 46.8 | 34.0 |
| D048 | 69.85 | 76.20 | 96.8 | 46.8 | 34.0 |
| D050 | 73.02 | 79.37 | 101.6 | 46.8 | 34.0 |
| D052 | 76.20 | 82.55 | 104.8 | 46.8 | 34.0 |
| D054 | 79.37 | 85.72 | 108.0 | 46.8 | 34.0 |
| D056 | 82.55 | 88.90 | 111.1 | 46.8 | 34.0 |
| D058 | 85.72 | 92.08 | 114.3 | 46.8 | 34.0 |
| D060 | 88.90 | 95.25 | 117.5 | 46.8 | 34.0 |
| D062 | 92.08 | 98.43 | 120.7 | 46.8 | 34.0 |
| D064 | 95.25 | 101.6 | 123.8 | 46.8 | 34.0 |
Imperial size
Seal size |
D1 |
D2 |
D3 |
L1 |
L2 |
|---|---|---|---|---|---|
| 0025 | 25.0 | 30.0 | 44.0 | 37.5 | 27.5 |
| 0028 | 28.0 | 33.0 | 47.0 | 40.0 | 30.0 |
| 0030 | 30.0 | 35.0 | 49.0 | 40.0 | 30.0 |
| 0032 | 32.0 | 38.0 | 54.0 | 40.0 | 30.0 |
| 0033 | 33.0 | 38.0 | 54.0 | 40.0 | 30.0 |
| 0035 | 35.0 | 40.0 | 56.0 | 40.0 | 30.0 |
| 0038 | 38.0 | 43.0 | 59.0 | 41.5 | 29.5 |
| 0040 | 40.0 | 45.0 | 61.0 | 41.5 | 29.5 |
| 0043 | 43.0 | 48.0 | 64.0 | 41.5 | 29.5 |
| 0045 | 45.0 | 50.0 | 66.0 | 41.5 | 29.5 |
| 0048 | 48.0 | 53.0 | 69.0 | 41.5 | 29.5 |
| 0050 | 50.0 | 55.0 | 71.0 | 44.5 | 32.5 |
| 0053 | 53.0 | 58.0 | 78.0 | 44.5 | 32.5 |
| 0055 | 55.0 | 60.0 | 80.0 | 44.5 | 32.5 |
| 0058 | 58.0 | 63.0 | 83.0 | 49.5 | 37.5 |
| 0060 | 60.0 | 65.0 | 85.0 | 49.5 | 37.5 |
| 0063 | 63.0 | 68.0 | 88.0 | 49.5 | 37.5 |
| 0065 | 65.0 | 70.0 | 90.0 | 49.5 | 37.5 |
| 0070 | 70.0 | 75.0 | 99.0 | 54.7 | 42.0 |
| 0075 | 75.0 | 80.0 | 104.0 | 54.7 | 42.0 |
| 0080 | 80.0 | 85.0 | 109.0 | 54.7 | 42.0 |
| 0085 | 85.0 | 90.0 | 114.0 | 59.3 | 47.0 |
| 0090 | 90.0 | 95.0 | 119.0 | 59.3 | 47.0 |
| 0095 | 95.0 | 100.0 | 124.0 | 59.3 | 47.0 |
| 0100 | 100.0 | 105.0 | 129.0 | 59.3 | 47.0 |
