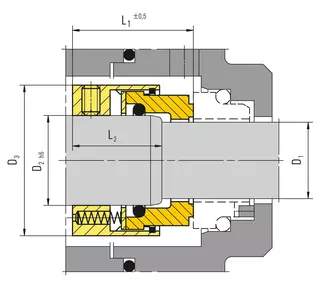

Drawing shows

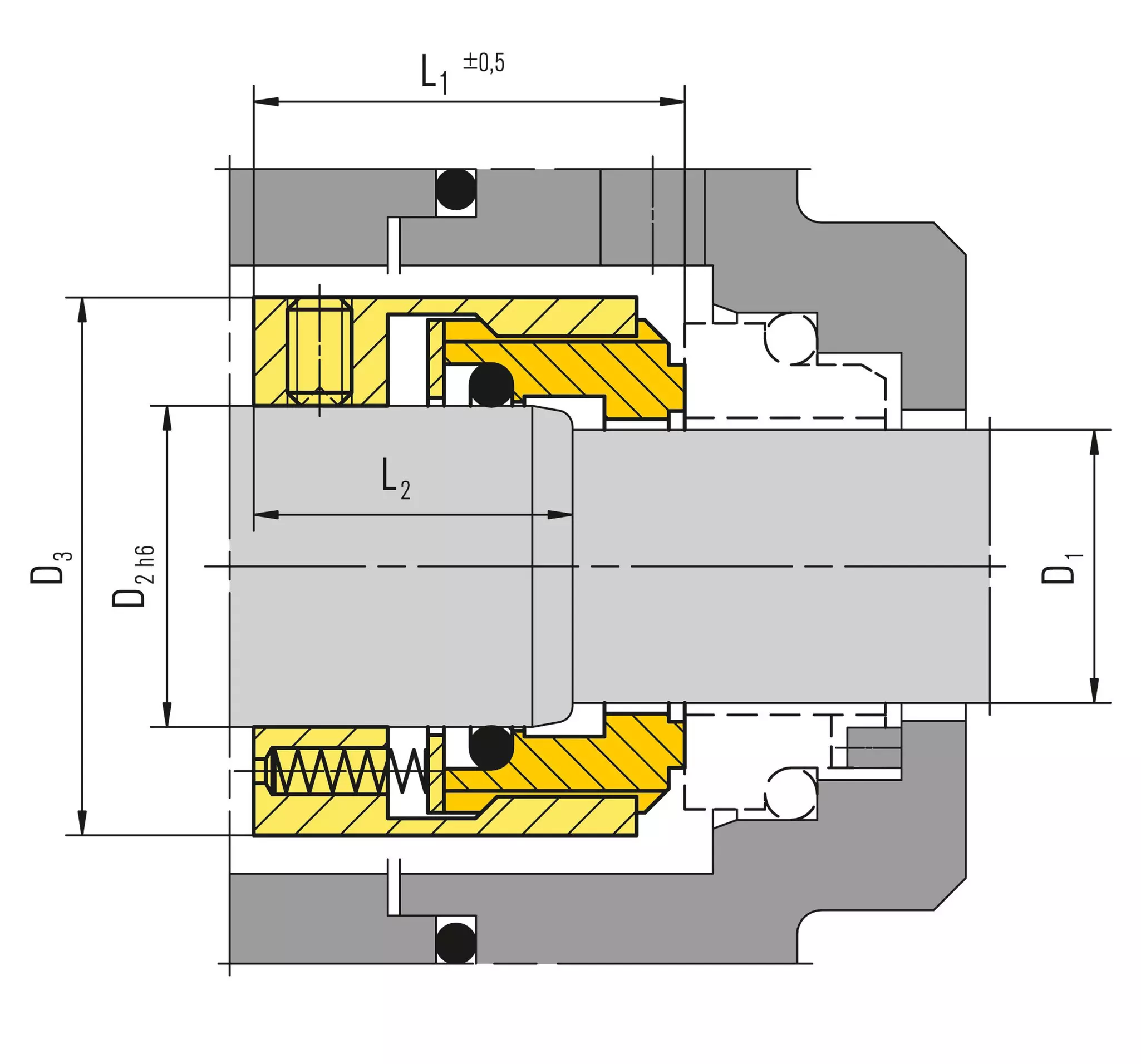

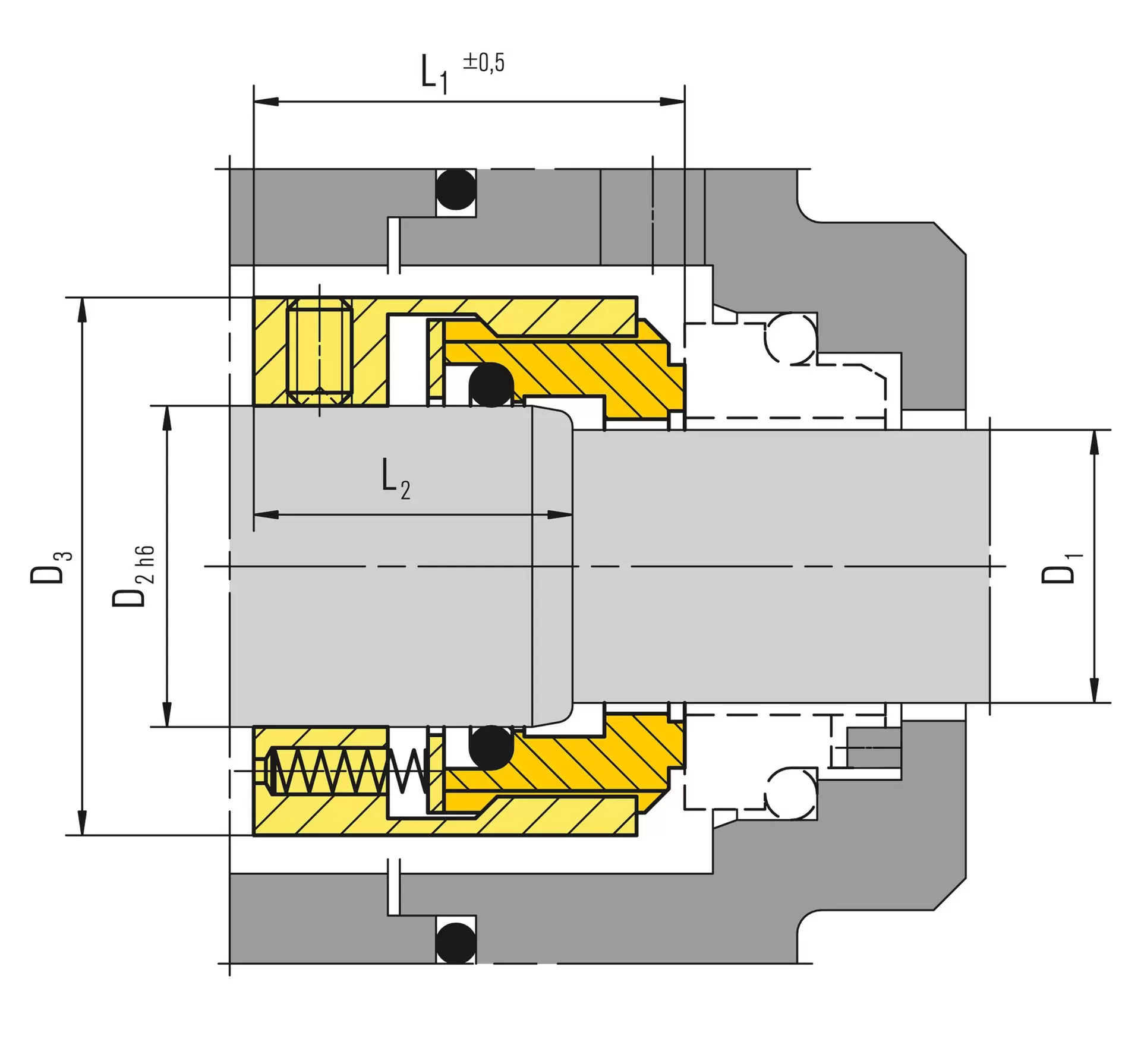

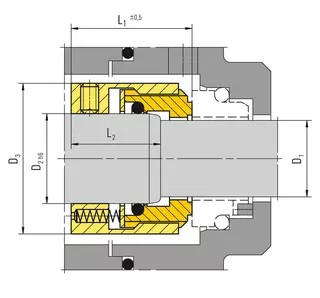

P13 balanced seal with O-Ring

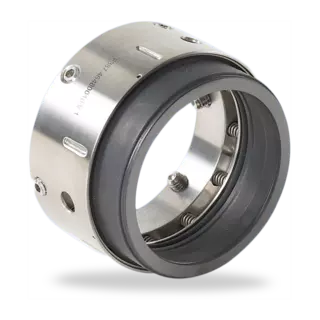

Class P balanced seals
P03, P04, P13, P14
Features
- Rotating multi-spring pusher seals
- Balanced
- Compact in length
- Available as O-Ring or wedge variants
- Uniform seal face loading
- Circlip design for ease of assembly
in P13 / P14 seals - Independent of direction of rotation
- Available as single, dual and tandem arrangements
Advantages
- Ideal for general purpose applications
- Over 35 years of running reference in the field
- Narrow cross-section allows the seal fitment in narrow stuffing boxes
- Lower inventory since all parts except seal ring are interchangeable with P class unbalanced version (P01, P02, P11, P12).
Operating range
Shaft diameter: d = 25 … 100 mm (1" ... 3.94")
Pressure: p = vacuum to 35 bar (508 PSI)
Temperature:
t = -75 °C ... +260 °C (-103 °F ... +500 °F)
Sliding velocity: vg = 25 m/s (82 ft/s)
Axial movement: ±0.5 mm
Materials
(Consult EB for applications outside above limits). Seal ring: Carbon graphite resin impregnated,
Carbon graphite antimony impregnated
Mating ring: Silicon carbide, Tungsten carbide, Ceramic
Secondary seals: FKM, NBR, FFKM, PTFE
Springs: Hastelloy® C-4
Metal parts: SS 316, other materials on request.
Recommended applications
- Process industry
- Oil and gas industry
- Refining technology
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Water and waste water technology
- Building services industry
- Food and beverage industry
- Sugar industry
- Horizontal and vertical pumps, agitators, mixers
Recommended piping plans
API Plans 01, 02, 03, 11, 12, 13, 14, 21, 22, 23, 31, 32, 41, 52, 53A, 53B, 53C, 54, 55, 61, 62, 65A, 65B, 66
Product variants

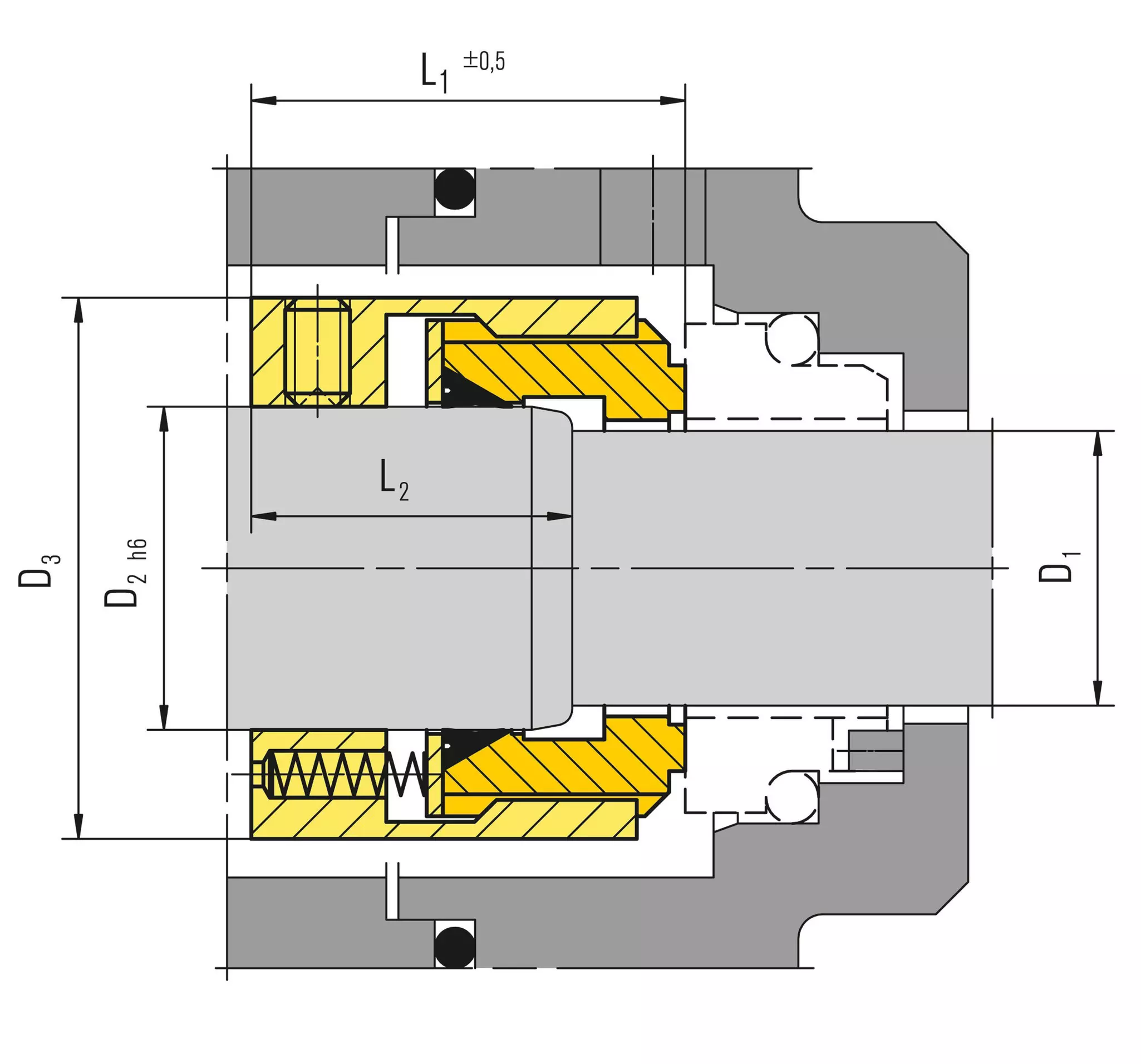

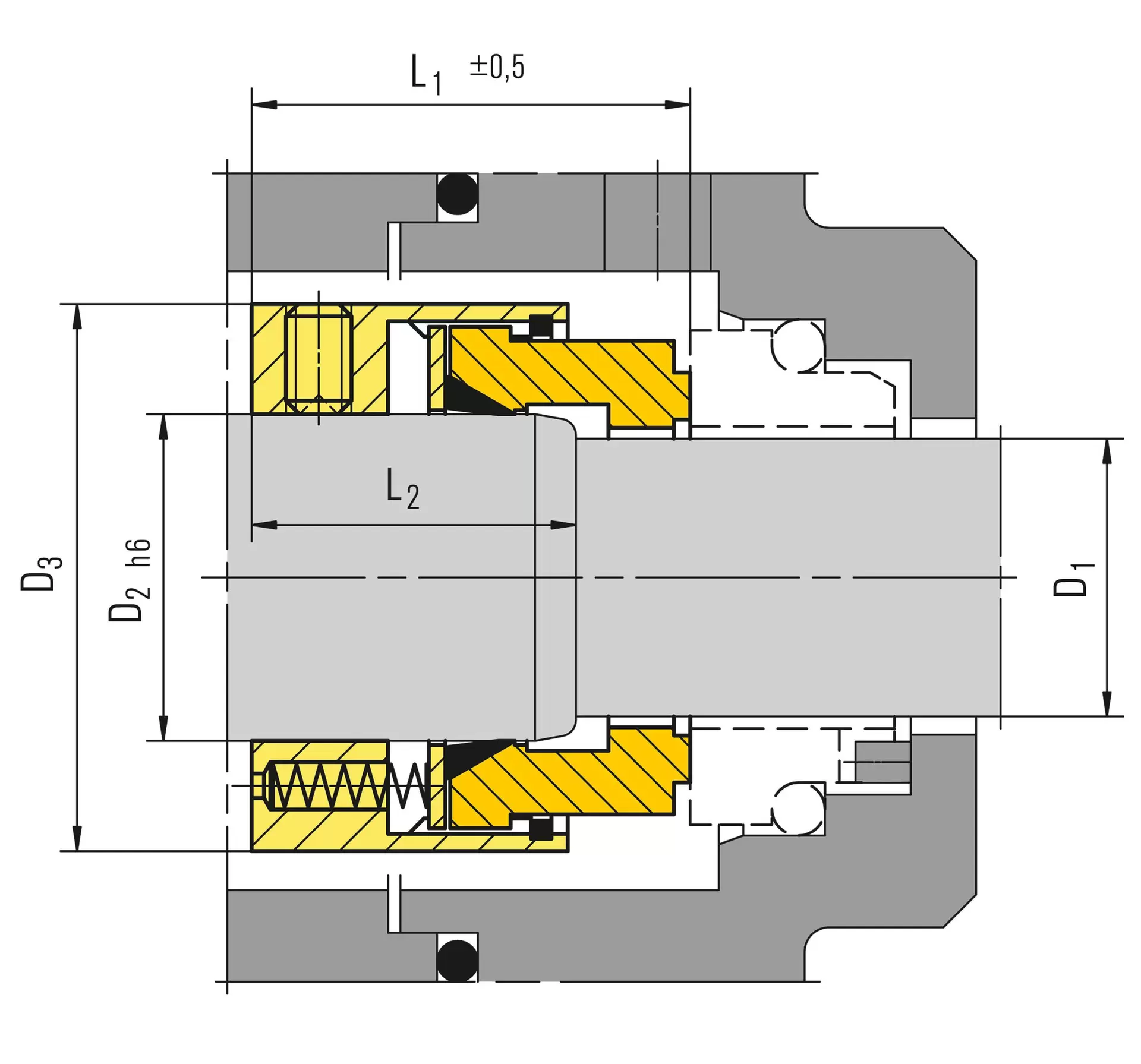

P14 balanced seal with wedge

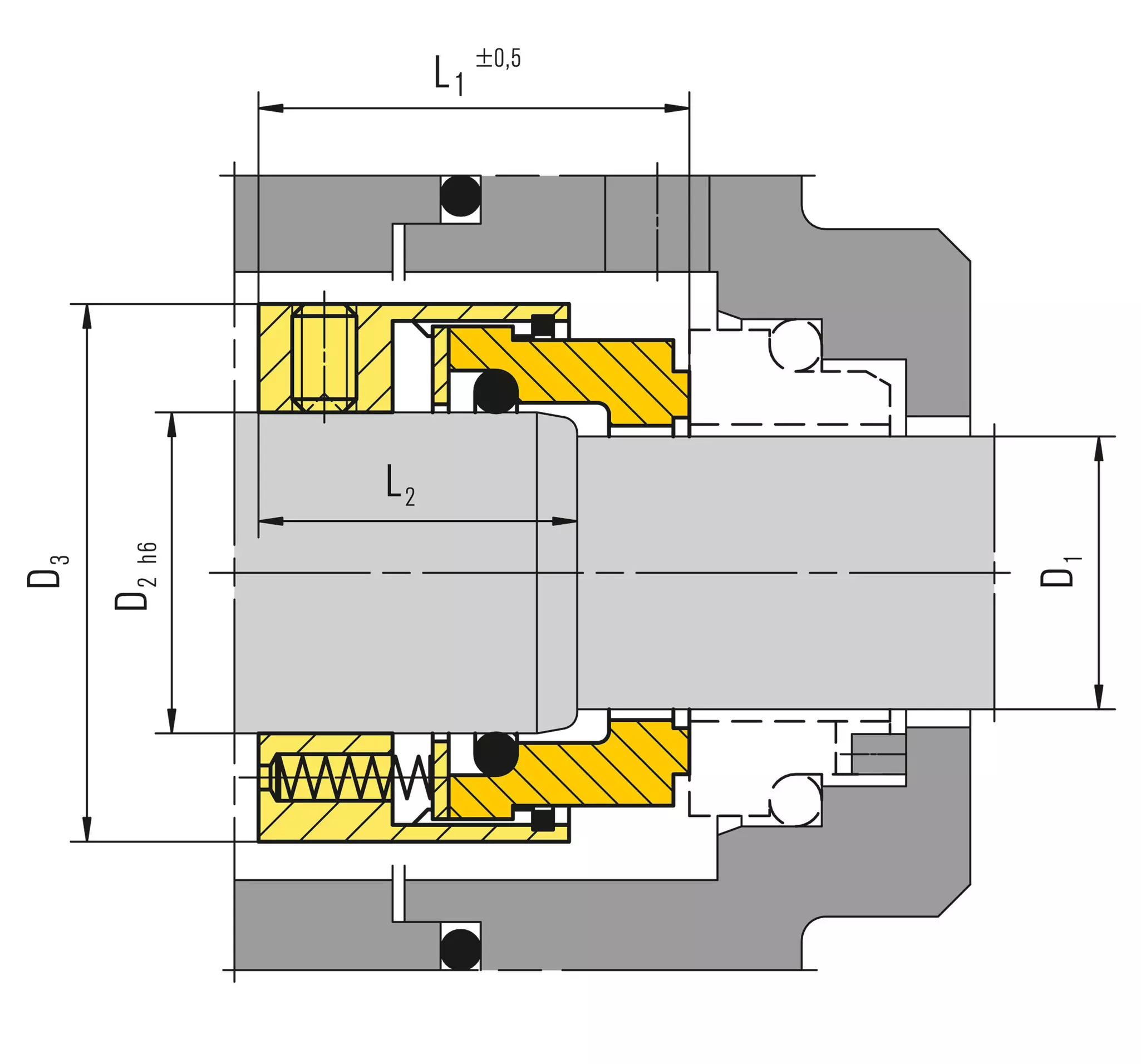

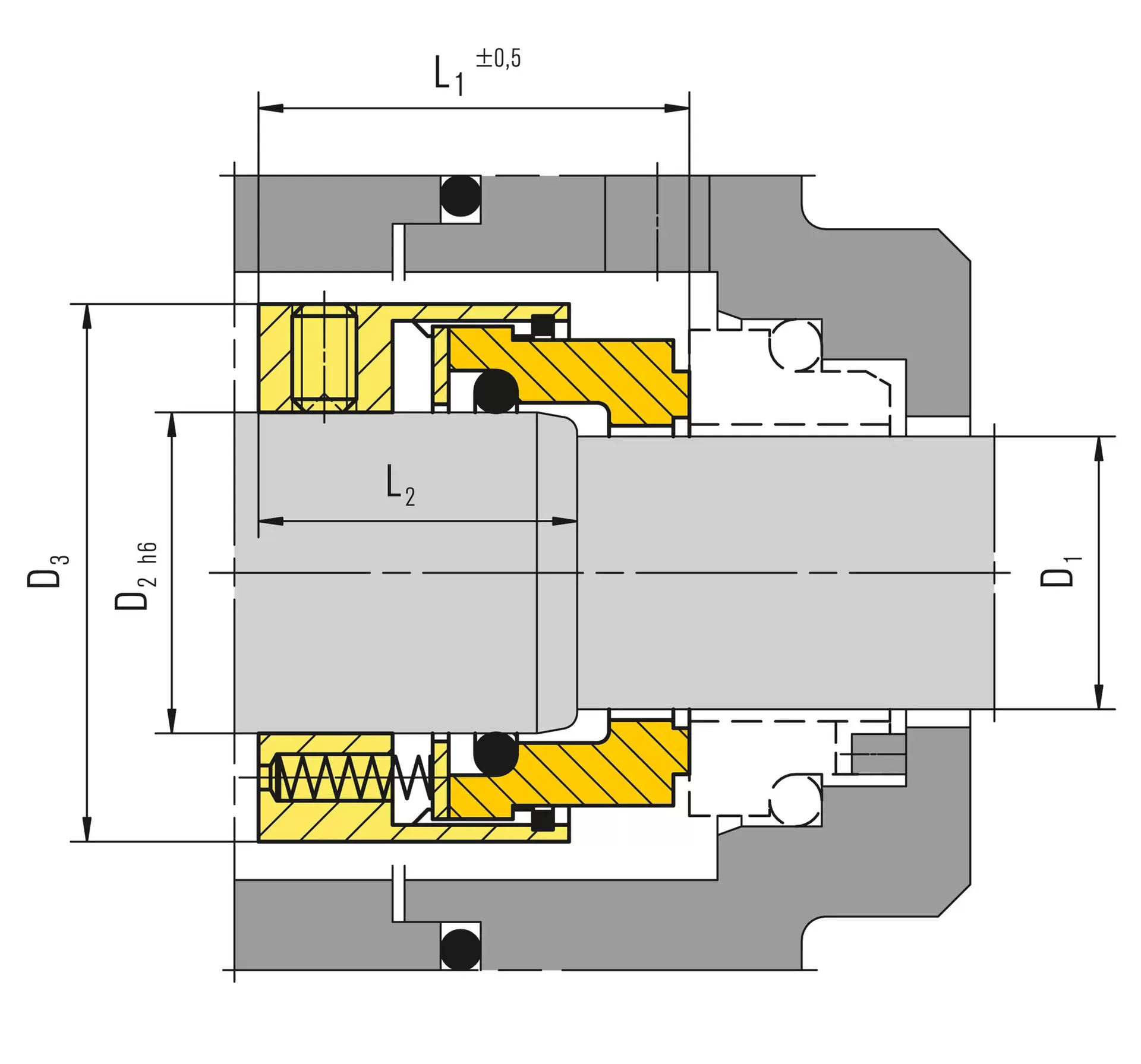

P03 balanced seal with O-Ring

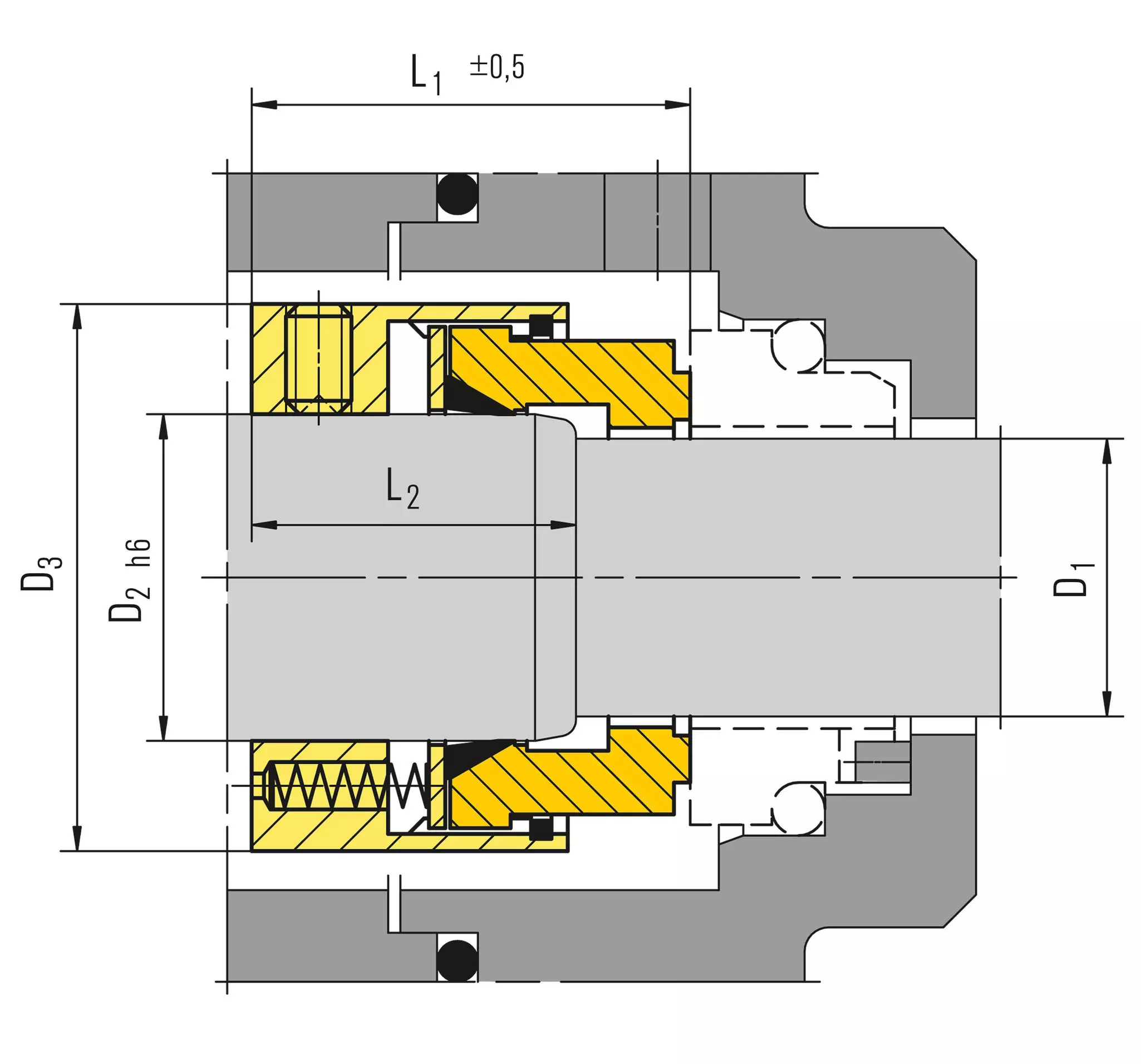

P04 balanced seal with wedge
