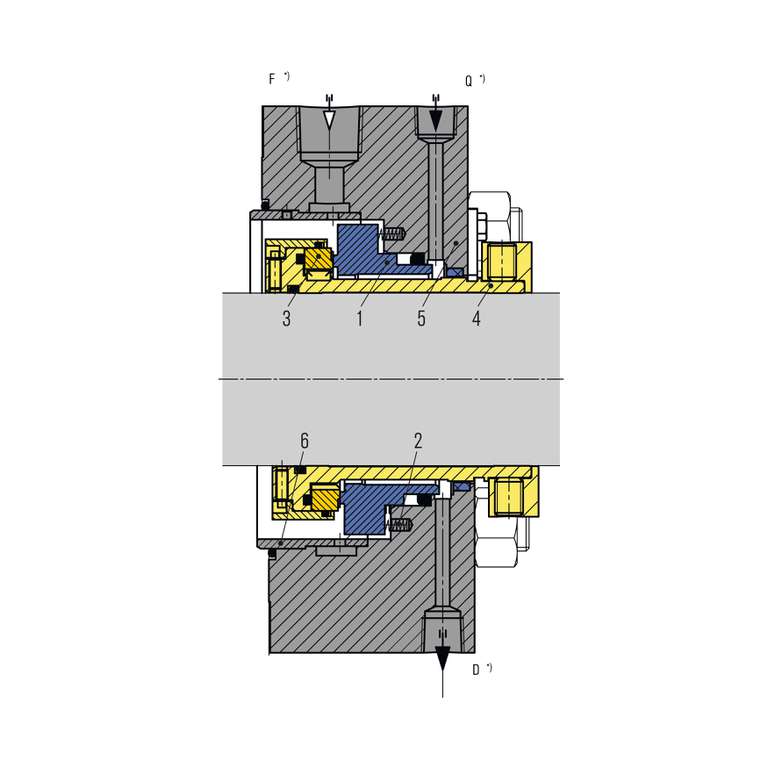

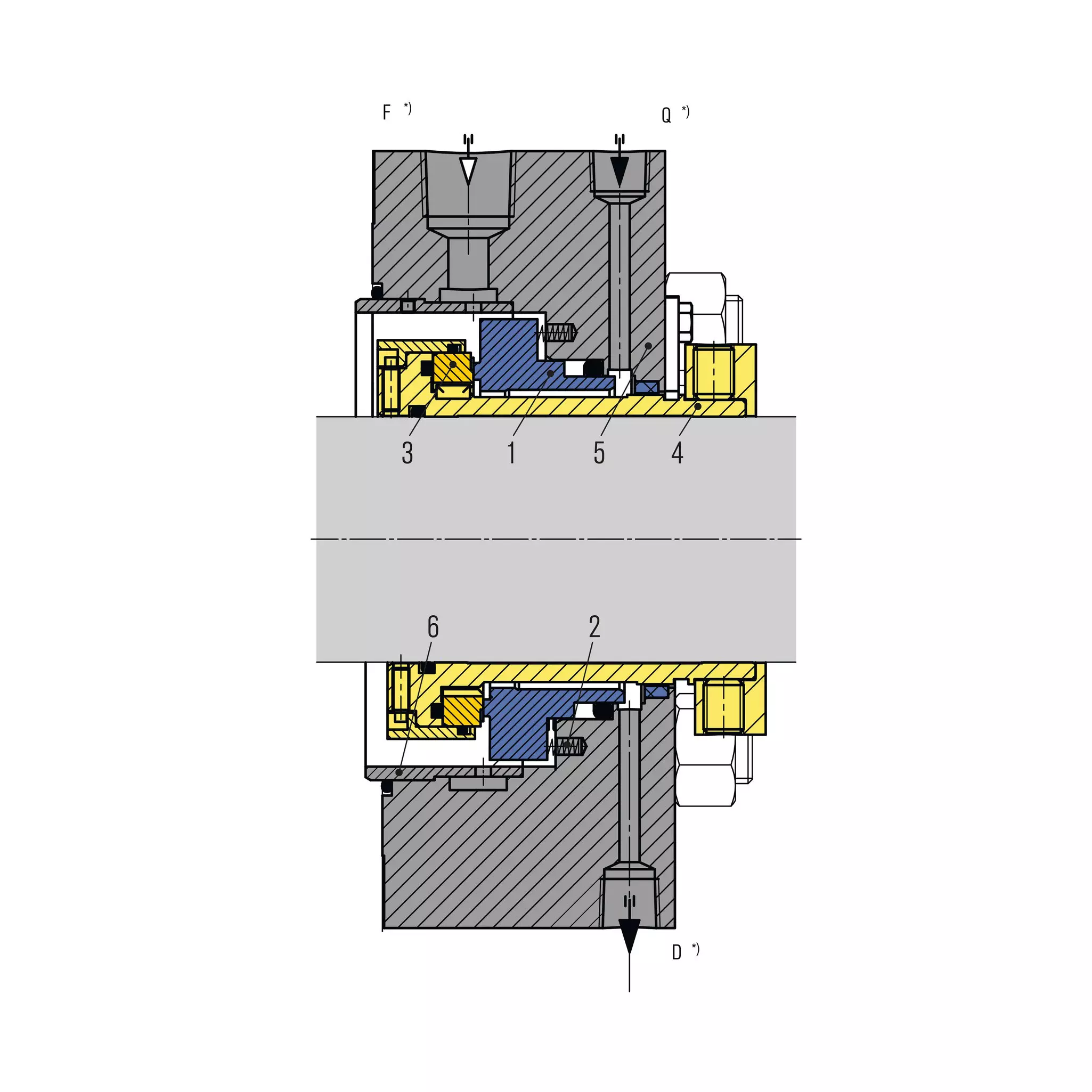

Click image to enlarge

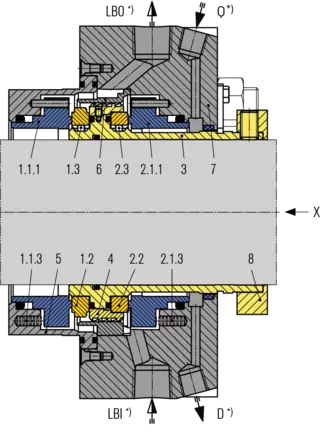

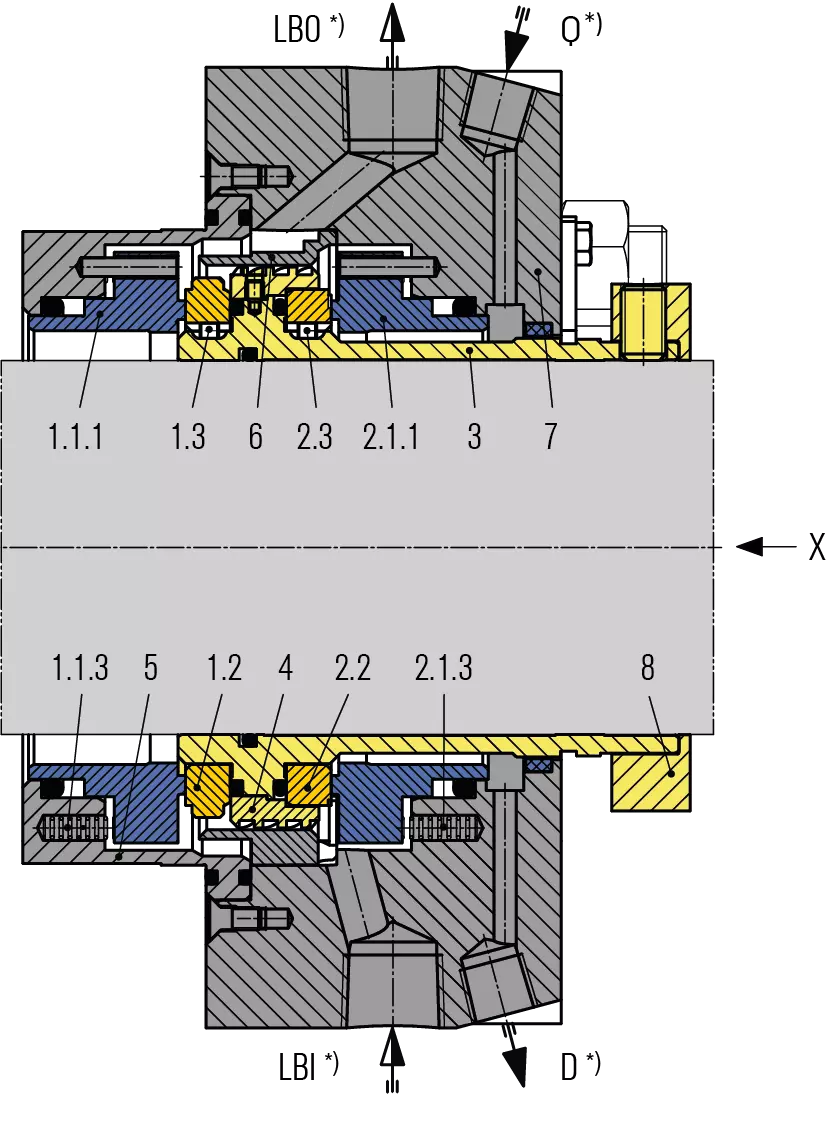

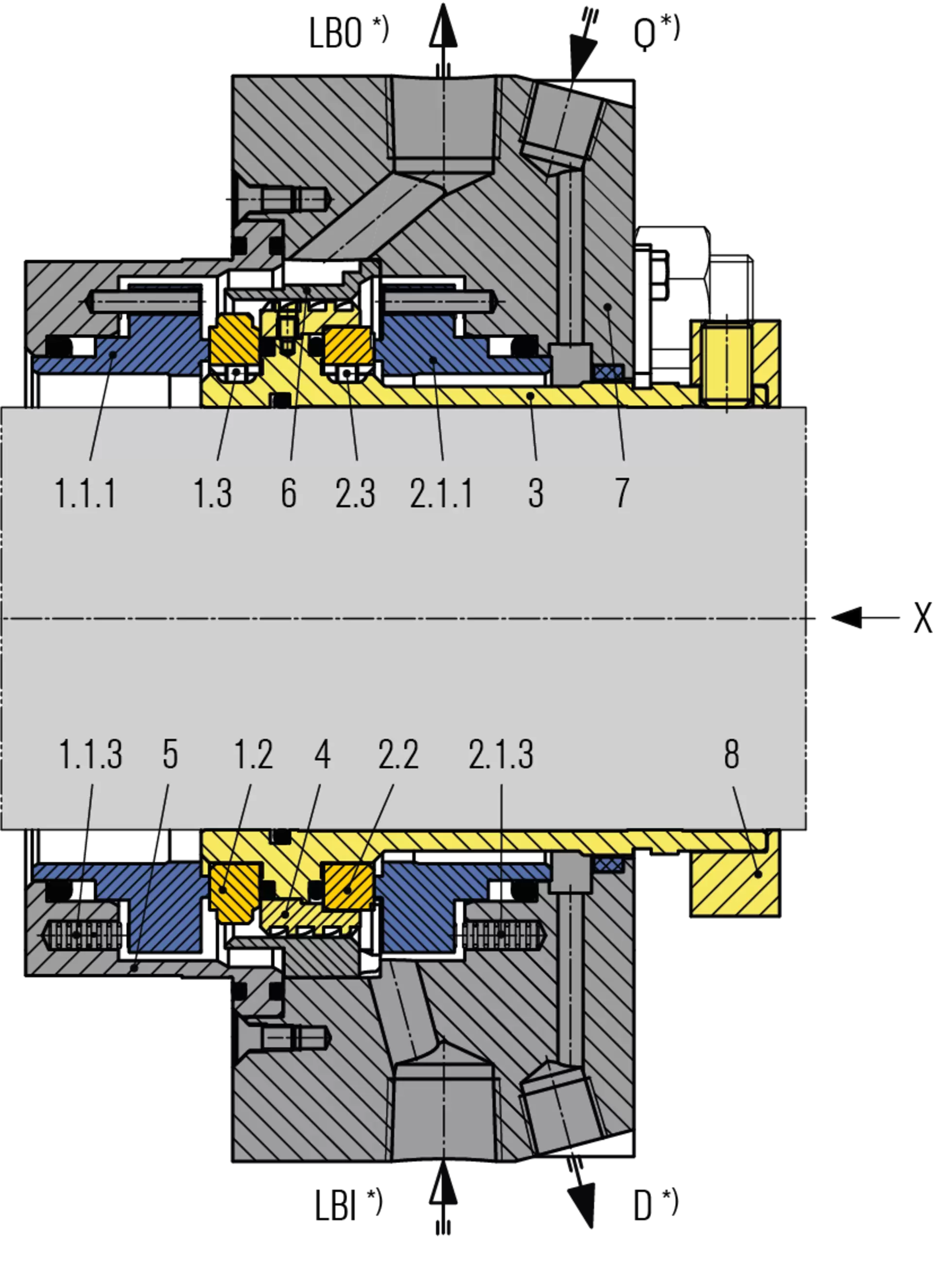

| Item | Description |
|---|---|
| 1 | Seal face |
| 2 | Spring |
| 3 | Seat |
| 4 | Shaft sleeve |
| 5 | Cover |
| 6 | Multipoint injection (Optional) |

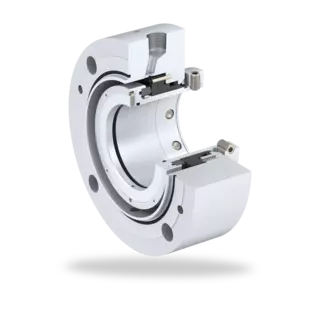

SHV
Features
- Single seal in cartridge design
- Balanced
- Multiple springs
- Stationary spring loaded unit
- Shrink-fitted seal face
- Rugged mating ring
Advantages
- Deformation-optimized seal for high sliding velocities and high pressures
- Economical due to standardized inner components
- High flexibility due to adaptation of the connection parts to the pump seal chamber
- Insensitive to shaft deflections due to stationary design
- Pre-assembled unit for quick and easy installation
- Suitable for use in compliance with API 682, type ES
- Version with loose-fitted seal face available, for extreme applications
- Only small number of components
Operating range
Shaft diameter:
d1* = 30 ... 140 mm (1.1811" ... 5.5118")
Other sizes on request
Temperature:
t = -40 °C ... +380 °C (-40 °F ... +716 °F)
With adapted cooling devices for high temperature applications
Sliding velocity: vg = 50 m/s (164 ft/s)
Axial movement: ±3 mm
Sliding material combination: AQ2
Dynamic pressure: p1 = 100 bar (1,450 PSI)
Static pressure: p1 = 240 bar (3,481 PSI)
Sliding material combination Q3Q2:
Dynamic pressure: p1 = 120 bar (1,740 PSI)
Static pressure: p1 = 160 bar (2,320 PSI)
Materials
Seal face:
Carbon graphite antimony impregnated (A), silicon impregnated carbon (Q3)
Seat: Silicon carbide (Q2)
Secondary seals: FKM (V), FFKM (K), EPDM (E)
Springs: Hastelloy® C-4 (M)
Metal parts: CrNiMo steel (G), Duplex (G1), Super Duplex (G4)
Other materials on request
Standards and approvals
- Following the API 682 / ISO 21049
Recommended applications
- Oil and gas industry
- Petrochemical industry
- Chemical industry
- Power plant technology
- Pulp and paper industry
- Water and waste water technology
- Desalination
- CCUS
- Hydrogen
- Alternative fuels production
- Power generation
Recommended piping plans
API Plan 11
API Plan 13
API Plan 23
API Plan 31
API Plan 32
API Plan 41
Atmospheric side*:
API Plan 61
API Plan 62
API Plan 65A
API Plan 65B
*Trottle on request
Product variants
SHFV / SHPV
SHV with integrated pumping device for optimal heat dissipation.
SHVI
Same design as SHV but with loosely inserted seal face for extreme applications (high pressures, pressure variations, temperature variation).
Dynamic pressure: p1 = 200 bar (2,900 PSI)
Static pressure: p1 - 240 bar (3,481 PSI)
