SAF(V) / SAP(V)
Shop links for mobile

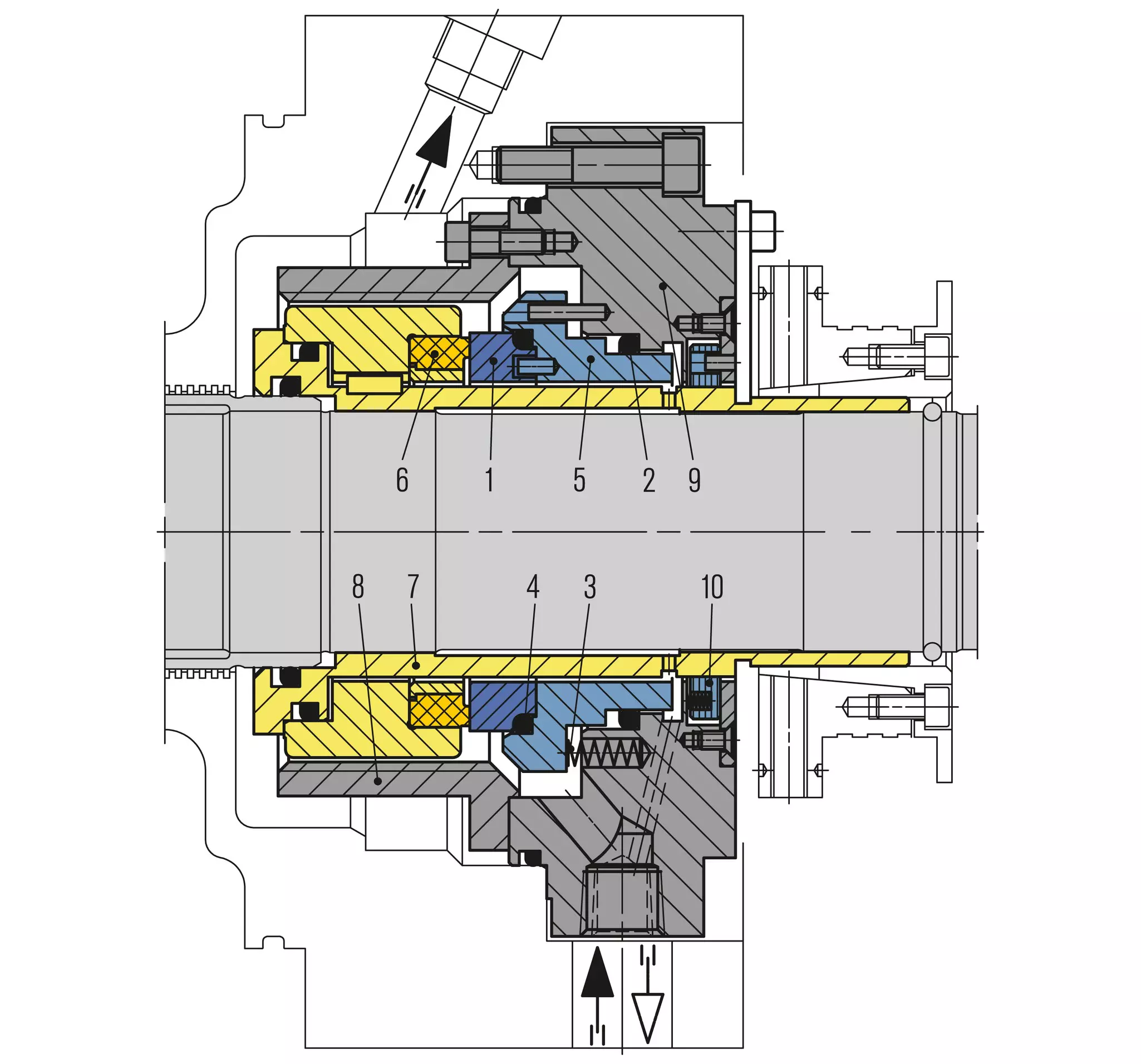

Click image to enlarge
| Item | Description |
|---|---|
| 1 | Seal face |
| 2 | O-Ring |
| 3 | Spring |
| 4 | O-Ring |
| 5 | Seat collar |
| 6 | Seat |
| 7 | Shaft sleeve |
| 8 | Pumping sleeve |
| 9 | Cover |
| 10 | Throttle ring |
SAF(V) / SAP(V)
Features
- Cartridge design
- Single seal
- Balanced
- Dependent on direction of rotation
- Integrated pumping device
- Stationary spring loaded unit
- Inserted seal face
- Rotating carbon seat
Advantages
- Deformation-optimized seal for high sliding velocities and medium pressures
- Economical due to standardized inner components
- High flexibility due to adaptation of the connection parts to the pump seal chamber
- Optimum heat dissipation due to integrated pumping device and optimized seat / seal face design
- Insensitive to shaft deflections due to stationary design
- Pre-assembled unit for quick and easy installation
- Only small number of components
Operating range
Shaft diameter:
d1* = 120 ... 250 mm (4.72" ... 9.84")
Pressure: p1 = 50 bar (725 PSI)
Temperature: t = +300 °C (+572 °F)
Sliding velocity: vg = 65 m/s (213 ft/s)
Axial movement: ±3 mm
* Other sizes on request
Materials
Seal face: Silicon carbide (Q), SiC-C-Si Silicon impregnated carbon (Q3)
Seat: Carbon graphite resin impregnated (B),
SiC-C-Si Silicon impregnated carbon (Q3)
Secondary seals: EPDM (E), FFKM (K)
Springs: CrNiMo steel (G)
Metal parts: CrNiMo steel (G)
Recommended applications
- Boiler feed water with low conductivity
- Power plant technology
- Oil and gas industry
- Refining technology
- Petrochemical industry
- Chemical industry
- Power generation
- Boiler feed pumps
Recommended piping plans
API Plan 02 + API Plan 23 (with jacket cooling)
