EH700
Shop links for mobile
Click image to enlarge

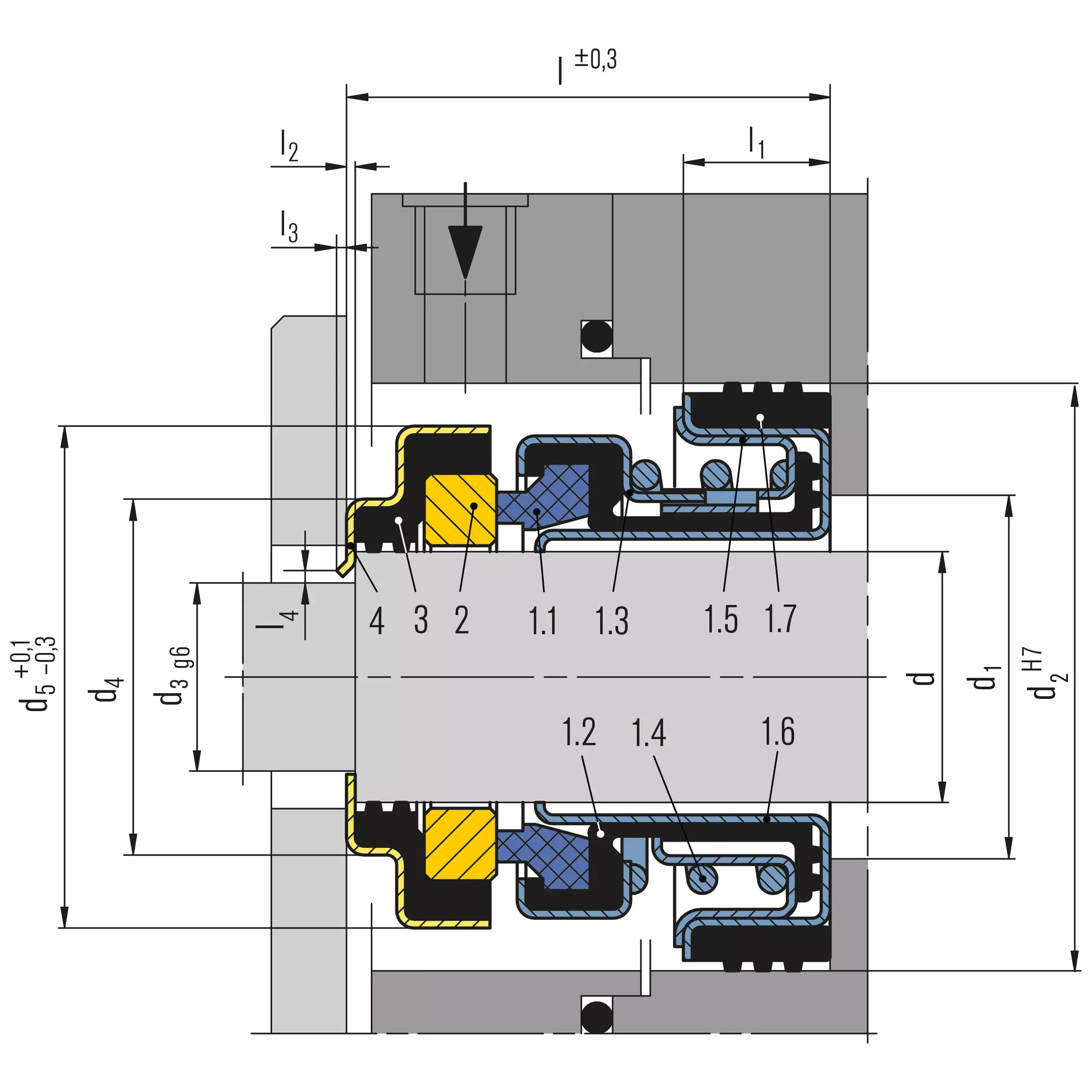

| Item | Description |
|---|---|
| 1.1 | Seal face |
| 1.2 | Bellows |
| 1.3 | Spring collar |
| 1.4 | Spring |
| 1.5 | Spring holder |
| 1.6 | Cartridge |
| 1.7 | Seat ring |
| 2 | Seat |
| 3 | Corner sleeve |
| 4 | Case |
EH700
Features
- Single seal
- Stationary spring-loaded unit enables operation in high-range loads area
- Balanced
- In-house manufactured carbon seal faces
Advantages
The seal for stationary applications. The EH700 is based on a unique stationary spring loaded unit that enables the seal to operate under high speed and high pressure. An additional advantage of the seal is the balanced design, which ensures good sealing performance in high-load conditions.
Operating range
Shaft diameter: d1 = 15 … 35 mm
Pressure: p1 = 15 bar (218 PSI),
vacuum up to 0.1 bar
Temperature:
t = -20 °C … +100 °C (-4 °F … +212 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Axial movement: ±1.0 mm
Materials
Seal face: Carbon graphite resin impregnated (B)
Seat: Aluminium oxide (V, V1), Silicon carbide (Q1, Q2)
Secondary seals: NBR (P), FKM (V)
Metal parts: CrNi steel (F)
Recommended applications
- Water and waste water
- Glycols
- Water and waste water technology
- Food and beverage industry
- Industrial pumps
- Engine pumps
- Skyscraper water supply pumps
