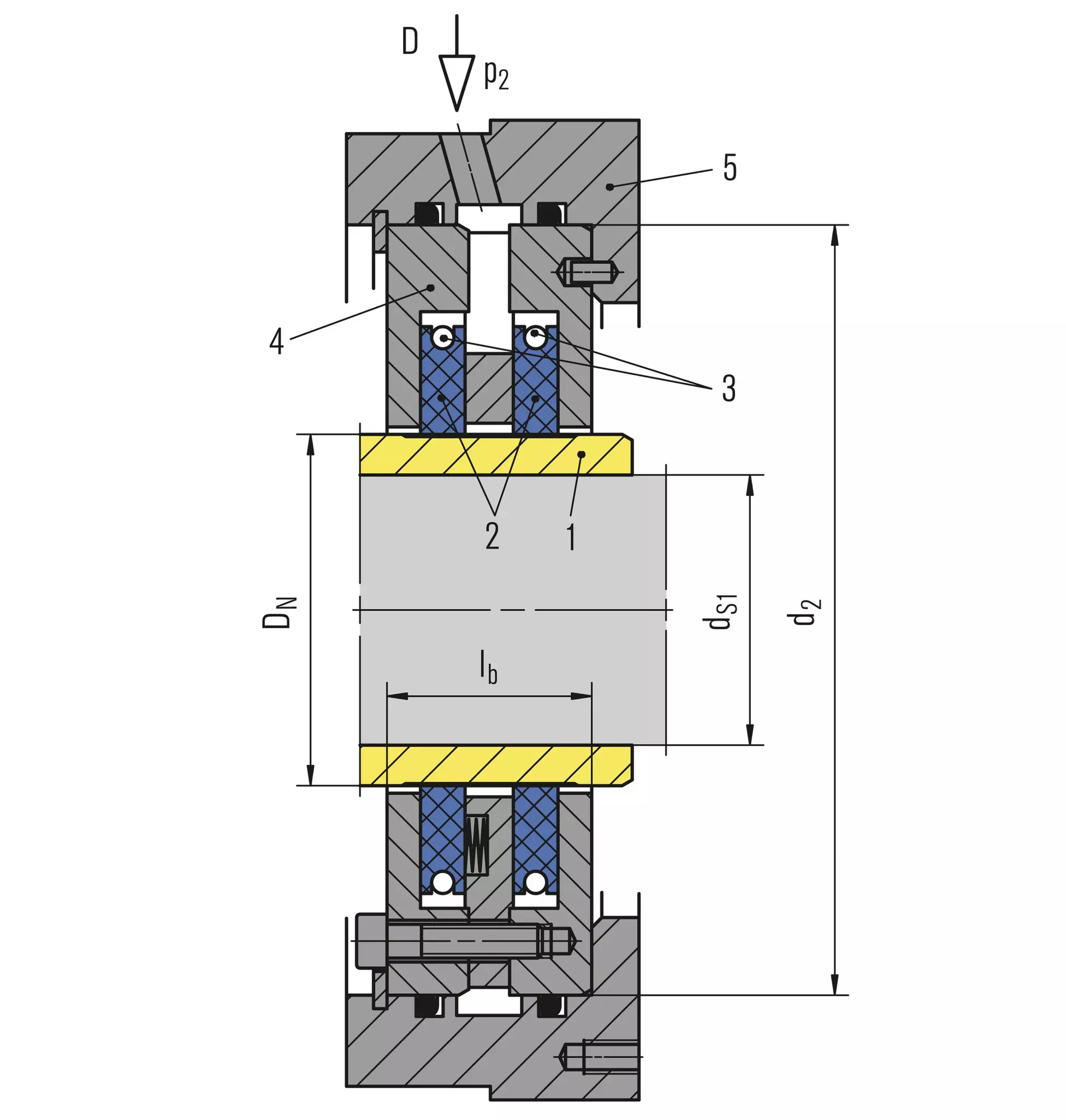

Click image to enlarge
| Item | Description |
|---|---|
| 1 | Shaft sleeve |
| 2 | Segmented carbon ring |
| 3 | Garter spring |
| 4 | Housing of the standardized sub-cartridge |
| 5 | Housing (size matched to installation space) |

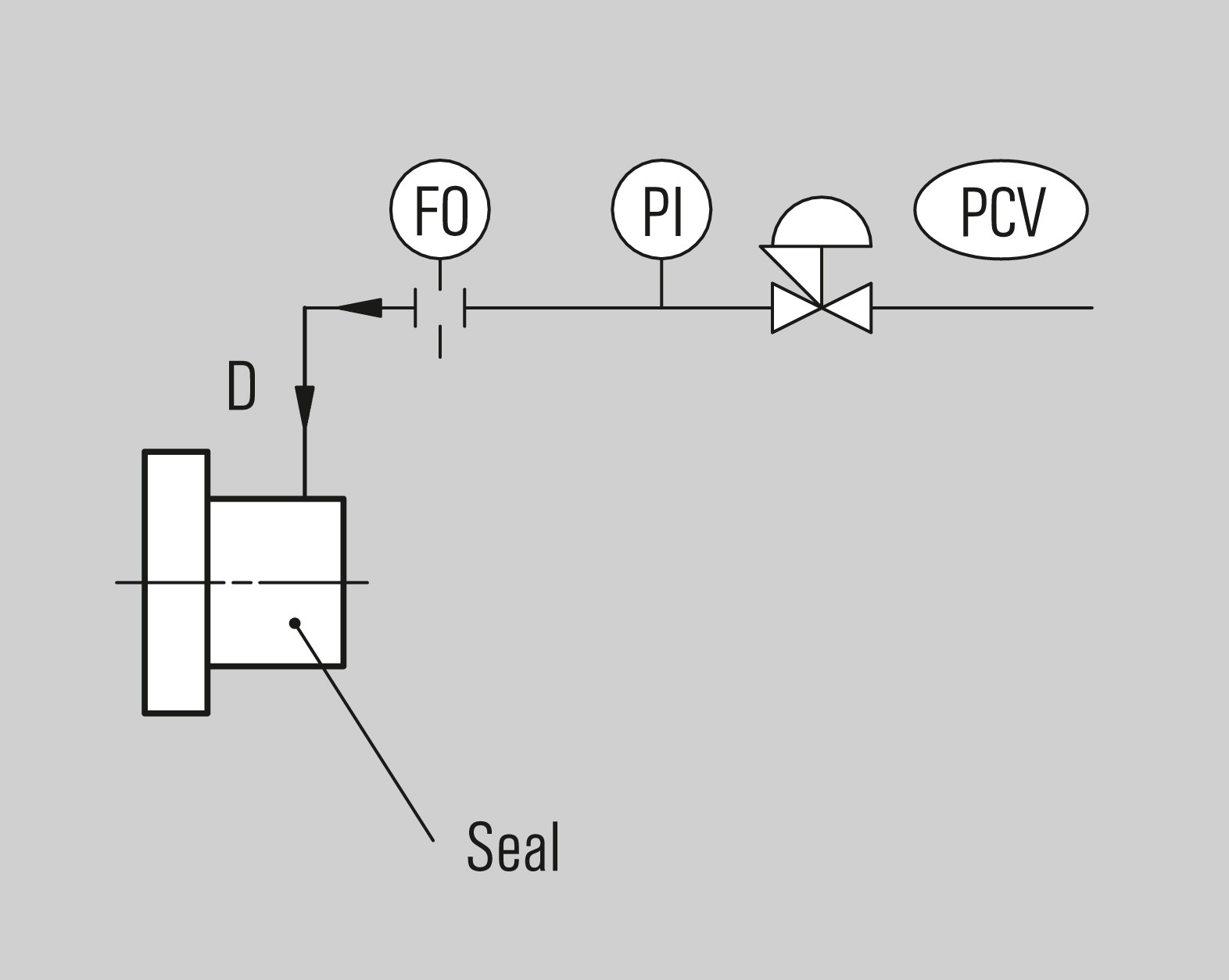

| D | Separation gas |

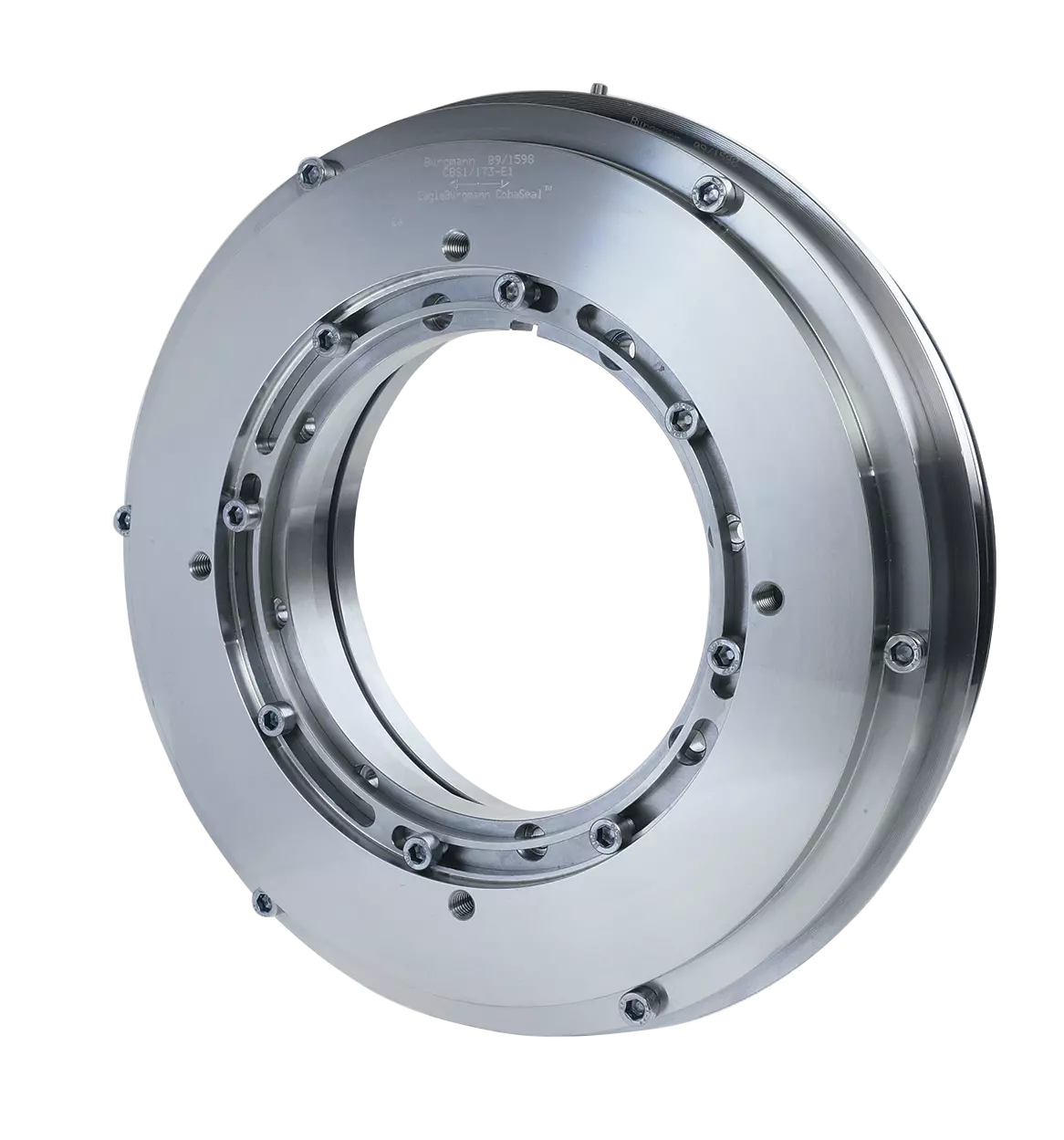

CSE
Features
- Non-contacting bushing seal
- Gas-lubricated
- Bi-directional
- Ready-to-fit cartridge unit
- Equipped with Espey carbon rings type WKA400
Advantages
- Low leakage
- Slow roll capability
- Insensitive to dry nitrogen
Operating range
Shaft diameter:
24.5 … 360 mm (0.96" … 14.17")
Design pressure:
p = … 10 bar (145 PSI)
Operating pressure:
p = 0.07 bar (1.02 PSI)
Temperature:
t = -20 °C … +200 °C (-4 °F … +392 °F)
Sliding velocity:
vg = 0 ... 200 m/s (0 … 656 ft/s)
Dew point: No limitation
Project specific special designs possible.
Materials
Seal face: Carbon graphite impregnated
Secondary seals: FKM
Shaft sleeve: Stainless steel, TC-coated
Metal parts: 1.4006 or other stainless steels
Standards and approvals
- NACE
- API 692
Recommended applications
- Nitrogen
- Air
- Oil and gas industry
- Refining technology
- Petrochemical industry
- LNG
- CCUS
- Hydrogen
- Power generation
- Centrifugal compressors
- Turbo expanders
- Screw compressors
- Blowers
Notes
The service-proven non-contacting bushing seal with low gas consumption. Non contact type carbon rings are segmented rings held together by a garter spring at the outer diameter. A defined minimum radial gap provides a contact- free operation. Robust design and reliable operation provide secure oil sealing even at extreme conditions.
Dimensions on request.
