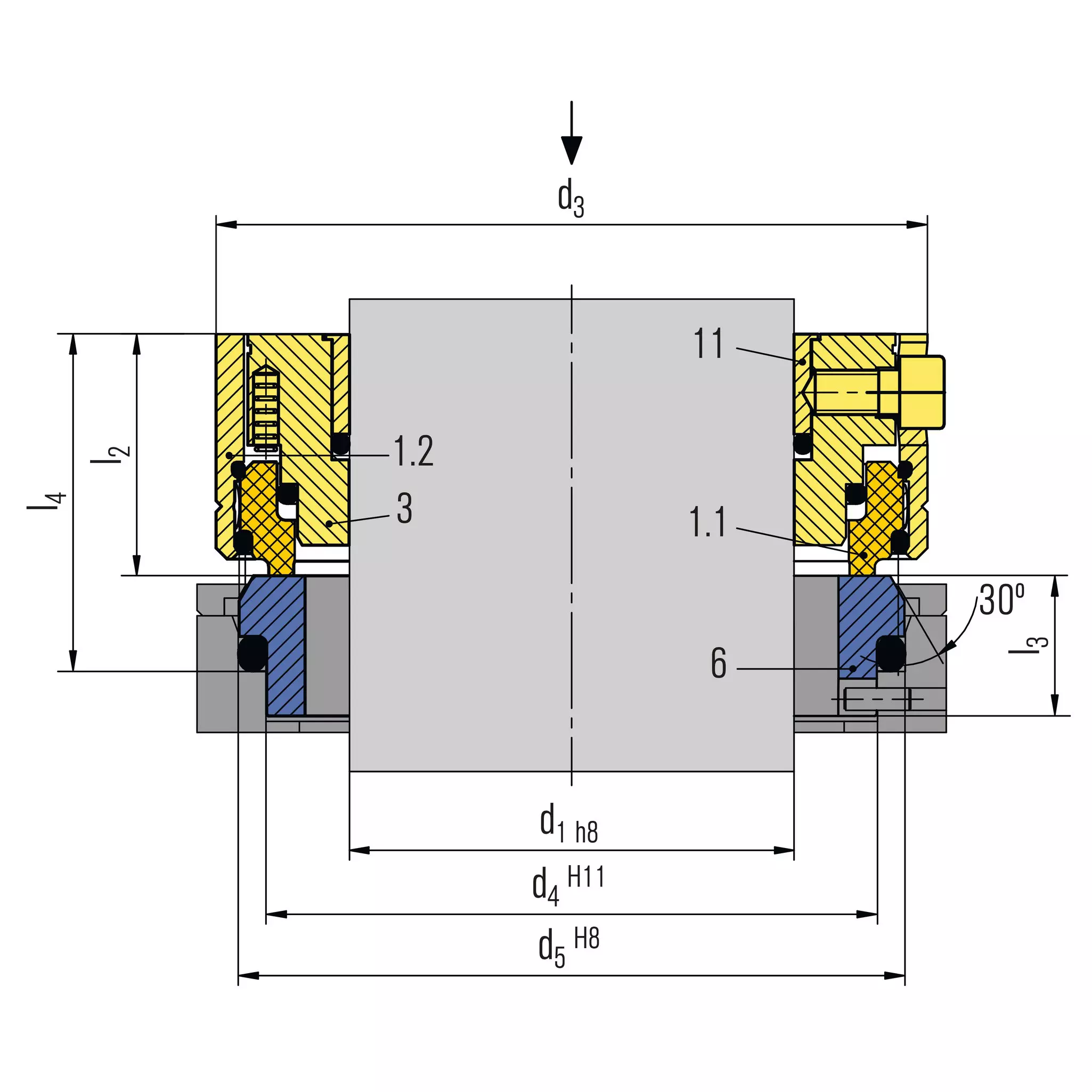

1.1, 1.2 Seal face with face housing
3 Drive collar
6 Seat
11 Clamping ring

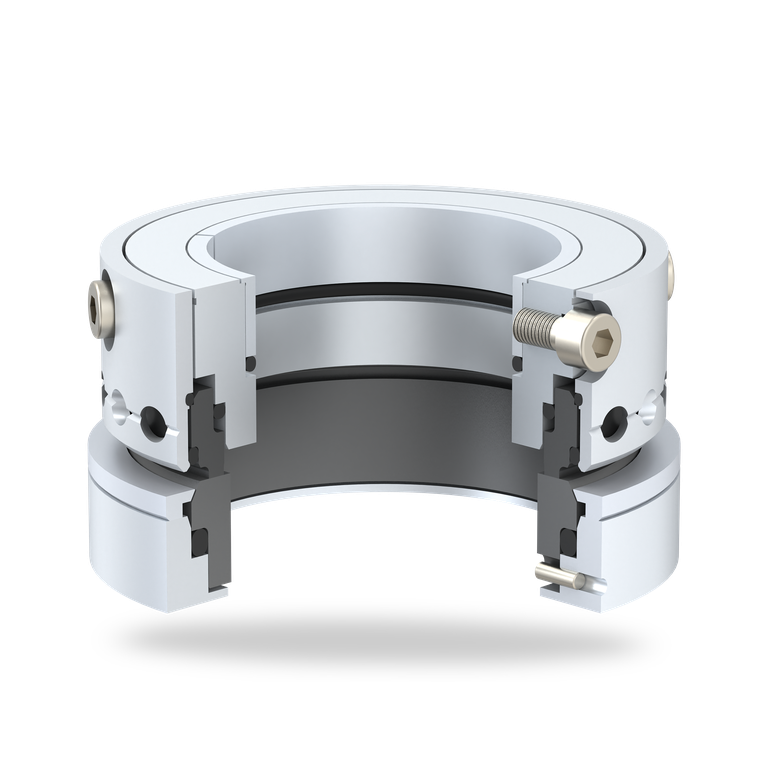

SeccoMix1-E32D
Features
- Retrofit for JC Type 32
- Dry-running single seal
- For top entry drives, on request side drive possible
- Balanced
- Outbound
- Multiple springs rotating
- Independent of direction of rotation
- Available in metric and imperial sizes
Advantages
- Available as semi-cartridge
- No supply system required
- No product contamination with barrier fluid
- Low wear due to optimized seal face load
- Suitable for vacuum operation
- Friction-locked connection to the shaft
- ATEX certification available on request
- Inherently safe, even without temperature monitoring
Operating range
Shaft diameter (SI): d1 = 40 ... 80 mm
Shaft diameter (Imperial): d1 = 1.000“ … 2.000“
Pressure: p1 = vacuum ... 6 bar (87 PSI)
Temperature: -20 °C ... +200 (250*) °C
(-4 °F ... +392 (482*) °F)
Sliding velocity: vg = 0 ... 2 m/s (0 ... 6 ft/s)
Axial movement: ±1,5 mm
Radial movement: ±1,5 mm
* with cooling flange
Applications outside of this area of use are available on request.
! It should be noted that the extremal values of each operating parameter cannot be applied at the same time because of their interaction.
Materials
Seal face: Carbon graphite, FDA compliant
Seat: Silicon carbide
Secondary seals and metal parts according to application and customer's specifications.
Recommended applications
- Chemical industry
- Pharmaceutical industry
- Food and beverage industry
- Non-toxic media
- Agitators
- Mixers
- Reactors
