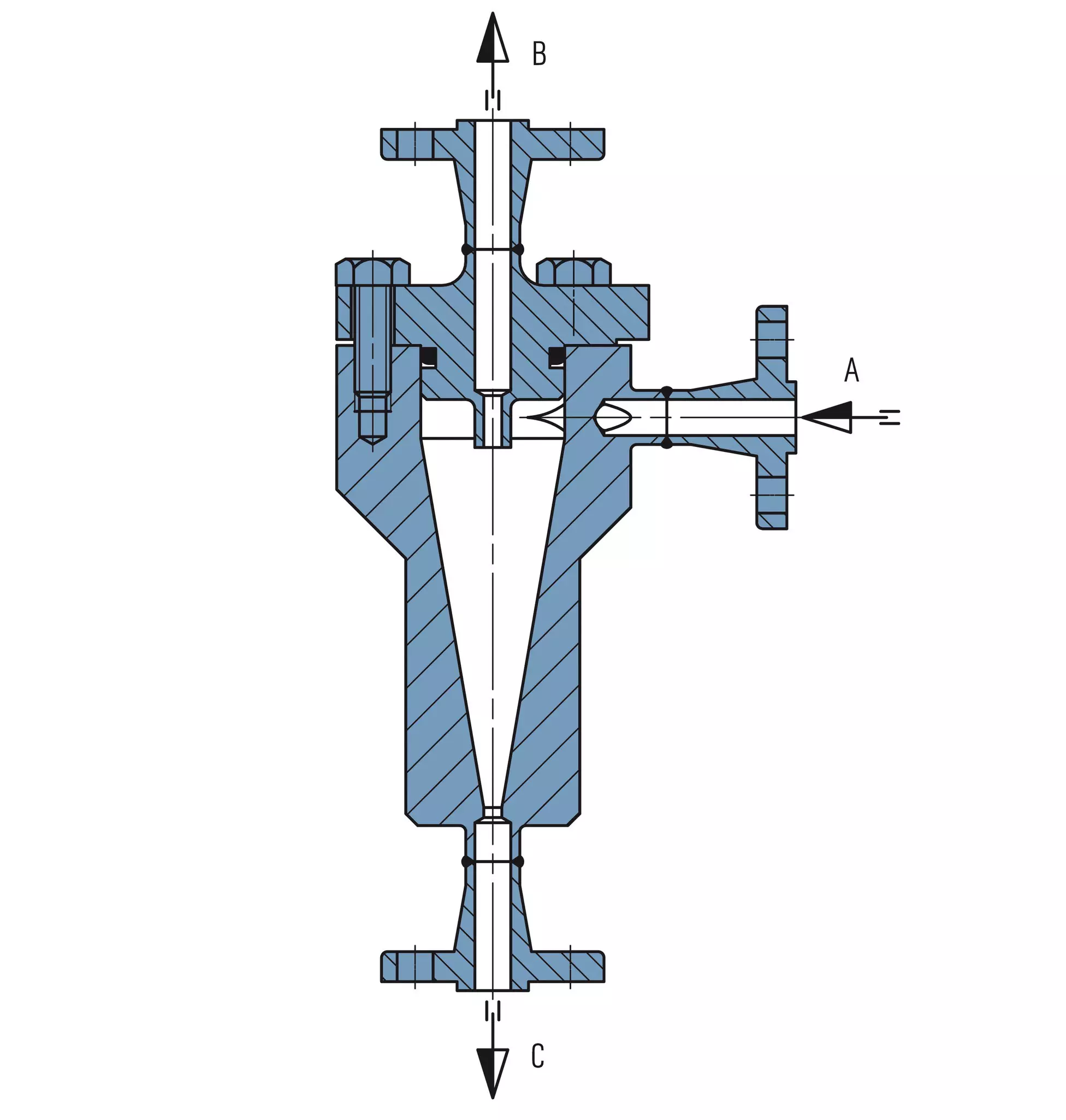

ZYA6000A4
A Contaminated liquid IN
B Clean liquid OUT
C Separated liquid OUT
ZY6
Cyclone separator
Features
The ZY6A4 range is available in three versions:
ZYA6000A4
Cyclone separator for high flow rates and high pressures.

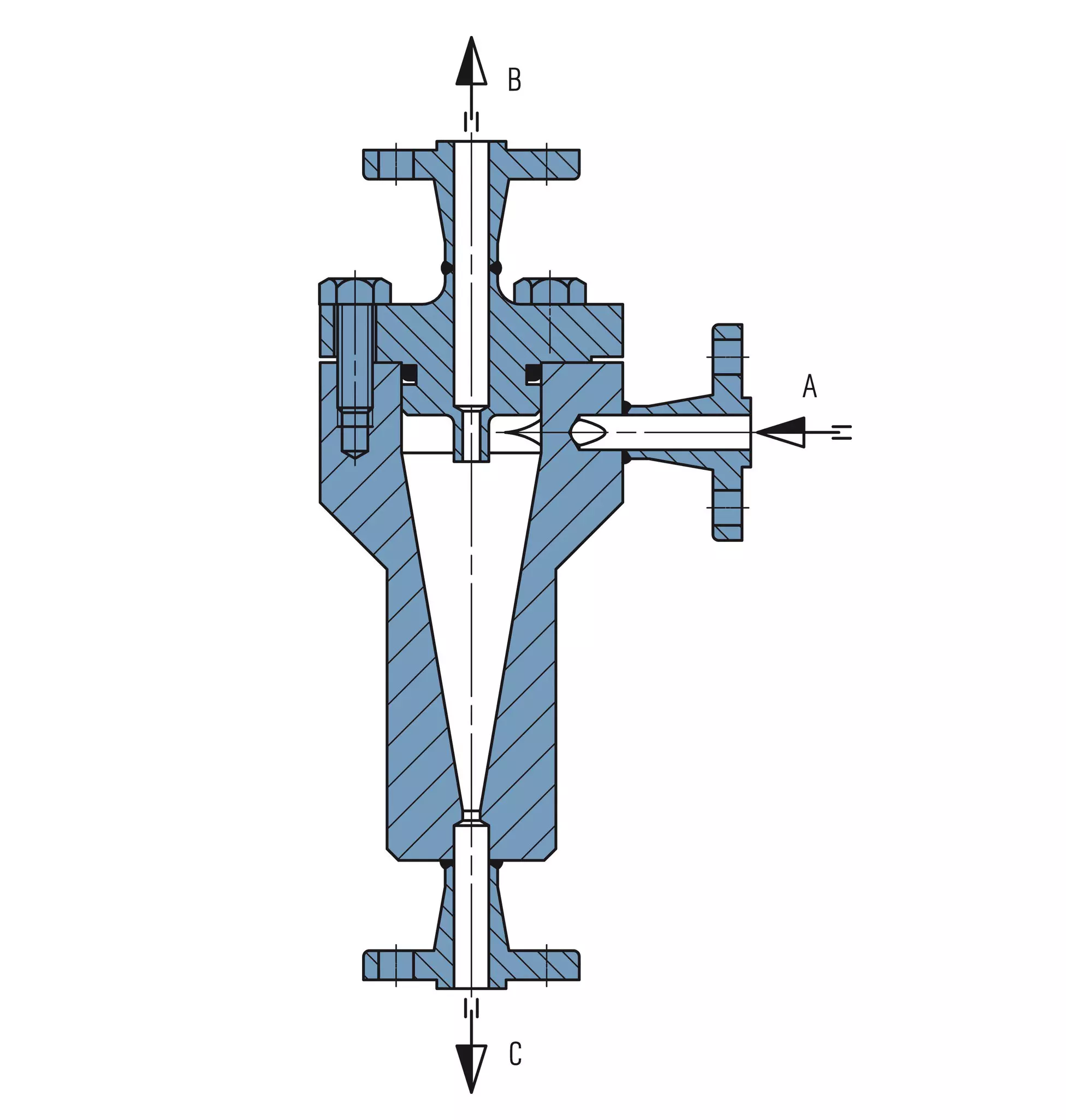

ZYB6000A4
Cyclone separator for high flow rates and high pressures; 100 % X-ray capability.
ZYC6000A4
Cast version, block-type design with integral flanges.
Advantages
- Contamination is automatically conveyed to the suction nozzle of the pump:
maintenance-free mode of operation for guaranteed reliability - High filtration efficiency
- Wide range of products for the optimum solution for every application
- ZYA6000A4 and ZYB6000A4:
available for operating pressures of
up to 200 bar (2,900 PSI) - ZYC6000A4 in block-type design with integrated flange connections:
low space requirements because of compact design
Recommended applications
- Refining technology
- Oil and gas industry
- Petrochemical industry
- Chemical industry
- Power plant technology
Functional description
Cyclone separators of the ZY6A4 range are used to clean mainly aqueous liquids containing contamination such as dirts and solids (e.g., in circulation systems of sewage, sludge or pipeline pumps).
The best possible filtration efficiency is achieved when the specific weight of the solids is much higher than that of the carrier liquid and when the differential pressure is as large as possible within the permissible pressure range (min. 1.7 bar (24.7 PSI) in accordance with API 682). The viscosity of the medium is a factor that also needs to be taken into account.

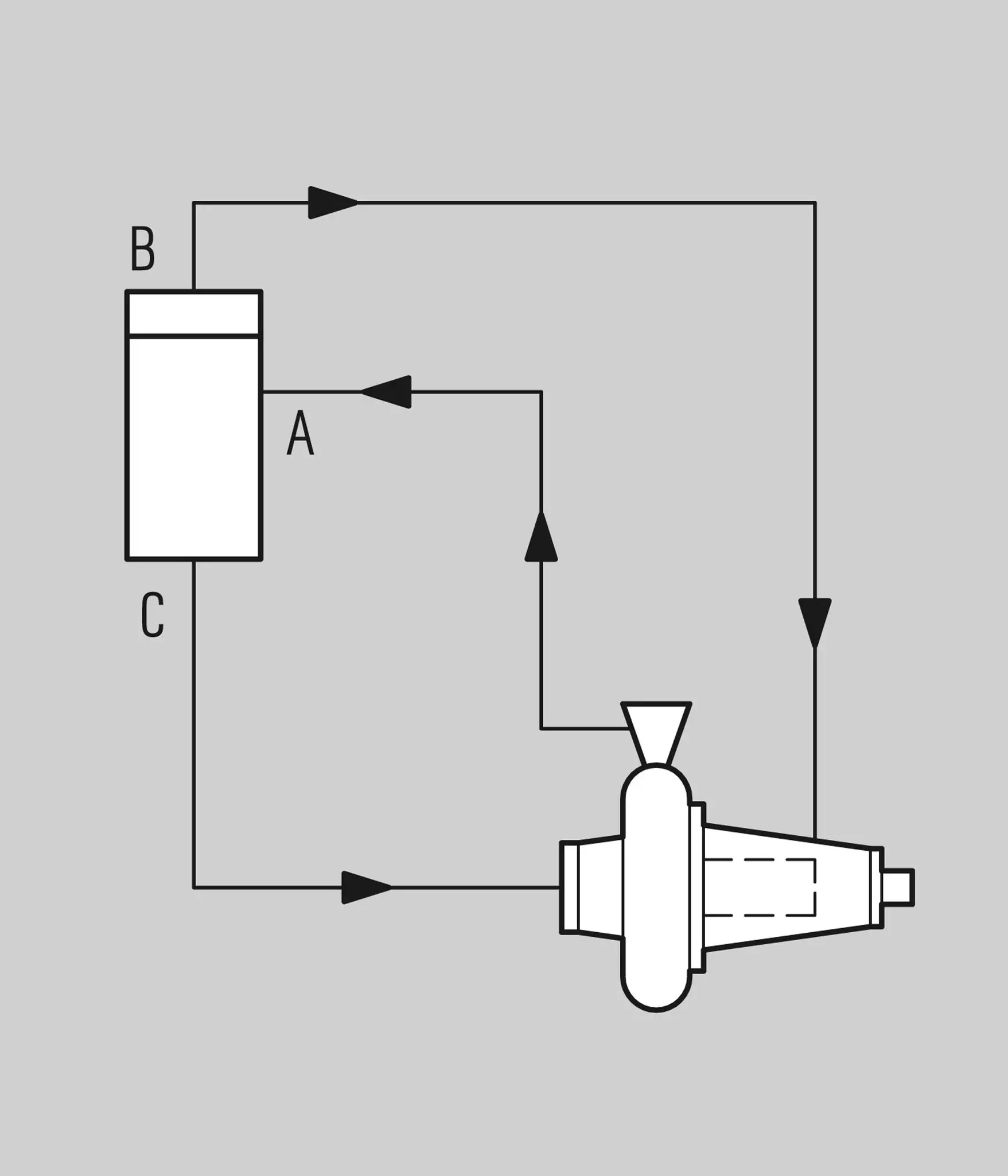

Recommended piping plans
Product variants
| Designation | ZYA6000A4 | ZYB6000A4 | ZYC6000A4 |
|---|---|---|---|
| Features | Standard | 100 % X-ray capable | Cast version |
| Connections -product inlet | Flange 3/4",600 lbs | Flange 3/4",600 lbs | Integrated flange 3/4",600 lbs |
| Connections -clean product outlet | Flange 3/4",600 lbs | Flange 3/4",600 lbs | Integrated flange 3/4",600 lbs |
| Connections -contaminated product outlet | Flange 3/4",600 lbs | Flange 3/4",600 lbs | Integrated flange 3/4",600 lbs |
| Allowable pressure1) | 60 bar(870 PSI) | 60 bar(870 PSI) | 60 bar(870 PSI) |
| Temperature range | -29 °C … +150 °C(-20 °F … +302 °F) | -29 °C … +150 °C(-20 °F … +302 °F) | -29 °C … +150 °C(-20 °F … +302 °F) |
| O-Ring 2) | Viton® | Viton® | Viton® |
| Wetted parts | 316/316L | 316/316L | 316/316L |
Other versions on request.
1) Max. permissible working values depend on version.
2) Other materials on request, e.g., EPDM, FFKM
ZYB6000A4
Cyclone separator for high flow rates and high pressures; 100 % X-ray capability.

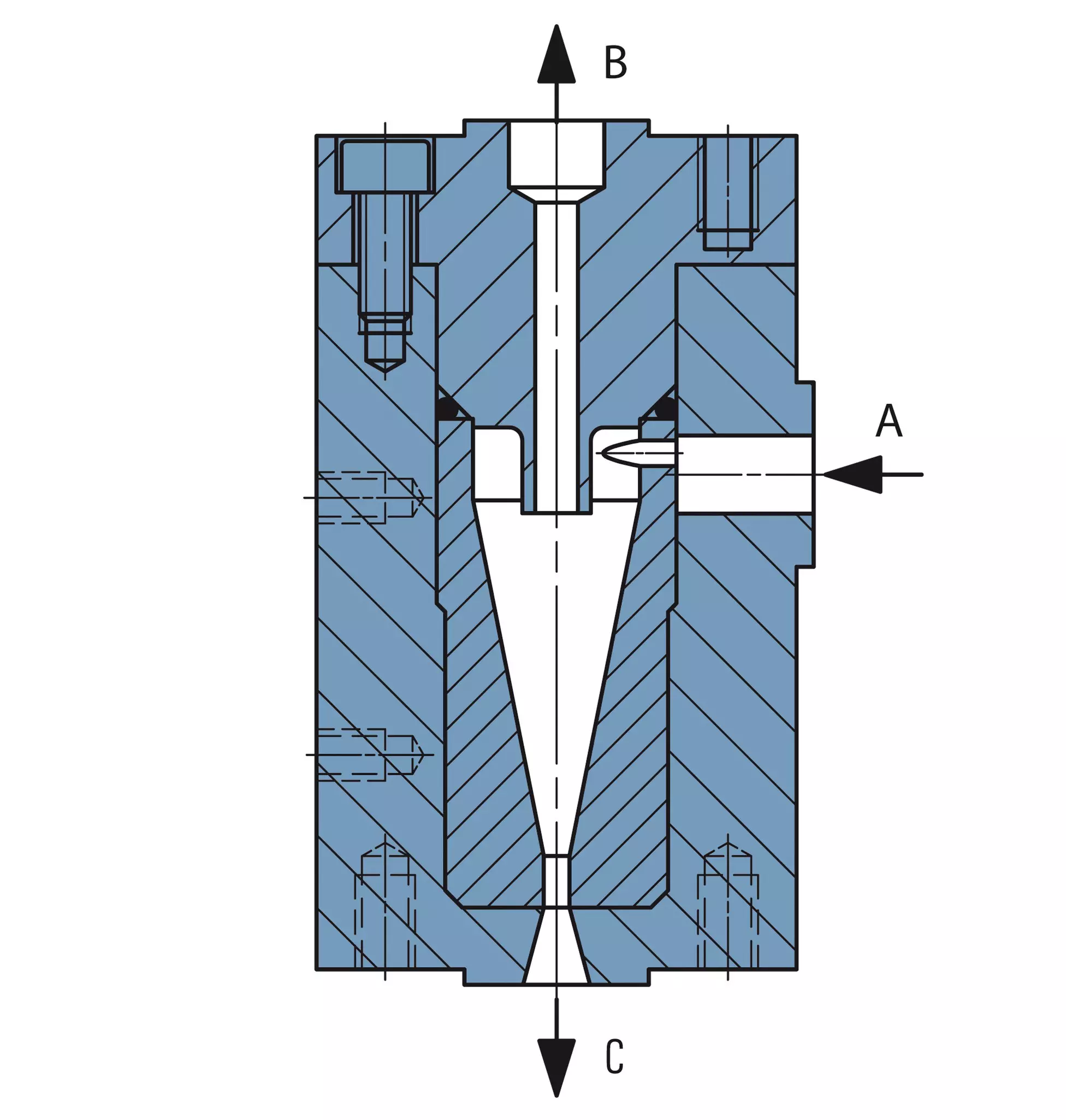

ZYC6000A4
Cast version, block-type design with integrated flanges.
