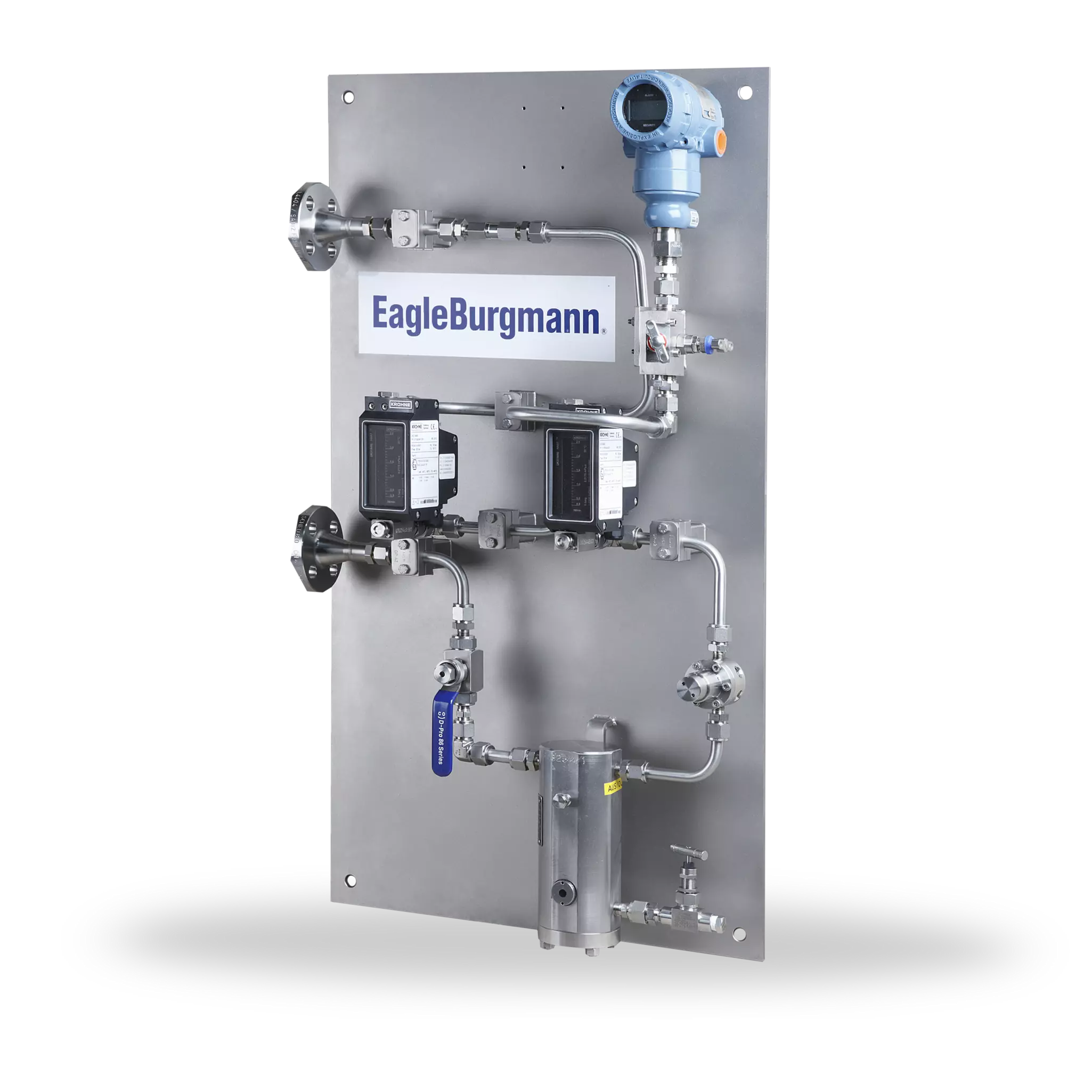

GSS6000 Gas supply system
Shop links for mobile
Click image to enlarge

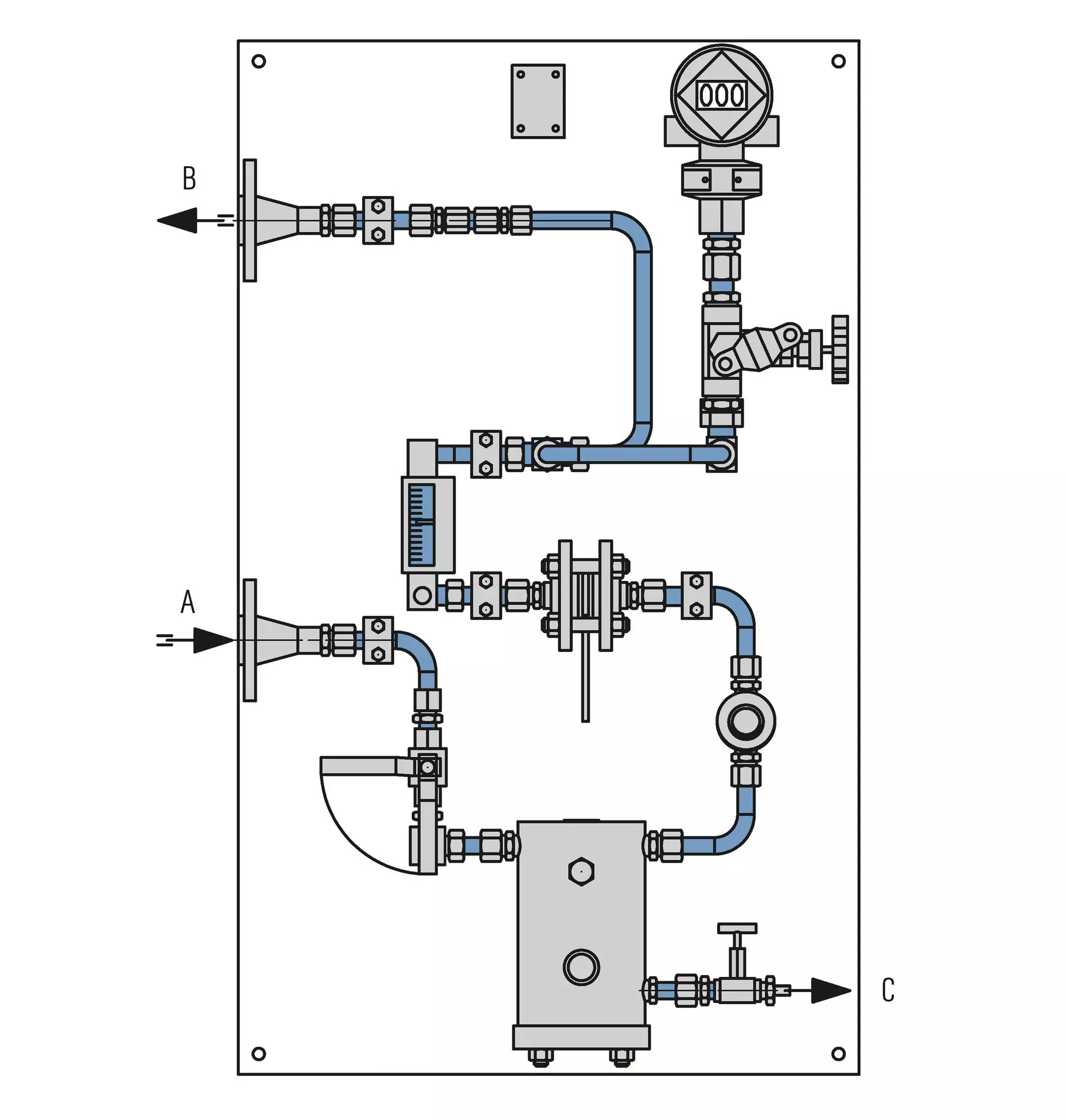

GSS6000A4
A Gas IN
B Gas OUT
C Drain
GSS6000
Gas supply system
Features
- Safe operation due to incorporated pressure regulator with upstream filter
- System mounted on a plate
- Easy wall or rack mounting
Advantages
- Coalescing filter with integrated sight-glass for monitoring liquid level to ensure safe operation even in case of poor gas quality.
- Rigid base frame for easy rack mounting.
- Wide range of flow monitoring to ensure utmost reliability of mechanical seals.
Materials
- Refining technology
- Oil and gas industry
- Petrochemical industry
- Chemical industry
- Power plant technology
Standards and approvals
- API 682 / ISO 21049
- API 682 4th ed. Cat. 2/3 - 2CW-CS
- API 682 4th ed. Cat. 2/3 - 2NC-CS
- API 682 4th ed. Cat. 1 - 2NC-CS
- Compliant to TA Luft (German Clean Air Act)

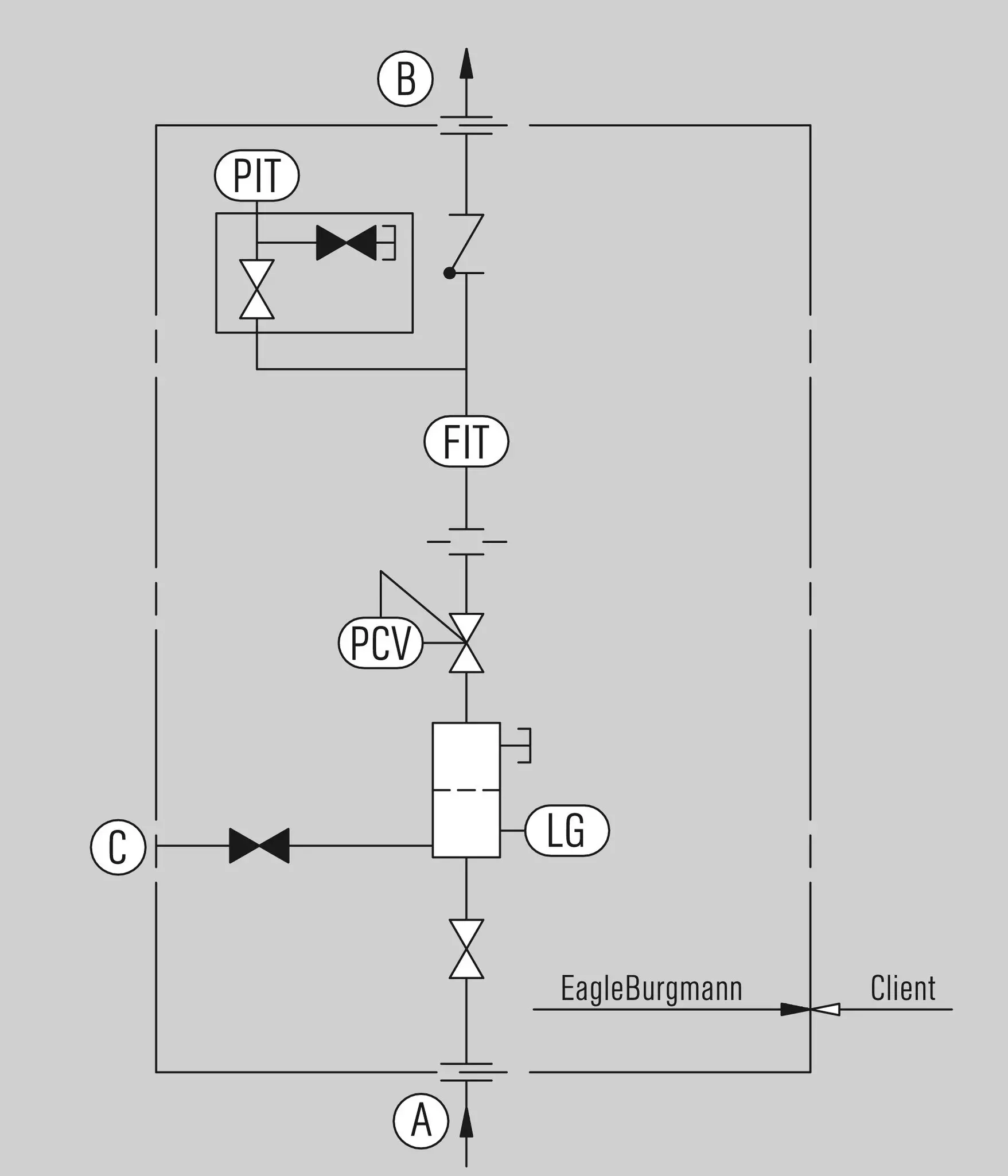

Functional description
Buffered, gas-lubricated mechanical seals may only be used in conjunction with adequately pressurized gas (e. g. from a closed circular nitrogen pipeline provided by the operator). The minimum pressure overlay level (Δp) is specified for the individual seal types.
Main GSS functions:
- Filtering of the buffer and flushing gas
- Flow monitoring
Typical tasks for the GSS:
- Gas flushing for single seals
- Gas supply for tandem seals
Notes
Design, calculation and production acc. to ASME VIII, Div. 1.
3rd party inspection and other certificates on request.
Forms of supply
Product variants
| Designation | GSS6000A4M001-D0 |
|---|---|
| API piping plan | Plan 72 |
| Design code | ASME |
| Allowable pressure1) | 40 bar (580 PSI) |
| Allowable temperature1) | -20 °C … +50 °C (-4 °F … +122 °F) |
| Process connections | Flange 1/2", 600 lbs |
| Metal parts | 316/316L |
Other versions on request.
1) Design data, permissible working values depend on the actual conditions of service.
