LL9DTUU
Back to overview

LL9DTUU

Request product
LL9DTUU
LL9DTUU
Request product

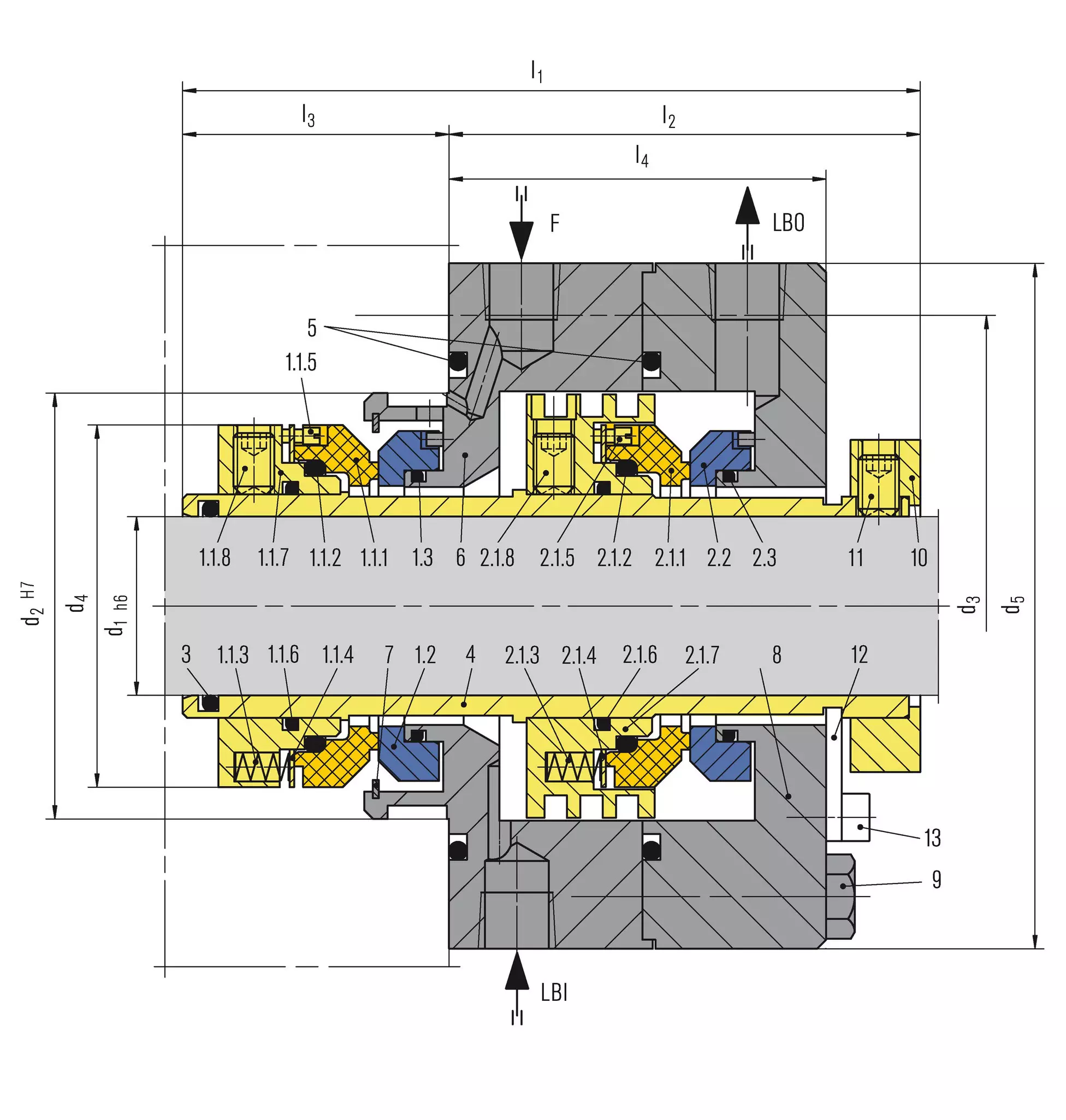

Technical drawing of LL9DTUU

Click image to enlarge

Item Description
1.1.1, 2.1.1 Seal ring
1.1.2, 1.1.6, 1.3, 2.1.2,
2.1.6, 2.3, 3, 5 O-Ring
1.1.3, 2.1.3 Spring
1.1.4, 2.1.4 Thrust ring
1.1.5, 2.1.5 Drive screw
1.1.7, 2.1.7 Collar
1.1.8, 2.1.8, 11 Set screw
1.2, 2.2 Mating ring
4 Seal sleeve
6, 8 Gland plate
7 Retaining ring
9 Hexagon bolt
10 Drive collar
12 Setting device
13 HSH Cap screw

F Flush
LBO Liquid buffer/barrier OUT
LBI Liquid buffer/barrier IN

LL9DTUU

PDF data sheet

Features

  • API 682 Category 2 and 3, Type A, Arrangement 2 or 3 seal
  • Dual seal in face-to-back arrangement
  • Same seal size on inboard and outboard seal
  • Balanced
  • Cartridge unit
  • Rotating multiple springs
  • Solid seal faces

Advantages

  • Compact design
  • Low heat generation and power consumption due to narrow seal face width
  • Longer seal life
  • Pressure-balanced design prevents mating ring being forced out under reverse pressure
  • No damage to shaft sleeve as dynamic
    O-Ring is not in direct contact with the sleeve

Operating range

Shaft diameter: d1 = 20 ... 110 mm (0.79" ... 4.33")
Pressure: p = vacuum ... 42 bar (... 609 PSI)
Temperature: t = -40 °C ... +176 °C (-40 °F … +349 °F)*
Sliding velocity: vg ... 23 m/s (... 75 ft/s)

* Engineered up to 260 °C (500 °F) with FFKM (K) secondary seals.

Materials

Seal rings: Blister resistant carbon,
Silicon carbide SSiC (Q1), RBSiC (Q2)
Mating rings:
Silicon carbide SSiC (Q1), RBSiC (Q2)
Secondary seals:
FKM (V), FFKM (K), EPDM (E), NBR (P)
Springs: Hastelloy® C-276 (M5)
Metal parts: CrNiMo steel 316 (G), Duplex (G1)

Standards and approvals

  • API 682 / ISO 21049
  • API 682 4th ed. Cat. 2/3 - 2CW-CW
  • API 682 4th ed. Cat. 2/3 - 3CW-FB

Recommended applications

  • Light volatile hydrocarbons
  • Refining technology
  • Oil and gas industry
  • Petrochemical industry
  • Chemical industry
  • Power plant technology
  • CCUS
  • Alternative fuels production
  • LPG plants
  • API 610 / ISO 13709 pumps
  • Process pumps
