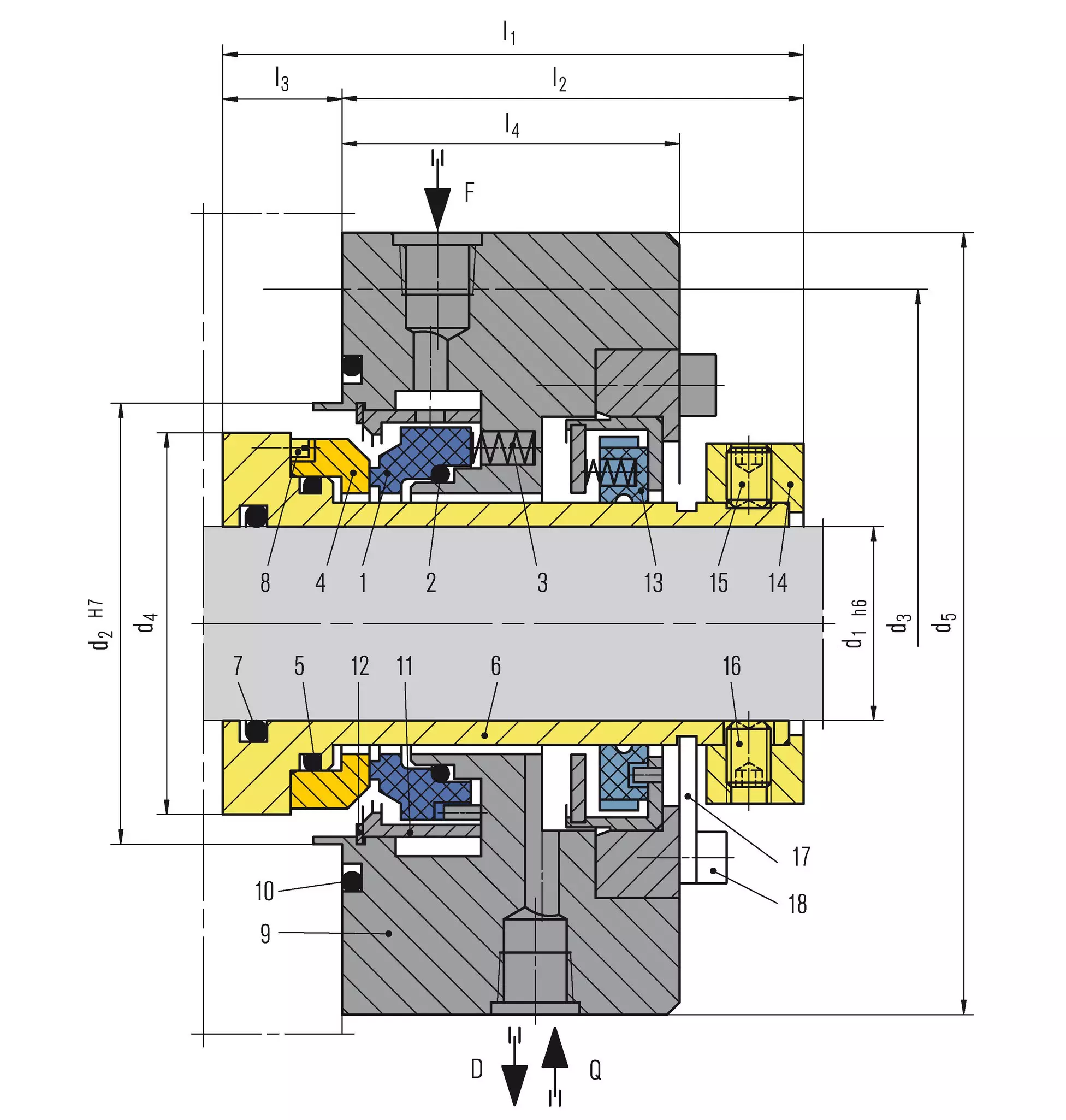

Click image to enlarge
| Item | Description |
|---|---|
| 1 | Seal ring |
| 2, 5, 7, 10 | O-Ring |
| 3 | Spring |
| 4 | Mating ring |
| 6 | Seal sleeve |
| 8 | Drive screw |
| 9 | Gland plate |
| 11 | Flow distributor |
| 12 | Retaining ring |
| 13 | Throttle bushing |
| 14 | Drive collar |
| 15, 16 | Set screw |
| 17 | Setting device |
| 18 | HSH Cap screw |
F Flush
D Drain
Q Quench

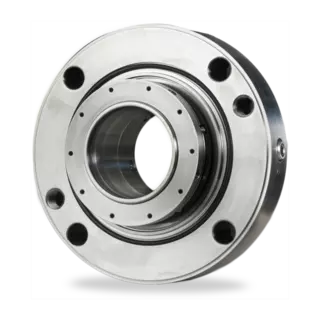

LEK777
Features
- API 682 Category 2 and 3, Type A, Arrangement 1 seal
- Single seal
- Balanced
- Cartridge unit
- Stationary multiple springs
- Solid seal faces
Advantages
- Suitable for higher speeds
- Good followability due to no influence from run-out, squareness or vibration of the shaft
- Compact design
- Low heat generation and power consumption due to narrow seal face width
- Longer seal life
- Pressure-balanced design prevents mating ring being forced out under reverse pressure
- No damage to shaft sleeve as dynamic
O-Ring is not in direct contact with the sleeve
Operating range
Shaft diameter:
d1 = 20 ... 110 mm (0.79" ... 4.33")
Pressure (product seal):
p = vacuum ... 60 bar ( … 870 PSI)
Temperature:
t = -40 °C … +176 °C (-40 °F … +349 °F)*
Sliding velocity: vg = 50 m/s (164 ft/s)
* Engineered up to 260 °C (500 °F) with FFKM (K) secondary seals.
Materials
Seal ring: Blister resistant carbon,
Silicon carbide SSiC (Q1), RBSiC (Q2)
Mating ring:
Silicon carbide SSiC (Q1), RBSiC (Q2)
Secondary seals:
EPDM (E), NBR (P), FKM (V), FFKM (K)
Springs: Hastelloy® C-276 (M5)
Metal parts: CrNiMo steel 316 (G)
Standards and approvals
- API 682 / ISO 21049
- API 682 4th ed. Cat. 2/3 - 1CW-FL
Recommended applications
- Light volatile hydrocarbons
- Refining technology
- Oil and gas industry
- Petrochemical industry
- Chemical industry
- Power plant technology
- CCUS
- Alternative fuels production
- LPG plants
- API 610 / ISO 13709 pumps
- Process pumps
Recommended piping plans
Process side:
API Plan 01
API Plan 02
API Plan 03
API Plan 11
API Plan 12
API Plan 13
API Plan 14
API Plan 21
API Plan 22
API Plan 23
API Plan 31
API Plan 32
API Plan 41
Atmospheric side:
API Plan 51
API Plan 61
API Plan 62
API Plan 65A
API Plan 65B
API Plan 66A
API Plan 66B
