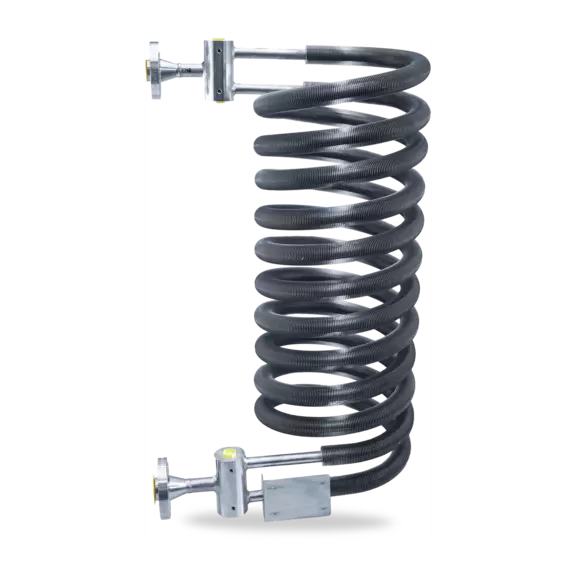

WEF6 Water cooler
Features
Heat exchangers of the WEF6 range are used to cool process/barrier fluids in seal supply circuits. WEF6 heat exchangers are fully compliant with API 682 4th edition regulations. The process/barrier medium is directed through the tube, and the cooling medium is directed through the shell.
Venting and draining of the process/barrier medium side as well as the cooling water side is ensured. In addition, the heat exchangers can also be combined with a temperature instrument in the supply line to the mechanical seal (optional in accordance with API 682 4th edition).
Advantages
- Operating limits up to 65 bar / 260 °C
(943 PSI / 500 °F) (tube side):
suitable for a wide range of operations - Cooling water and process side can be completely vented and drained
- Seamless pipes on process side
- Special design without welding inside the cooler
- Higher cooling water velocity due to innovative cooler design
- Stainless steel 316/316L: high resistance to corrosive media
Standards and approvals
- PED 2014/68/EU (Design and production in accordance with EU Pressure Equipment Directive)
- ASME VIII, Div. 1 possible (see notes)
- API 682 4th edition
Recommended applications
- Refining technology
- Oil and gas industry
- Petrochemical industry
- Chemical industry
- Power plant technology
Notes
Design and production in accordance with EU Pressure Equipment Directive PED 2014/68/EU.
Design, calculation and production acc. to ASME VIII, Div. 1
(cooler not subject to ASME stamp requirements, piping <6")
Cleaning:
Process/barrier medium side and cooling water side: flush with a suitable solvent.
Recommended piping plans
Plan 21
Plan 22
Plan 23
Plan 41
Product variants
| **** | WEF6 |
|---|---|
| Cooler design | Pipe-in-pipe (coaxial) |
| Conformity | API 682 |
| Design code | ASME VIII, Div. 1 oder PED2014/68/EU |
| Weight (empty) | 28 kg |
| Process fluid | |
| Process connections1) | Flange 3/4", 600 lbs |
| Design pressure1) | 76 bar (g) |
| Design temperature1) | 150 °C |
| Material (metal parts)1) | 316/316L / 1.4401/1.4404 |
| Cooling water | |
| Process connections1) | 3/4" NPT (f)Flange 3/4'', 300 lbs |
| Drain / vent connection1) | 1/2" NPT (inside) |
| Design-pressure1) | 25 bar (g) |
| Design temperature1) | 150 °C |
| Material (metal parts)1) | 316/316L / 1.4401/1.4404 |
| Cooling capacity depending on process fluid | (low flow2) / high flow3)) |
| Water | 8,2 kW / 12,4 kW |
| Öl ISO VG10 | 2,7 kW / 4,1 kW |
Other versions on request.
1) Standard design data, extendend pressure / temperature rating on request.
2) The cooling performance depends on the available fluids, their temperatures and flow rates. Please contact EagleBurgmann for professionally selecting the correct heat exchanger.
