One-stop supplier for sealing technology at the Sohar refinery

Full range of EagleBurgmann products for sealing technology in Oman

KeyVisual_CaseStudy_One stop_Oman.jpg
Situation

Oman Refineries and Petrochemicals Company (ORPC) processes about 222,000 barrels per day

Challenge

Commissioning and continuous service of the operating mechanical seals

Solution

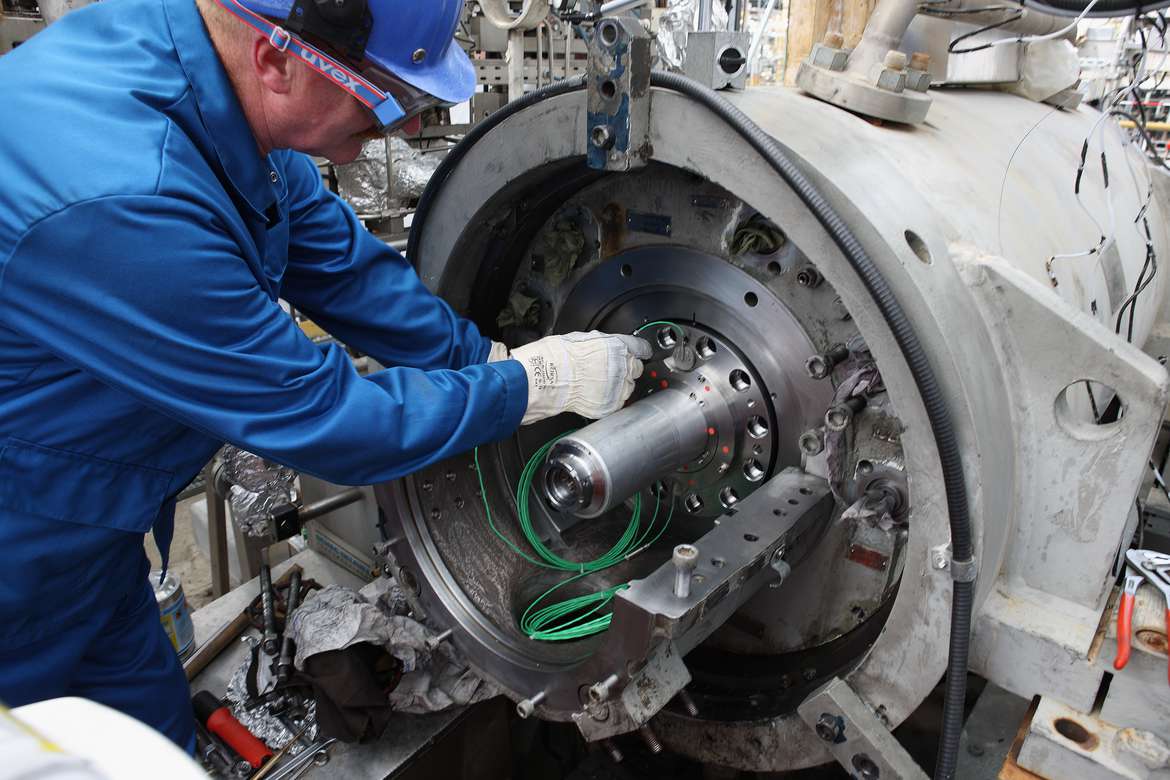

TotalSealCare service and own service center on-site in Sohar

Seal installation.tiff

The refinery

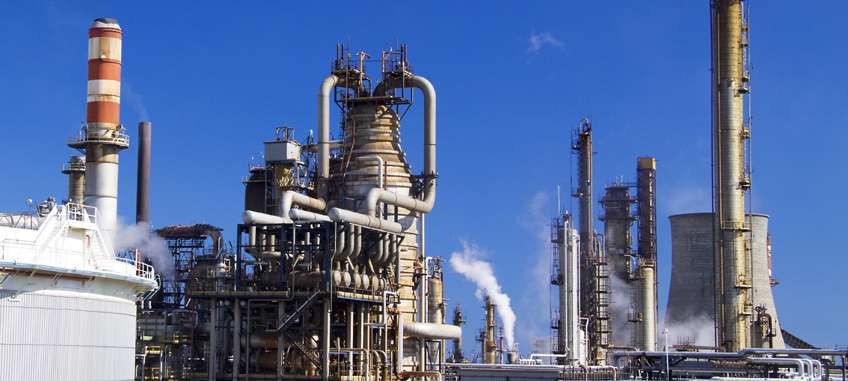

The Sohar Refinery was built with state of the art technology to process a mixed feedstock of crude oil and atmospheric residue from the Oman Refining Company since 2006. This feedstock is transported to the Sohar Refinery via a dedicated 24 inch diameter, 266 km long pipeline. Besides an atmospheric distillation unit with a capacity of 116,000 bpd (barrels per day), the refinery has a residue fluidized catalytic cracking (RFCC) unit, a LPG merox unit, a gasoline desulphurization unit and also a deep desulphurization unit. The refineries' output for export includes fuel oils, gasoline, LPG, naphtha, gas oil and kerosene.

In 2007 the government of Oman merged the “Oman Refinery Company” (ORC) with “Sohar Refinery Company” (SRC) to create a competitive world class refining company in the Sultanate. Since then the merged entity is named “Oman Refineries and Petrochemicals Company” (ORPC) with a combined capacity of about 222,000 barrels per day (ORC 106,000 bpd + SRC 116,000 bpd).

Service contracts

In 2006 EagleBurgmann received its first big order for mechanical seals from Sohar Refinery. To enable a quick support to the customer, EagleBurgmann Middle East (EBME) started to stock spare parts in its Dubai service centre. After a successful commissioning and reliable support of EagleBurgmann, the first service contract in the frame of the company's comprehensive TotalSealCare service concept was signed.

Because the cooperation between EBME and Sohar Refinery got stronger, the seal manufacturer decided to set up a seal repair service centre directly in Sohar, very close to the refinery in December 2007. As the customer was very satisfied, especially with the performance of EagleBurgmann mechanical seals and the after sales service, a long term seal repair contract was signed by the two parties, valid for several years.

H75A4-T___0285.tiff DGS3_03.tiff Gaskets_222.tiff

Mechanical seals for pumps

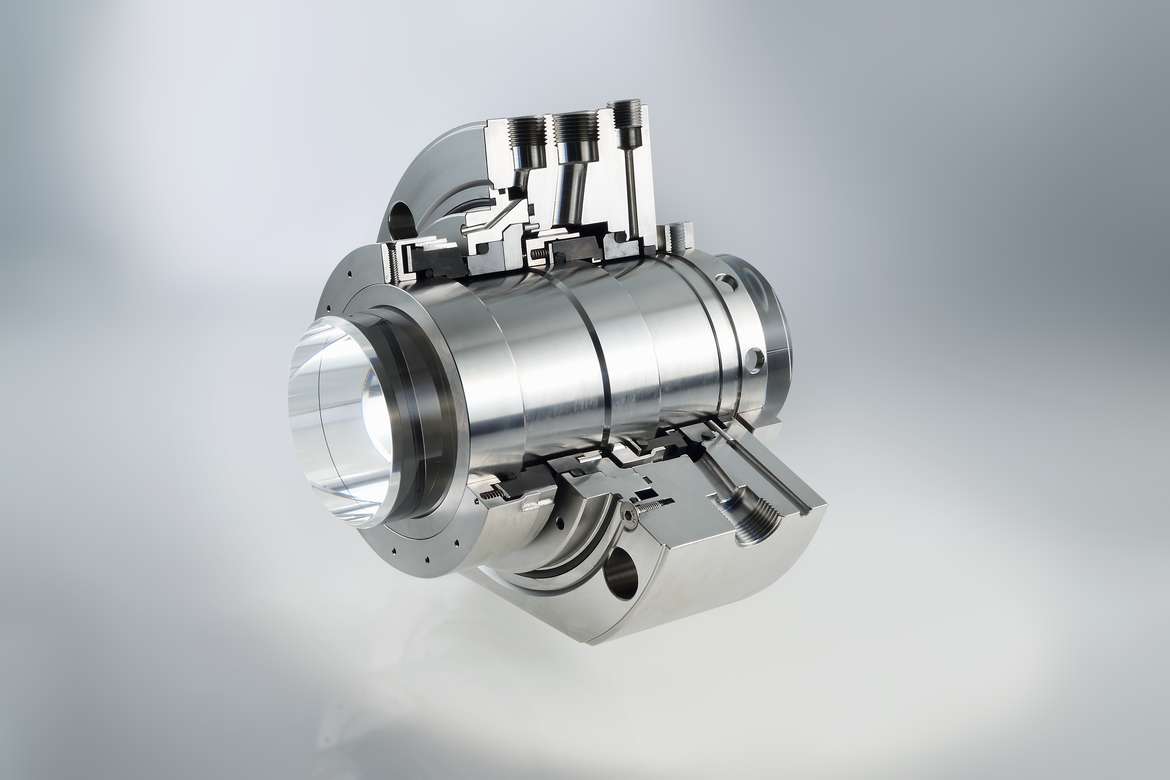

The Sohar Refinery complex is equipped with approximately 320 pumps in total. With a share of approx. 60 %, EagleBurgmann is the main mechanical seal manufacturer of the plant. EagleBurgmann Middle East is responsible for several hundreds of installed mechanical seals ranging from Cartex-DE, H75, MFLWT80, MFL85N to SH types. These seals are running in 188 pumps from Sulzer, Ebara and KSB and are mainly installed in process areas, utilities and tank farm areas of the refinery. To ensure the maximum lifetime of the seals, supply system types according to API plan 23 and 52 have been selected carefully from EagleBurgmann's application engineers.

Mechanical seals for compressors

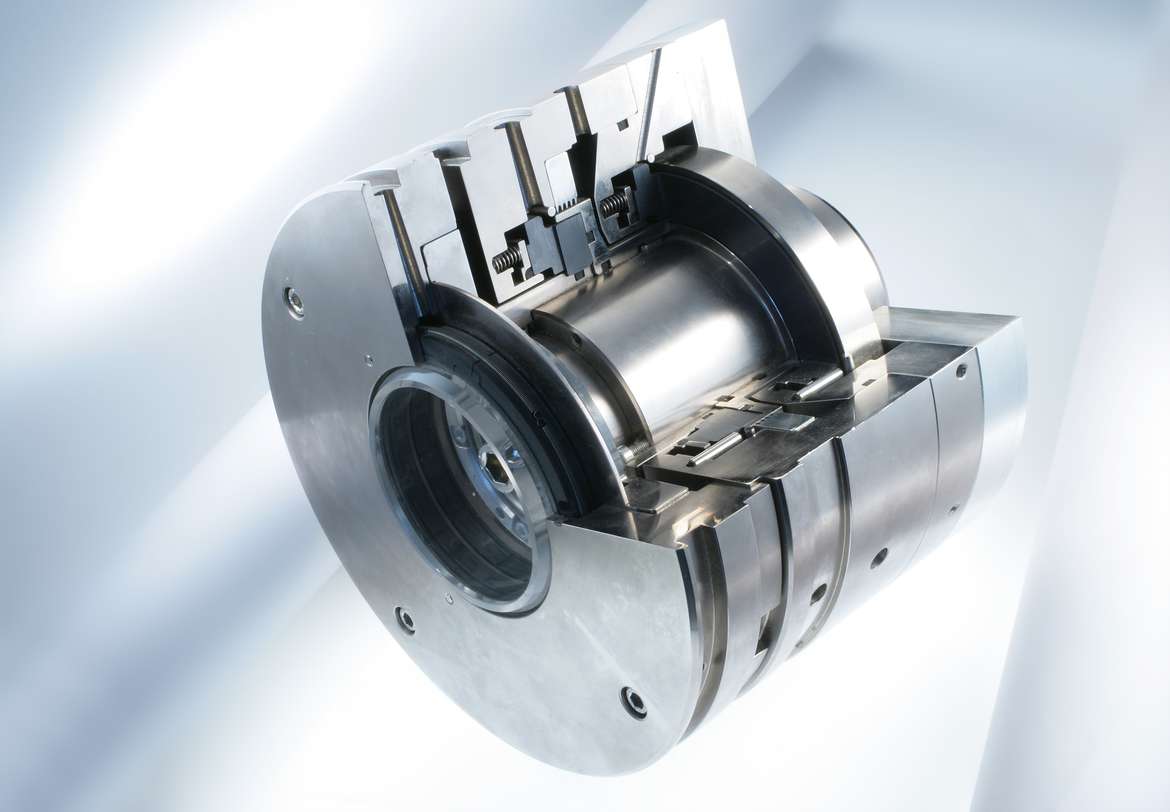

EagleBurgmann is not just the leading manufacturer for pump seals within the plant, there are also several other machines fitted with their sealing products. In the gas processing part of the plant, there are compressors from Ebara installed, which are fitted with EagleBurgmann dry gas seals. For example type NF90E is running in a circulation compressor, and type NF953E is installed in a heat compressor.

Couplings for compressors and pumps

Additionally, EagleBurgmann has a good population with its flexible diaphragm couplings for compressors from Ebara and Mayekawa and also for Ebara pumps. In total, there are 22 machines fitted with Model-67, Model-74 and Model-100 couplings.

Packings and Gaskets

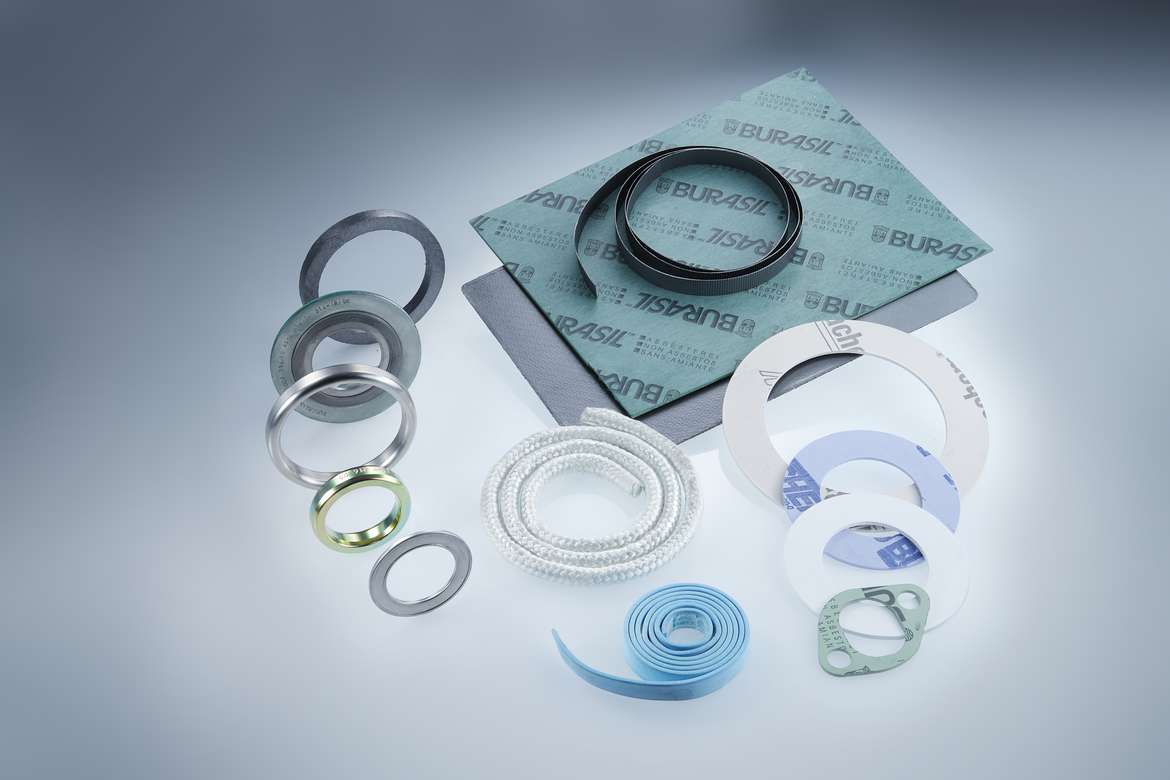

Beginning of 2010, ORPC Sohar Refinery had their first plant turnaround and EagleBurgmann got the chance to participate by supplying Buralloy heat exchanger and equipment gaskets as well as Spiraltherm spiral wound gaskets. Various metal types like soft iron, SS316, SS304, SS410, F5, Monel and even Titanium were used to produce the semi-metallic gaskets. Cut gaskets made of Burasil fiber sheets and Statotherm graphite sheets were also supplied. Due to a very good co-operation between ORPC engineers and EagleBurgmann Middle East Packings and Gaskets team, more than 700 gaskets have been supplied on time.

Due to reliable performance of the EagleBurgmann sealing products in several refinery units and frequent customer visits of EBME to the customer, the company received an additional order to retrofit approximately 40 ACME pumps in offsite and utility units. The original seals had been component type rubber bellows seals of an Asian competitor. The pumps are processing a water/ sludge mix by ambient temperature and low pressures. EagleBurgmann replaced these seals with Unitex seals. Compared to component seals, these cartridge seal type has the benefit of easy handling. Since installation, the Unitex seals are running fine.

Additionally EagleBurgmann received orders for further diaphragm couplings and dry gas seals. This growing success is the result of a good customer-manufacturer relationship, excellent quality of products, service and technical know-how of seal specialists.

Contact our experts

Inquiry

for more information

Show locations

One-stop supplier for sealing technology

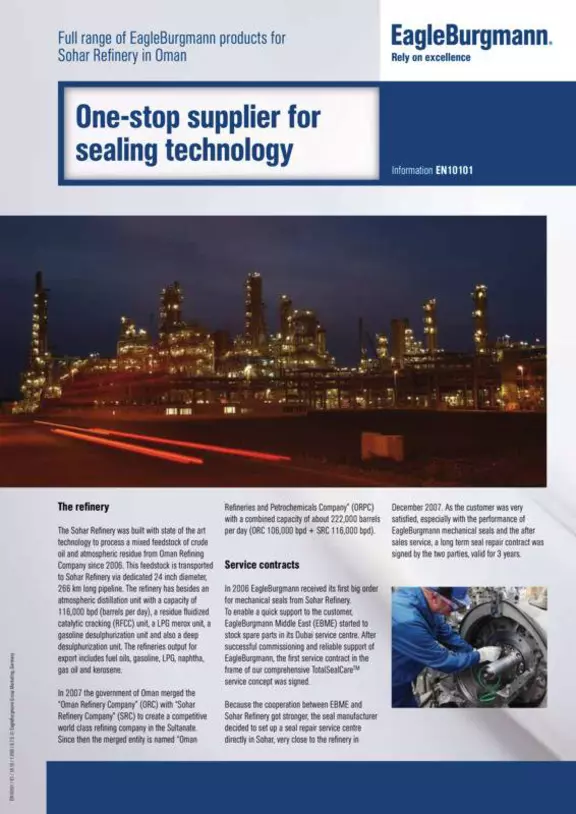

Download the solution flyer

PDF download - 517.4 KB

TotalSealCare - The modular seal service

Download the brochure

PDF download - 2.0 MB

Further reference projects

KeyVisual_RoTechBooster_Dock_Sud
Argentina

Clean gas despite fluctuating operating conditions

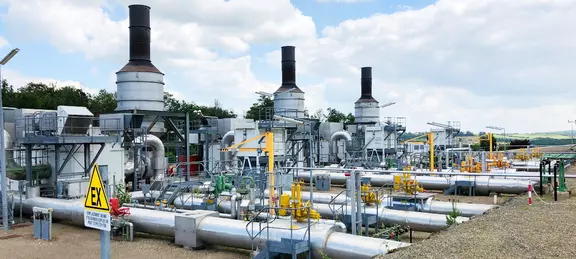

Frequent starts and stops are a severe test for gas-lubricated compressor seals. Installed in an Argentinean combined cycle power plant is an EagleBurgmann supply system that provides a continuous gas flow rate for the seals and adapts it to changing conditions. Since then, the operational reliability of the compressors has increased significantly.

Read on for the entire case study
United States

Convincing high pressure seals for pipeline pumps

Reduce maintenance costs for seal supply systems and extend MTBR intervals - EagleBurgmann's task was to significantly improve the availability of unmanned pump stations in a gas pipeline in Texas with single seals for multifluid pumps.

Read on for the entire case study
Germany

Cruise liners with DiamondFace-coated mechanical seals

Cruise liners have to reduce their sulfur emissions in Emission-Controlled Areas (ECAs). To accomplish this, light fuel oil is used in coastal regions - with significant consequences for the ship's fuel supply.

Read the complete case study
Germany

DF-M7N DiamondFace for tank drainage pumps

The chemical company Global Amines is one of the worldwide leading manufacturers of special chemicals. The "Southeast Bavarian Chemical Triangle", near Altötting, Germany is the location of the Gendorf plant. Global Amines produces preliminary, intermediate and finished chemical products here. EagleBurgmann successfully converted a chemical standard pump from a competitor's seal to an EagleBurgmann DF-M7N DiamondFace mechanical seal and achieved significantly increased pump and system availability.

Read the complete case study
Germany

DF-MFLWTI DiamondFace mechanical seal for refinery pumps

The TOTAL refinery at the Leuna chemicals site is one of the most state-of-the art facilities of its type in Europe. It processes around 30,000 tonnes of crude oil every day, most of which is pumped in from Russia.

Read the complete case study
KeyVisual CaseStudy Osvat shutterstock_190565291.jpg
Brazil

DiamondFace coated mechanical seals in crude oil application

The 275 km OSVAT pipeline network carries about 55 % of the crude oil explored in Brazil. In 12 Sulzer heavy duty pumps, which maintain the fast flow of crude oil from the wells to the final destination, several wear-free mechanical seals with DiamondFace technology operate without failure and provide economic advantages for the owner.

Read the complete case study
