Spiraltherm PTFE 9595

Spiraltherm PTFE 9595

Spiraltherm PTFE 9595

Features

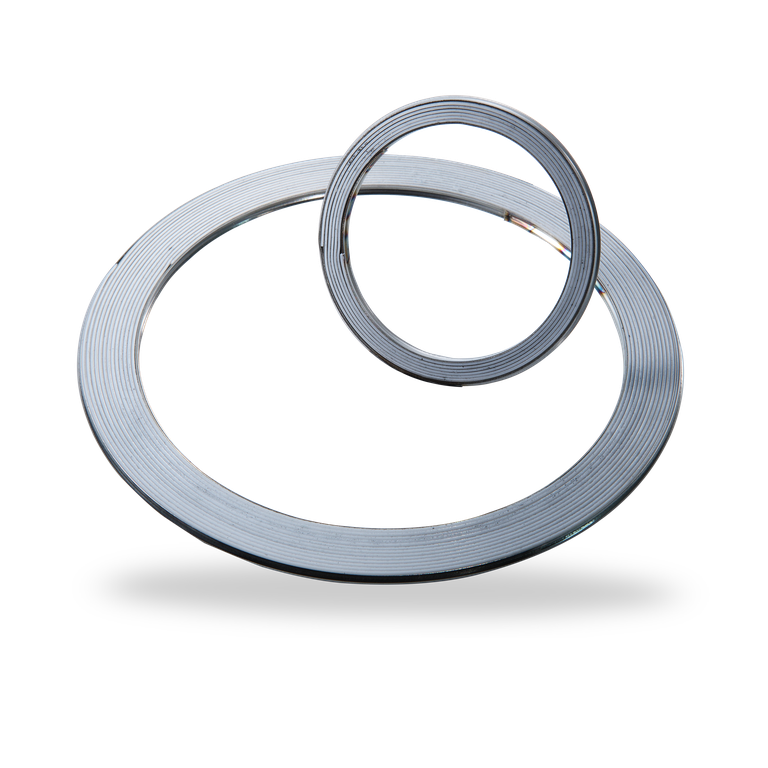

Spiraltherm PTFE 9595 is a flange seal made from a V-shaped profiled stainless steel tape with spiral-wound pure PTFE middle layer. The ends of the stainless steel tape are spot-welded.

Advantages

  • High chemical resistance
  • No product contamination by PTFE possible

Operating range

Pressure: p = ... 400 bar Temperature
  • Continuous operation:
    t = -200 ... +280 °C
Recommended surface roughness:
Rz = 12.5 ... 50 μm

Chemical resistance: pH = 0 … 14

Sealing parameters
AD Directive B7
  • k0 x KD = 65 x bd
  • k1 = 1,4 x bd
ASME Code
  • Gasket factor: m = 2.5
  • Minimum surface pressure:
    y = 10,000 psi, y = 70 MPa

Materials

  • Filler material: pure PTFE
  • Metal spiral: 1.4541 (321) or 1.4571 (316 Ti)
Other materials upon request

Standards and approvals

  • FDA

Variants

9584/... (98 % pure graphite filler)
9594/... (99,85 % pure graphite filler)
9594/...R (graphite filler with low sulfur < 200 ppm and water soluble sulfate < 100 ppm cont)
9584/...TZ (with additional PTFE-sealing zone, T < 280 °C)
9594/...TZ (with additional PTFE-sealing zone, T < 280 °C)
9595/... (pure PTFE filler, T < 280 °C)
9596/... (mica filler, T < 900 °C)

Forms of supply

Rings:
for tongue-and-groove flanges - 9595/NF
for projection and recess flanges - 9595/VR
for projection and recess flanges, with inner ring - 9595/VRI
for raised-face flanges, with outer ring - 9595/GA
for raised-face flanges, with inner and outer ring - 9595/GIA



Product variants

Spiraltherm PTFE 9595/GA
Spiral wound gasket with outer guide ring.
Standard type for raised faced flanges.
Spiraltherm PTFE 9595/GIA
Spiral wound gasket with inner and outer guide ring offers the best performance in raised faced and flat flanges
The inner ring is used to
- avoid over-compression at elevated seating loads in high pressure service
- reduce turbulence within the flange area and protects against corrosion or erosion
- improve the load distribution over the gasket.
Spiraltherm PTFE 9595/NF
Spiral wound gasket without guide or inner ring.
This style of gasket is used in load-bearing flange configurations, such as tongue and groove flanges.
Standard dimensions according to EN/ASME.
Spiraltherm PTFE 9595/VR
Spiral wound gasket without inner ring or outer guide ring.
Mainly used for male and female flanges or projection and recess flanges.
Spiraltherm PTFE 9595/VRI
Spiral wound gasket with inner ring.
Mainly used for male and female flanges or projection and recess flanges.
