Standard cartridge seals

Cartex  Single seals Cartex
Single seals
  • Single seal
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Single seals without connections (-SNO), with flush (-SN) and with quench combined with lip seal (-QN) or throttle ring (-TN)
  • Additional variants available for ANSI pumps (e.g. -ABPN) and eccentric screw pumps (-Vario)
Cartex  Dual seals Cartex
Dual seals
  • Dual seal
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Double pressure balanced
  • Integrated pumping device
  • Variants available: for eccentric screw pumps (-Vario) and gas-lubricated version (-GSDN)

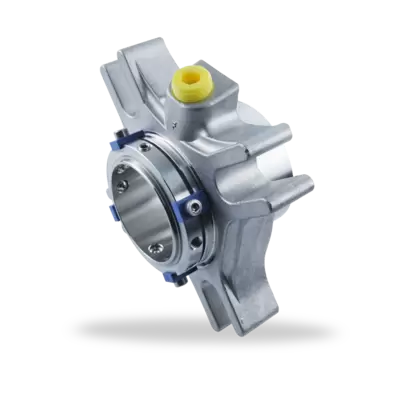

Cartex ANSI
Single seals Cartex ANSI
Single seals
  • Single seal
  • Available for standard (Cartex-ASPN) and big bore (Cartex-ABPN) seal chambers
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Single seals with flush (-ASPN, -ABPN) and with quench combined with lip seal (-ASQN, -ABQN) or throttle ring (-ASTN, -ABTN)

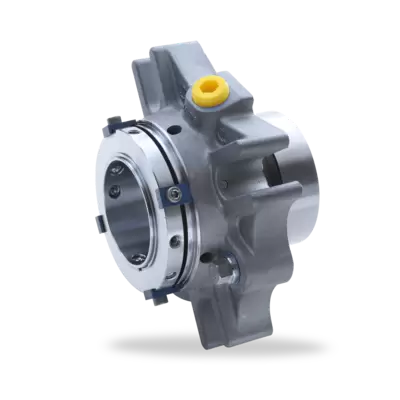

Cartex ANSI  Dual seals Cartex ANSI
Dual seals
  • Dual seal
  • Available for standard (Cartex-ASDN) and big bore (Cartex-ABDN) seal chambers
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Double pressure balanced
  • Integrated pumping device

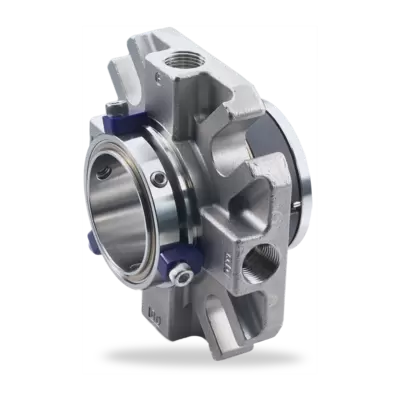

MA290 / MA291 MA290 / MA291
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Stationary multiple springs
  • Springs and pin located on the atmospheric side
MA390 / MA391 MA390 / MA391
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Stationary multiple springs
  • Springs and pin located on the atmospheric side

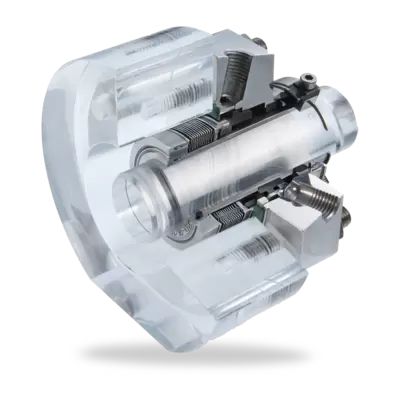

Mtex Single seals Mtex Single seals
  • Single seal
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Metal bellows
  • Single seal with quench and lip seal (-QN) or throttle ring (-TN)
  • Version available with multipoint injection ring (-QNM, -TNM)
  • Supply connections for flush (A) and quench (B)

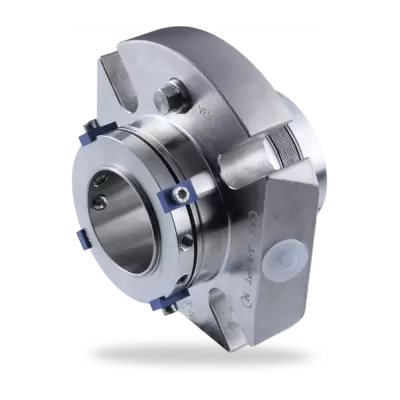

Mtex Dual seals Mtex Dual seals
  • Double seal
  • Mtex-DN: API Plan 52 (53/54)
  • Mtex9-DN: API Plan 53/54
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Metal bellows
  • Stationary Springs
  • Pumping device independent of direction of rotation
eCartex  Single seals eCartex
Single seals
  • Single seal
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Single seals without connections (-SNO), with flush (-SN) and with quench combined with lip seal (-QN) or throttle ring (-TN)
  • Additional variants available for ANSI pumps (e.g. -ABPN) and eccentric screw pumps (-Vario)
eCartex  Dual seals eCartex
Dual seals
  • Dual seal
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Double pressure balanced
  • Integrated pumping device
  • Variants available: for eccentric screw pumps (-Vario) and gas-lubricated version (-GSDN)
eCartex ANSI  Single seals eCartex ANSI
Single seals
  • Single seal
  • Available for standard (eCartex-ASPN) and big bore (eCartex-ABPN) seal chambers
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Single seals with flush (-ASPN, -ABPN) and with quench combined with lip seal (-ASQN, -ABQN) or throttle ring (-ASTN, -ABTN)
eCartex ANSI  Dual seals eCartex ANSI
Dual seals
  • Dual seal
  • Available for standard (eCartex-ASDN) and big bore (eCartex-ABDN) seal chambers
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Double pressure balanced
  • Integrated pumping device

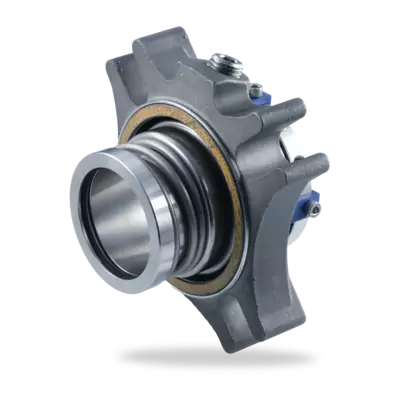

Unitex Unitex
  • Single cartridge seal
  • Elastomer bellows
  • Unbalanced
  • Independent of direction of rotation
  • Rotating spring
  • Bellows and spring free from torsion
  • Metric and inch sizes available
