AD510 / AD520

AD510 / AD520

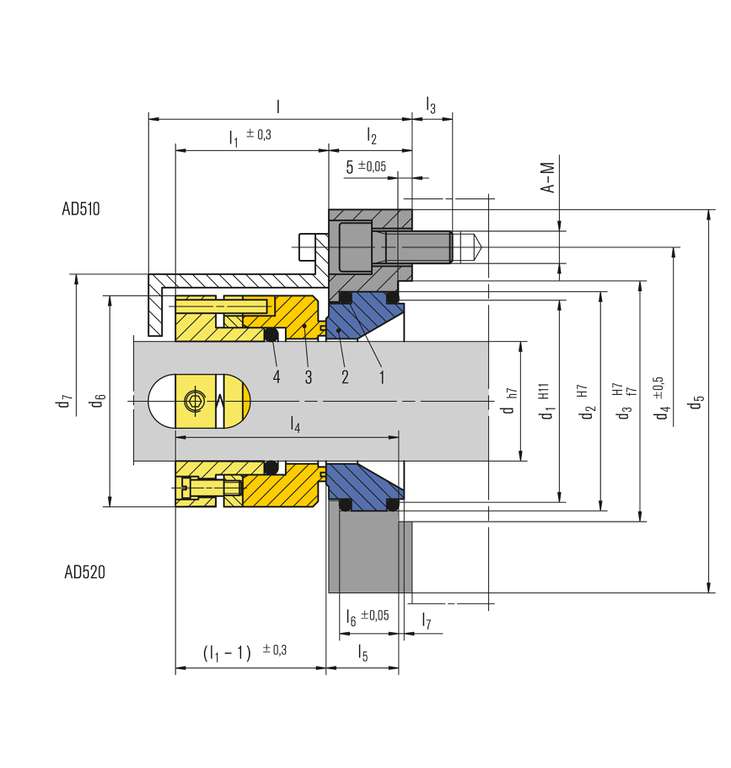

Item Description
1 O-Ring
2 Seat
3 Seal face
4 O-Ring

AD510 / AD520

Features

  • Dry running
  • Single seal
  • Independent of direction of rotation

Advantages

AD510 includes housing

Operating range

Pressure:
p = vacuum (7 mbara) … 5 bar (73 PSI)
Temperature:
t = -30 °C ... +175 °C (-22 °F … +347 °F)
Sliding velocity: vg = max. 1.0 m/s (3 ft/s)
Allowable gas consumption: 2 Nl/h

Materials

Seal face: PTFE, Carbon fiber and glass fiber reinforced
Seat: Silicon carbide (Q1), Aluminium oxide (V)

Notes

Options:
Cooling jacket on the vessel side flange and carbon bush and
version with gas flushing line and lip seal. Please inquire.



Product variants

AD520
