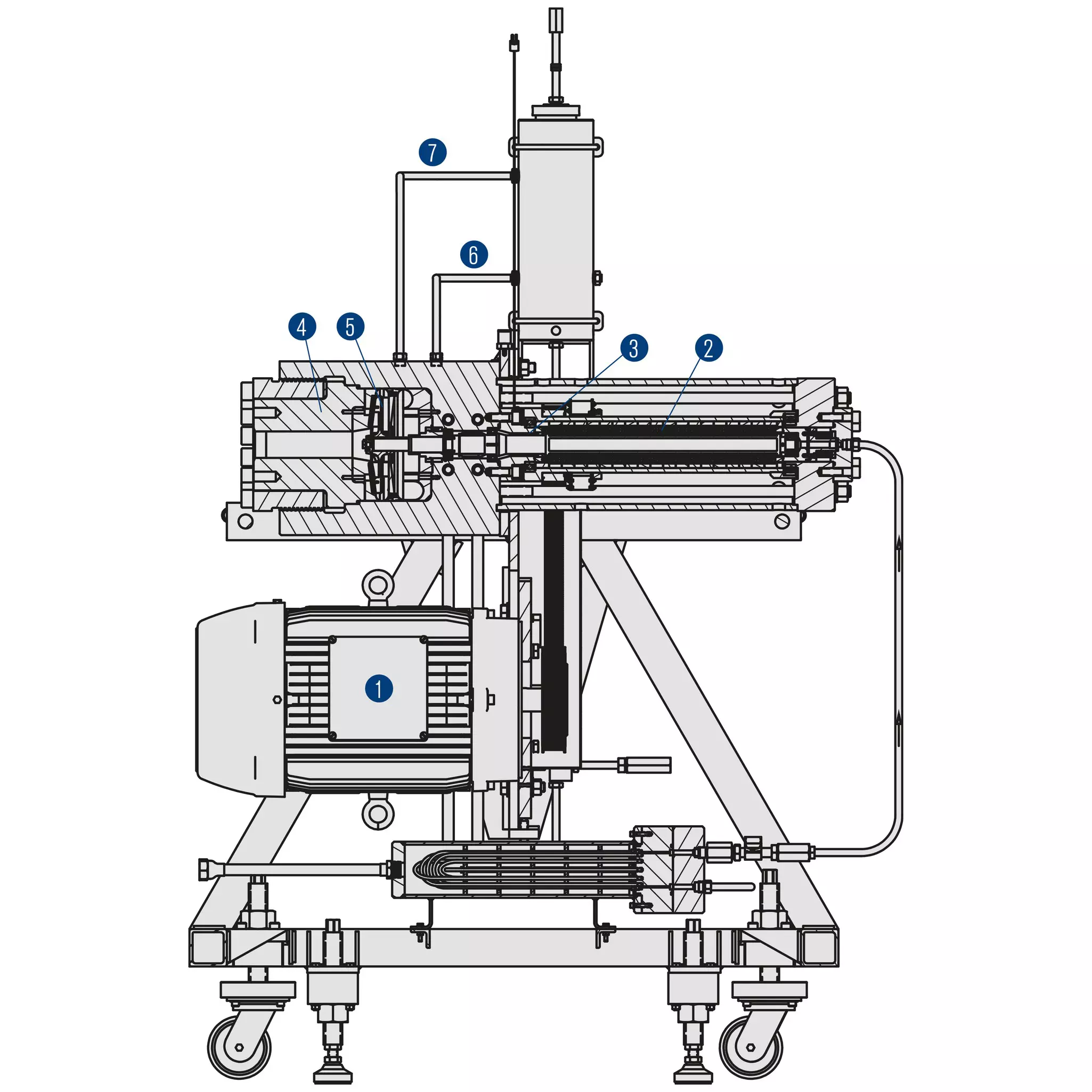

Click image to enlarge

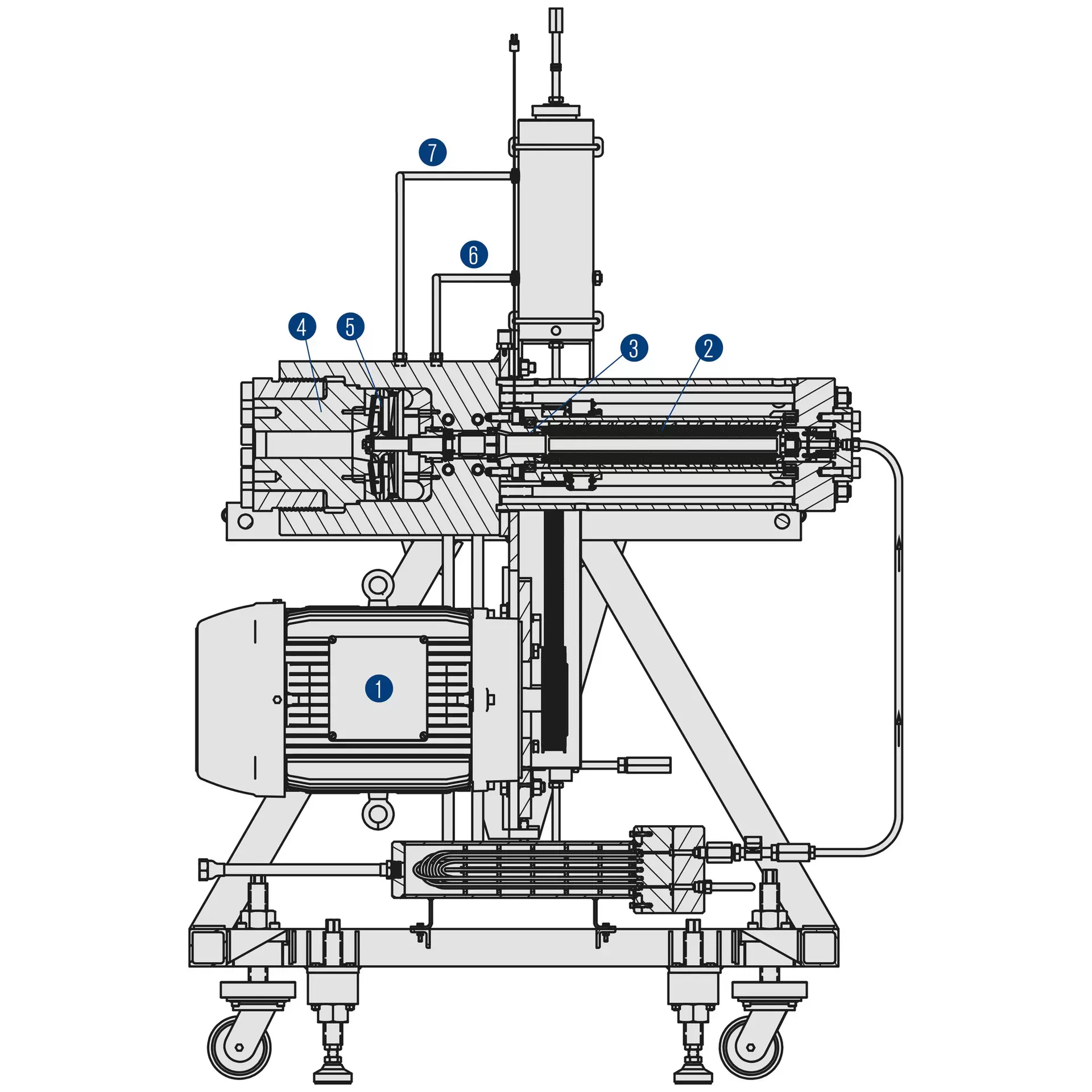

| Item | Description |
|---|---|
| 1 | Motor |
| 2 | Magnetic coupling |
| 3 | Bearing assembly |
| 4 | Blower housing |
| 5 | Impeller |
| 6 | Inlet |
| 7 | Outlet |
MagBlower model 157
Features
- Belt driven design
- Hermetically sealed
- No contamination of process
- No process gas to atmosphere
- Always below 85 dBA noise levels
- Low heat generation and high torque transfer magnetic coupling
- Pulsation free gas flow
- Engineered designs available to meet special requirements
Advantages
- The MagBlower delivers abundant, reliable, and consistent gas flow, in every situation with no leakage.
- Simple to set-up, easy to operate
- High reliability and availability
- Designed for continuous operation
- Low maintenance costs
- Energy efficient
Operating range
Pressure: Vacuum ... 1,100 bar (15,954 PSI)
Temperature:
-40 °C ... +200 °C (-40 °F ... +392 °F)

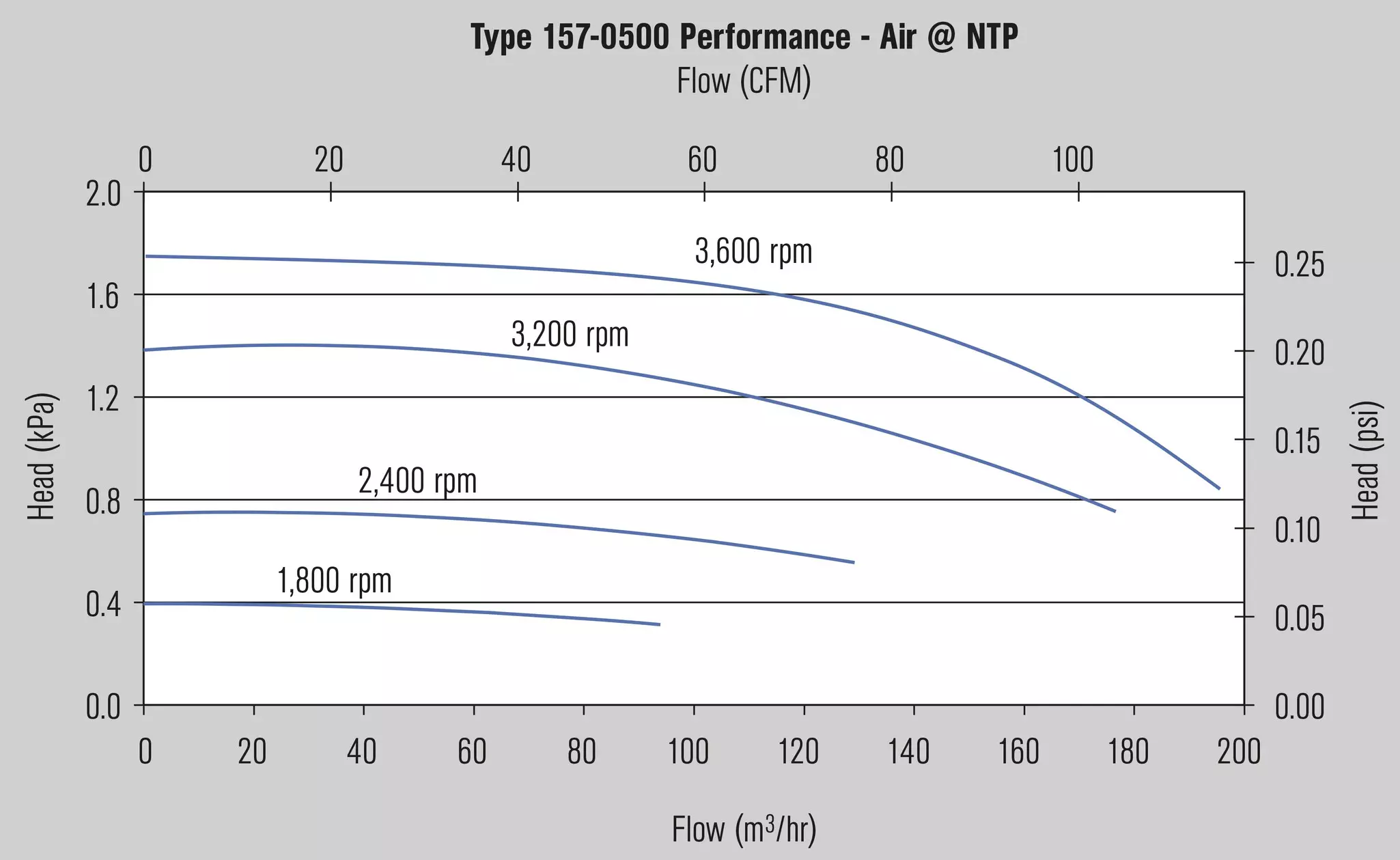

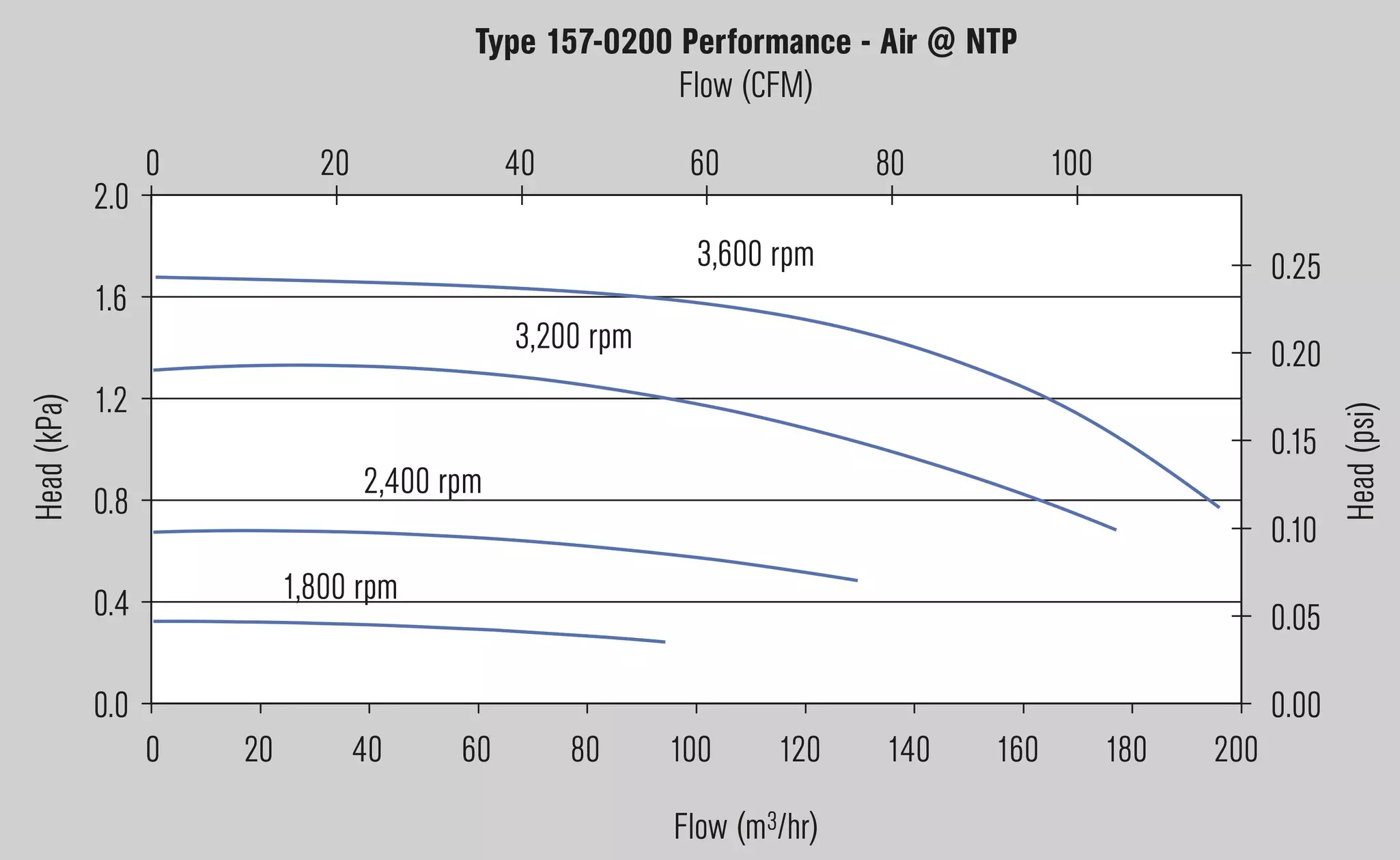

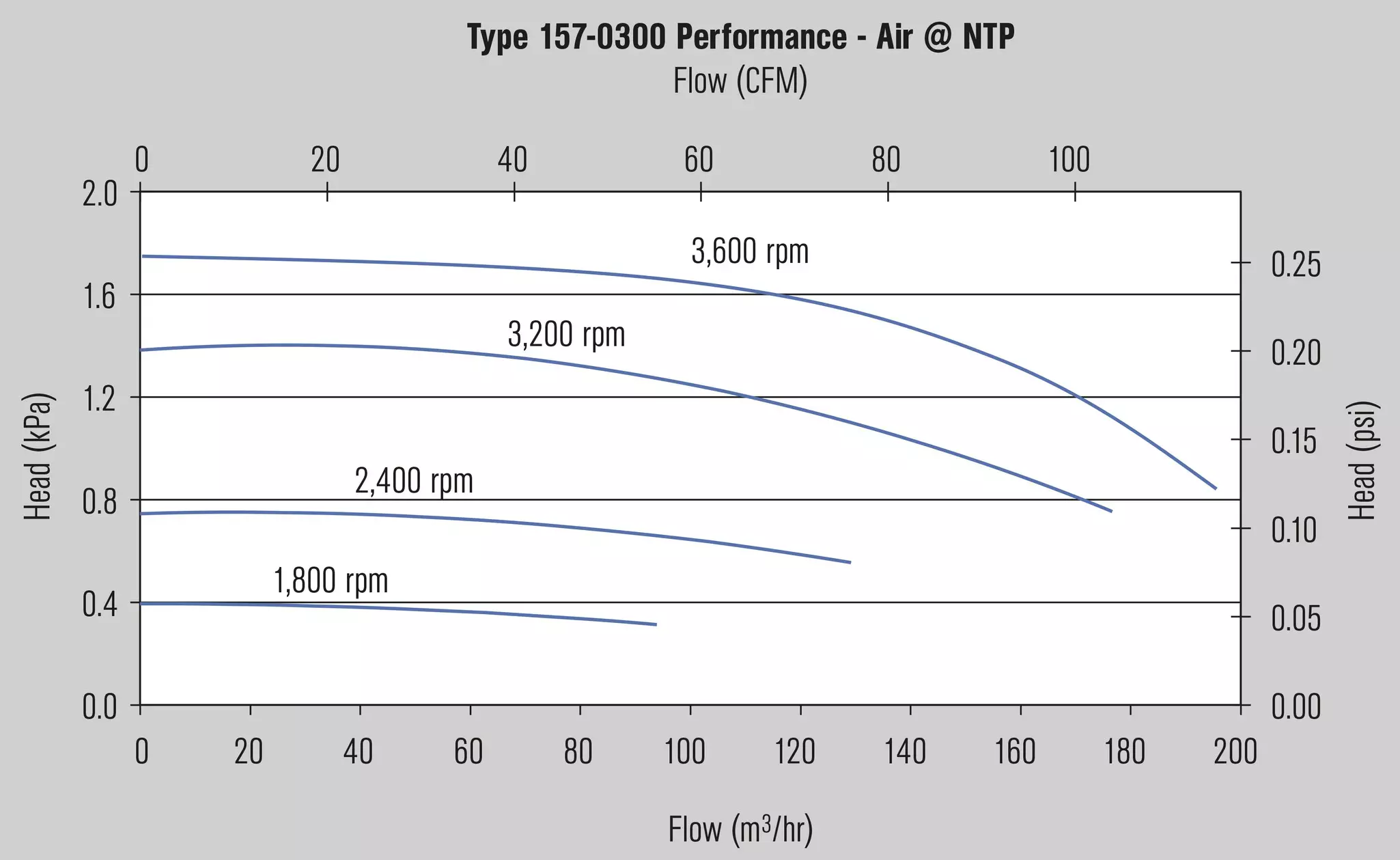

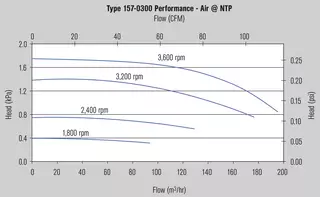

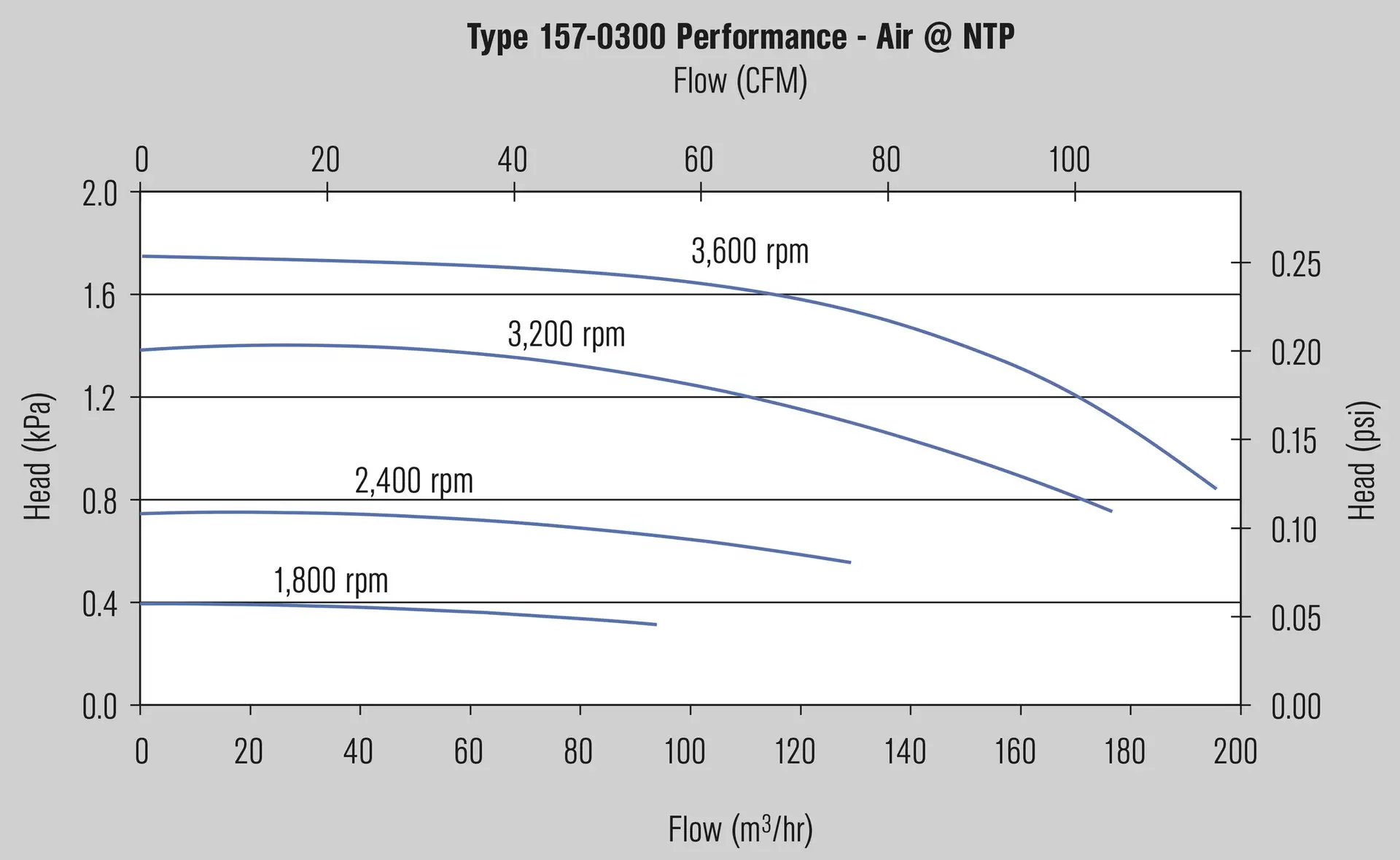

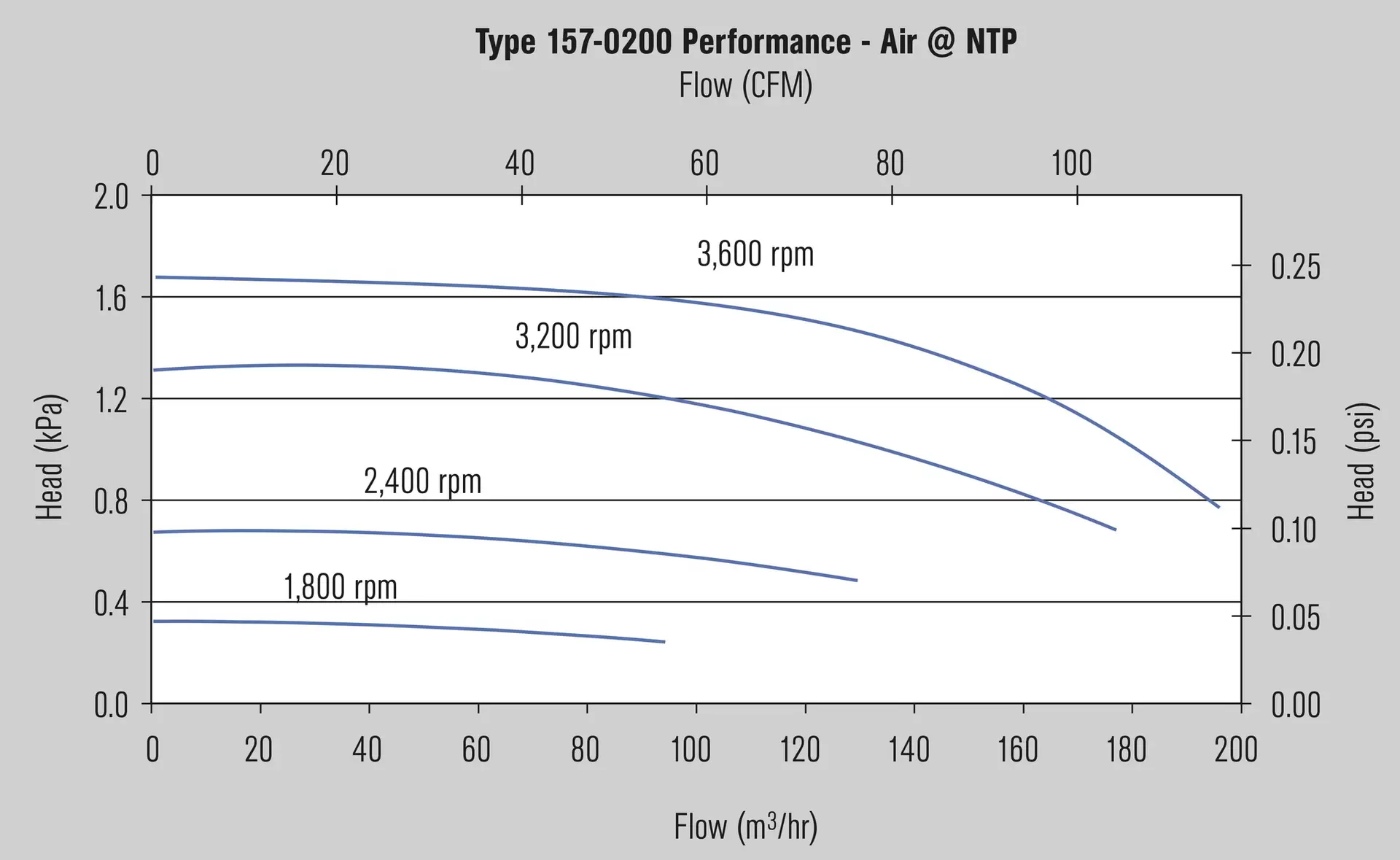

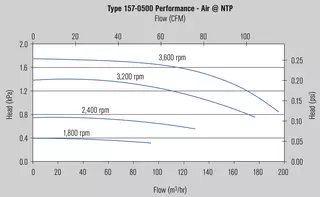

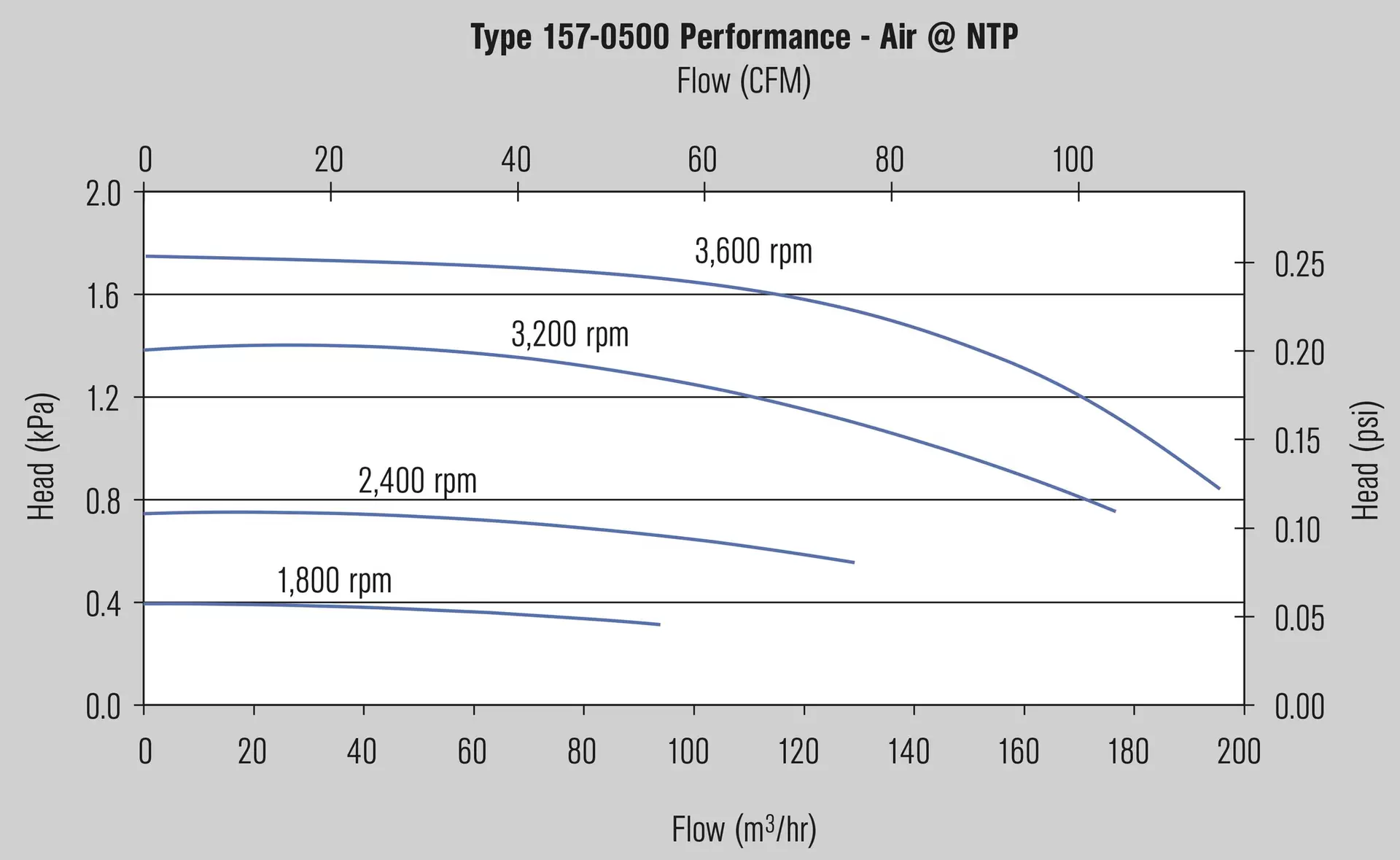

Head: ... 1.7 Kpa (0.25 PSI) on air
Flow: 190 m3/h (112 CFM) on air
Models outside of these operating ranges are available on request.
Recommended applications
- Oil and gas industry
- Refining technology
- Chemical industry
- Petrochemical industry
- Pharmaceutical industry
- Nuclear applications
- Research
- Manufacturing
- Vapor recovery
Functional description
The Magnetic coupling allows power transfer from the electric motor to the impeller without mechanical contact; eliminating the need for a shaft seal. The bearings suitable for the application support the impeller shaft in the blower housing. The gas enters the blower and the energy put into the gas from the blower impeller, produces flow and a pressure increase as required for the application before exiting the blower outlet.
Notes
Options:
- Horizontal or vertical design
- Centrifugal or regenerative impeller
- Single to four stage in series or parallel
- Bearings to meet application requirements
- Noise reduction cover

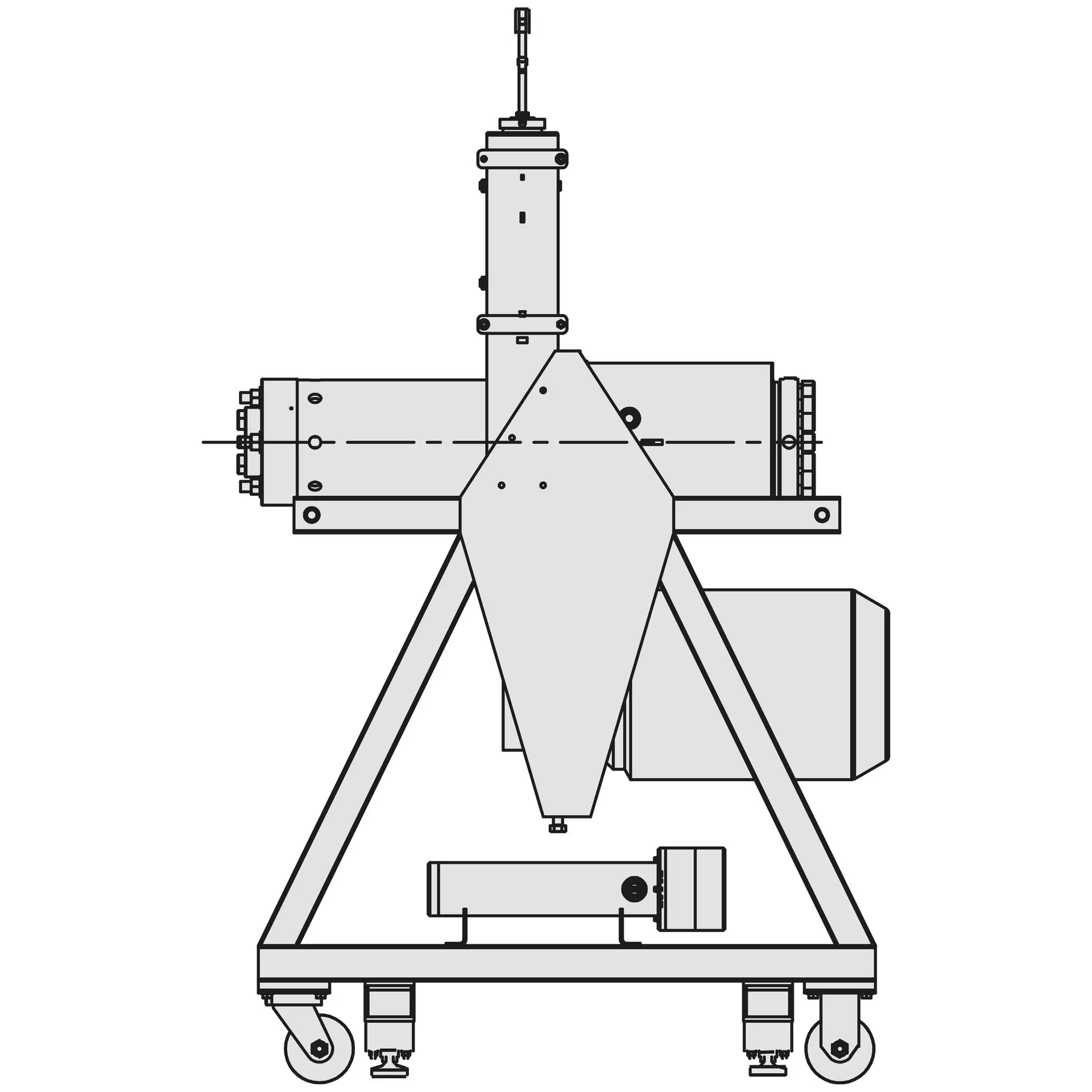

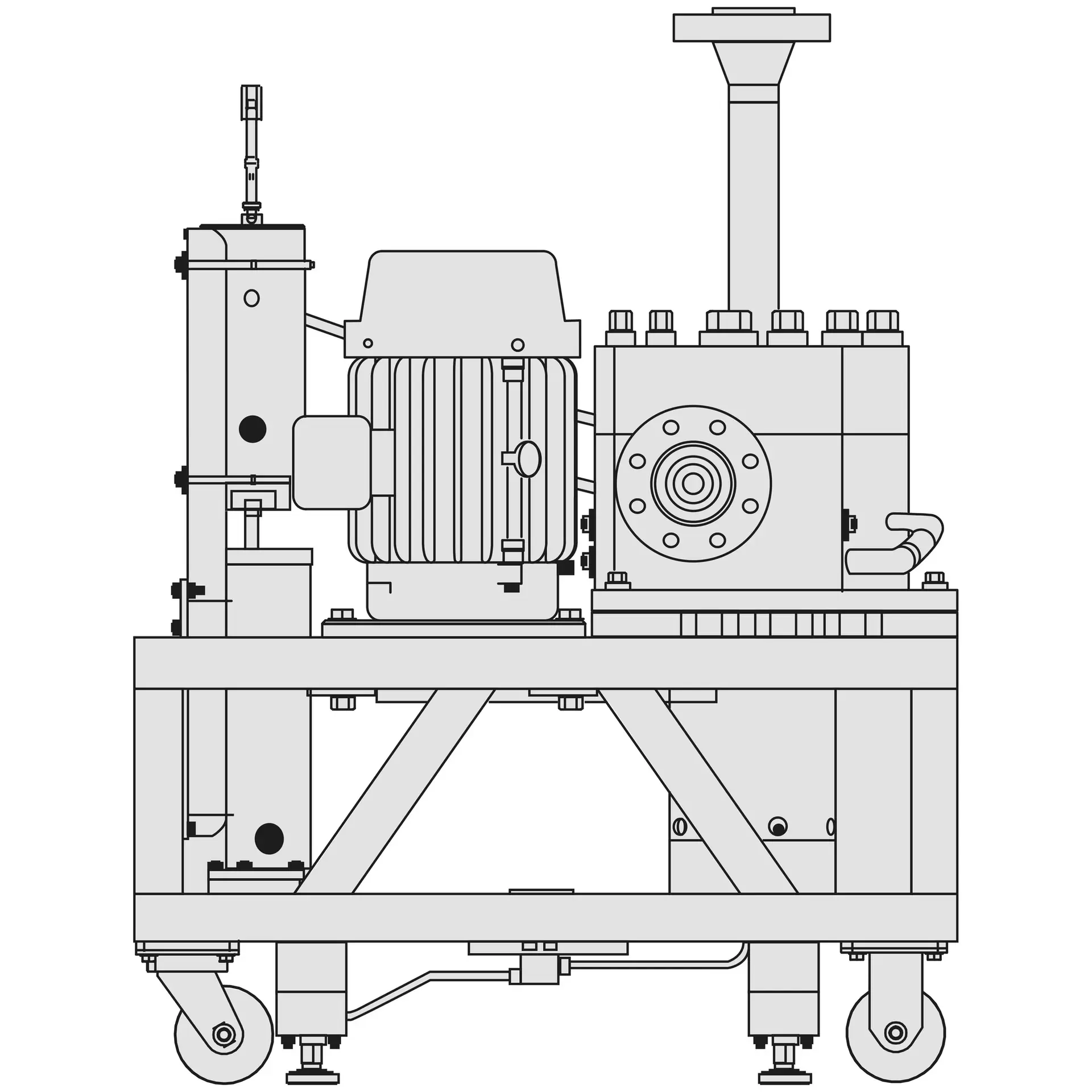

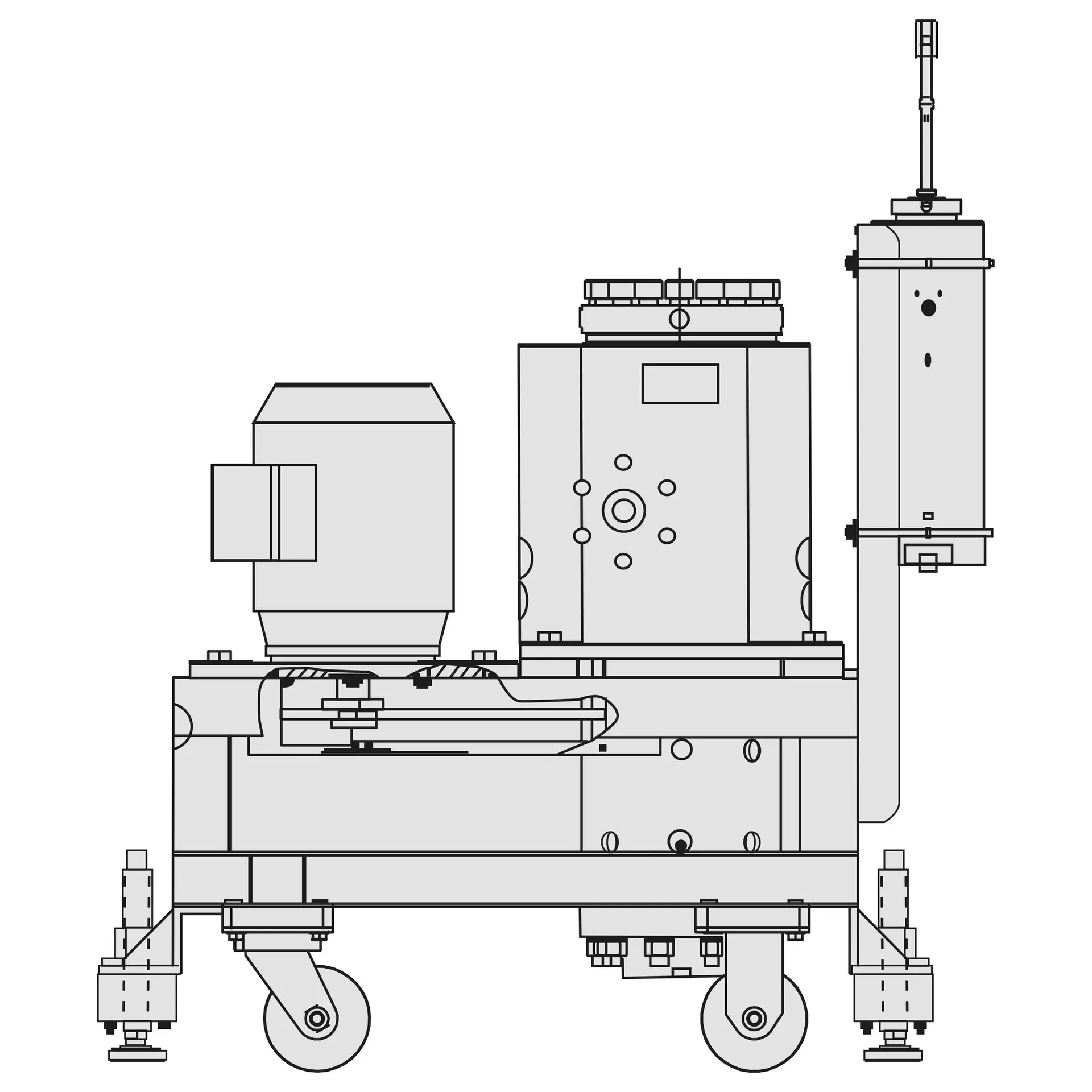

Product variants

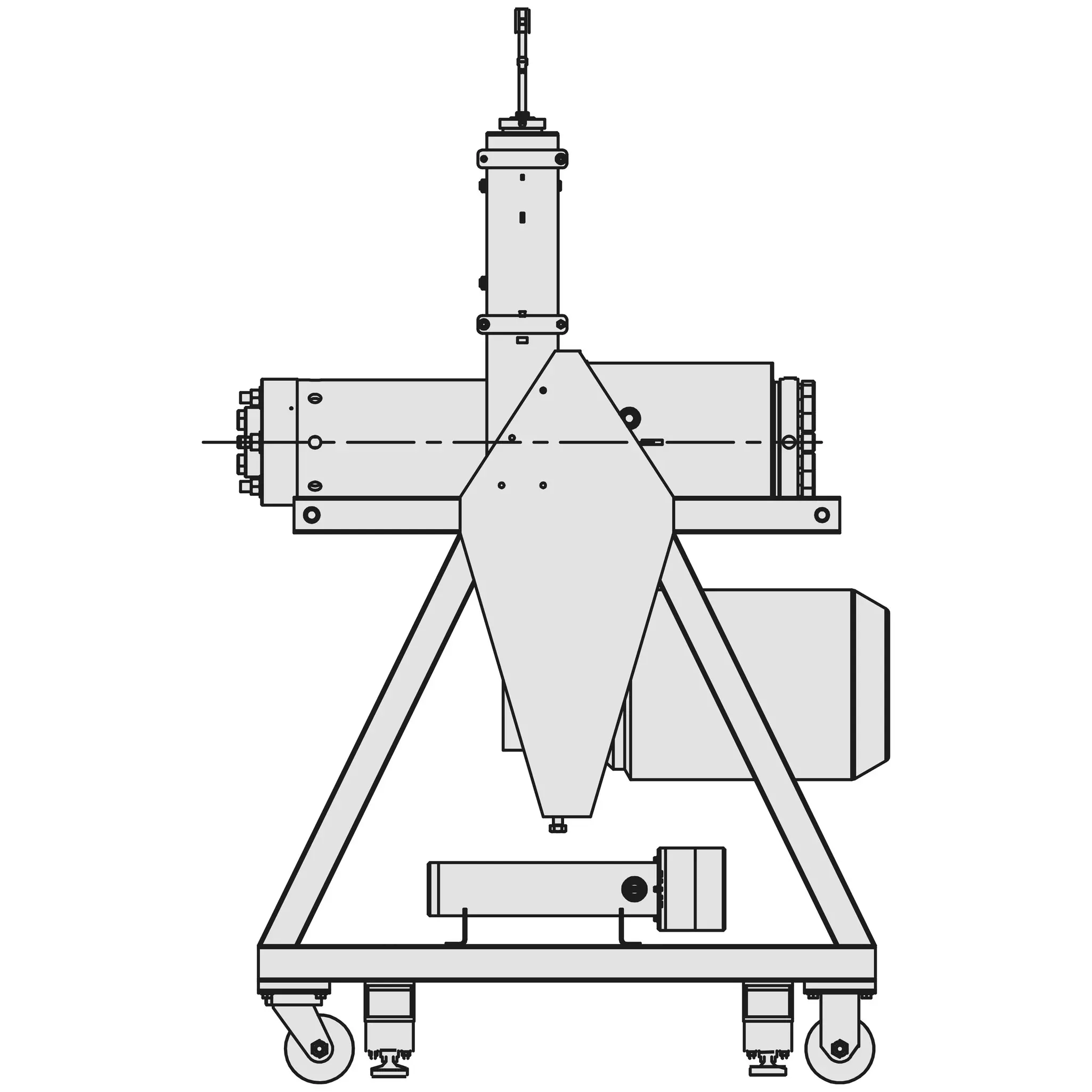

Blower type: Single stage, centrifugal
Speed: min. 1,200 min-1, max. 3,600 min-1
Design pressure: Atmospheric to 303 barg (4,400 PSIG)
Design temperature: 460 °C (860 °F)
Bearing cooling: Oil lubrication system
Motor size:
230/460 V, 3 phase, 60 Hz, 22 kW (30 hp)
Size: height 170 cm (67"), depth 69 cm (27") w/o outlet flange, length 132 cm (27")
Weight: approx. 1,400 kg (3,100 lb)

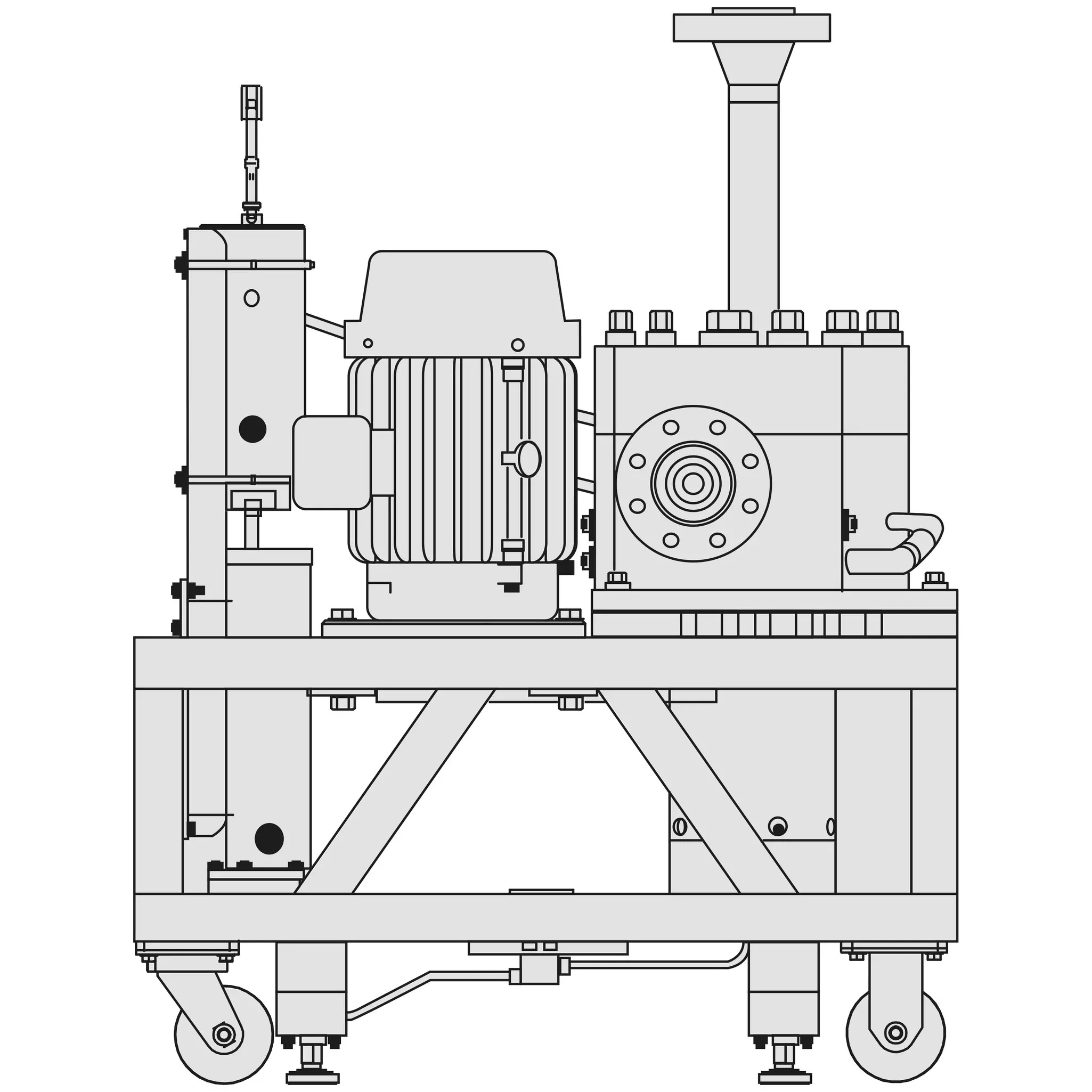

Blower type: Single stage, centrifugal
Speed: min. 1,800 min-1, max. 3,600 min-1
Design pressure: Atmospheric to 1,000 barg (14,504 PSIG)
Design temperature: 300 °C (572 °F)
Bearing cooling: Oil lubrication system
Max. gas density: 362 kg/m³ (22.6 lb/ft³)
Motor size:
415 V, 3 phase, 50 Hz, 11 kW (15 hp)
Size: height 139 cm (54.5"), depth 69 cm (27"), length 112 cm (44")
Weight: 790 kg (1739 lb)

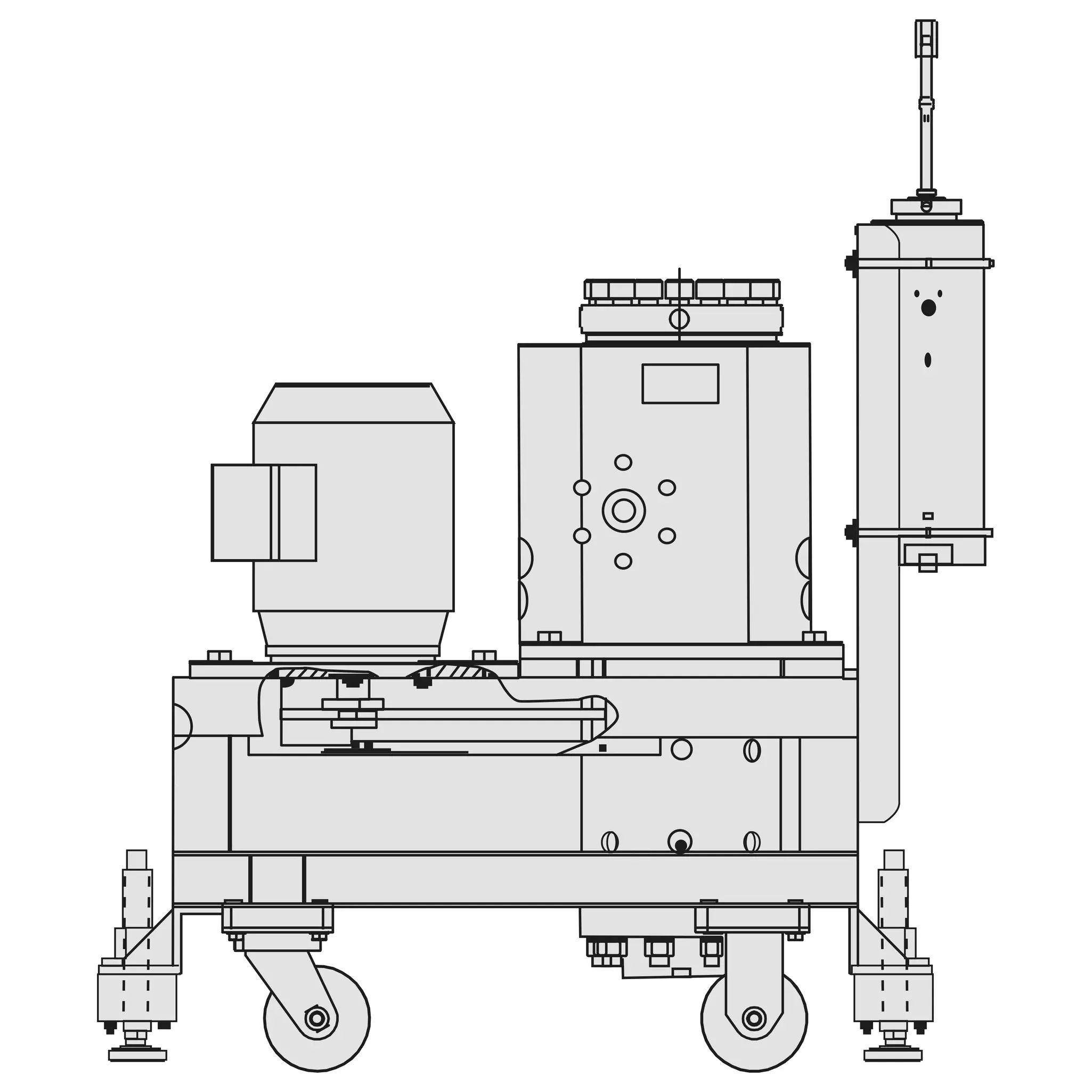

Blower type: Single stage, centrifugal
Speed: min. 1800 min-1, max. 5,000 min-1
Design pressure: Atmospheric to 690 barg (10,000 PSIG)
Design temperature: 150 °C (302 °F)
Bearing cooling: Oil lubrication system
Motor size:
415 V, 3 phase, 50 Hz, 30 kW (40 hp)
Size: height 226 cm (89"), depth 81 cm (32"), length 152 cm (60")
Weight: 1,380 kg (3,040 lb)
