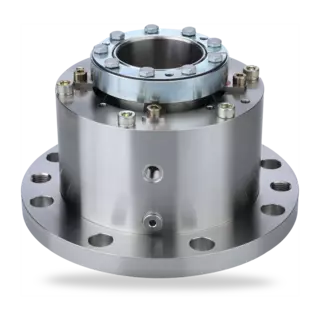

SeccoLip481
SeccoLip481

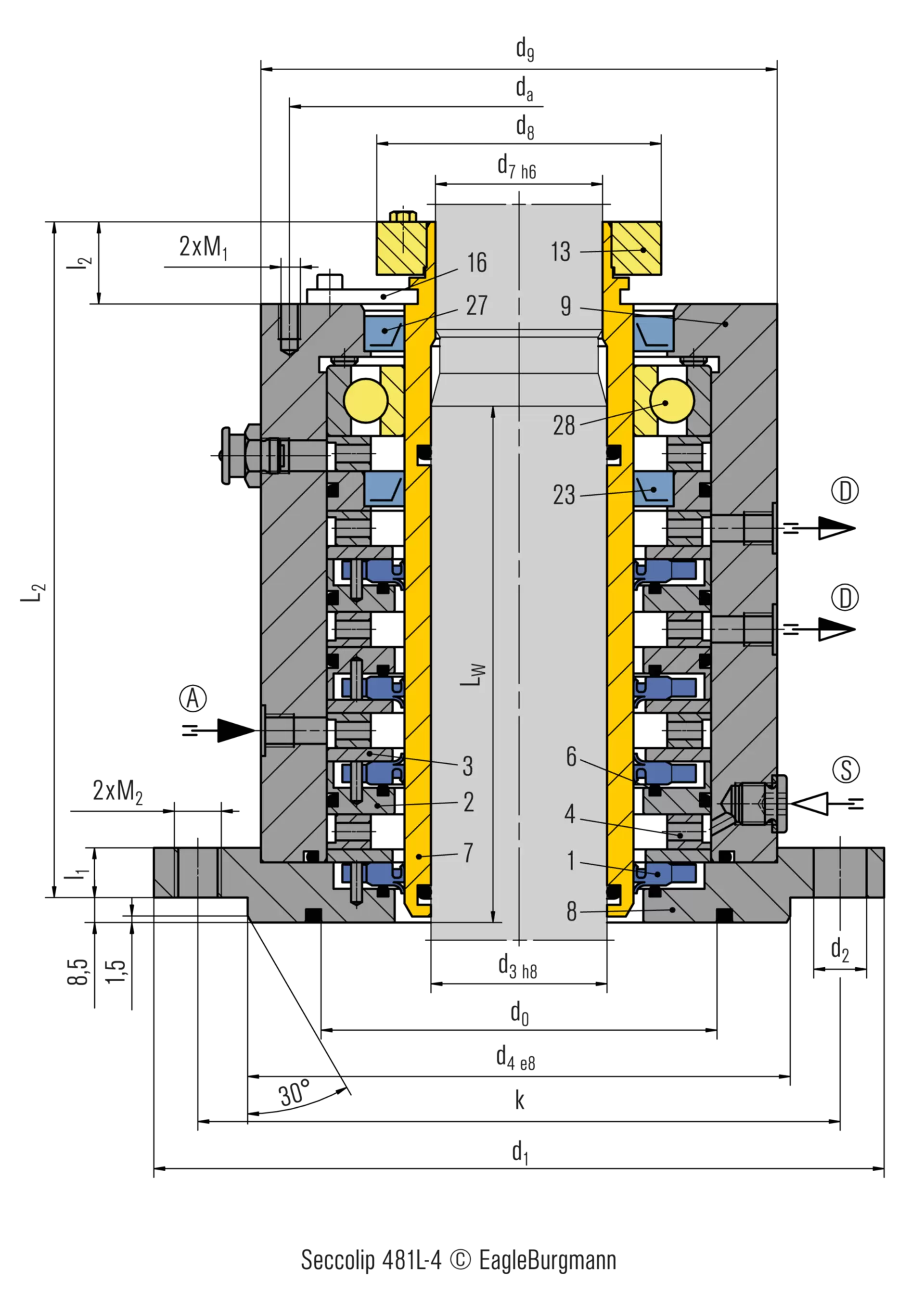

SeccoLip 481L-4
| Item | Description |
| 1 | Lip seal |
| 2 | Inset |
| 3 | Disc |
| 4 | Insert ring |
| 6 | O-Ring |
| 7 | Shaft sleeve |
| 8 | Flange |
| 9 | Housing |
| 13 | Shrink disc |
| 16 | Setting device |
| 23 | Spacer ring |
| 27 | Lip seal |
| 28 | Sliding bearing |

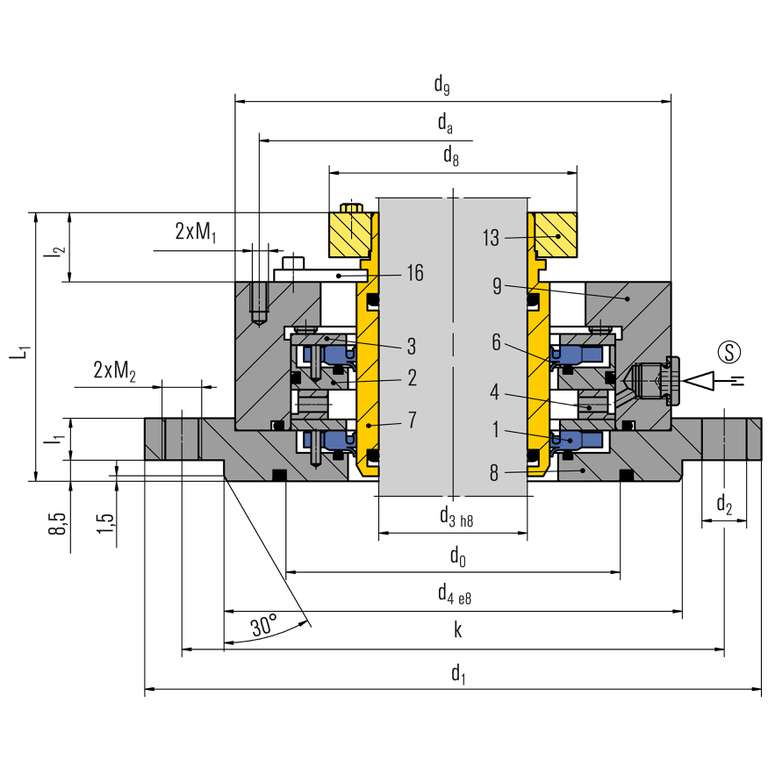

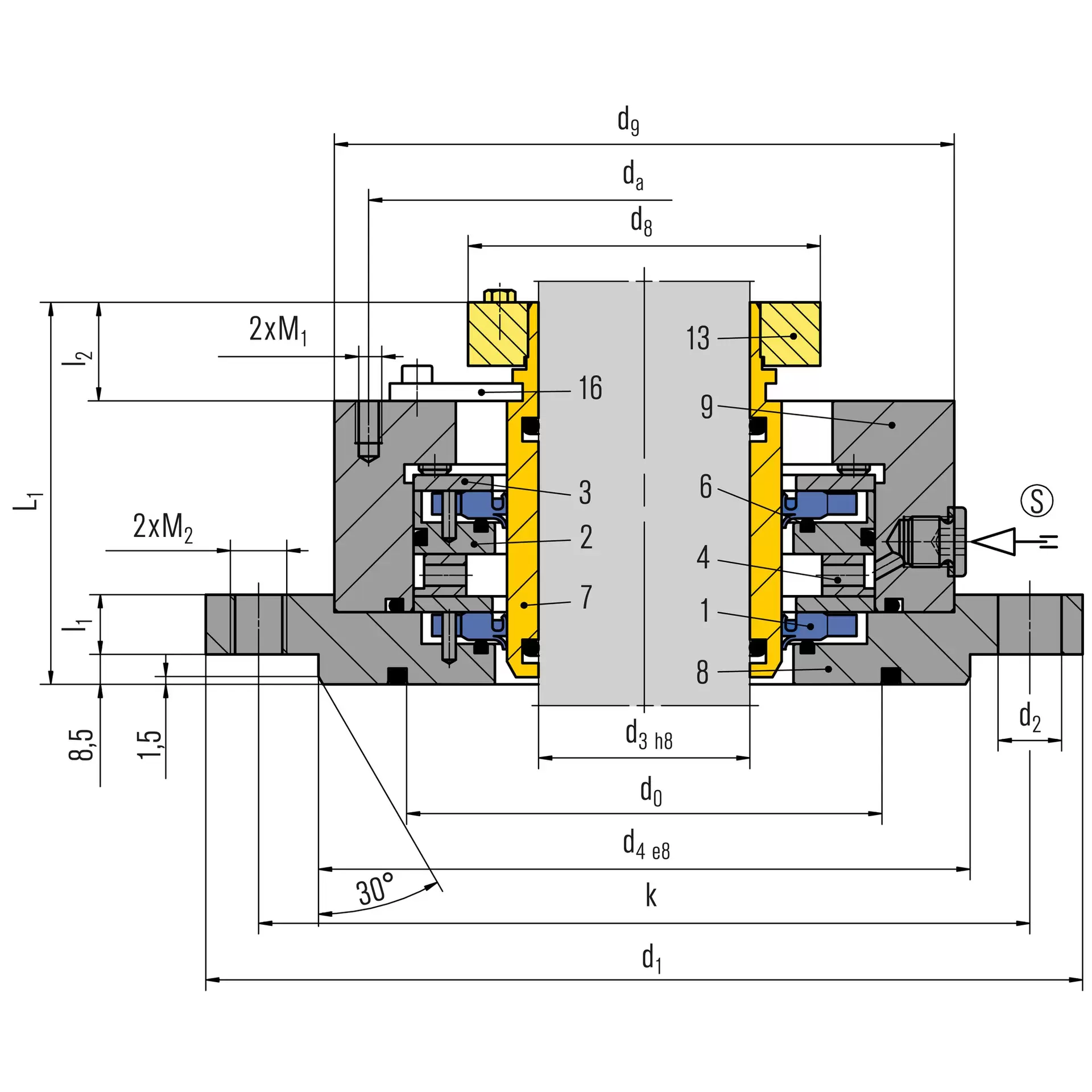

SeccoLip 481-2
| Item | Description |
| 1 | Lip seal |
| 2 | Inset |
| 3 | Disc |
| 4 | Insert ring |
| 6 | O-Ring |
| 7 | Shaft sleeve |
| 8 | Flange |
| 9 | Housing |
| 13 | Shrink disc |
| 16 | Setting device |
SeccoLip481
Features
- For top entry drives, on request other drives possible
- Dry-running
- Modular and flexible design
- Compensation of shaft deflection by patented technology
- Independent of direction of rotation
- Cartridge unit
Advantages
- Available as a ready-to-mount cartridge for quick and easy installation
- Tested technology ensures safe use
- Dry-running lip seal - depending on the application no supply system is necessary
- No additional rolling bearing required, but optionally available
- Sealing element made of bright chemically highly resistant PTFE compound
- ATEX certificate on request
- Customized adjustments possible
Materials
Lip sealing element: bright chemically highly resistant PTFE-compound with FDA
Secondary seals: FKM (V) Metallic parts: 316L / 1.4404 Other materials are possible, depending on customer requirements.
Secondary seals: FKM (V) Metallic parts: 316L / 1.4404 Other materials are possible, depending on customer requirements.
Standards and approvals
- FDA
- ATEX
- TA-Luft
Recommended applications
- Chemical industry
- Petrochemical industry
- Pharmaceutical industry
- Food and beverage industry
- Agitators
- Mixers
- Reactors
