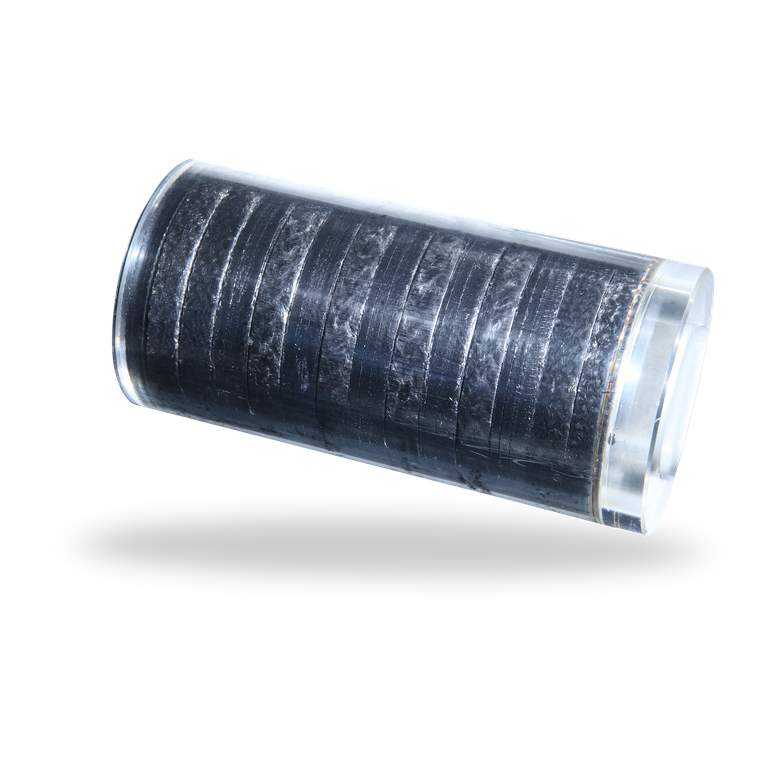

Soot blower set 1 9650/SB1 consists of a combination of Isartherm A 6011/A packing rings and Rotatherm 0901/B7 precompressed pure graphite rings.


  • High adaptability to the seal environment

Operating range

Valves Pressure: p = 100 bar,
Sliding velocity: vg = 2 m/s

  • Steam: tmax= +550°C

Chemical resistance: pH = 2 ... 12

Particularly suitable for hot water and steam applications. Not suitable for use in concentrated acids and alkalis.


9650/SB2 (Araflon 6426 and Rotatherm)


EagleBurgmann soot blower packing sets reliably seal the lance, even while it is moving into or out of the exhaust gas flow. It reliably contains both the hot exhaust gases and the ash particles. The soot blower packing set is made up of specially preshaped and alternately arranged types of material, ensuring leakage control despite high temperature differences. It also reduces deflection of the lance, i.e. the packing set acts as a bearing to a certain extent. Deposits on the lance are also largely stripped off during the movement, maintaining long-term serviceability.

Forms of supply

  • Custom-made packing sets
  • Made to order

Similar products

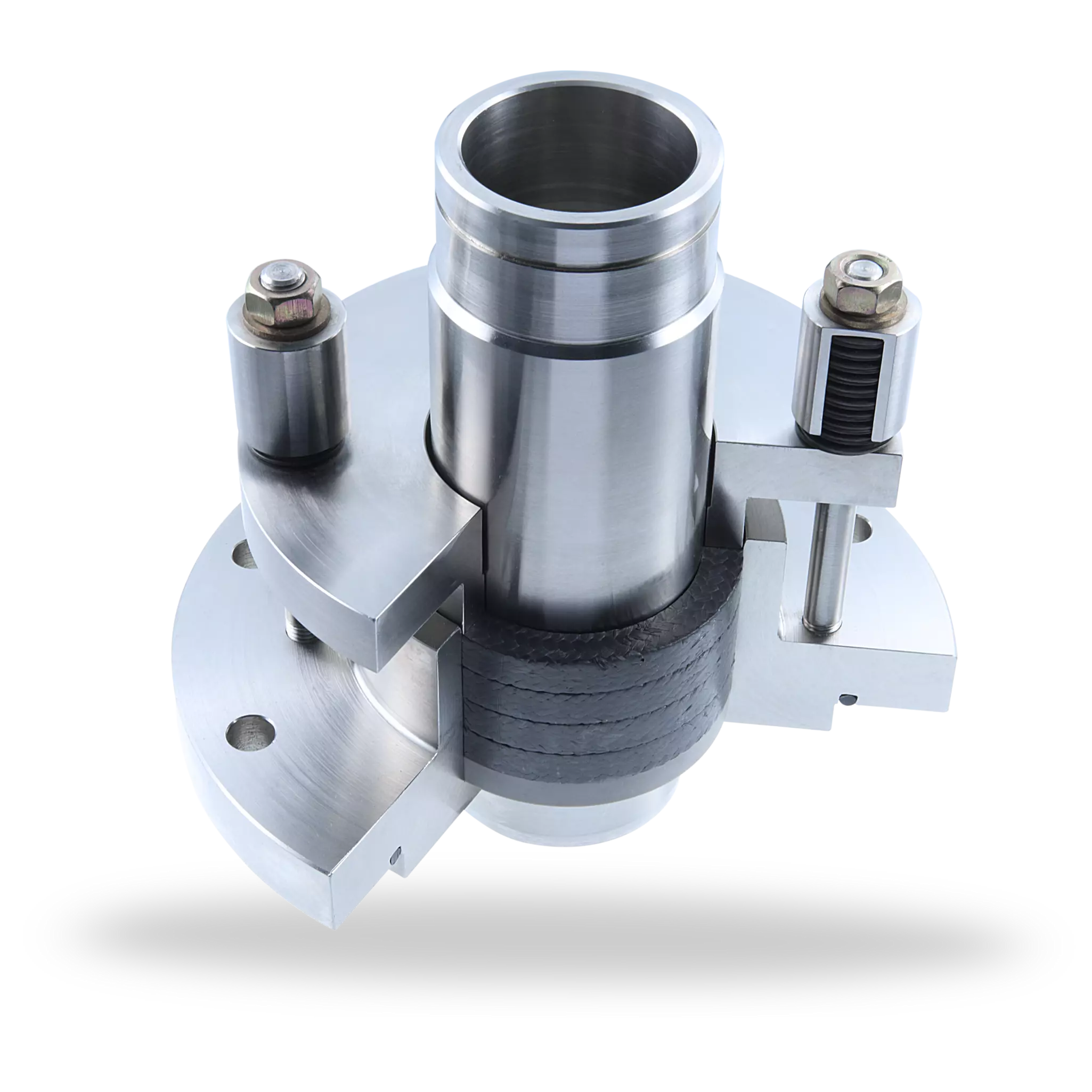

Packing Cartridge Unit 9984

Packing cartridges combine a simple system structure with a robust construction. They are ideal for absorbing larger axial and radial shaft movements and can be suitable for dry contacting, depending on the conditions of use and packing quality. The choice of packing quality depends on the medium and the operating conditions. EagleBurgmann packing cartridges are used successfully in a range of different industries. The design is based on the operating ranges.

Soot blower set 2

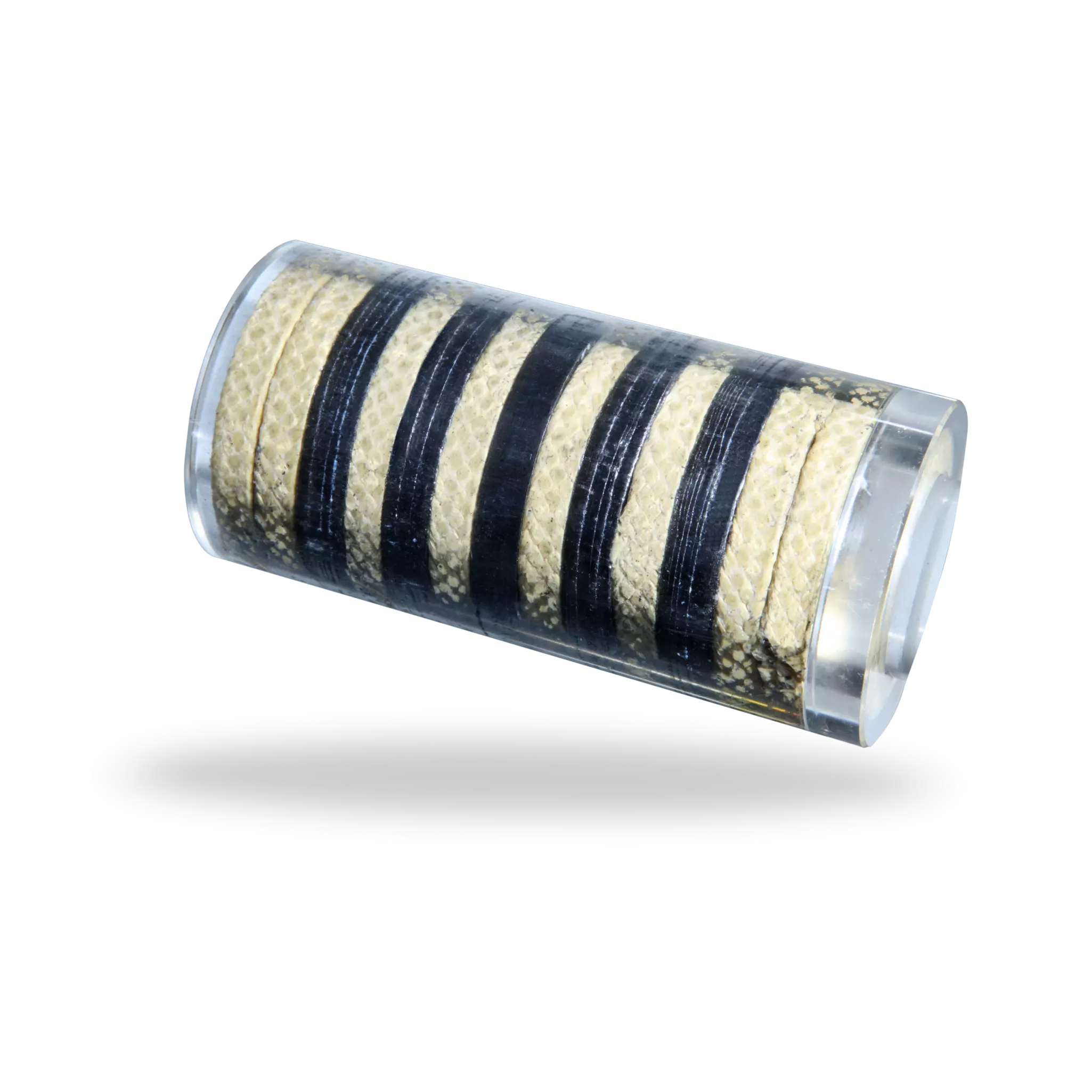

Soot blower set 2 9650/SB2 consists of a combination of Araflon A 6426 packing rings and Rotatherm 0901/B7 precompressed pure graphite rings.

Inquire about individual solutions

We develop and produce customer-specific special and individual solutions for every application.
