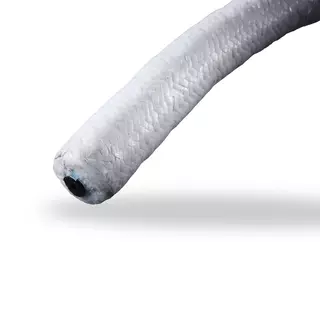

Elastic Tankpak 6756
Elastic Tankpak 6756
Elastic Tankpak 6756
Features
EagleBurgmann Elastic Tankpak 6756 is an excellent gasket for sealing transport containers for chemicals or solvents. The core is made from a hollow elastomeric material (EPDM) wrapped in PTFE foil, thus guaranteeing optimum chemical resistance for the entire seal. The polypropylene middle layer primarily acts as a cushion and buffer, and it is first wrapped with PTFE foil. The entire seal is then over-braided with PTFE yarn, fixing it firmly to the rest of the material composite.
Advantages
- Outstanding recovery curve
- Suitable for repeated opening and closing of container covers
- Universal chemical resistance
- Enormous inherent strength
- Optimized abrasion resistance
- Reusable
Standards and approvals
- DNV, USCG (PO2/1,2 Butylenoxid)
- Germanischer Lloyd
Recommended applications
Industries
- Chemical industry
- Shipbuilding
Variants
6756/TG (EPDM core/Polypropylene/PTFE)
6756/TH (Elastomer core/Glass fibre/PTFE)
6756/TH (Elastomer core/Glass fibre/PTFE)
Notes
For rectangular cross-sections, the maximum width/height ratio should ideally not exceed 3:2. The surface pressure applied to the seal must be evenly distributed around the edge, and must be applied in small increments by attaching as many toggles or clamps as necessary. The sealing surface on the edge of the container or coaming must be smooth and rounded to avoid damaging the seal. The packing may be safely stored in its original packaging for up to 3 years under cool, dry storage conditions.
Forms of supply
- 10 mm ... 60 mm
- Round or rectangular molded parts to suit the application
Similar products

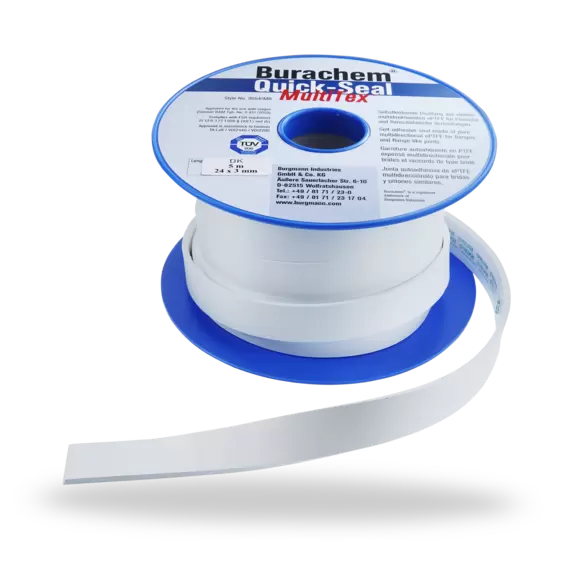

Quick-Seal MB4 9654/MB4
Quick-Seal MB4 9654/MB4 is a sealant tape made of 100 % virgin, expanded PTFE manufactured by a special process giving the tape a multi-directional fibre structure with a self-adhesive strip on one side. Quick-Seal MB4 9654/MB4 is currently the first and only multidirectional ePTFE tape with approval and certification according to Germany's TRD 401 /VdTÜV-Merkblatt Dichtung 100 regulation and is especially adapted to the needs of inspection hole and man-hole connections.
Quick-Seal Multi 9654/MB
Quick-Seal Multi 9654/MB sealing tape consists of virgin multidirectional expanded PTFE. The modern production process creates a multidirectional fiber structure that gives the seal its special properties.

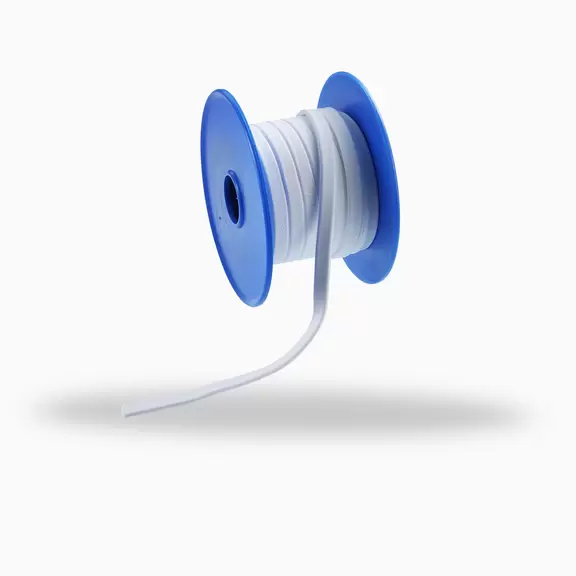

Quick-Seal Universal F 9654/UF
Quick-Seal Universal F 9654/UF is a self-adhesive sealing tape made from 100% virgin ePTFE (Teflon). The special manufacturing method creates a microporous, monoaxial fiber structure (ePTFE), that gives the seal its special properties.
