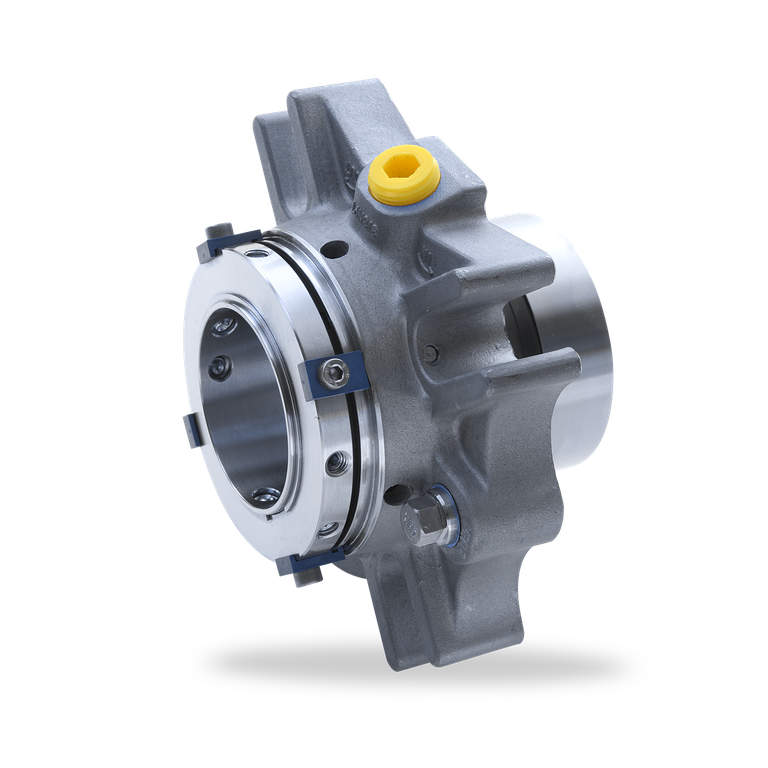

eCartex ANSI
Dual seals

eCartex ANSI <br/>Dual seals

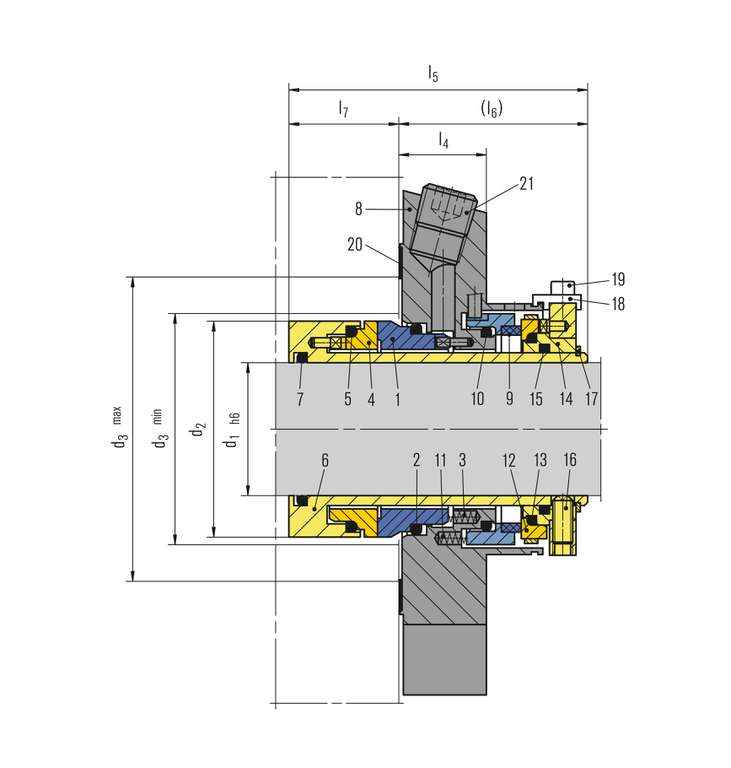

Item Description
1 Seal face
2, 5, 7, 10, 13, 15 O-Ring
3 Spring
4 Seat
6 Shaft sleeve
8 Cover
9 Seal face
11 Spring
12 Seat
14 Drive collar
16 Set screw
17 Snap ring
18 Assembly fixture
19 Hex socket head screw
20 Gasket
21 Screw plug
22 Gasket

eCartex ANSI
Dual seals

Features

  • Dual seal
  • Available for standard (eCartex-ASDN) and big bore (eCartex-ABDN) seal chambers
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Double pressure balanced
  • Integrated pumping device

Advantages

  • The series has sliding surfaces that are equipped with EagleBurgmann DiamondFace technology as standard
  • Up to 80 % less energy consumption and minimized heat generation of seal due to friction-reducing DiamondFace layer
  • Up to 100 % extended operating period, prolongation of MTBF and MTBR intervals
  • Significantly improved dry-run capability for inadequately lubricated sealing surfaces, thus vastly improved process safety
  • Universally applicable, even with high solids content in the medium

Operating range

Shaft diameter:
d1 = 25 ... 100 mm (1.000" ... 4.000")
Other sizes on request
Temperature:
t= -40 °C ... 220 °C (-40 °F ... 428 °F)
(Check O-Ring resistance)
Sliding face material combination BQ1
Pressure: p1 = 25 bar (363 PSI)
Sliding velocity: vg = 16 m/s (52 ft/s)
Sliding face material combination Q1Q1 or U2Q1
Pressure: p1 = 20 bar (290 PSI)
Sliding velocity: vg = 10 m/s (33 ft/s)
Barrier fluid circulation system:
p3max = 25 bar (363 PSI)
Δp (p3 - p1)ideal = 2 ... 3 bar (29 ... 44 PSI),
7 bar (102 PSI) for barrier media with poor lubricating properties)
Pump startup:
Δp (p3 - p1)max = 25 bar (363 PSI) allowed
Recommended supply medium: max. ISO VG 5
Axial movement: ±1.0 mm, d1 ≥75 mm ±1.5 mm

Materials

Seal face product side: Silicon carbide DiamondFace® (Q15)
Seat product side: Silicon carbide DiamondFace® (Q15)
Seal face atmospheric side: Carbon graphite resin impregnated (B)
Seat atmospheric side: Silicon carbide (Q1)
Secondary seals: FKM (V), EPDM (E), FFKM (K), Perfluorcarbon rubber/PTFE (U1)
Springs: Hastelloy® C-4 (M)
Metal parts: CrNiMo steel (G), CrNiMo cast steel (G)

Standards and approvals

  • ANSI
