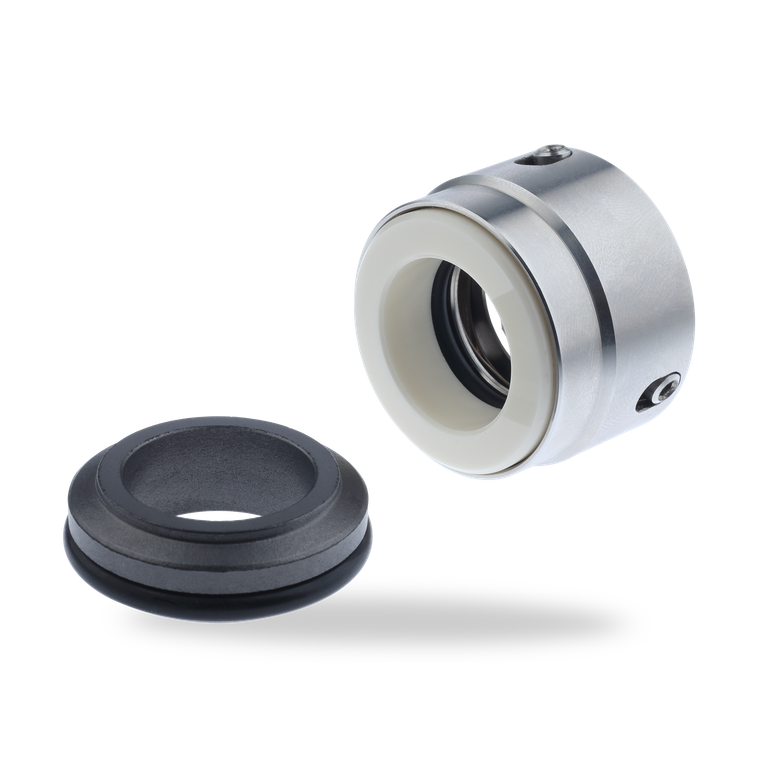

BT-C8
BT-C8
| Item | Description |
| 1 | Seal face |
| 2 | Stationary seat |
| 3, 3a, 3b | O-Ring |
| 4 | Spring |
| 5 | Collar |
| 6 | Driver |
| 6a | Set screw |
BT-C8
Features
- Single pusher-type seal
- Unbalanced
- Independent of direction of rotation
- Super-sinus spring
- Short installation length, according to EN 12756 (L1KU)
Advantages
The BT-C8 mechanical seal range is designed for universal application and is ideally suited for standardization. The seal is bi-directional, unaffected by the direction of shaft rotation and is positively driven by set screws. With super-sinus spring. The advantages of this mechanical seal are the easily interchangeable seal faces which permit all material combinations.
Materials
Seal face:
Silicon carbide (Q1), Aluminium oxide (V)
Seat:
Carbon graphite resin impregnated (B), Carbon graphite antimony impregnated (A), Silicon carbide (Q1)
Elastomers:
NBR (P), EPDM (E), FKM (V), FFKM (K)
Metal parts: CrNiMo steel 1.4401 (G)
Silicon carbide (Q1), Aluminium oxide (V)
Seat:
Carbon graphite resin impregnated (B), Carbon graphite antimony impregnated (A), Silicon carbide (Q1)
Elastomers:
NBR (P), EPDM (E), FKM (V), FFKM (K)
Metal parts: CrNiMo steel 1.4401 (G)
Standards and approvals
- KTW
- W270
- ACS
- WRAS
- NSF
- FDA
- DM 174/04
Recommended applications
- Chemical industry
- Pharmaceutical industry
- Building services industry
- Centrifugal pumps
- Clean water pumps
Notes
Seat ring of alternative seats can be supplied with short tail or with pin to block the seat and prevent seat rotation.
