SeccoMix 481/461
SeccoMix 481/461
Product variants

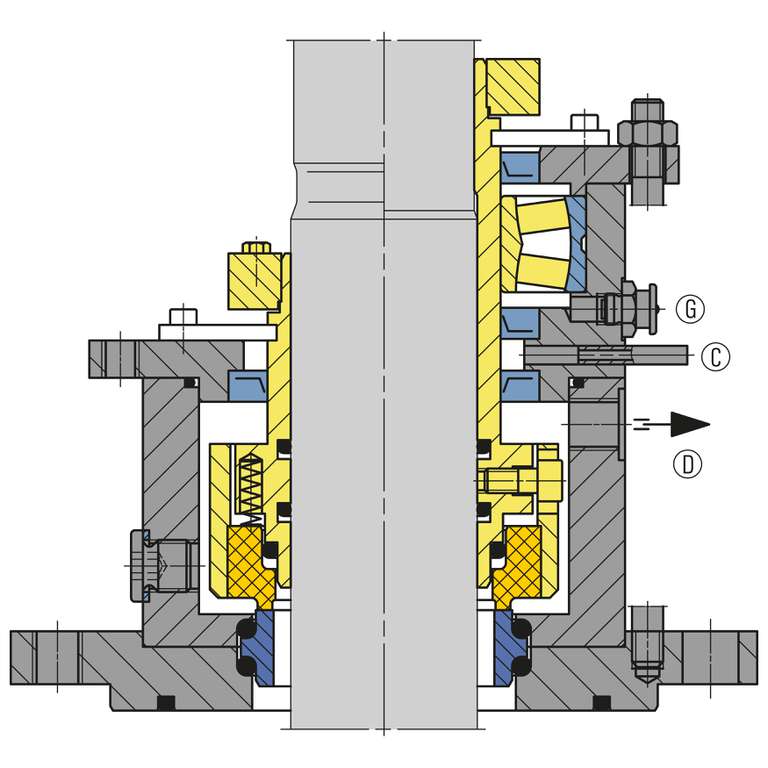

Single seal
SeccoMix 481L
Single seal with integrated floating bearing.
SeccoMix 451
All types of the SeccoMix 481 range available for unstepped shafts (all diameters). Seal identification: SeccoMix 451 ... Customized design or e.g. different drives (torque transmissions) are available.
SeccoMix 461 / (491)
For glass-lined vessels. Dimensions as M461.

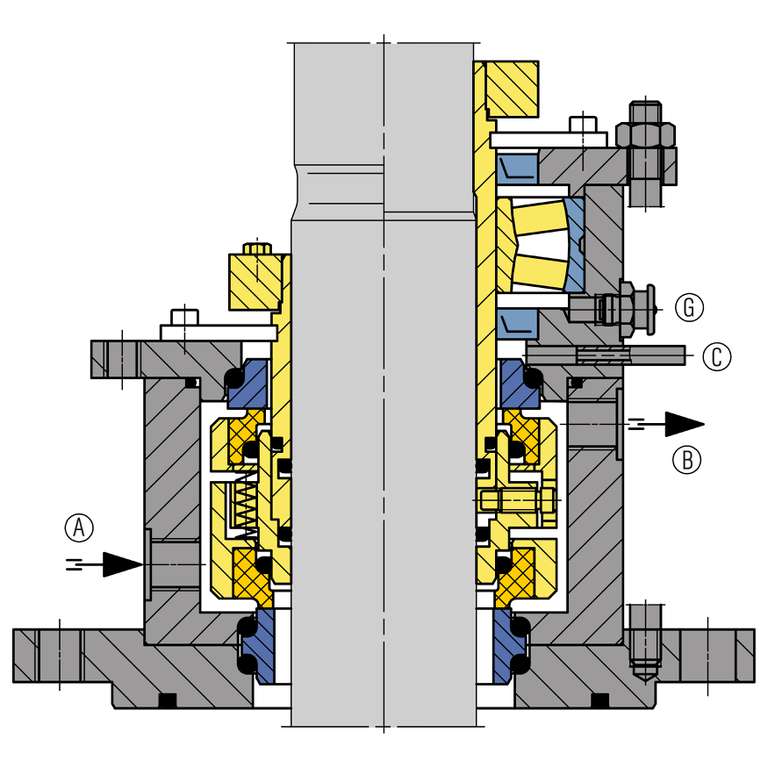

Double seal
SeccoMix 481L-D
Double seal with integrated floating bearing
These seals are designed to be self-closing on the product side, i.e. they will remain closed even with pressure variations or a pressure reversal. Operation is optionally the same as for the single version. In view of the mechanical seal on the atmosphere side it can be used as a buffer pressurized double seal . The barrier pressure should be 0.5 … 1.0 bar (7.25 … 15 PSI) above pressure to be sealed.
Similar products
BT-FH
- Single pusher-type seal
- Unbalanced
- Conical spring
- Dependent on direction of rotation
BT-FN
- Single seal
- For plain shafts
- Unbalanced
- Conical spring rotating
- Dependent on direction of rotation
- Torque transmission via conical spring
BT-FN
- Single seal
- For plain shafts
- Unbalanced
- Conical spring rotating
- Dependent on direction of rotation
- Torque transmission via conical spring
Inquire about individual solutions
We develop and produce customer-specific special and individual solutions for every application.
