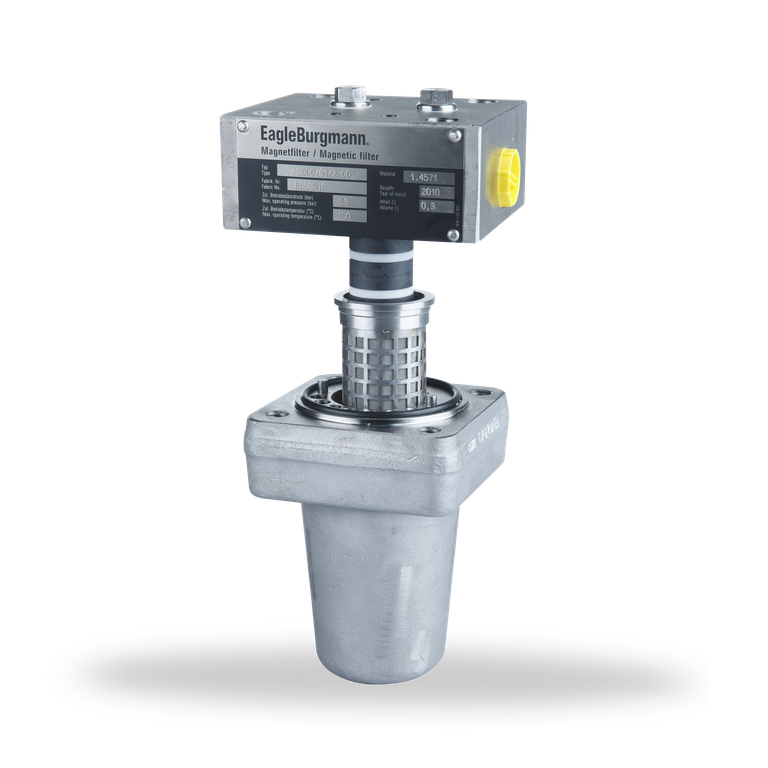

MAF2001 Magnetic filter
MAF2001 Magnetic filter

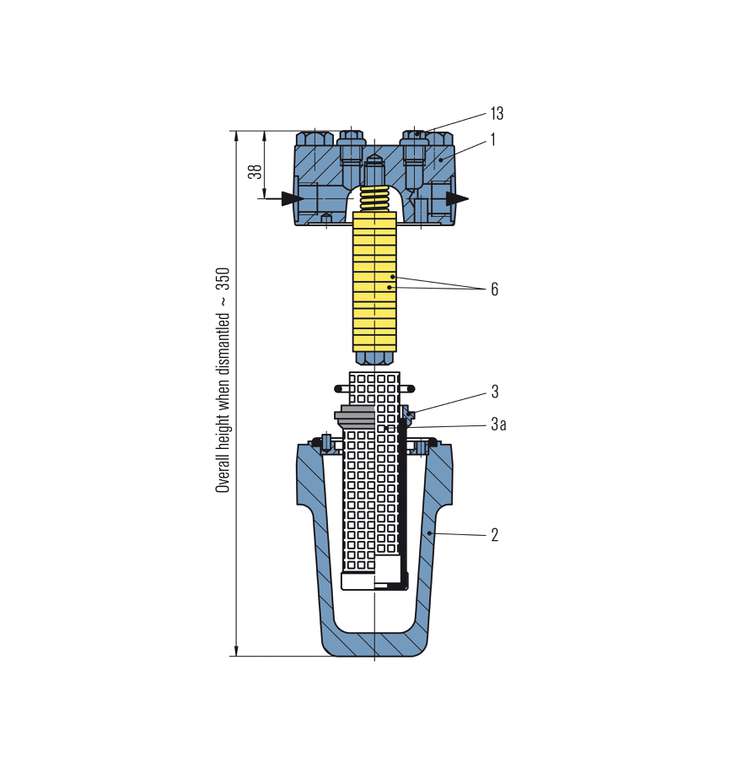

| Item | Description |
| 1 | Filter cover |
| 2 | Filter barrel |
| 3 | Element insert |
| 3a | Internal mesh |
| 6 | Ring magnet |
| 13 | Venting screw |
MAF2001 Magnetic filter
Features
Magnetic filters of the MAF2001 range are inline filters for installation inside pipelines. The combination of magnetic rod and filter element guarantees a high level of efficiency. Magnetic filters are used in seal supply systems and any other such systems in which a liquid has to be cleaned of magnetic and non-magnetic impurities up to a certain size.
Advantages
- Combination device: magnetic filter and filter element
- Internal mesh to protect the filter element for reverse currents
- Venting screws in the filter inlet and outlet can be used as connections for maintenance or differential pressure indicator
- Housing can be dismantled: simple maintenance and cleaning
- Two types of contamination indicator are available as accessories: visual monitoring and/or in combination with an electric contact
- All pressure-loaded parts are forged components
Recommended applications
- Petrochemical industry
- Chemical industry
- Power plant technology
- Refining technology
- Oil and gas industry
Functional description
The magnetic rod is positioned in the filter in such a way that it catches magnetic particles flowing past in the medium on all sides. Partial coarse filtration is provided by the incorporated filter element.
Pressure loss:
10 mbar@ 10 l/min (0.15 psi @ 2.5 GPM)
55 mbar @ 25 l/min (0.8 psi @ 6.5 GPM)
Pressure loss:
10 mbar@ 10 l/min (0.15 psi @ 2.5 GPM)
55 mbar @ 25 l/min (0.8 psi @ 6.5 GPM)
Product variants
| Designation | Process connections | Allowable pressure | Allowable temperature1) | Filter grade | Weight (approx.) | Housing | Filter insert2) | Gasket | |
|---|---|---|---|---|---|---|---|---|---|
| MAF2001/G1/2-00 | G 1/2" | 60 bar (870 PSI) |
150 °C (302 °F) |
50 µm | 7.8 kg (17.2 lb) |
1.4571 | 1.4401 | Viton® | T2 |
| MAF2001/G3/4-00 | G 3/4" | 60 bar (870 PSI) |
150 °C (302 °F) |
50 µm | 7.8 kg (17.2 lb) |
1.4571 | 1.4401 | Viton® | T2 |
| MAF2001/G1-00 | G 1" | 60 bar (870 PSI) |
150 °C (302 °F) |
50 µm | 7.8 kg (17.2 lb) |
1.4571 | 1.4401 | Viton® | T2 |
| MAF2001/NPT1/2"-00 | 1/2 NPT | 60 bar (870 PSI) |
150 °C (302 °F) |
50 µm | 7.8 kg (17.2 lb) |
1.4571 | 1.4401 | Viton® | T2 |
| MAF2001/NPT3/4"-00 | 3/4 NPT | 60 bar (870 PSI) |
150 °C (302 °F) |
50 µm | 7.8 kg (17.2 lb) |
1.4571 | 1.4401 | Viton® | T2 |
| MAF2001/NPT1"-00 | 1 NPT | 60 bar (870 PSI) |
150 °C (302 °F) |
50 µm | 7.8 kg (17.2 lb) |
1.4571 | 1.4401 | Viton® | T2 |
1) Higher values on request.
2) Other materials on request.
