Features

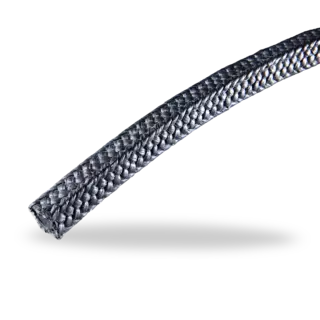

Isartherm 6060 is a diagonally braided carbon yarn packing with a PTFE/graphite impregnating agent combined with a silicone oil-free running-in lubricant. It is manufactured from pre-impregnated high performance yarns with the addition of a special lubricant. Isartherm is a special packing for the paper industry and for applications where there are high requirements in terms of functionality and stability.

Advantages

  • High functionality
  • High stability

Operating range

Plunger Pumps
Pressure: p = 30 bar
Sliding velocity: vg = 25 m/s

Temperature
  • Continuous operation:
    t = -50 °C … +300 °C

Chemical resistance:
pH = 1 ... 14
Universal chemical resistance. Not suitable for use in oxidizing media such as oleum (fuming nitric acid), gaseous fluorine and molten alkali metals.

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg
