Statotherm S6P 9593/S6P

Statotherm S6P 9593/S6P

Statotherm S6P 9593/S6P

Features

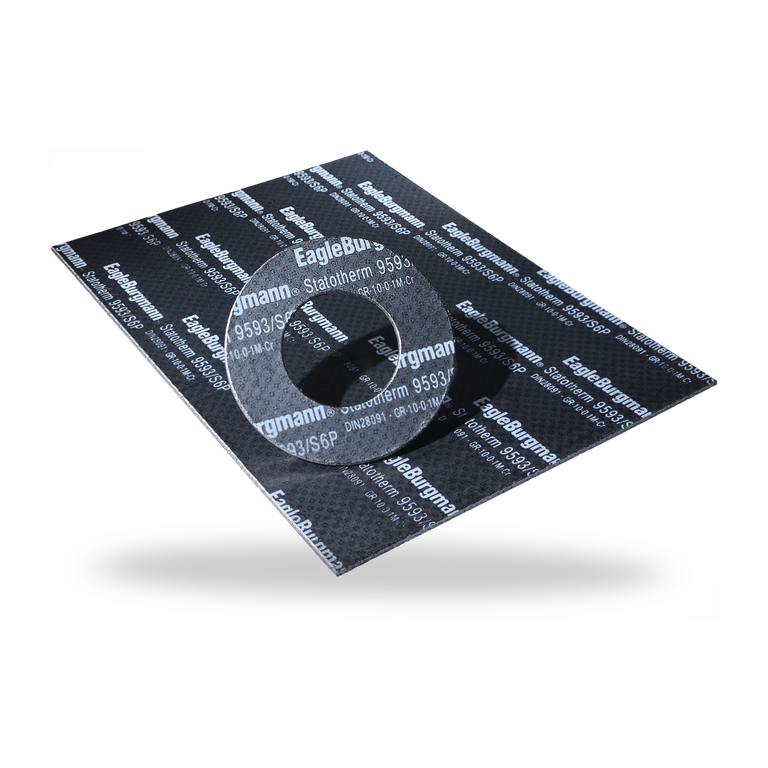

Statotherm S6 9593/S6 is a gasket sheet made from flexible graphite (purity > 98.0 %), reinforced ith stainless steel tanged insert (material 316 (L), 0.1 mm thick). The outstanding properties of the Statotherm S6P 9593/S6P are especially useful in pipe flanges, hand holes and flanged connections on pumps, valves, slide valves and ball valves.

Advantages

  • Good oxidation resistance
  • High mechanical strength

Operating range

Pressure: p = 100 bar
Temperature
  • Continuous operation:
    t = -200 °C ... +500 °C
  • Steam: tmax = +550°
Recommended surface roughness:
RZ = 12.5 ... 50 μm

Chemical resistance: pH = 0 … 14 Resistant to almost all organic and inorganic acids, alkalis, oils and solvents. Not suitable for use in highly oxidizing media or in elementary fluorine, bromine, sulfur trioxide or ozone (O3) > 150 °C.

Variants

9593/S6P (sheets)
9593/S6R (rings and cuts)
9593/S6RIG (rings with inner eyelet)
9593/6RA (frames)
9593/6S (segments)

Forms of supply

  • Sheets:
    1.500 x 1.500 mm
    1,0 / 1,5 / 2,0 / 3,0 mm thickness
  • Rings and molded parts:
    Standard dimensions as per DIN EN 1514-1 or ASME B16.21
