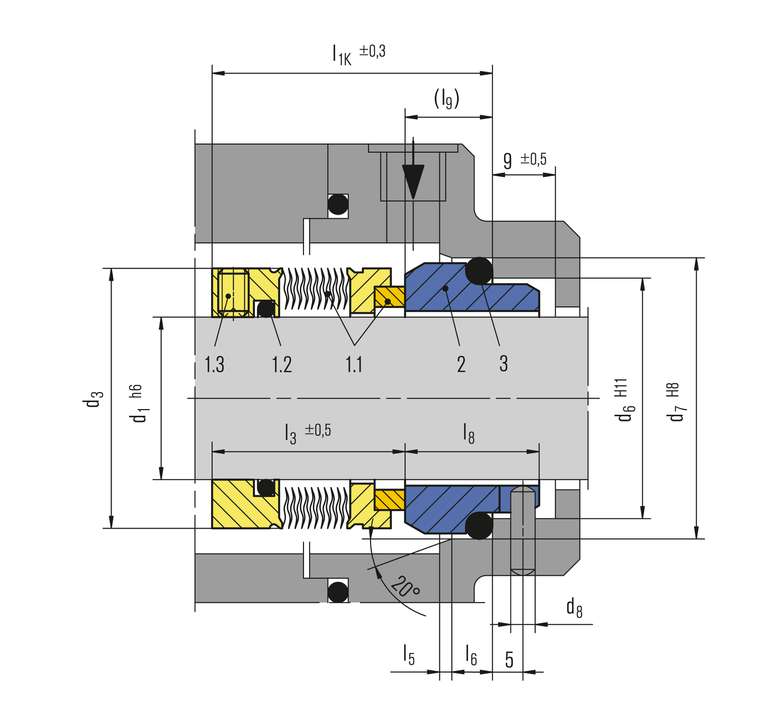

| Item | Description |
| 1.1 | Seal face with bellows unit |
| 1.2 | O-Ring |
| 1.3 | Set screw |
| 2 | Seat (G9) |
| 3 | O-Ring |

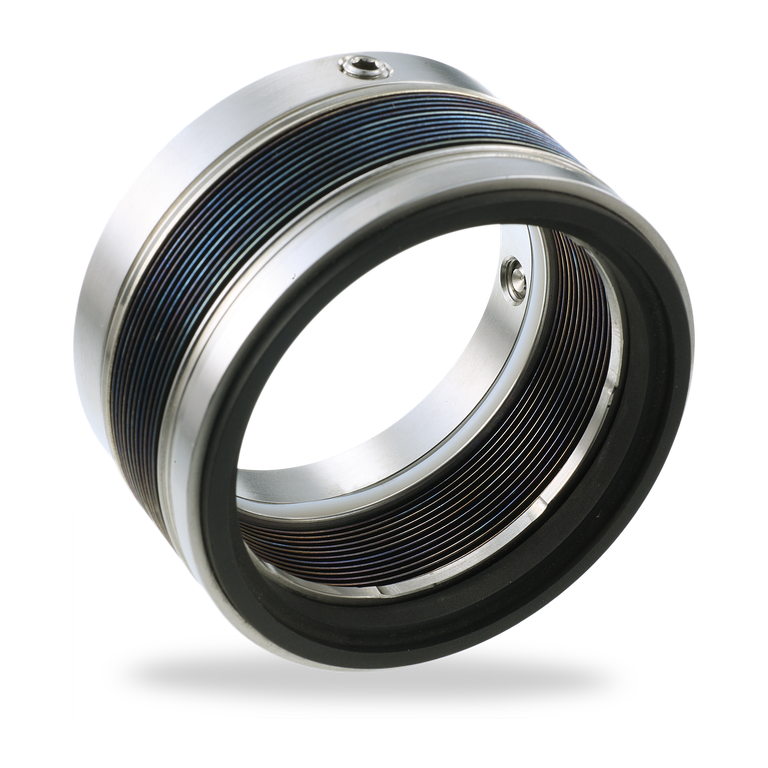

MBS100
Features
- For unstepped shafts
- Rotating bellows
- Single Seal
- Balanced
- Independent of direction of rotation
Advantages
- For extreme temperature ranges
- No dynamically loaded O-Ring
- Self cleaning effect
Operating range
Shaft diameter: d1 = 20 … 100 mm (0.75" … 4")
Pressure: p1 = … 25 (16*) bar 363 (232*) PSI
Temperature:
t = -40 °C … +220 (160*) °C (-40 °F … 428 (320*)) °F
Sliding velocity: vg = 20 m/s (66 ft/s)
* Operating limits for material combination
Q1/Q1
Pressure: p1 = … 25 (16*) bar 363 (232*) PSI
Temperature:
t = -40 °C … +220 (160*) °C (-40 °F … 428 (320*)) °F
Sliding velocity: vg = 20 m/s (66 ft/s)
* Operating limits for material combination
Q1/Q1
Materials
Seal face: Silicon carbide (Q12), Carbon graphite (A)
Seat: Silicon carbide (Q1)
Bellows: Inconel® 625 (T3)
Secondary seals: FKM (V)
Metal parts: Duplex (G1)
Seat: Silicon carbide (Q1)
Bellows: Inconel® 625 (T3)
Secondary seals: FKM (V)
Metal parts: Duplex (G1)
Standards and approvals
- EN 12756
Recommended applications
- Process industry
- Refining technology
- Power plant technology
- Chemical industry
- Hot media
- Cold media
- Highly viscous media
- Pumps
- Special rotating equipment
Similar products
LY9DSTT
- API 682 Category 2 and 3, Type C, Arrangement 3 seal
- Dual seal in face-to-face arrangement
- Balanced
- Cartridge unit
- Stationary metal bellows
- Shrink fitted seal rings and solid mating rings
LY9DZTT
- API 682 Category 2 and 3, Type C, Arrangement 2 and 3 seal
- Dual seal in face-to-back arrangement
- Balanced
- Cartridge unit
- Stationary metal bellows
- Shrink fitted seal rings and solid mating rings
LY9TC
- API 682 Category 2 and 3, Type C, Arrangement 1 seal
- Single seal
- Balanced
- Cartridge unit
- Stationary metal bellows
- Shrink fitted seal ring and solid mating ring
