eMG Blue
eMG Blue
eMG Blue

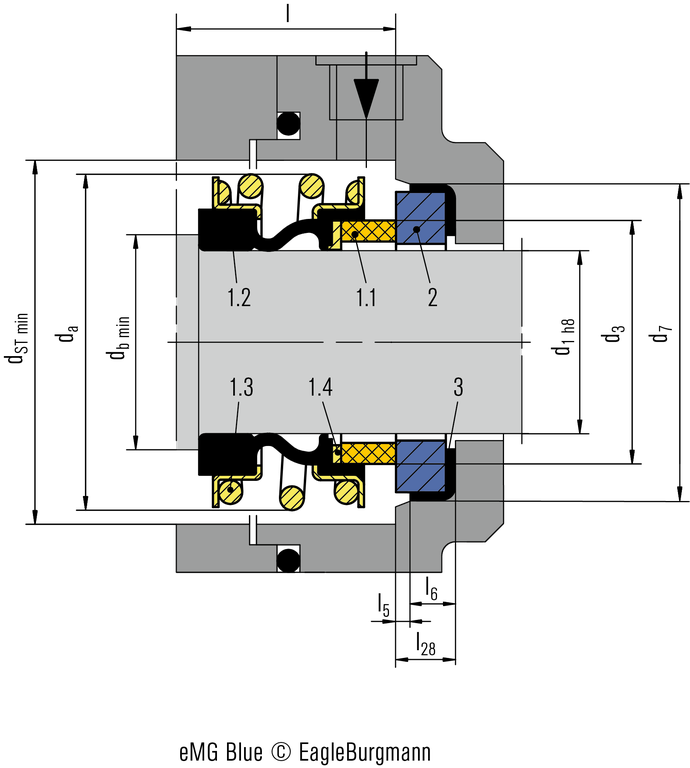

| Item | Description |
| 1.1 | Seal face |
| 1.2 | Bellows |
| 1.3 | Set of springs |
| 1.4 | Disk |
| 2 | Seat (G60) |
| 3 | Rubber cup |
eMG Blue
Features
- 100% design compatibility with eMG1 and MG1
- For plain shafts
- Elastomer bellows rotating
- Balanced
- Independent of direction of rotation
- Insensitive to shaft deflections due to large axial movement ability
Advantages
- Patented disk for improved centering across entire pressure operating range
- Small outer diameter of bellows support (dbmin) enables direct retaining ring support, or smaller spacer rings
- Optimal axial movement through self-cleaning of disk/shaft
- No torsion on bellows
- Shaft protection over entire seal length
- Protection of seal face during installation due to special bellows design
- Suitable for low-end sterile applications
- Can be used as double seal in tandem or in a back-to-back arrangement
Materials
Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q2)
Seat: Silicon carbide (Q2),
Tungsten carbide (U2)
Elastomer: EPDM (E), NBR (P), FKM (V)
Metal parts: Stainless steel (F)
Seat: Silicon carbide (Q2),
Tungsten carbide (U2)
Elastomer: EPDM (E), NBR (P), FKM (V)
Metal parts: Stainless steel (F)
Recommended applications
- Fresh water supply
- Building services engineering
- Waste water technology
- Food technology
- Water, waste water, slurries (solids up to 5% by weight)
- Chemical standard pumps
- Helical screw pumps
- Stock pumps
- Circulating pumps
- Susmersible pumps
- Water and waste water pumps
