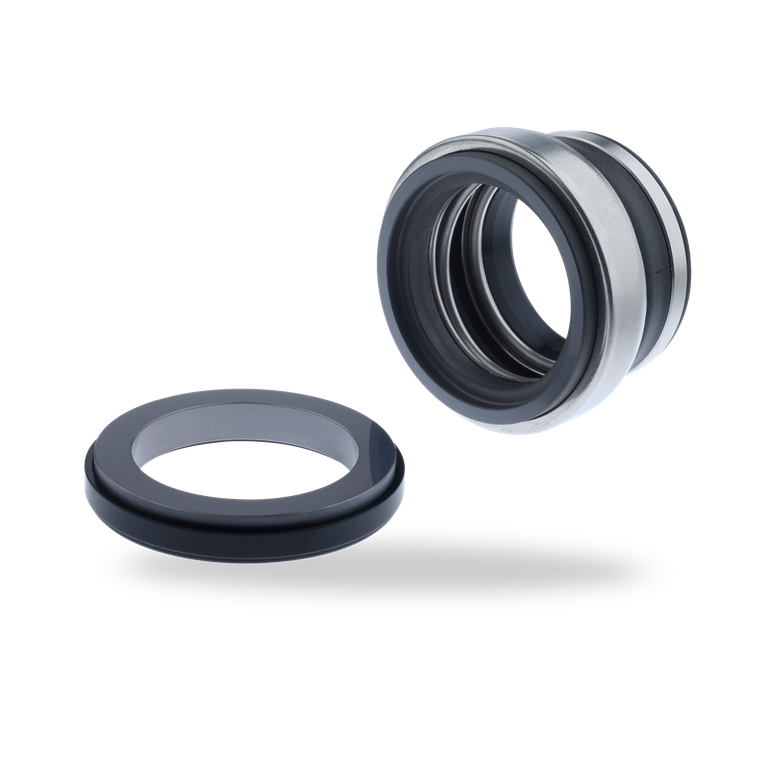

BT-ARP
BT-ARP

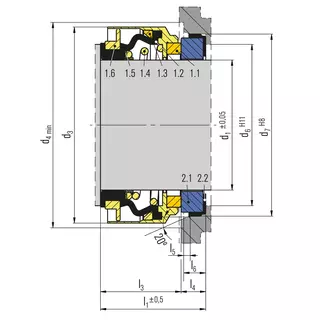

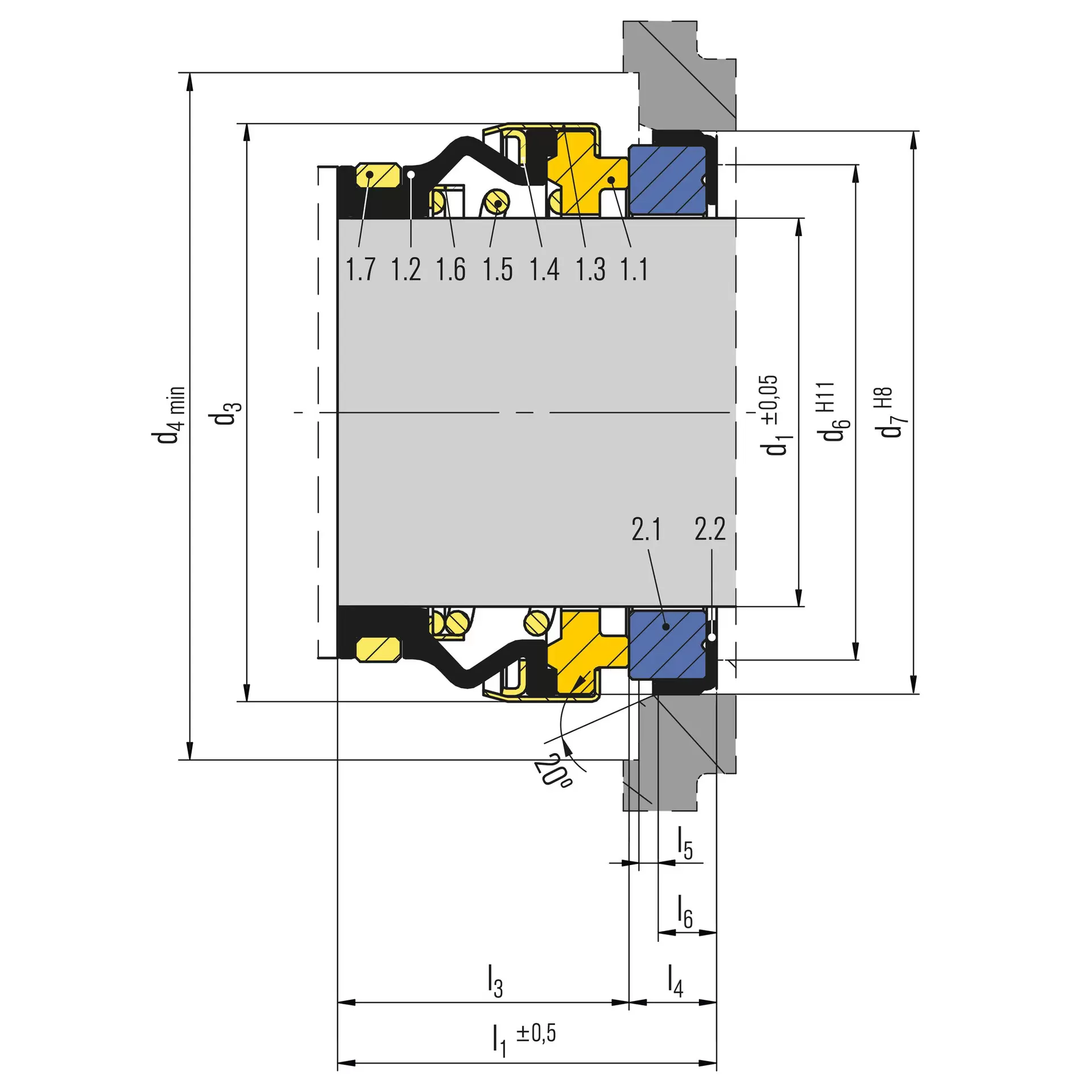

| Item | Description |
| 1 | Seal face housing |
| 2 | Stationary seat |
| 3 | Bellows |
| 3a | Gasket |
| 4 | Spring |
| 5 | Drive ring |
| 5a | Locking ring |
| 5b | L-ring |
| 5c | Collar |

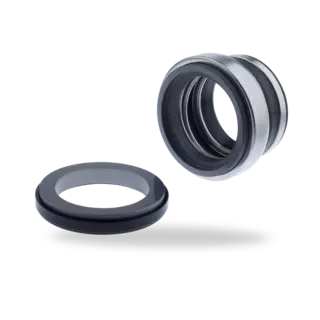

BT-ARP
Features
- Rubber bellows mechanical seal
- Independent of direction of rotation
- Single spring, product-protected
- Unbalanced
Advantages
BT-ARP mechanical seals are the ideal solution for media which contain solids or are highly viscous. The spring is product-protected, thus preventing sticking or clogging. Reliable for rugged operation in all kind of applications such as waste water treatment. The dimensions can be adapted and additional seats are available. The bellows provides protection across the entire seal length.
Materials
Seal face*: Silicon carbide (Q1, Q6),
Tungsten carbide (U)
Seat: Silicon carbide (Q1, Q6, Q7),
Tungsten carbide (U)
Elastomers:
NBR (P), FKM (V), HNBR (X4)
Metal parts:
CrNi steel 1.4301 (F), CrNiMo steel 1.4401 (G)
* Seal face available in solid or shrink fit/brazed version
Tungsten carbide (U)
Seat: Silicon carbide (Q1, Q6, Q7),
Tungsten carbide (U)
Elastomers:
NBR (P), FKM (V), HNBR (X4)
Metal parts:
CrNi steel 1.4301 (F), CrNiMo steel 1.4401 (G)
* Seal face available in solid or shrink fit/brazed version
Recommended applications
- Water and waste water technology
- Slurry applications
- Submersible pumps
Product variants
BT-ARPs

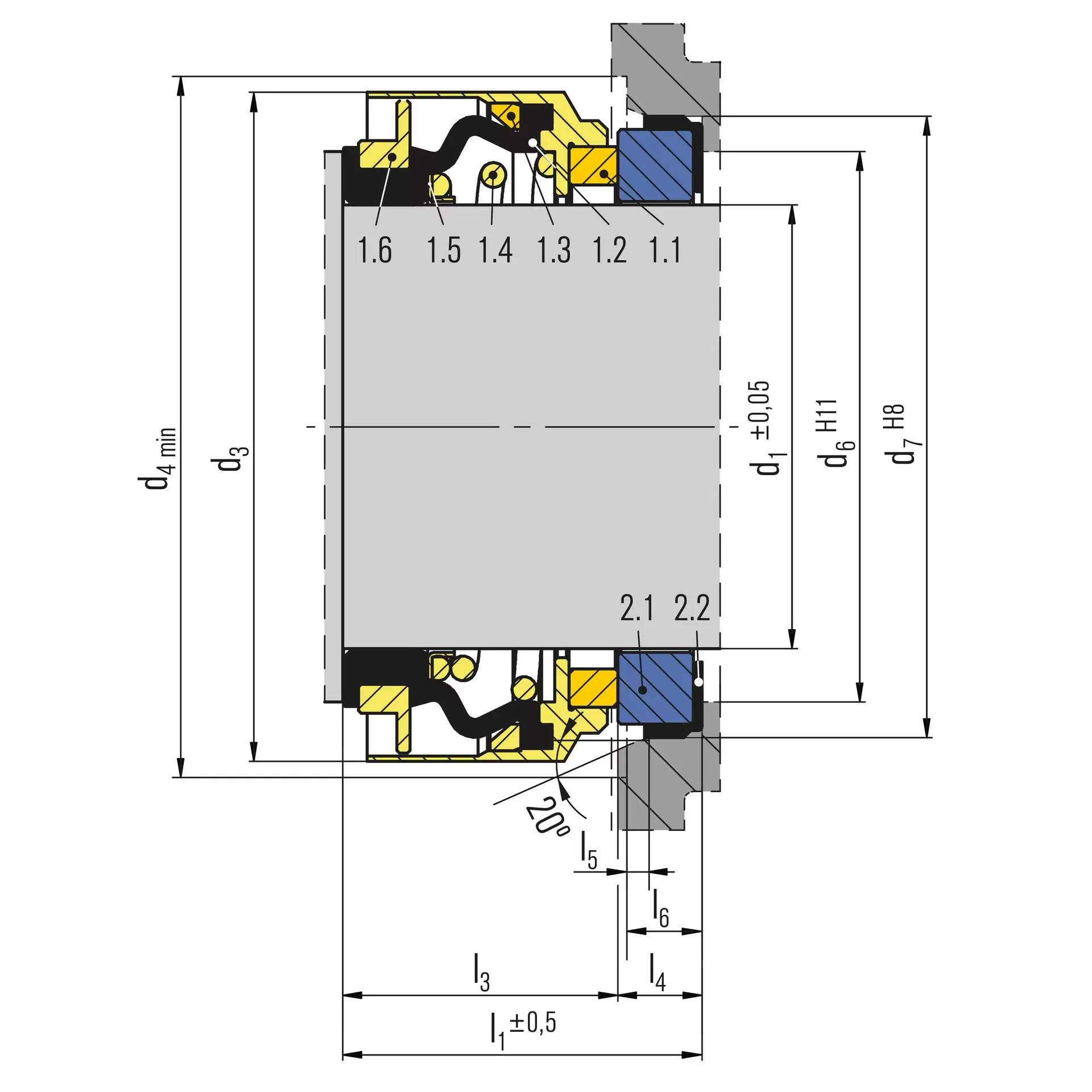

Special design - super protected
(upon request)
Special design - super protected
(upon request)
| Item | Description |
| 1 | Seal face |
| 1a | Shrink fitted seal face |
| 2 | Stationary seat |
| 3 | Bellows |
| 3a | Gasket |
| 4 | Spring |
| 5 | Drive ring |
| 5a | Locking ring |
| 5b | L-ring |
