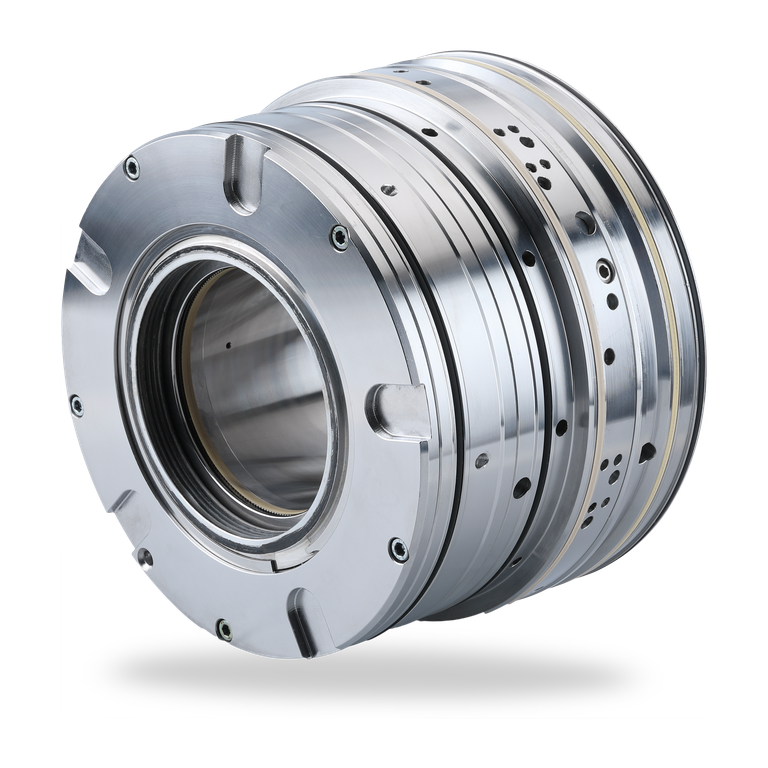

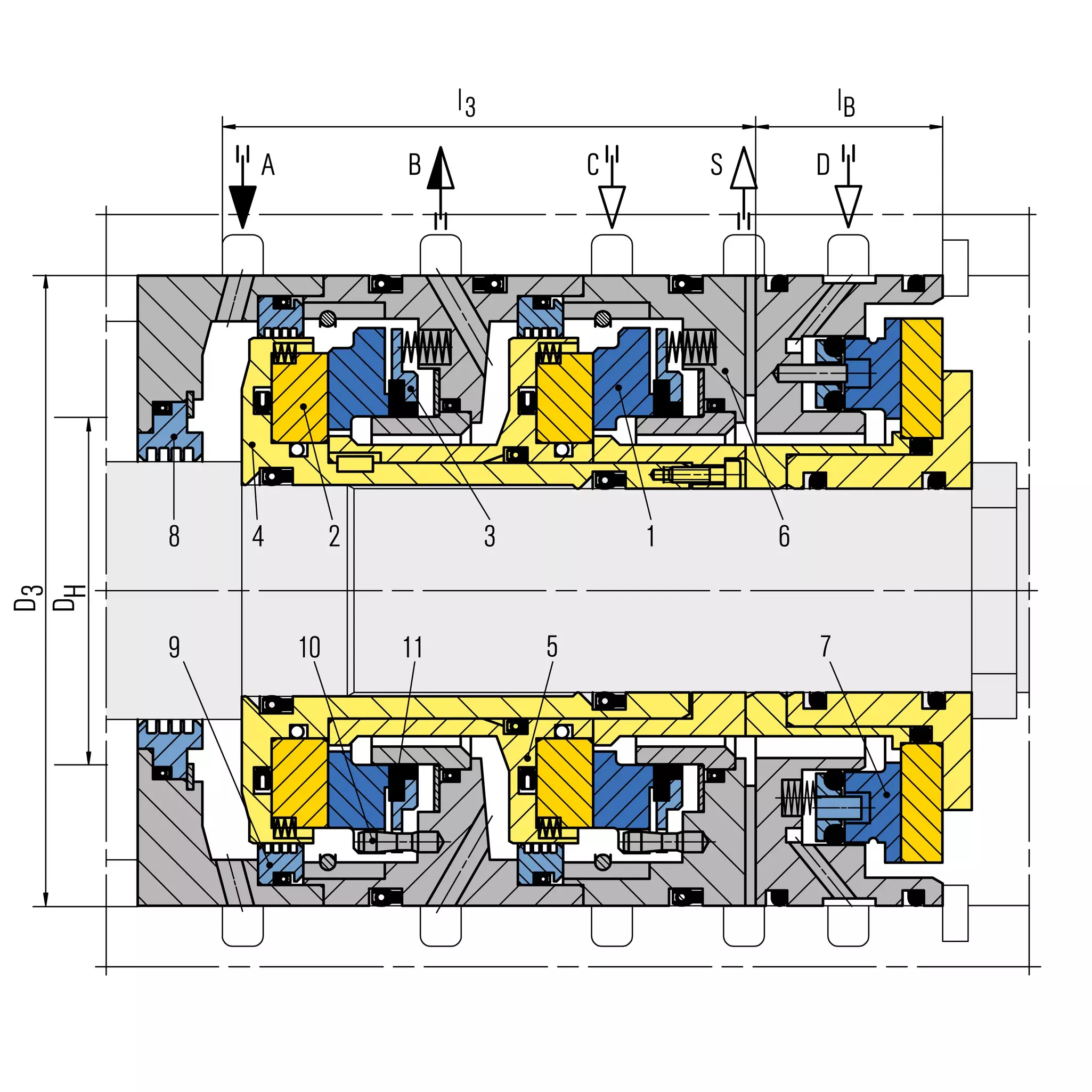

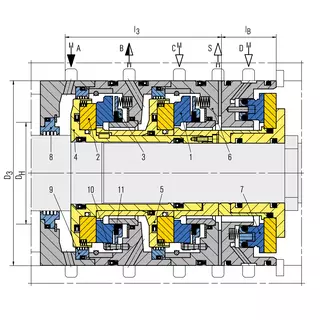

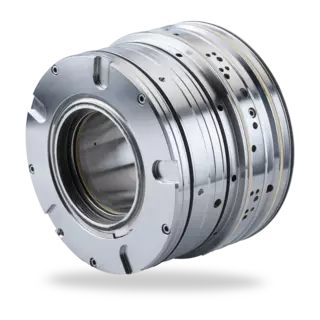

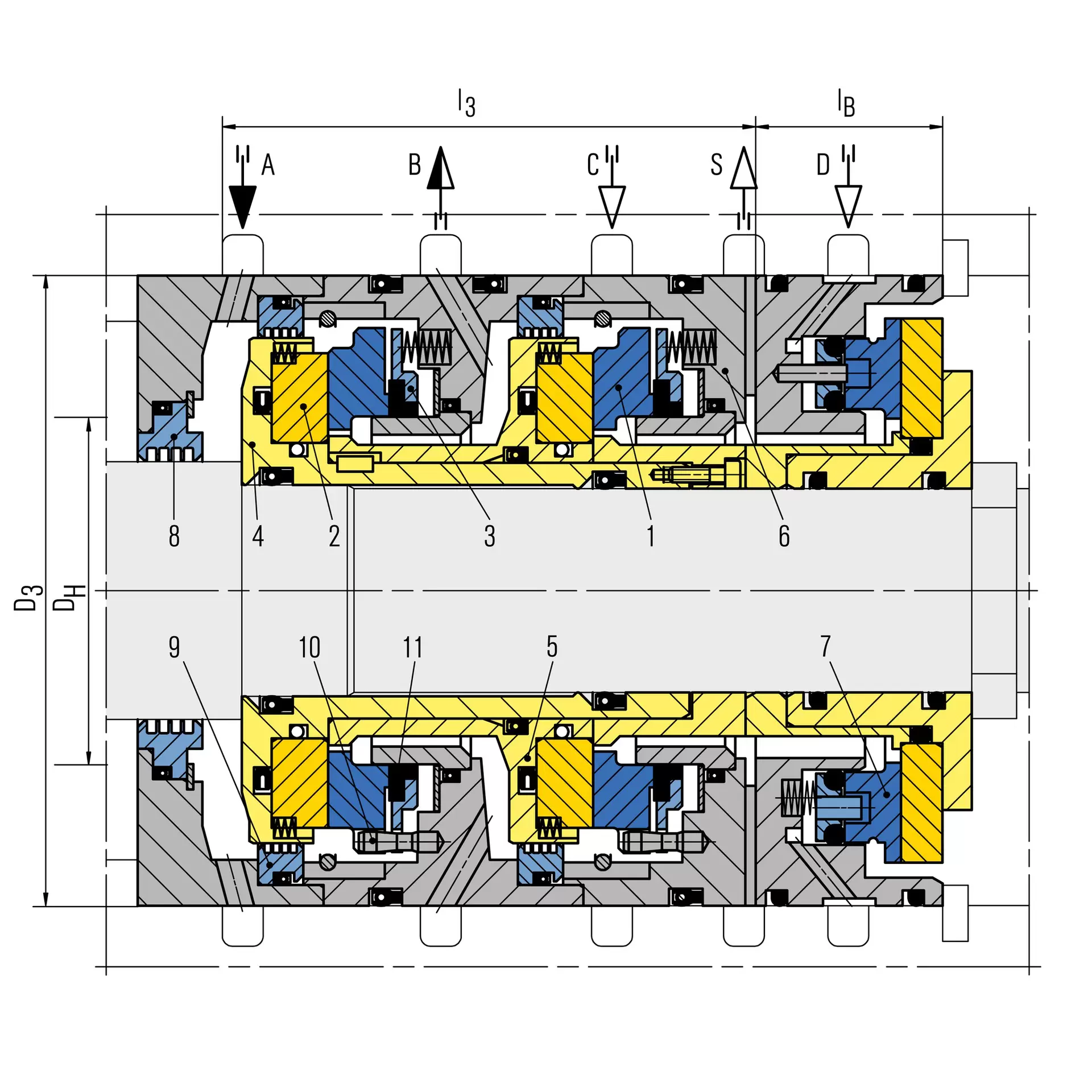

RoTechSeal tandem seal
| A | Primary seal gas supply |
| B | Primary vent |
| C | Secondary seal gas supply |
| S | Secondary vent |
| D | Separation gas supply |
| Pos. | Benennung |
| 1 | Seal face, stationary |
| Feature option: primary seal face with DiamondFace-coating | |
| 2 | Seat, rotating |
| Feature option: primary seat with DiamondFace-coating | |
| 3 | Thrust ring |
| 4 | Shaft sleeve |
| 5 | Adapter sleeve |
| 6 | Housing (size matched to installation space) |
| 7 | Separation seal (CobaSeal) |
| 8 | Labyrinth |
| 9 | Feature option: "smart labyrinth" |
| 10 | Feature option: "soft torque" |
| 11 | Feature option: debris resistant dynamic sealing element |
RoTechSeal
Features
The efficient sealing solution with advanced robustness against seal gas supply contamination(particles/liquids)
- Gas-lubricated
- Uni- or bi-directional
- Ready-to-fit cartridge unit
- Available for all seal arrangements: single, double, tandem
- Based on proven DGS or PDGS design
- Separation seals as labyrinths, carbon rings or CobaSeal optional
Advantages
The reliable DGS or PDGS is made even more robust by design measures and features:
- "Smart Labyrinth"
- DiamondFace-coating
- Self-cleaning 3D gas grooves
- Soft torque transmission
- Debris resistant dynamic sealing element
- Leakage optimization
Materials
Seal face: Silicon carbide with DLC- or DiamondFace-coating
Seat: Silicon carbide with DLC- or DiamondFace-coating
Secondary seals: PTFE or FKM
Metal parts: 1.4006, 1.4313-QT650, 1.4418, 1.4542, Inconel® or other stainless steels
Other materials on request
Standards and approvals
- NACE
- API 617
- API 692
Recommended applications
- Oil and gas industry
- Refining technology
- Petrochemical industry
- Applications with upstream gas treatment (glycol)
- Hydrocarbon gas
- Ammonia
- Nitrogen
- All types of compressors
Notes
One of the biggest challenges in operating centrifugal compressors with dry gas seals is seal gas supply contamination. Liquids or particles in the supply gas are the main causes of shortened seal life. With special features, the RoTechSeal increases the lifetime of a normal seal in a wet and dirty environment. The robust seal features will be defined case-by-case based on the operating conditions and failure analysis.
Dimensions on request.
Similar products
CobaDGS - Zero Emission Solution
The sealing solution for reduction of methane-/ process gas emissions
- Gas-lubricated
- Bi-directional
- Ready-to-fit cartridge unit
- Available for following seal arrangements: single and tandem
- Co-axial primary seal
- Separation seals as CobaSeal, carbon rings or labyrinths optional

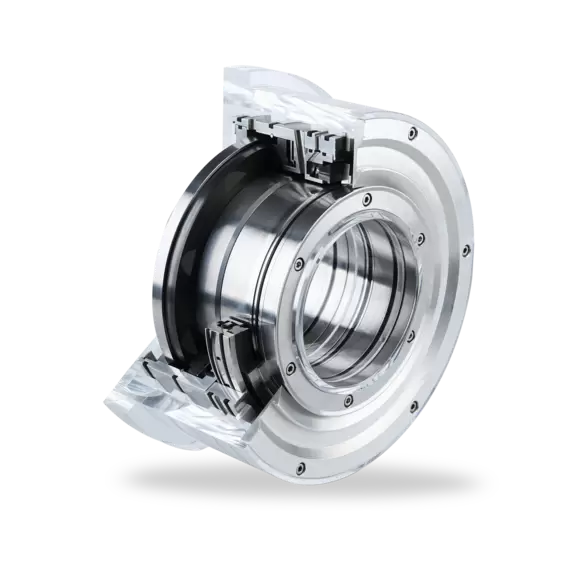

DGS
- Gas-lubricated
- Uni-directional or bi-directional
- Ready-to-fit cartridge unit
- Single, double, tandem and tandem with intermediate labyrinth available
- Separation seals as labyrinths, carbon rings or CobaSeal are optionally available
MDGS
- Gas-lubricated
- Bi-directional
- Compact, radial design
- Ready-to-fit cartridge unit, also available as a component seal
- Single, double, tandem seal and tandem with intermediate labyrinth available
