Rubber expansion joints

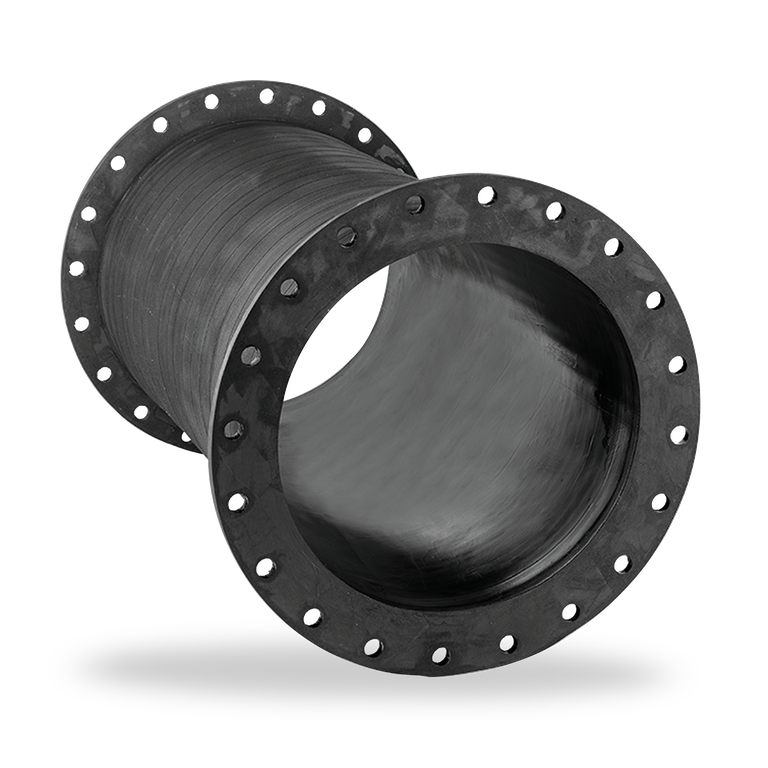

Rubber Hose Type
Rubber Hose Type
expansion joints

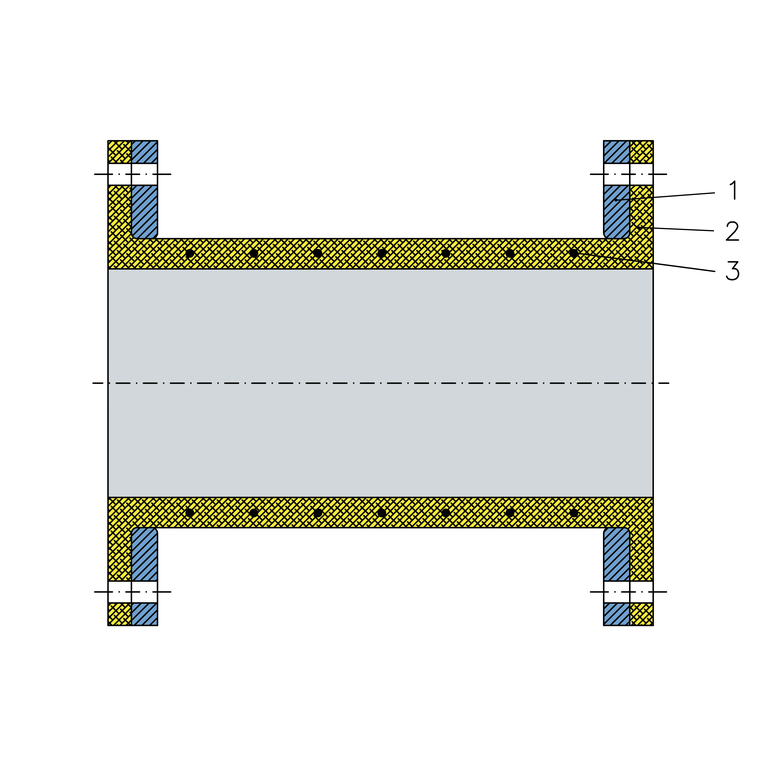

Rubber hose type
| Item | Description |
| 1 | Rubber bellows |
| 2 | Flanges |
| 3 | Reinforcement ring |
Rubber Hose Type
expansion joints
Merkmale
- Transportation or piping systems that carry fluids, slurries or gasses under pressure or vacuum at varying temperatures.
- Reduction of vibration
- Dampen sound transmission
Vorteile
- Easy installation
- Flanges are not in contact with medium, which enables lower grade material
- Galvanic surfaces/ coatings possible
- Gaskets can be eliminated
- Manual production
- Special measures (length, diameter, flanges) → custom made
Einsatzbereich
Diameter: DN 25 ... DN 2,000 mm (1” ... 80”)
Pressure: as per request
Temperature: up to 180 °C (356 °F)
Movements: vibrations
Pressure: as per request
Temperature: up to 180 °C (356 °F)
Movements: vibrations
Werkstoffe
- Bellows: Various elastomers such as EPDM, EPDM Food Grade, Neoprene, Nitrile, Hypalon, Butyl, Viton.
- Flanges: carbon steel and stainless steel.
-
Other materials are available on request.
Standards und Freigaben
NDT and documentation: Can be provided per customer request e.g. Material Certificates and NDT test reports.
Empfohlene Anwendungen
- Pumps
- Chemical transport lines
- Water transport
- Pulp and paper industry
