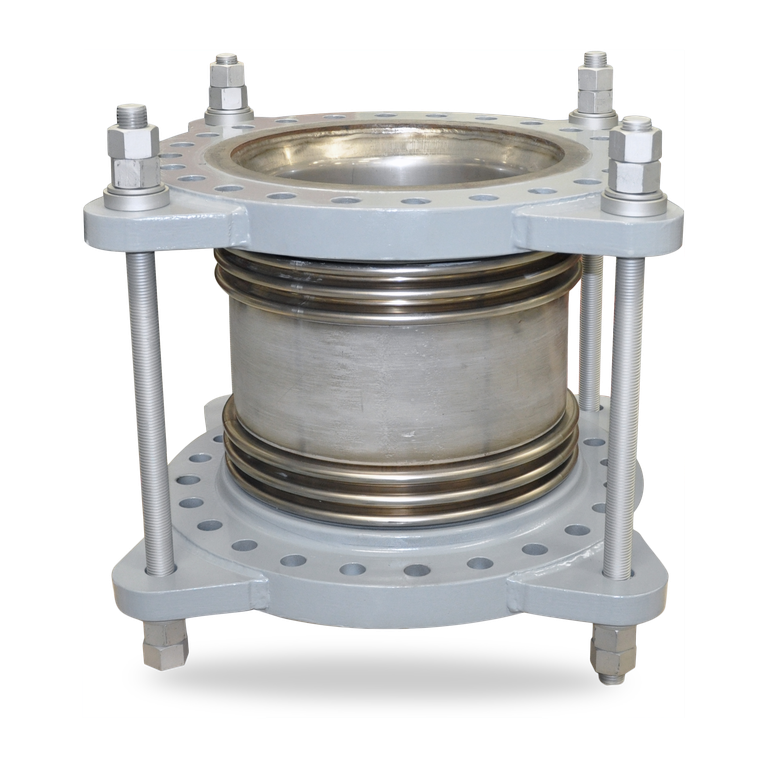

UN Type
expansion joints
UN Type
expansion joints

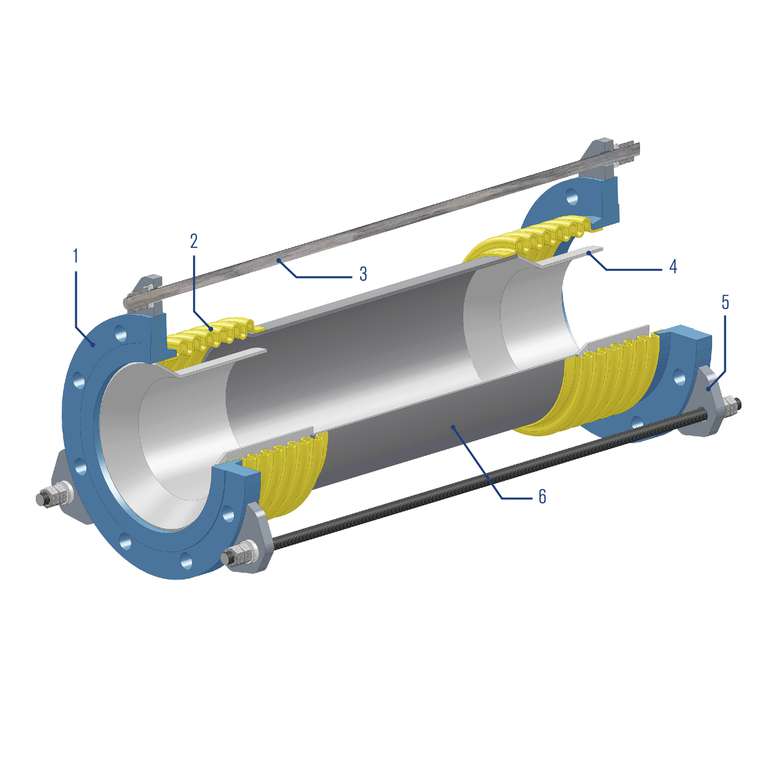

| Item | Description |
| 1 | Flange |
| 2 | Bellows |
| 3 | Tie rod |
| 4 | Internal liner |
| 5 | Lug |
| 6 | Center spool |
UN Type
expansion joints
Merkmale
- (Tied) custom metal expansion joints for general pressure applications.
- Designed to cover the mid temperature and pressure range for general process equipment.
- Suited for combined and multiple types of movements.
- Tied metal expansion joints retain pressure thrust developed by internal pressure, through the use of hardware.
- Multiply bellows with low spring rate and high cycle life.
Vorteile
- Covers many applications
- UN Types does not require anchor points being designed for obtaining pressure thrust, due to the installed hardware.
- Highly customizable design: Bellows geometry, Material options and combinations.
Werkstoffe
- Bellows: 1.4541 (AISI 321); 1.4301 (AISI 304); 1.4306 (AISI 304L); 1.4401 (AISI 316); 1.4404 (AISI 316L); 1.4571 (AISI 316Ti); 1.4828 (AISI 309); 1.4547 (254 SMO); 2.4816 (Inconel® 600); 2.4856 (Inconel® 625/LCF); 1.4876 (Incoloy® 800/H)
- Connections: 1.0038 – (S235JRG2); 1.0460 – (P250GH); 1.0315 – ; 1.0254 (P235TR1); 1.0425 – (P265GH); 1.5415 – (16Mo3); 1.7335 – (13CrMo4-5); 1.4401 (AISI 316); 1.4404 (AISI 316L);1.4541 (AISI 321)
- Flanges: 1.0038 - S235JRG2; 1.0425 - P265GH; 1.0315 - P235G2TH; 1.0254 (P235TR1); 1.0425 - P265GH; 1.5415 - 16Mo3; 1.7335 – 13CrMo4-5;1.4404 (AISI 316L); 1.4436 (AISI 316)
Other materials are available on request.
Standards und Freigaben
Design code:
EJMA 9, PED 97/23/EC according to: EN 13480, EN 13445, EN 14917, AD2000 and ASME B31.3
NDT and documentation:
According to PED 97/23 EC rules and regulations (declaration of conformity).
Documentation can be provided per customer request e.g.:
- Test, measurement or calculation reports
- Material test or inspection certificates
- Design, type or 3rd party approval
EJMA 9, PED 97/23/EC according to: EN 13480, EN 13445, EN 14917, AD2000 and ASME B31.3
NDT and documentation:
According to PED 97/23 EC rules and regulations (declaration of conformity).
Documentation can be provided per customer request e.g.:
- Test, measurement or calculation reports
- Material test or inspection certificates
- Design, type or 3rd party approval
Empfohlene Anwendungen
- Refining technology
- Oil and gas industry
- Power plant technology
- Pulp and paper industry
- Shipbuilding
- Water and waste water technology
- Gas and steam turbines
- Conventional boilers
- Coal feed transport systems
- Ash transport systems
- Water cooling systems
- Air and steam transport lines
- Compressor / pumping stations
- Lubrication systems
- Storage tanks
Hinweis
Tied metal expansion joints might require alignment guides to ensure the expansion joint only see the intended movements.
Produktvarianten
UN1: Single expansion joints
Expansion joints can be designed with one or two bellows depending on requirements for e.g., movements.
Expansion joints can be designed with one or two bellows depending on requirements for e.g., movements.
UN2: Universal expansion joints
Expansion joints can be designed with one or two bellows depending on requirements for e.g., movements.
Expansion joints can be designed with one or two bellows depending on requirements for e.g., movements.
