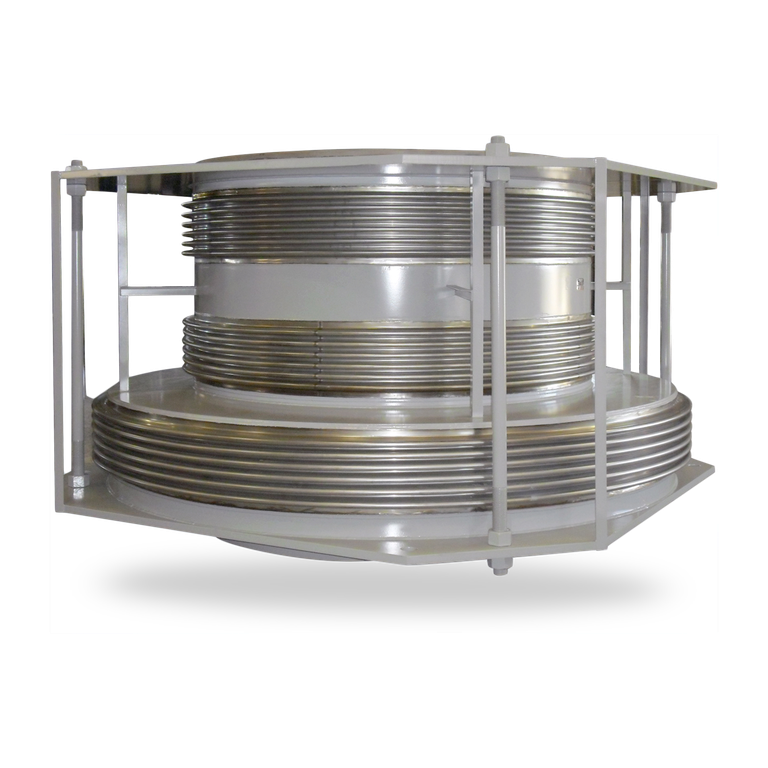

TB Type
expansion joints
TB Type
expansion joints

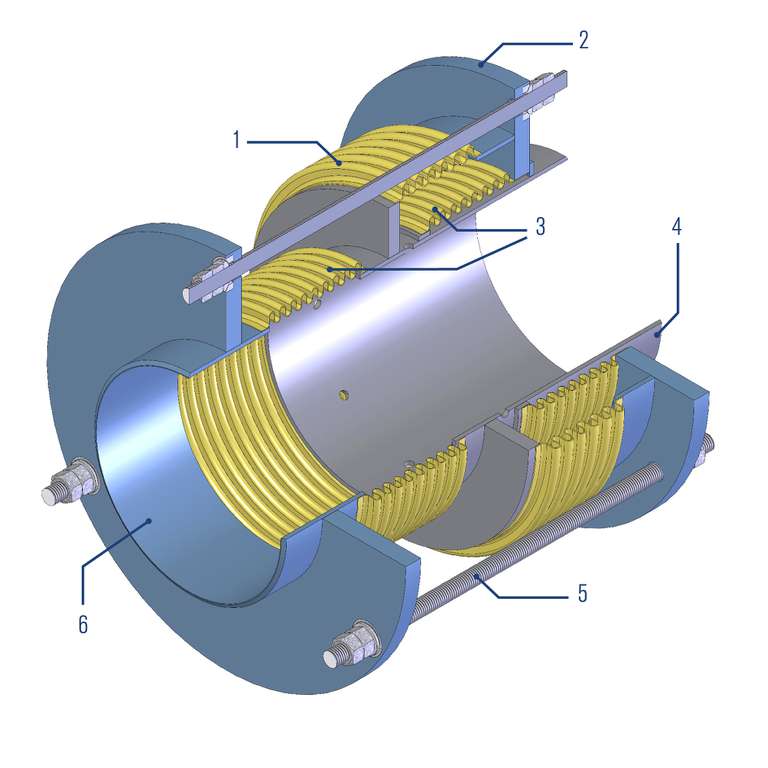

| Item | Description |
| 1 | Balancing bellows |
| 2 | Flange |
| 3 | Line bellows |
| 4 | Inlet / line pipe |
| 5 | Tie rod |
| 6 | Weld end |
TB Type
expansion joints
Merkmale
- In line pressure balanced expansion joints.
- Pressure thrust eliminated by means of force balancing design principle.
- Designed to apply minimum forces onto connecting, load sensitive equipment.
- Mainly for axial and lateral movements.
Vorteile
- No need for main anchors to obtain pressure thrust load.
- Minimum load transferred onto connecting equipment - Not affected by system pressure fluctuations.
- Highly customizable design: Bellows geometry, Material options and combinations.
- Multiply bellows with low spring rate and high cycle life.
Werkstoffe
- Bellows: 1.4541 (AISI 321); 1.4301 (AISI 304); 1.4306 (AISI 304L); 1.4401 (AISI 316); 1.4404 (AISI 316L); 1.4571 (AISI 316Ti); 1.4828 (AISI 309); 1.4547 (254 SMO); 2.4816 (Inconel 600); 2.4856 (Inconel 625/LCF); 1.4876 (Incoloy 800/H)
- Connections: 1.0038 – (S235JRG2); 1.0460 – (P250GH); 1.0315 – ; 1.0254 (P235TR1); 1.0425 – (P265GH); 1.5415 – (16Mo3); 1.7335 – (13CrMo4-5);1.4401 (AISI 316); 1.4404 (AISI 316L); 1.4541 (AISI 321)
- Flanges: 1.0038 - S235JRG2; 1.0425 - P265GH; 1.0315 - P235G2TH; 1.0254 (P235TR1); 1.0425 - P265GH; 1.5415 - 16Mo3; 1.7335 – 13CrMo4-5; 1.4404 (AISI 316L); 1.4436 (AISI 316)
Other materials are available on request.
Standards und Freigaben
Design codes:
EJMA 9, PED 97/23/EC acc. to EN 13480, EN 13445, EN 14917, AD2000 and ASME B31.3
NDT and documentation:
According to PED 97/23 EC rules and regulations (declaration of conformity)
Documentation can be provided per customer request e.g.:
- Test, measurement or calculation reports
- Material, test or inspection certificates
- Design, type or 3rd party approval
EJMA 9, PED 97/23/EC acc. to EN 13480, EN 13445, EN 14917, AD2000 and ASME B31.3
NDT and documentation:
According to PED 97/23 EC rules and regulations (declaration of conformity)
Documentation can be provided per customer request e.g.:
- Test, measurement or calculation reports
- Material, test or inspection certificates
- Design, type or 3rd party approval
Empfohlene Anwendungen
- Oil and gas industry
- Refining technology
- Power plant technology
- Pulp and paper industry
- Metal production and processing
- Shipbuilding
- Water and waste water technology
- Steam turbines
- Water cooling systems
- Steam transport lines
- Compressor / pumping stations
- Lubrication systems
- Storage tanks
Hinweis
Tied metal expansion joints might require alignment guides to ensure the expansion joint only see the intended movements.
Produktvarianten

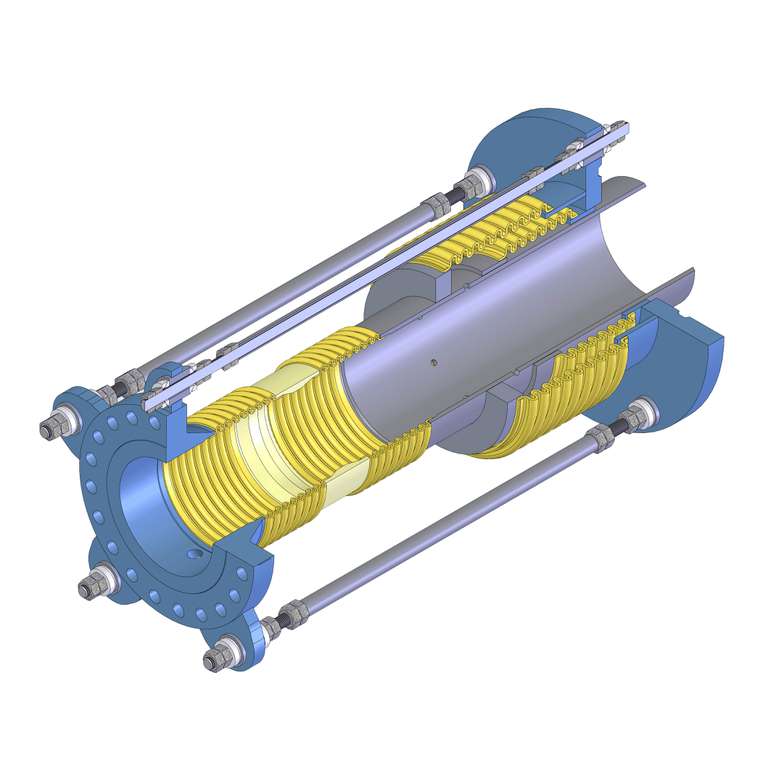

TB1: Inline pressure balanced (3 bellows)
Equipped with min. 3 bellows, internally pressurized.
Mainly intended for axial movement.
Shown with flanges.
Equipped with min. 3 bellows, internally pressurized.
Mainly intended for axial movement.
Shown with flanges.

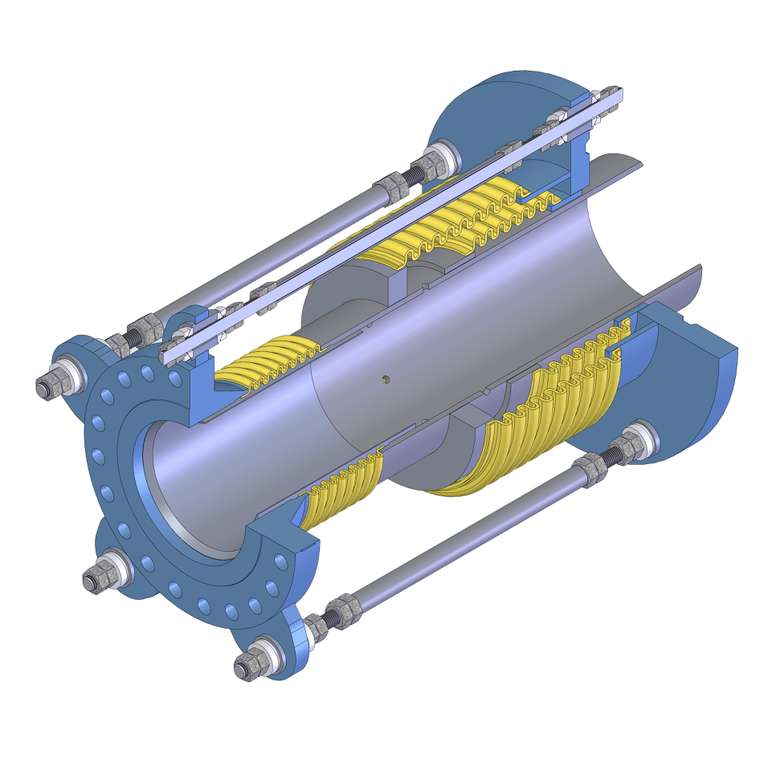

TB3: Inline pressure balanced (4 bellows)
Equipped with min. 4 bellows, internally pressurized.
Intended for axial and lateral movements.
Shown with flanges.
Equipped with min. 4 bellows, internally pressurized.
Intended for axial and lateral movements.
Shown with flanges.

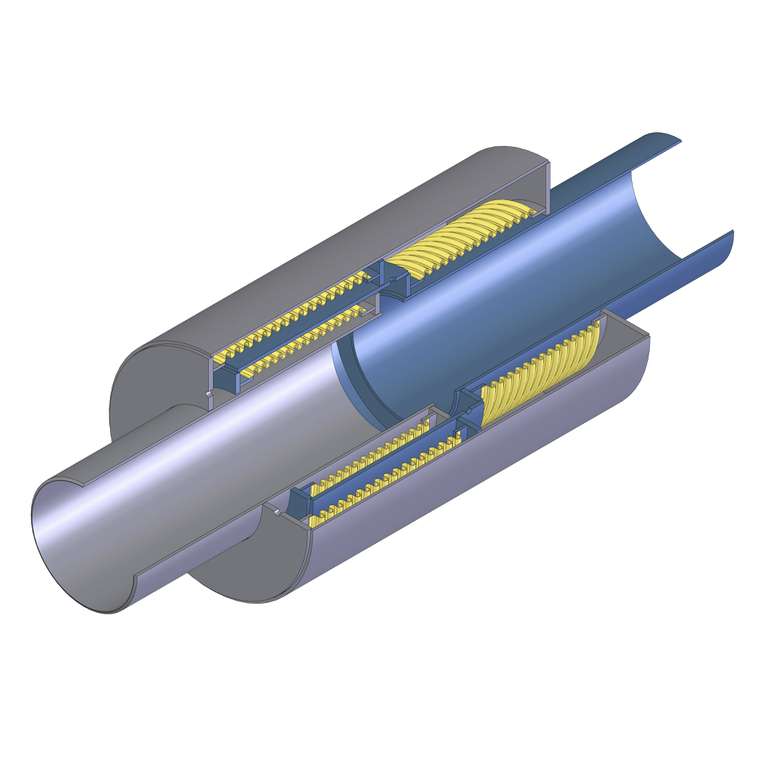

TB4: Inline pressure balanced, externally pressurized
Equipped with min. 3 bellows, externally pressurized.
Intended for large axial movements.
Shown with weld ends.
Equipped with min. 3 bellows, externally pressurized.
Intended for large axial movements.
Shown with weld ends.
