Installation, details, options

For a larger view, please mouseover the image.

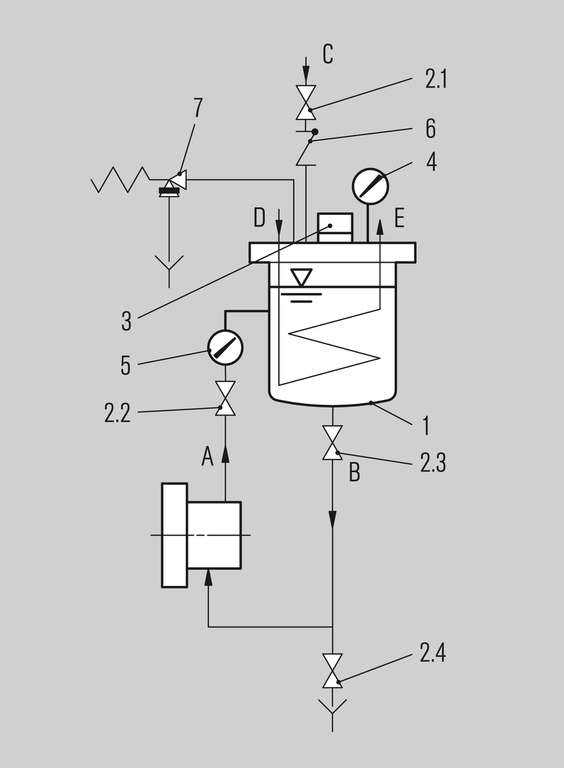

Operating and installation diagram for a TS3000 system.

The TS vessel must always be installed higher than the mechanical seal. The buffer/barrier fluid flows via the return pipe into the vessel and is cooled. The exchange of fluid takes place by the thermosiphon principle or by forced circulation, e.g. with a pumping screw. Connection pipes to the seal should be designed with as little resistance as possible.

Sterilization: CIP and SIP is possible
Making condensate: At the end of the sterilization cycle, valve 2.4 is closed, valve 2.3 is fully opened and the cooling water supply is switched on again - condensate will be made. The level switch (3) responds when the TS vessel is full. The agitator can be startet up again.
