Packing Cartridge Unit 9984 - Product variants

For a larger view, please mouseover the image.
Item Description
1 Stuffing box housing
2 O-Ring or Statotherm profile ring
3 Gland follower
4 Shaft sleeve
5 Packing set
6 Guide sleeve for spring
7 Lantern ring

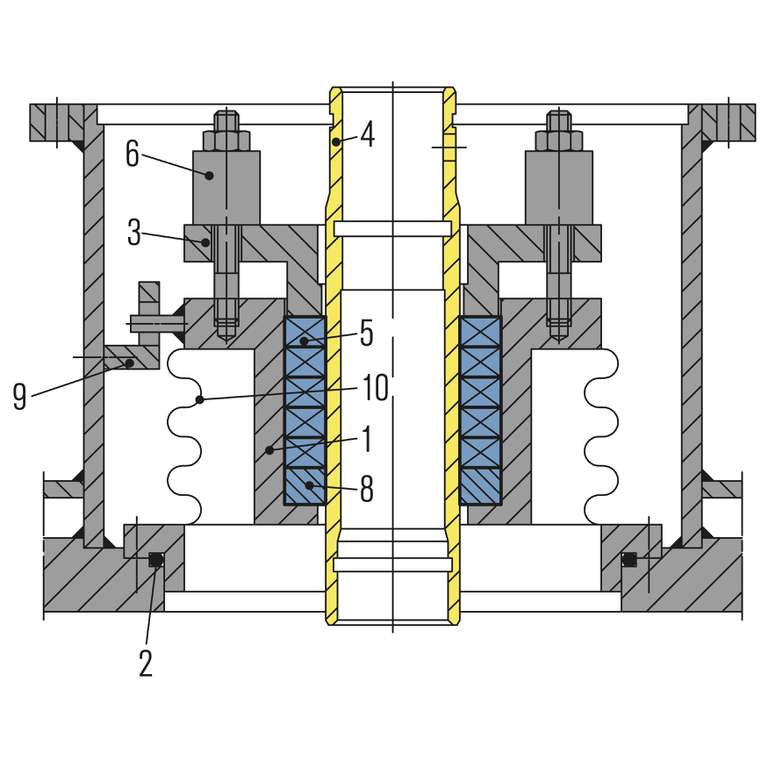

For a larger view, please mouseover the image.
Item Description
1 Stuffing box housing
2 O-Ring or Statotherm profile ring
3 Gland follower
4 Shaft sleeve
5 Packing set
6 Guide sleeve for spring washers
8 Carbon ring
9 Anti-rotation device
10 Containment bellows
{u'ApplicationOperationalArea': '', u'IDProductItem': '2625', u'IDProductInfo': '440', u'StructureLevel': 'Group', u'SealCodes': '', u'OperatingLimits': 'Previously covered operating range:<br/>\n<br/>\nShaft diameter: <br/>d = 6 ... 1,000 mm (1/4" \xe2\x80\xa6 39")<br/>\nPressure: p = vacuum ... 660 bar (9,570 PSI)<br/>\nTemperature: <br/>t = -40 \xc2\xb0C ... +500 \xc2\xb0C (-40 \xc2\xb0F \xe2\x80\xa6 +932 \xc2\xb0F)<br/>\nSliding velocity: vg = max. 20 m/s (66 ft/s)', u'Note': '', u'TechnicalData': 'Packing cartridges combine a simple system structure with a robust construction. They are ideal for absorbing larger axial and radial shaft movements and can be suitable for dry contacting, depending on the conditions of use and packing quality. The choice of packing quality depends on the medium and the operating conditions. EagleBurgmann packing cartridges are used successfully in a range of different industries. The design is based on the operating ranges.', u'Online': 'true', u'DrawingProduct': 'None', u'Level2ProductGroup_Group': 'None', u'ProductDomain': 'None', u'IDProductItemH': '1727', u'Description': 'Your inquiry to Burgmann Industries GmbH & Co. KG', u'TorqueTransmission': '', u'GenerateMeasurement': '', u'InquiryClass': 'ORDER', u'MailRecipient': 'Hubert.Mueller@de.eagleburgmann.com', u'Level1ProductRange_Range': '', u'DrawingInstallation': '', u'Level3ProductSection_Section': '', u'IDInquiryClass': '9', u'RecipientPhone': '+49 (08171) 23-1676', u'SupplySystem': '', u'SeatAlternative': '', u'Language': 'en-US', u'MediaResistance': 'depends on used material', u'DescriptionHeader': '', u'RecipientName': 'Hubert M&uuml;ller', u'Position': '4', u'ApplicationBranch': 'Packing cartridges are ideal for uses requiring a long service life and fast seal replacement, e.g. to reduce stoppages and downtimes.', u'DimensionHeader': '', u'Dimension': '', u'UID': 'ff5bb945b6c6f3ec5d4996d0db193fb4', u'TechnicalDiagram': '', u'Features': '', u'Certification': 'Depends on used material', u'DescriptionText': '', u'ApplicationMedia': '', u'MaterialCombination': '', u'ProductVariant': 'None', u'ProductName': 'Packing Cartridge Unit 9984', u'ArticleNumber': '9984', u'SupplyForm': '<b> Available versions</b> <br/>\n<ul class="SGBulletList">\n<li> Ready-to-fit cartridge unit, connection sizes to DIN EN/ASME standards (agitators)</li>\n<li> Live-loaded system (external disk spring arrangement) with defined surface pressure and visual control</li>\n<li> Available with integrated shaft bearings</li>\n<li> Lubrication or pressurized buffer gas via lantern ring possible. Shaft protection sleeve with chromium oxide coating or hardened to protect against abrasive particles in the medium</li>\n<li> Suitable for large radial shaft deflections if the packing set is arranged \xe2\x80\x9cfloating\xe2\x80\x9d</li>\n</ul>', u'IDSealDrawing': '', u'PageHeader': 'Packing Cartridge Unit 9984', u'DescriptionList': '<ul class="SGBulletList">\n<li>Split gland for easy and fast packing changes</li>\n<li>Particularly fast and easy to install</li>\n</ul>'}
